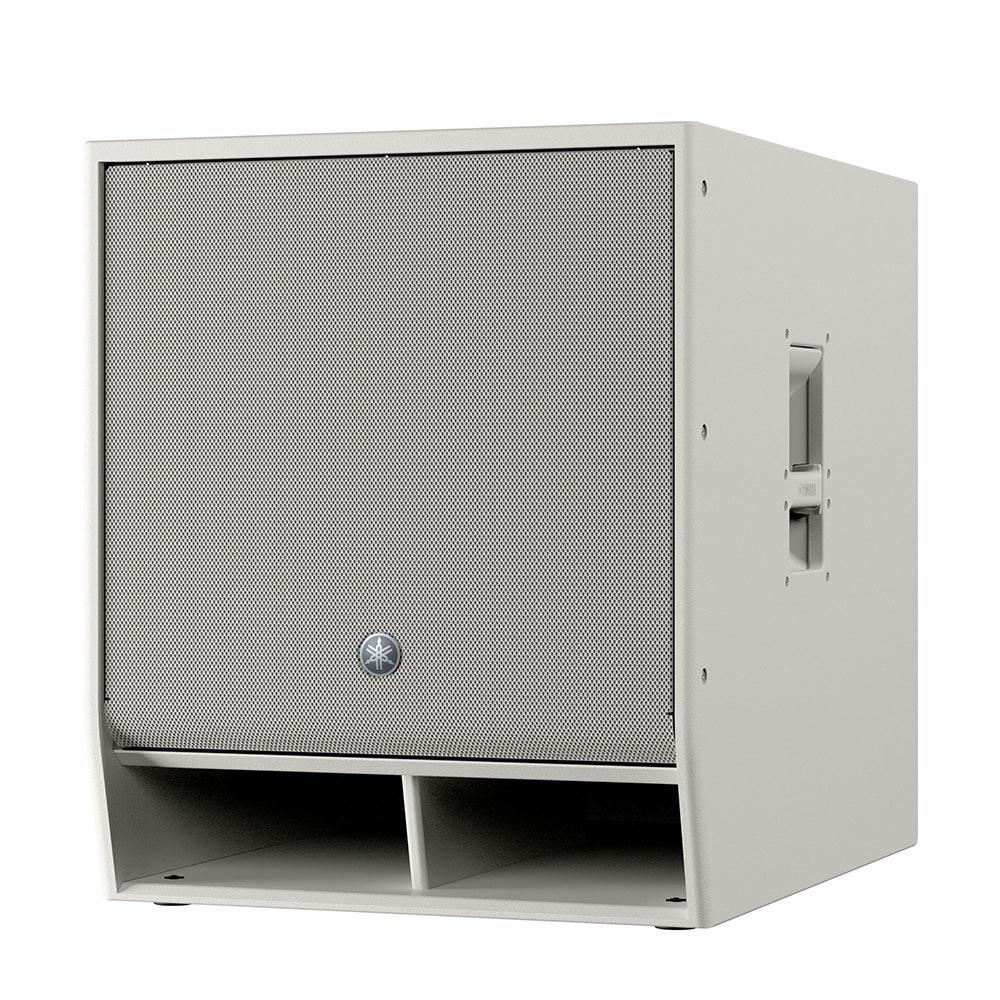

Yamaha DXS18XLF-DW Active 18-Inch PA Subwoofer with Dante (White)


  • Dale #:

    YAMA-DXS18XLFDW
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Perfectly suited for use with DZR full-range speakers, the DXS18XLF is a powered bass-reflex type subwoofer with extended low frequency, producing a best-in class maximum SPL of 136dB SPL with superb clarity and power. Just like the DZR Series, each DXS XLF model comes in a Dante-equipped "D" ve... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Perfectly suited for use with DZR full-range speakers, the DXS18XLF is a powered bass-reflex type subwoofer with extended low frequency, producing a best-in class maximum SPL of 136dB SPL with superb clarity and power.

Just like the DZR Series, each DXS XLF model comes in a Dante-equipped "D" version enabling smart system integration with Yamaha consoles and other Dante devices via the Dante I/O (2in/2out) which also features SRC (sample rate conversion) allowing 48kHz device compatibility. Patching is simplified considerably with Yamaha CL/QL digital mixing consoles from the I/O device display, while TF console users can select Quick Config for surprisingly fast, easy set up and operation of a sophisticated sound reinforcement system. Combining the Analog I/O with Dante I/O opens up countless routing and system configuration options, while the Dante break-IN and break-OUT function can add even more flexibility by acting as a simple I/O box. What's more, Yamaha's customizable control panel software "ProVisionare Control" for windows and "ProVisionare Touch" for iPad are also Dante compatible, adding more simple remote management of your sound reinforcement system.

Features:

  • Powered 18" subwoofer with 4" Voice Coil
  • Maximum 136dB SPL and 30Hz-150Hz frequency range is ideal for today's sound engineering demands
  • High power 1600W Class-D amplifier module
  • 96kHz DSP for true high-definition sound with super low latency
  • Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
  • Equipped with D-XSUB processing and cardioid mode capability
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
  • Optional speaker cover (SPCVR-DXS18X) and wheel kit (SPW-1)

More +

Product Specs

Speaker type Powered Subwoofer, bass-reflex
Frequency range (-10dB) 30Hz - 150Hz
Coverage area -
Components LF 18" Cone, 4" Voice Coil, Ferrite magnet
MF -
HF -
Crossover -
Sampling frequency rate Internal 96kHz and FIR Filter
A/D D/A Converters 96kHz AD/DA
Maximum output level (1m; on axis) 136dB SPL *1
SRC Yes
Power rating Dynamic 1600W *2
Continuous 1230W
I/O Connectors Analog I/O Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT
Digital I/O Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
Others USB2.0 Host 5V 500mA for USB memory DATA storage/load
AC IEC AC inlet x1 (V-Lock)
Amplifier class Class-D
Cooling Fan cooling, Variable speeds
Power consumption 40W (Idle), 180W (1/8)
Handle Aluminium die-cast, Side x2
Rigging -
Dimensions W 550 mm (21.7")
H 657 mm (25.9") (with rubber feet)
D 720 mm (28.3")
Net weight 48.9kg (107.8lbs)
Options Cover: SPCVR-DXS18X, Caster: SPW-1
Others Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black
Floor Monitor Angle -
Pole socket Φ35 mm (depth 80mm), M20 Threaded (depth 25mm)
