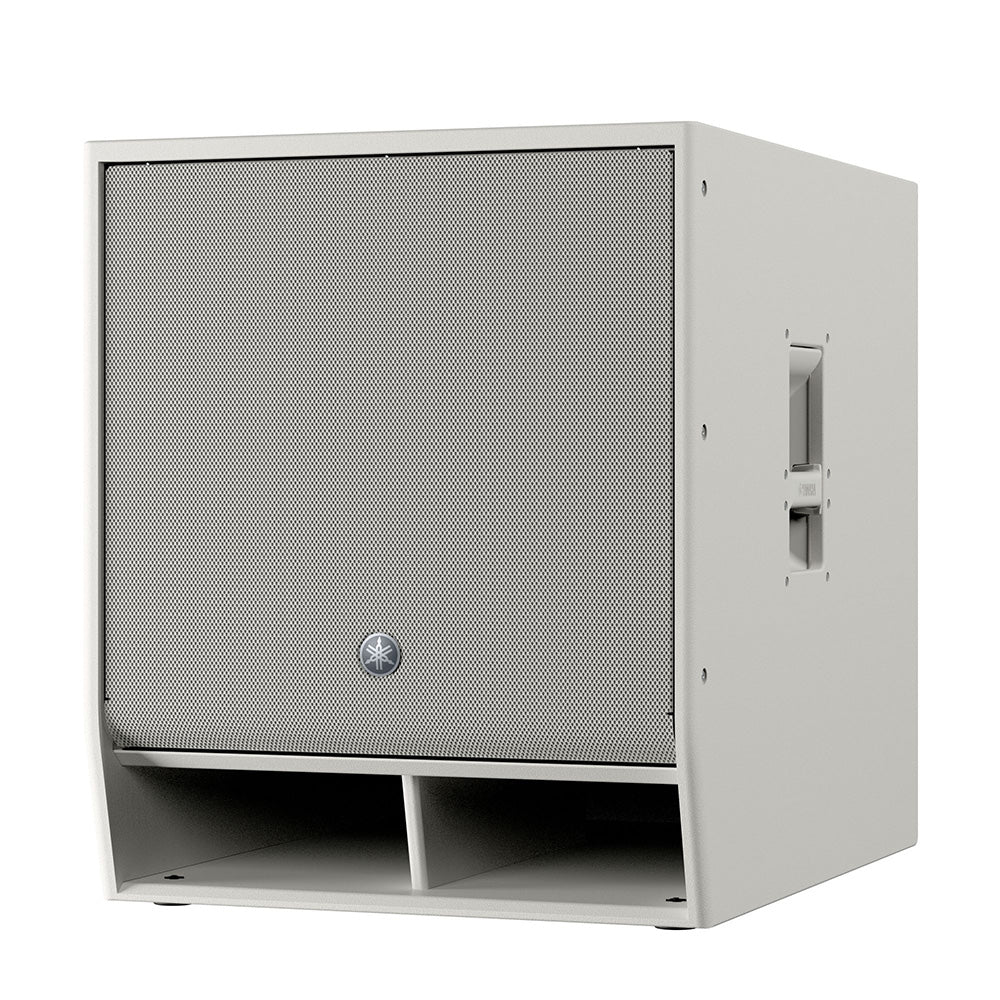

Yamaha DXS18XLFW Active 18-Inch PA Subwoofer (White)


  • Dale #:

    YAMA-DXS18XLFW
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

Perfectly suited for use with DZR full-range speakers, the DXS18XLF is a powered bass-reflex type subwoofer with extended low frequency, producing a best-in class maximum SPL of 136dB SPL with superb clarity and power. Not for the faint of heart, the newest DXS XLF's go deeper than any model bef... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Perfectly suited for use with DZR full-range speakers, the DXS18XLF is a powered bass-reflex type subwoofer with extended low frequency, producing a best-in class maximum SPL of 136dB SPL with superb clarity and power.

Not for the faint of heart, the newest DXS XLF's go deeper than any model before, with an extended low frequency of 30Hz— perfect for professional touring musicians, DJ's, and sound engineers who need that extra-low, thundering bottom end that you just can't get from other subwoofers in this class. Flexible DSP and a bass-reflex cabinet design with a wide, flared port ensure your lower frequencies maintain outstanding clarity and musicality even when the volume is cranked.

Features:

  • Powered 18" subwoofer with 4" Voice Coil
  • Maximum 136dB SPL and 30Hz-150Hz frequency range is ideal for today's sound engineering demands
  • High power 1600W Class-D amplifier module
  • 96kHz DSP for true high-definition sound with super low latency
  • Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
  • Equipped with D-XSUB processing and cardioid mode capability
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
  • Optional speaker cover (SPCVR-DXS18X) and wheel kit (SPW-1)

More +

Product Specs

Speaker type Powered Subwoofer, bass-reflex
Frequency range (-10dB) 30Hz - 150Hz
Coverage area -
Components LF 18" Cone, 4" Voice Coil, Ferrite magnet
MF -
HF -
Crossover -
Sampling frequency rate Internal 96kHz and FIR Filter
A/D D/A Converters 96kHz AD/DA
Maximum output level (1m; on axis) 136dB SPL *1
Power rating Dynamic 1600W *2
Continuous 1230W
I/O Connectors Analog I/O Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT
Others USB2.0 Host 5V 500mA for USB memory DATA storage/load
AC IEC AC inlet x1 (V-Lock)
Amplifier class Class-D
Cooling Fan cooling, Variable speeds
Power consumption 40W (Idle), 180W (1/8)
Handle Aluminium die-cast, Side x2
Rigging -
Dimensions W 550 mm (21.7")
H 657 mm (25.9") (with rubber feet)
D 720 mm (28.3")
Net weight 48.9kg (107.8lbs)
Options Cover: SPCVR-DXS18X, Caster: SPW-1
Others Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black
Floor Monitor Angle -
Pole socket Φ35 mm (depth 80mm), M20 Threaded (depth 25mm)
