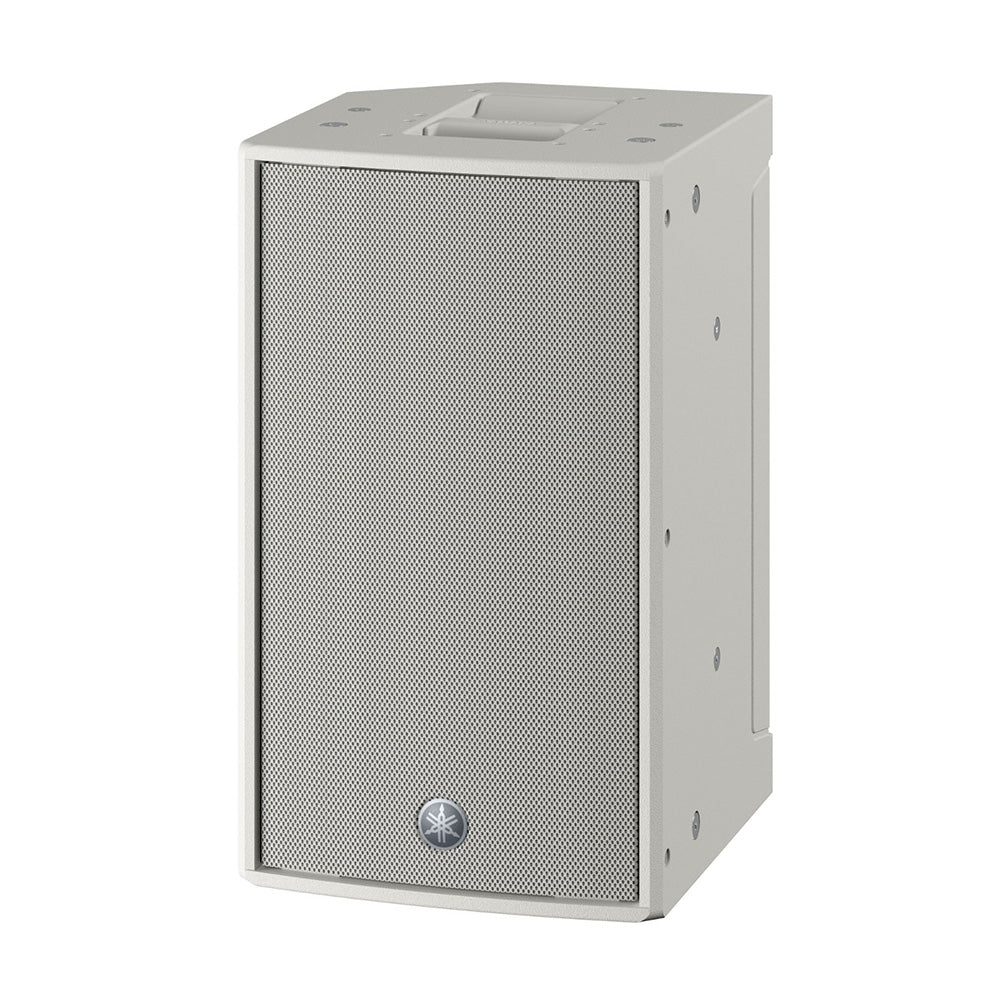

Yamaha DZR10W Active 2-Way 10-Inch Loudspeaker (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The DZR10 is 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive 137dB SPL. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR10 realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.
The culmination of all Yamaha's accrued sound reinforcement, acoustics, and signal processing technology expertise—particularly with the introduction of our Dante-enabled models—DZR represents Yamaha's first fully-integrated, smart/editable speaker range of professional, powered loudspeakers.
Features:
- 2-way powered loudspeaker with a 2" HF and a 10" LF
- Maximum 137dB SPL and 44Hz-20kHz frequency range is ideal for today's audio engineering demands
- High power 2000W Class-D amplifier module
- 96kHz DSP and FIR filter for true high-resolution sound with super low latency
- Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
- D-Contour and highly reliable protection circuits
- Floor monitoring setting
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- Optional speaker cover (SPCVR-DZR10)
- Rotatable horn and variety of U-bracket options (UB-DZR) for rigging allow for very flexible setup and speaker placement
| Speaker type | 2-way, Bi-amped Powered Speaker, Bass-reflex | |
| Frequency range (-10dB) | 44Hz - 20kHz | |
| Coverage area | H90_ x V60_ (Rotatable) | |
| Components | LF | 10" Cone, 3" Voice Coil, Neodymium magnet |
| MF | - | |
| HF | 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet | |
| Crossover | 1.8kHz (FIR-X) | |
| Sampling frequency rate | Internal | 96kHz and FIR Filter |
| A/D D/A Converters | 96kHz AD/DA | |
| Maximum output level (1m; on axis) | 137dB SPL *1 | |
| Power rating | Dynamic | 2000W (LF:1000W, MF/HF: 1000W) *2 |
| Continuous | 1300W (LF: 920W, MF/HF: 380W) | |
| I/O Connectors | Analog I/O | Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20k½, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT |
| Others | USB2.0 Host 5V 500mA for USB memory DATA storage/load | |
| AC | IEC AC inlet x1 (V-Lock) | |
| Amplifier class | Class-D | |
| Cooling | Fan cooling, Variable speeds | |
| Power consumption | 45W (Idle), 150W (1/8) | |
| Handle | Aluminium die-cast, Top x1, Side x1 | |
| Rigging | M10 x8, M8 x2 | |
| Dimensions | W | 315 mm (12.4") |
| H | 537 mm (21.1") (with rubber feet) | |
| D | 345 mm (13.6") | |
| Net weight | 17.9kg (39.5lbs) | |
| Options | U-bracket: UB-DZR10H/V, Cover: SPCVR-DZR10 | |
| Others | Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black | |
| Floor Monitor Angle | 50¡ | |
| Pole socket | _35 mm x2 (0¡ or -7¡) | |
The DZR10 is 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive 137dB SPL. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR10 realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.
The culmination of all Yamaha's accrued sound reinforcement, acoustics, and signal processing technology expertise—particularly with the introduction of our Dante-enabled models—DZR represents Yamaha's first fully-integrated, smart/editable speaker range of professional, powered loudspeakers.
Features:
- 2-way powered loudspeaker with a 2" HF and a 10" LF
- Maximum 137dB SPL and 44Hz-20kHz frequency range is ideal for today's audio engineering demands
- High power 2000W Class-D amplifier module
- 96kHz DSP and FIR filter for true high-resolution sound with super low latency
- Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
- D-Contour and highly reliable protection circuits
- Floor monitoring setting
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- Optional speaker cover (SPCVR-DZR10)
- Rotatable horn and variety of U-bracket options (UB-DZR) for rigging allow for very flexible setup and speaker placement
| Speaker type | 2-way, Bi-amped Powered Speaker, Bass-reflex | |
| Frequency range (-10dB) | 44Hz - 20kHz | |
| Coverage area | H90_ x V60_ (Rotatable) | |
| Components | LF | 10" Cone, 3" Voice Coil, Neodymium magnet |
| MF | - | |
| HF | 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet | |
| Crossover | 1.8kHz (FIR-X) | |
| Sampling frequency rate | Internal | 96kHz and FIR Filter |
| A/D D/A Converters | 96kHz AD/DA | |
| Maximum output level (1m; on axis) | 137dB SPL *1 | |
| Power rating | Dynamic | 2000W (LF:1000W, MF/HF: 1000W) *2 |
| Continuous | 1300W (LF: 920W, MF/HF: 380W) | |
| I/O Connectors | Analog I/O | Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20k½, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT |
| Others | USB2.0 Host 5V 500mA for USB memory DATA storage/load | |
| AC | IEC AC inlet x1 (V-Lock) | |
| Amplifier class | Class-D | |
| Cooling | Fan cooling, Variable speeds | |
| Power consumption | 45W (Idle), 150W (1/8) | |
| Handle | Aluminium die-cast, Top x1, Side x1 | |
| Rigging | M10 x8, M8 x2 | |
| Dimensions | W | 315 mm (12.4") |
| H | 537 mm (21.1") (with rubber feet) | |
| D | 345 mm (13.6") | |
| Net weight | 17.9kg (39.5lbs) | |
| Options | U-bracket: UB-DZR10H/V, Cover: SPCVR-DZR10 | |
| Others | Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black | |
| Floor Monitor Angle | 50¡ | |
| Pole socket | _35 mm x2 (0¡ or -7¡) | |
