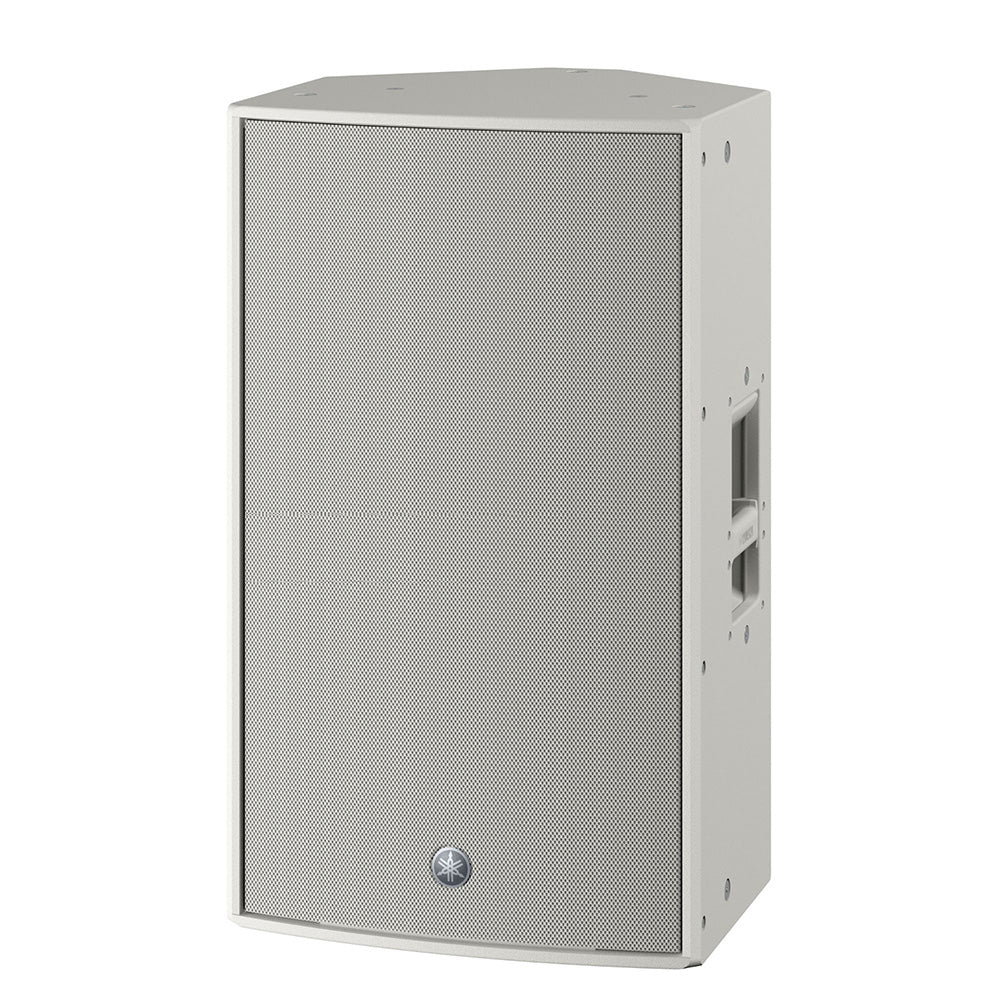

Yamaha DZR15-DW Active 2-Way 15-Inch Loudspeaker with Dante (White)


  • Dale #:

    YAMA-DZR15DW
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The DZR15-D is a Dante-equipped 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive maximum SPL of 139dB. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR15-D realizes a truly professional sound de... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The DZR15-D is a Dante-equipped 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive maximum SPL of 139dB. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR15-D realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.

All DZR speakers and DXS XLF subwoofers come in Dante-equipped "D" models enabling smart system integration with Yamaha consoles and other Dante devices via the Dante I/O (2in/2out) which also features SRC (sample rate conversion) allowing 48kHz device compatibility.

Patching is simplified considerably with Yamaha CL/QL digital mixing consoles from the I/O device display, while TF console users can select Quick Config for surprisingly fast, easy set up and operation of a sophisticated sound reinforcement system. Combining the Analog I/O with Dante I/O, opens up flexible routing and system configuration options, while the Dante break-IN and break-OUT function add even more flexibility by acting as a simple I/O box.*

What's more, Yamaha's customizable control panel software "ProVisionare Control" for windows and "ProVisionare Touch" for iPad are also Dante compatible, adding more simple remote management of your sound reinforcement system.

Features:

  • 2-way powered loudspeaker with a 2" HF and a 15" LF
  • Maximum 139dB SPL and 34Hz-20kHz frequency range is ideal for today's professional audio demands
  • High power 2000W Class-D amplifier module
  • 96kHz DSP and FIR filter for true high-resolution sound with super low latency
  • Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
  • Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
  • Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
  • D-Contour and highly reliable protection circuits
  • Floor monitoring setting enables mirroring configuration
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
  • Optional speaker cover (SPCVR-DZR15)
  • Rotatable horn and variety of U-bracket options (UB-DZR) for rigging allow for very flexible setup and speaker placement

More +

Product Specs

Speaker type 2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency range (-10dB) 34Hz - 20kHz
Coverage area H90゚ x V50゚ (Rotatable)
Components LF 15" Cone, 3" Voice Coil, Neodymium magnet
MF -
HF 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover 1.7kHz (FIR-X)
Sampling frequency rate Internal 96kHz and FIR Filter
A/D D/A Converters 96kHz AD/DA
Maximum output level (1m; on axis) 139dB SPL *1
SRC Yes
Power rating Dynamic 2000W (LF:1000W, MF/HF: 1000W) *2
Continuous 1300W (LF: 920W, MF/HF: 380W)
I/O Connectors Analog I/O Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
Digital I/O Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
Others USB2.0 Host 5V 500mA for USB memory DATA storage/load
AC IEC AC inlet x1 (V-Lock)
Amplifier class Class-D
Cooling Fan cooling, Variable speeds
Power consumption 45W (Idle), 150W (1/8)
Handle Aluminium die-cast, Side x2
Rigging M10 x12
Dimensions W 450 mm (17.7")
H 761 mm (30.0") (with rubber feet)
D 460 mm (18.1")
Net weight 25.2kg (55.6lbs)
Options U-bracket: UB-DZR15H/V, Cover: SPCVR-DZR15
Others Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black
Floor Monitor Angle 50° Symmetrical
Pole socket Φ35 mm x2 (0° or -7°)

More +
