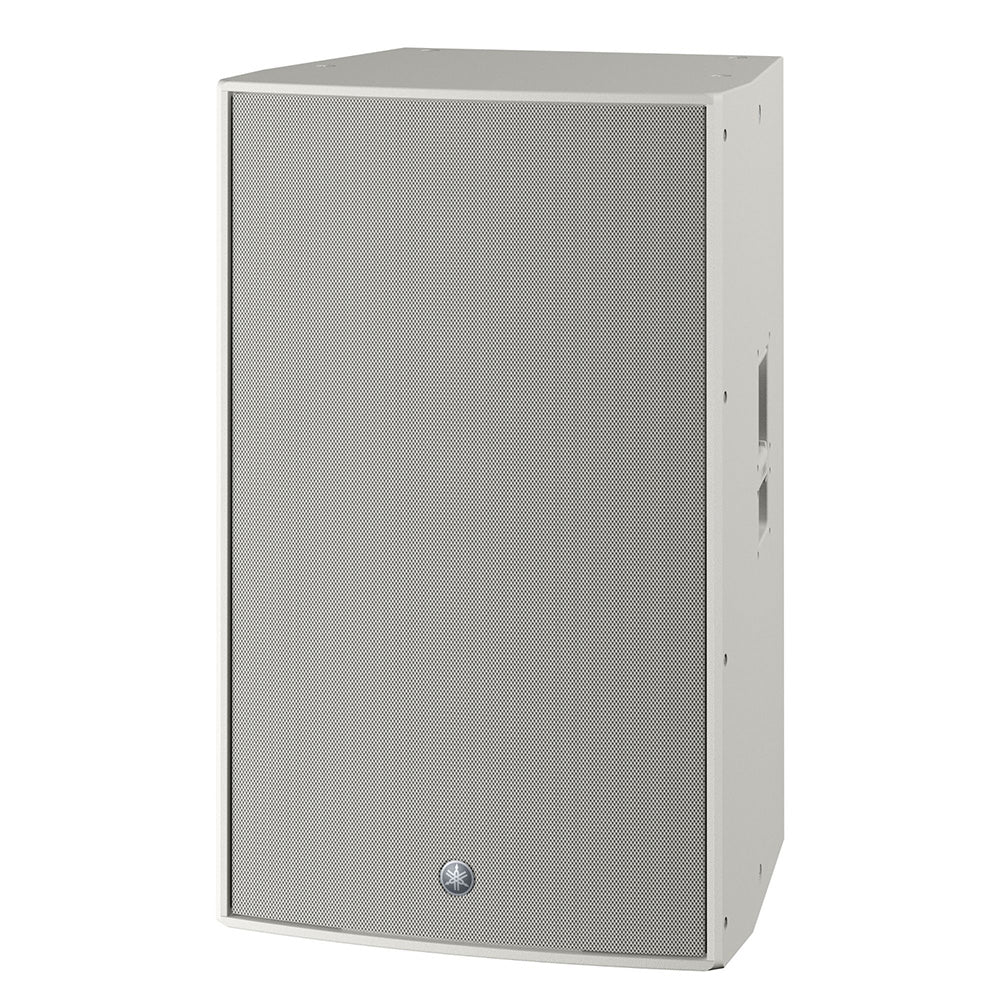

Yamaha DZR315-DW Active 3-Way 15-Inch Loudspeaker with Dante (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The DZR315-D is a Dante-equipped three-way bi-amped powered loudspeaker and is the most powerful model in the DZR Series producing a maximum 143dB SPL with supreme clarity. Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency sound reproduction—the DZR315 delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design. Ideal for use in a front of house main PA, it also includes integrated M10 rigging points for suspended applications.
All DZR speakers and DXS XLF subwoofers come in Dante-equipped "D" models enabling smart system integration with Yamaha consoles and other Dante devices via the Dante I/O (2in/2out) which also features SRC (sample rate conversion) allowing 48kHz device compatibility.
Patching is simplified considerably with Yamaha CL/QL digital mixing consoles from the I/O device display, while TF console users can select Quick Config for surprisingly fast, easy set up and operation of a sophisticated sound reinforcement system. Combining the Analog I/O with Dante I/O, opens up flexible routing and system configuration options, while the Dante break-IN and break-OUT function add even more flexibility by acting as a simple I/O box.*
What's more, Yamaha's customizable control panel software "ProVisionare Control" for windows and "ProVisionare Touch" for iPad are also Dante compatible, adding more simple remote management of your sound reinforcement system.
Features:
- 3-way powered loudspeaker with a 2" HF, an 8 " MF and a 15" LF
- Maximum 143dB SPL and 31Hz-20kHz frequency range is ideal for FOH main PA
- High power 2000W Class-D amplifier module
- 96kHz DSP and FIR filter for true high-resolution sound with super low latency
- Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
- Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
- D-Contour and highly reliable protection circuits
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- Optional speaker cover (SPCVR-DZR315)
| Speaker type | 3-way, Bi-ampled Powered Speaker, Bass-reflex | |
| Frequency range (-10dB) | 31Hz - 20kHz | |
| Coverage area | H75_ x V50_ | |
| Components | LF | 15" Cone, 3" Voice Coil, Neodymium magnet |
| MF | 8" Cone, 1.5" Voice Coil, Ferrite magnet | |
| HF | 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet | |
| Crossover | 700Hz (FIR-X), 2.5kHz (Passive) | |
| Sampling frequency rate | Internal | 96kHz and FIR Filter |
| A/D D/A Converters | 96kHz AD/DA | |
| Maximum output level (1m; on axis) | 143dB SPL *1 | |
| SRC | Yes | |
| Power rating | Dynamic | 2000W (LF:1000W, MF/HF: 1000W) *2 |
| Continuous | 1300W (LF: 920W, MF/HF: 380W) | |
| I/O Connectors | Analog I/O | Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20k½, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT |
| Digital I/O | Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T | |
| Others | USB2.0 Host 5V 500mA for USB memory DATA storage/load | |
| AC | IEC AC inlet x1 (V-Lock) | |
| Amplifier class | Class-D | |
| Cooling | Fan cooling, Variable speeds | |
| Power consumption | 45W (Idle), 150W (1/8) | |
| Handle | Aluminium die-cast, Side x2 | |
| Rigging | M10 x16 | |
| Dimensions | W | 550 mm (21.6") |
| H | 897 mm (35.3") (with rubber feet) | |
| D | 520 mm (20.5") | |
| Net weight | 41.6kg (91.7lbs) | |
| Options | Cover: SPCVR-DZR315 | |
| Others | Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black | |
| Floor Monitor Angle | - | |
| Pole socket | - | |
The DZR315-D is a Dante-equipped three-way bi-amped powered loudspeaker and is the most powerful model in the DZR Series producing a maximum 143dB SPL with supreme clarity. Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency sound reproduction—the DZR315 delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design. Ideal for use in a front of house main PA, it also includes integrated M10 rigging points for suspended applications.
All DZR speakers and DXS XLF subwoofers come in Dante-equipped "D" models enabling smart system integration with Yamaha consoles and other Dante devices via the Dante I/O (2in/2out) which also features SRC (sample rate conversion) allowing 48kHz device compatibility.
Patching is simplified considerably with Yamaha CL/QL digital mixing consoles from the I/O device display, while TF console users can select Quick Config for surprisingly fast, easy set up and operation of a sophisticated sound reinforcement system. Combining the Analog I/O with Dante I/O, opens up flexible routing and system configuration options, while the Dante break-IN and break-OUT function add even more flexibility by acting as a simple I/O box.*
What's more, Yamaha's customizable control panel software "ProVisionare Control" for windows and "ProVisionare Touch" for iPad are also Dante compatible, adding more simple remote management of your sound reinforcement system.
Features:
- 3-way powered loudspeaker with a 2" HF, an 8 " MF and a 15" LF
- Maximum 143dB SPL and 31Hz-20kHz frequency range is ideal for FOH main PA
- High power 2000W Class-D amplifier module
- 96kHz DSP and FIR filter for true high-resolution sound with super low latency
- Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
- Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
- D-Contour and highly reliable protection circuits
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- Optional speaker cover (SPCVR-DZR315)
| Speaker type | 3-way, Bi-ampled Powered Speaker, Bass-reflex | |
| Frequency range (-10dB) | 31Hz - 20kHz | |
| Coverage area | H75_ x V50_ | |
| Components | LF | 15" Cone, 3" Voice Coil, Neodymium magnet |
| MF | 8" Cone, 1.5" Voice Coil, Ferrite magnet | |
| HF | 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet | |
| Crossover | 700Hz (FIR-X), 2.5kHz (Passive) | |
| Sampling frequency rate | Internal | 96kHz and FIR Filter |
| A/D D/A Converters | 96kHz AD/DA | |
| Maximum output level (1m; on axis) | 143dB SPL *1 | |
| SRC | Yes | |
| Power rating | Dynamic | 2000W (LF:1000W, MF/HF: 1000W) *2 |
| Continuous | 1300W (LF: 920W, MF/HF: 380W) | |
| I/O Connectors | Analog I/O | Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20k½, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT |
| Digital I/O | Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T | |
| Others | USB2.0 Host 5V 500mA for USB memory DATA storage/load | |
| AC | IEC AC inlet x1 (V-Lock) | |
| Amplifier class | Class-D | |
| Cooling | Fan cooling, Variable speeds | |
| Power consumption | 45W (Idle), 150W (1/8) | |
| Handle | Aluminium die-cast, Side x2 | |
| Rigging | M10 x16 | |
| Dimensions | W | 550 mm (21.6") |
| H | 897 mm (35.3") (with rubber feet) | |
| D | 520 mm (20.5") | |
| Net weight | 41.6kg (91.7lbs) | |
| Options | Cover: SPCVR-DZR315 | |
| Others | Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black | |
| Floor Monitor Angle | - | |
| Pole socket | - | |
