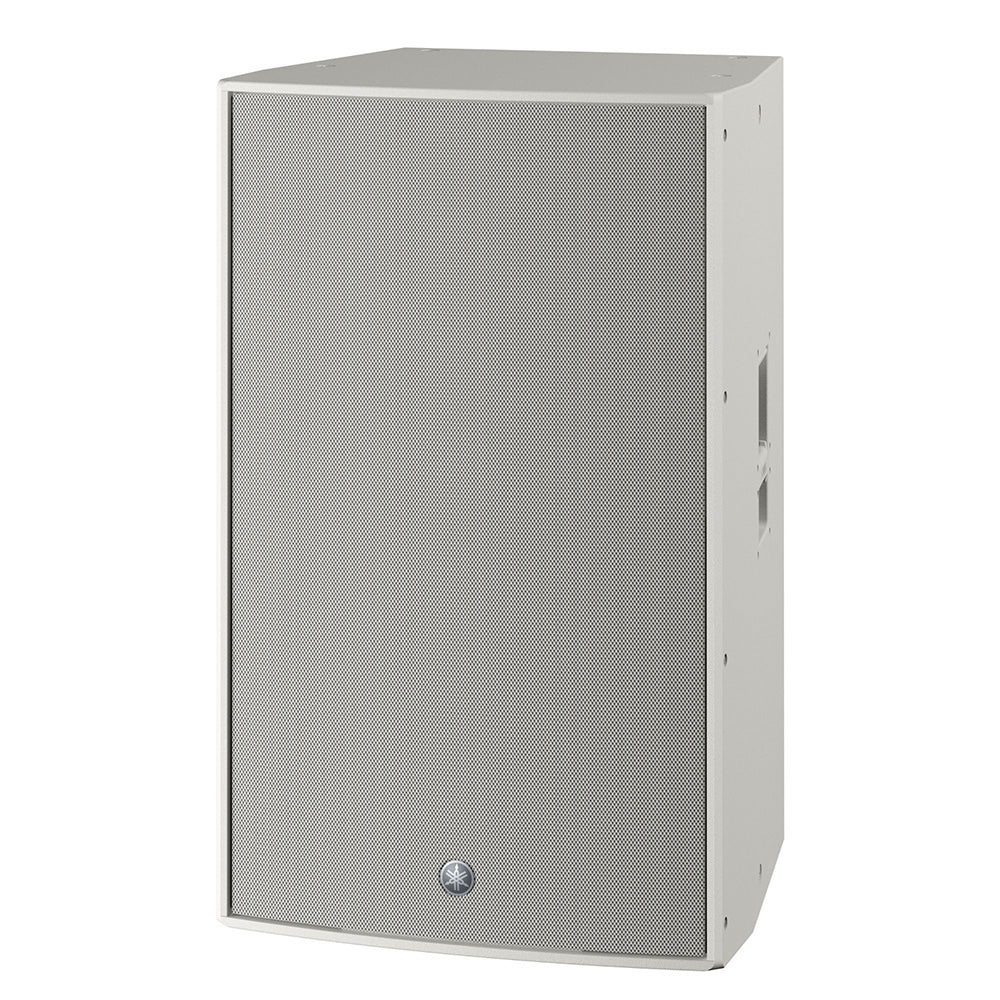

Yamaha DZR315W Active 3-Way 15-Inch Loudspeaker (White)


  • Dale #:

    YAMA-DZR315W
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The DZR315 is 3-way bi-amped powered loudspeaker and is the most powerful model in the DZR Series producing a maximum 143dB SPL with supreme clarity. Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency sound reproduction—the DZR315 delivers on all fronts realizing... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The DZR315 is 3-way bi-amped powered loudspeaker and is the most powerful model in the DZR Series producing a maximum 143dB SPL with supreme clarity. Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency sound reproduction—the DZR315 delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design. Ideal for use in a front of house main PA, it also includes integrated M10 rigging points for suspended applications.

Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency bass sound reproduction— the new DZR delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design.

Features:

  • 3-way powered loudspeaker with a 2" HF, an 8 " MF and a 15" LF
  • Maximum 143dB SPL and 31Hz-20kHz frequency range is ideal for FOH main PA
  • High power 2000W Class-D amplifier module
  • 96kHz DSP and FIR filter for true high-resolution sound with super low latency
  • Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
  • Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
  • D-Contour and highly reliable protection circuits
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
  • Optional speaker cover (SPCVR-DZR315)

More +

Product Specs

Speaker type 3-way, Bi-ampled Powered Speaker, Bass-reflex
Frequency range (-10dB) 31Hz - 20kHz
Coverage area H75゚ x V50゚
Components LF 15" Cone, 3" Voice Coil, Neodymium magnet
MF 8" Cone, 1.5" Voice Coil, Ferrite magnet
HF 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover 700Hz (FIR-X), 2.5kHz (Passive)
Sampling frequency rate Internal 96kHz and FIR Filter
A/D D/A Converters 96kHz AD/DA
Maximum output level (1m; on axis) 143dB SPL *1
Power rating Dynamic 2000W (LF:1000W, MF/HF: 1000W) *2
Continuous 1300W (LF: 920W, MF/HF: 380W)
I/O Connectors Analog I/O Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
Others USB2.0 Host 5V 500mA for USB memory DATA storage/load
AC IEC AC inlet x1 (V-Lock)
Amplifier class Class-D
Cooling Fan cooling, Variable speeds
Power consumption 45W (Idle), 150W (1/8)
Handle Aluminium die-cast, Side x2
Rigging M10 x16
Dimensions W 550 mm (21.6")
H 897 mm (35.3") (with rubber feet)
D 520 mm (20.5")
Net weight 41.6kg (91.7lbs)
Options Cover: SPCVR-DZR315
Others Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black
Floor Monitor Angle -
Pole socket -
