Description

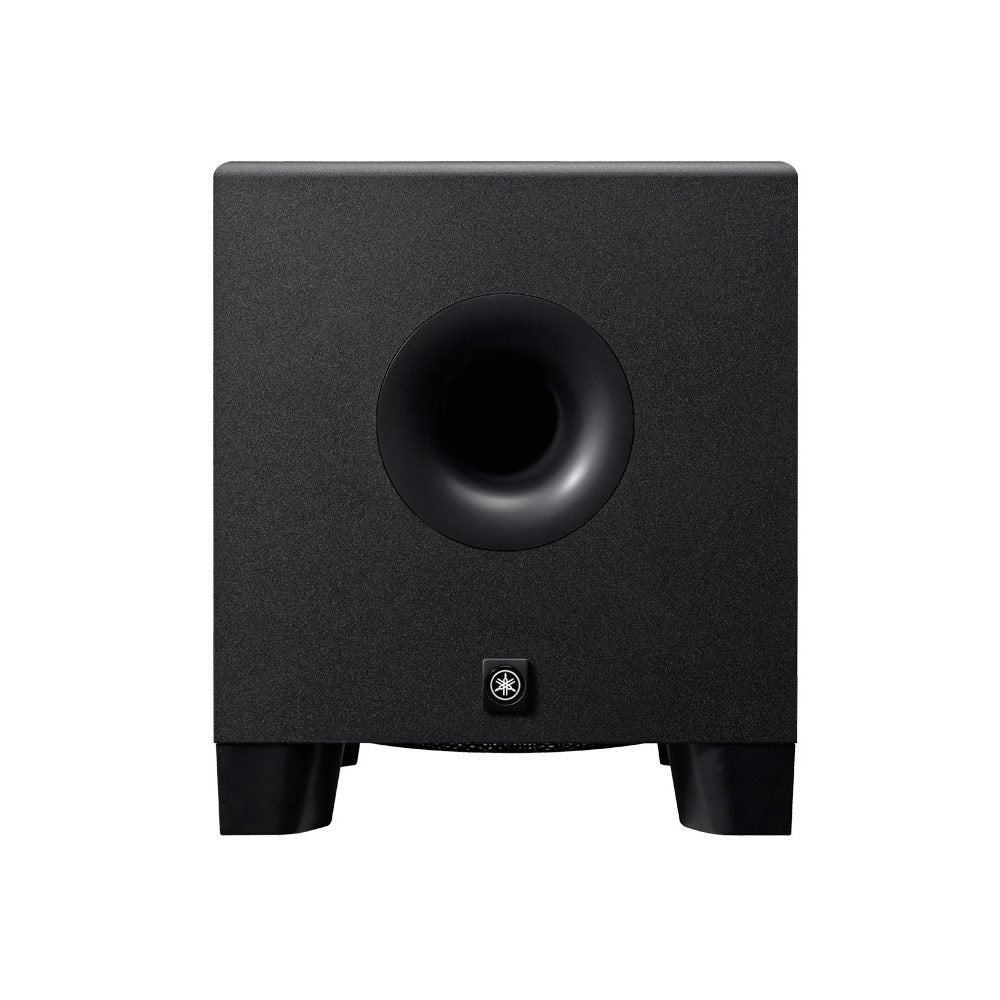

The HS8S is a 8 bass-reflex powered subwoofer delivers low frequencies down to 22Hz. It is designed to fully complement the HS Series monitors.
Features:
- 8 bass-reflex powered subwoofer delivers low frequencies down to 22Hz
- 22Hz - 150Hz frequency response
- High-power 150W amplifier exclusively designed for low frequencies
- LOW CUT switch, LOW CUT control (80-120Hz) HIGH CUT control (80-120 Hz)
- PHASE switch allow users to set up a subwoofer system with simple connections and no additional equipment
- XLR and TRS phone for outputs and XLR for L and R and EXT SUB
Speaker type | Powered subwoofer | |
Frequency range (-10dB) | 22Hz - 160Hz | |
Components | LF | 8 cone |
Output power | 150W | |
I/O connectors | INPUT: XLR3-31 type (balanced) x2, PHONE (balanced) x2 / OUTPUT: XLR3-32 type (balanced) x2 (L&R), XLR3-32 type (balanced) x1 (EXT SUB) | |
Power consumption | 70W | |
Shape | Bass-reflex type | |
Cabinet material | MDF | |
Dimensions | W | 300mm (11.8) |
H | 350mm (13.8) | |
D | 389mm (15.3) | |
Net weight | 12.5kg (27.6 lbs.) | |
Others | LEVEL control, PHASE switch : NORM./REV., HIGH CUT control (80-120Hz, center click), LOW CUT control (80-120Hz, center click), LOW CUT switch (ON/OFF) |
The HS8S is a 8 bass-reflex powered subwoofer delivers low frequencies down to 22Hz. It is designed to fully complement the HS Series monitors.
Features:
- 8 bass-reflex powered subwoofer delivers low frequencies down to 22Hz
- 22Hz - 150Hz frequency response
- High-power 150W amplifier exclusively designed for low frequencies
- LOW CUT switch, LOW CUT control (80-120Hz) HIGH CUT control (80-120 Hz)
- PHASE switch allow users to set up a subwoofer system with simple connections and no additional equipment
- XLR and TRS phone for outputs and XLR for L and R and EXT SUB
Speaker type | Powered subwoofer | |
Frequency range (-10dB) | 22Hz - 160Hz | |
Components | LF | 8 cone |
Output power | 150W | |
I/O connectors | INPUT: XLR3-31 type (balanced) x2, PHONE (balanced) x2 / OUTPUT: XLR3-32 type (balanced) x2 (L&R), XLR3-32 type (balanced) x1 (EXT SUB) | |
Power consumption | 70W | |
Shape | Bass-reflex type | |
Cabinet material | MDF | |
Dimensions | W | 300mm (11.8) |
H | 350mm (13.8) | |
D | 389mm (15.3) | |
Net weight | 12.5kg (27.6 lbs.) | |
Others | LEVEL control, PHASE switch : NORM./REV., HIGH CUT control (80-120Hz, center click), LOW CUT control (80-120Hz, center click), LOW CUT switch (ON/OFF) |
