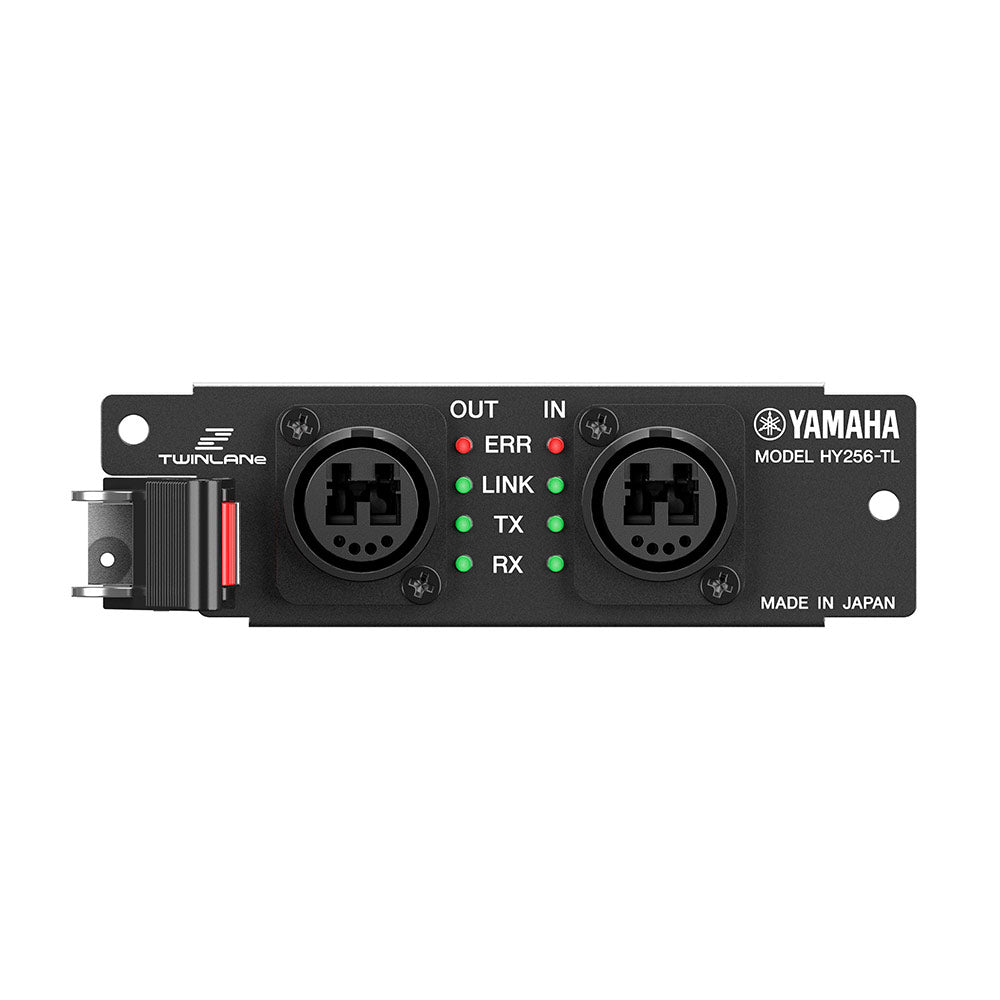

Yamaha HY256-TL - 256-Channel TWINLANe Interface Card for Rivage Series
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The HY256-TL is a digital I/O card that supports TWINLANe audio network protocol. Up to 256 simultaneous input and output channels at 96 kHz/32 bits are available, and multi-mode fiber connections ensure reliable operation. Data can be reliably transferred between cards over distances of up to 300 meters.
Features:
- Can send/receive uncompressed digital audio signals of 32-bit 96 kHz quality, with a maximum of 256 inputs/256 outputs.
- Redundant connections are supported with ring topology.
- Indicators show communication status useful for troubleshooting.
- Recommended cable: Neutrik opticalCON DUO multi-mode fiber
- Dimensions (WxHxD): 125 x 37 x 207mm (4.9" x 1.5" x 8.2")
- Net Weight: 0.25 kg (0.6 lbs)
The HY256-TL is a digital I/O card that supports TWINLANe audio network protocol. Up to 256 simultaneous input and output channels at 96 kHz/32 bits are available, and multi-mode fiber connections ensure reliable operation. Data can be reliably transferred between cards over distances of up to 300 meters.
Features:
- Can send/receive uncompressed digital audio signals of 32-bit 96 kHz quality, with a maximum of 256 inputs/256 outputs.
- Redundant connections are supported with ring topology.
- Indicators show communication status useful for troubleshooting.
- Recommended cable: Neutrik opticalCON DUO multi-mode fiber
- Dimensions (WxHxD): 125 x 37 x 207mm (4.9" x 1.5" x 8.2")
- Net Weight: 0.25 kg (0.6 lbs)
