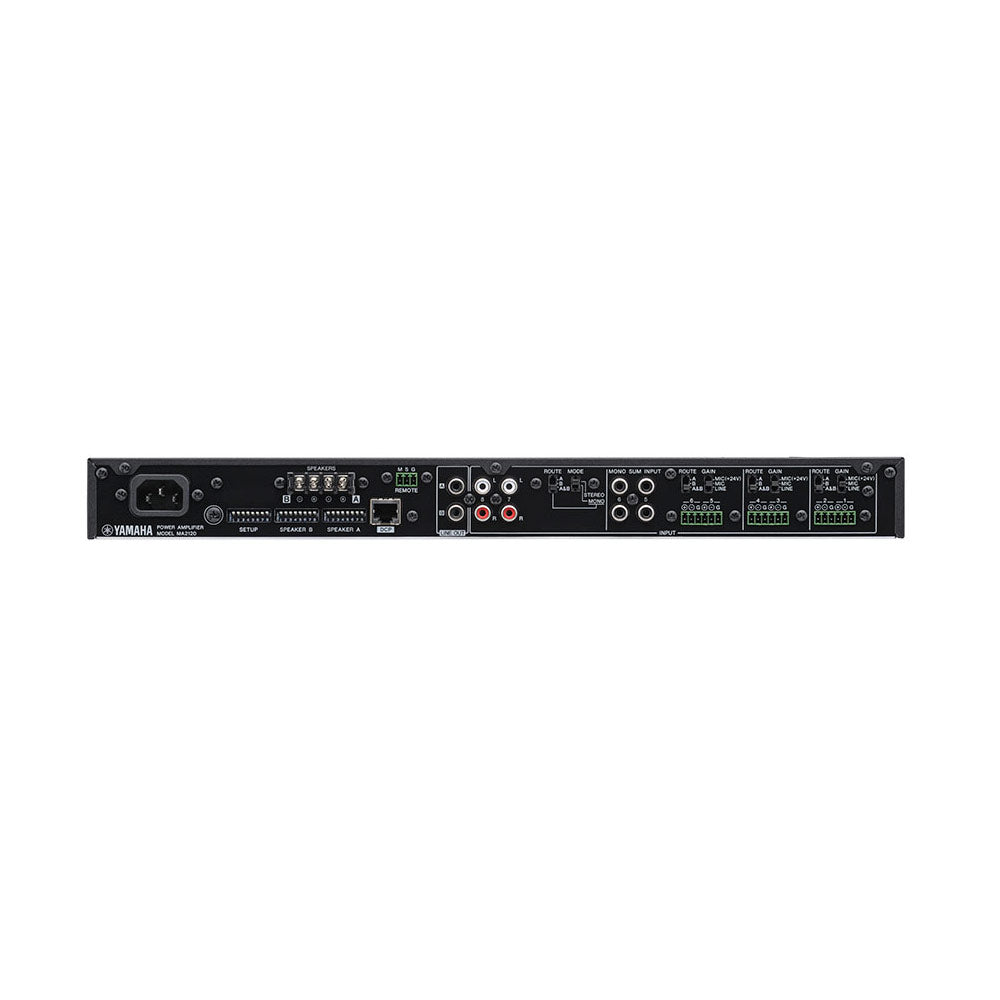

Yamaha MA2120 - 6x2 Input Install Mixer/Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Lo-Z/Hi-Z switchable Class-D mixer amplifier (Lo-Z: 120W x2 @4?, 100W x2ch @3?/8?,?Hi-Z: 120W x2ch or 200W x1ch, 70V/100V) equipped with 6 mic/line inputs, 2 stereo inputs and powerful DSP functions for high quality music playback and microphone use.
Features:
- Easy setup, and a user-friendly interface for effortless operation
- Supporting Lo-Z (120W x2ch @4? or 100W x2ch @3?/8?) and Hi-Z (120W x2ch or 200W x1ch, 70V/100V) speaker systems
- Flexible 6 mic/line inputs and 2 stereo inputs, with all 6 mic inputs featuring a 24V settings
- DSP functions for music playback and microphone use (Feedback Suppressor, Priority Ducker, Leveler, Compressor, Reverb & Echo)
- Bass and treble stereo source EQ with an enhancer function
- Output EQ for optimizing the sound of each Output channel
- Built-in speaker EQ optimum for Yamaha VXC/VXS series speakers, as well as HPF and selectable LPF settings
- Capable of controlling sources and volumes seperately in two areas (Source/volume zoning)
- Service areas or zoning areas can be expanded by adding a PA2120
- Remote volume control and microphone on/off switching via optional DCP control panels (DCP4V4S, DCP1V4S, DCP4S, max 2 units)
- Intelligent protection function ensures safe, reliable operation
- Certified by ENERGY STAR
- Certified as Yamaha Eco Products
- Space-saving 1U rack size (*sufficient space must be provided above and below the unit for airflow and cooling.)
With quick, easy setup and intuitive operation, the compact MA and PA series power amplifiers make it easier than ever to bring your commercial space to life. The MA2030a and PA2030a are ideal audio solutions for retail stores, eateries, classrooms or public facilities like hospitals. The MA2120 and PA2120 meet the demands of a wide range of applications requiring higher power as well as more flexible DSP functionality and zone control. All models combine approachable, unobtrusive design with efficient, flexible performance. The MA2030a and MA2120 offer mixing capability with source EQ (Bass/Treble) control, as well as some of the same state-of-the-art DSP technologies that are acclaimed features of professional Yamaha audio gear. Whether providing background music for a café or restaurant or powering a conference room or other application requiring microphone input, the MA/PA series amplifiers are simple yet powerful tools that can help establish an ideal commercial sound environment.
| Output power | 1kHz (THD+N=1%: 3½) | 100W x 2 (20ms Burst) |
| 1kHz (THD+N=1%: 4½) | 120W x 2 (20ms Burst) | |
| 1kHz (THD+N=1%: 8½) | 100W x 2 (20ms Burst) | |
| High impedance: 100V line | 120W x 2 or 200W x 1 | |
| High impedance: 70V line | 120W x 2 or 200W x 1 | |
| Total harmonic distortion | ²0.2% (Line in to Speaker out, Half power @1kHz, 3½/4½/8½), ²0.2% (Line in to Speaker out, Half Power @1kHz, 70V/100V, 120W/200W) | |
| Frequency response | 0dB, -2.5dB, +1.0dB (Line in to Line out, 20Hz to 20kHz), 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 50Hz to 20kHz, 1W, 3½/4½/8½), 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 90Hz to 20kHz, 1W, 70V/100V, 120W/200W) | |
| Crosstalk | ² -70dB (MIC/LINE input to other MIC/LINE input) | |
| I/O Connectors | Mic/Line Input | Input 1-6: 3.5mm Euroblock (6-pin, balanced) x 3 |
| Line Input | Input 1-6: 3.5mm Euroblock (6-pin, balanced) x 3 | |
| Speaker Output | Barrier strip x 2 pairs | |
| Line Out | LINE OUT: MONO RCA pin x2 (unbalanced) | |
| Control ports | RJ-45 (for DCP4V4S, DCP1V4S , DCP4S), Remote (3.5mm Euro block 3-pin) | |
| Mic Input | - | |
| Stereo Input | - | |
| Input Level | Mic input: -56dBu (Sensitivity), -36dBu (Nominal), -8dBu (Max before clip) / Line input (unbalanced): -30dBV (Sensitivity), -10dBV (Nominal), +10dBV (Max before clip) / Line input (balanced): -24dBu (Sensitivity), -4dBu (Nominal), +24dBu (Max before clip) | |
| Output Level | -10dBV (LINE OUT, Nominal) | |
| Processors | Speaker EQ (VXS:Full Range, VXC, VXS10S/ST), HPF (150Hz), LPF (150Hz, 200Hz) | |
| Protection circuit | Load protection | Power switch on/off: Mute the output*, Output voltage protection: Compress the output*, DC-fault: Power supply shutdown (*Restored automatically) |
| Amplifier protection | Thermal: Limit the output* _ Mute* _ Shutdown, Over current: Mute the output*, Integrated power limit: Compress the output* (*Restored automatically) | |
| Power supply protection | Thermal: Power supply shutdown, Over voltage: Power supply shutdown, Over current: Limit the output* _Power supply shutdown (*Restored automatically) | |
| Amplifier class | Class D | |
| Cooling | Conventional cooling, bottom to up airflow | |
| Power requirements | 100V, 120V, 230V - 240V, 50Hz / 60Hz | |
| Power consumption | 60W (1/8 max power, 4½, AC100V, pink noise at all channels) | |
| Dimensions | W | 480mm (18.9”) *1 |
| H | 45mm (1.8”) *1 | |
| D | 379mm (14.9”) *1 | |
| Net weight | 4.9kg (10.8lbs) | |
| Accessories | AC power cable, 3.5mm Euroblock plug (6-pin) x 3, Euroblock pulg (3-pin) x 1, Owner's manual, Setup guide | |
| Options | DCP4V4S, DCP1V4S, DCP4S (Digital Control Panel) | |
| Certificate | ENERGY STAR | |
| Others | Operating Temperature: 0¡C to + 40¡C, Storage Temperature: -20¡C to + 60¡C, Rack-mountable when ensuring sufficient ventilation above and below the unit | |
