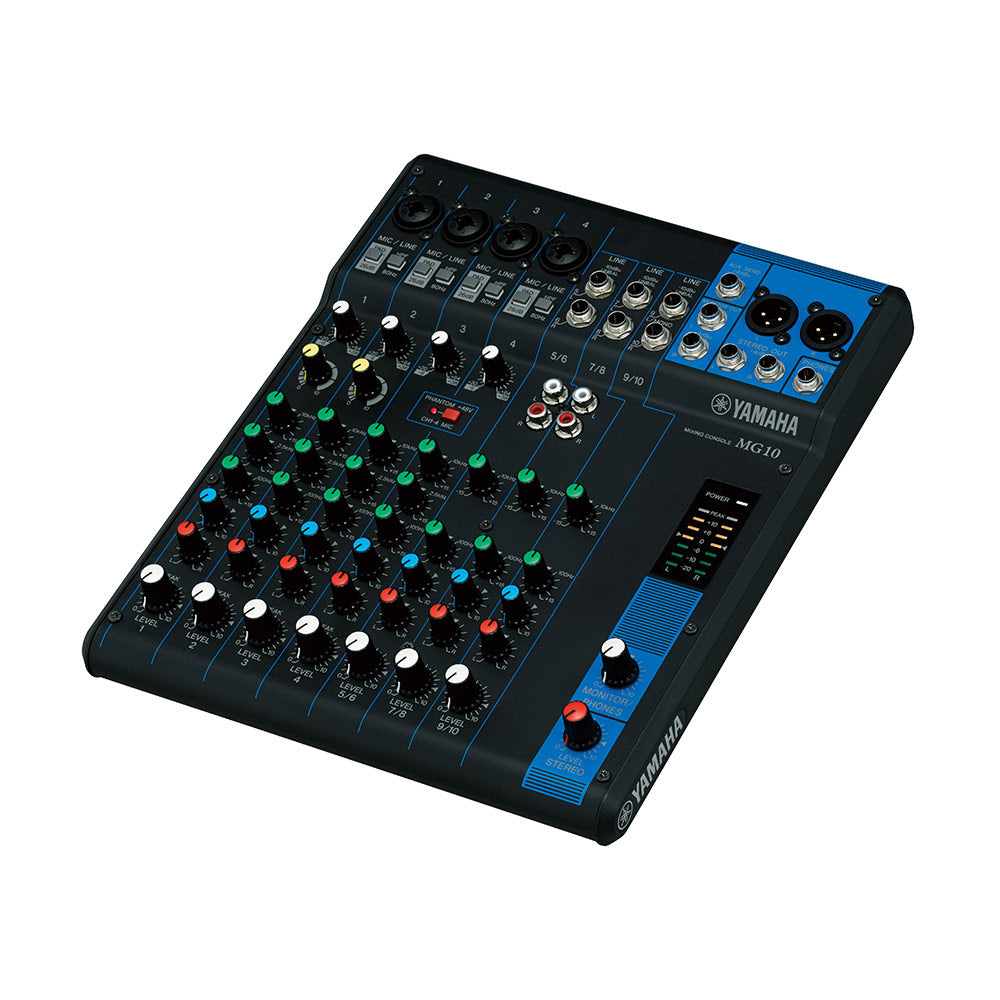

Yamaha MG10 10-Channel Compact Mixer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.
Features:
- 10-Channel Mixing Console
- Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
- 1 Stereo Bus
- 1 AUX (incl. FX)
- "D-PRE" mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs
- Metal chassis
- Dimensions(WxHxD): 244 mm x 71 mm x 294 mm (9.6"x 2.8"x 11.6")
- Net Weight: 1.9 kg (4.19 lbs.)
| Total harmonic distortion | 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min | |
| Frequency response | +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min | |
| Hum / noise level | Equivalent input noise | -128 dBu (Mono Input Channel, Rs: 150½, GAIN knob: Max) |
| Residual output noise | -102 dBu (STEREO OUT, STEREO LEVEL knob: Min) | |
| Crosstalk | -83 dB | |
| Power requirements | PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha | |
| Power consumption | 22.9 W | |
| Dimensions | W | 244 mm (9.6") |
| H | 71 mm (2.8") | |
| D | 294 mm (11.6") | |
| Net weight | 1.9 kg (4.19 lbs.) | |
| Accessories | Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A | |
| Others | Operating Temperature: 0 to +40ûC | |
