Yamaha MS101-4 - Powered Full-Range Monitor Speaker
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The standard model in Yamaha's range of desktop utiility powered monitors, the MS101-4 offers portability in a simple, compact design, with comprehensive functions for outstanding usability. The MS101-4 comes with a 3/8-16 threaded female mounting for direct attachment to a Euro microphone stand. Optional accessories can also be added for use in a wide range of applications.
Features:
- 30W of amplifier power provides clean, high output sound
- Redesigned enclosure for an even lower profile
- Combo Input jack accepts both XLR and 1/4" connectors
- Directly mountable on Euro microphone stands (optional mic stand adaptor BMS-10A is available for adjusting tilt angle)
A compact, convenient approach to high-quality monitoring anywhere
Compatible with both line and mic inputs, the MS101-4 offers the flexibility needed for temporary or permanent use in applications requiring simple, compact monitors.
Simple, portable, durable design

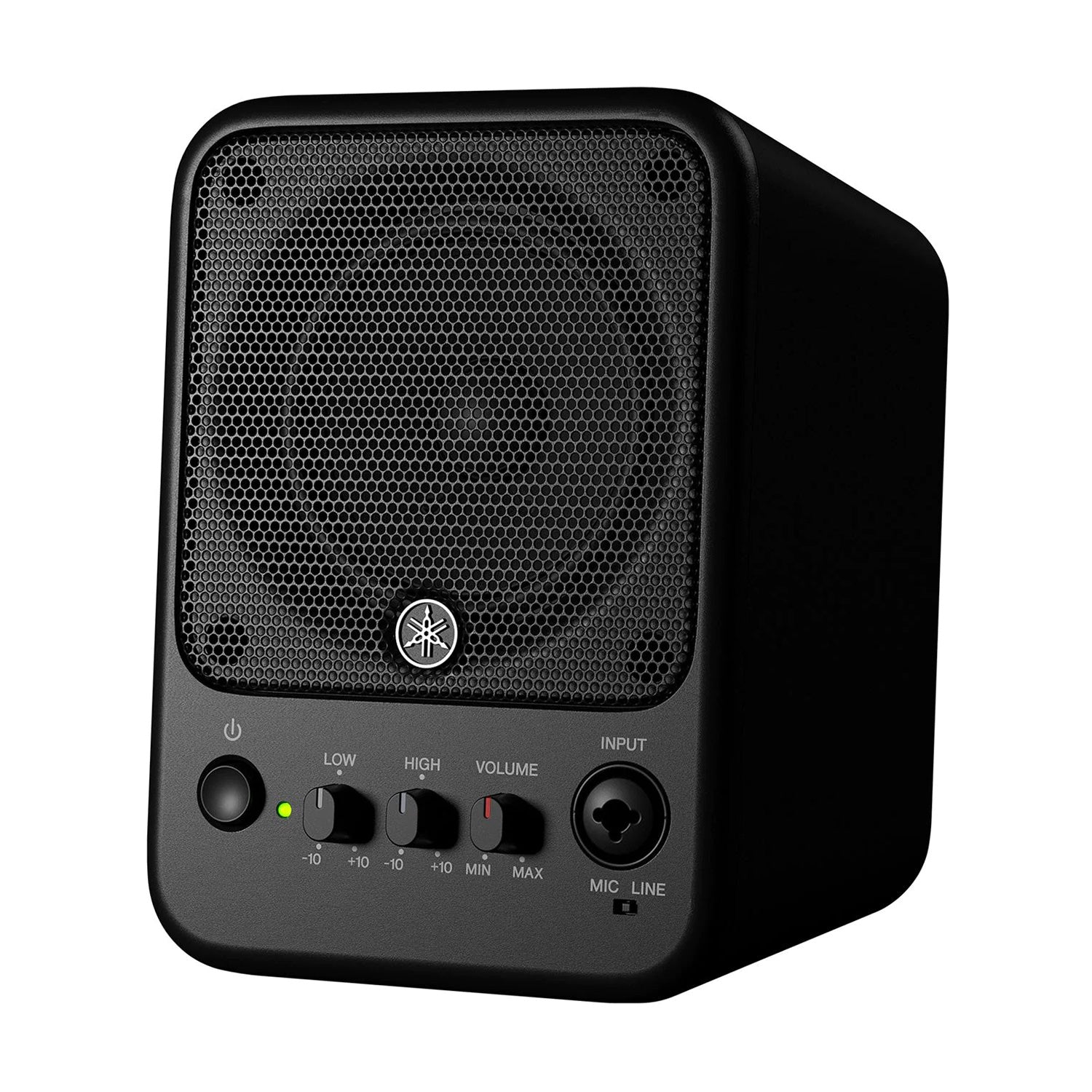

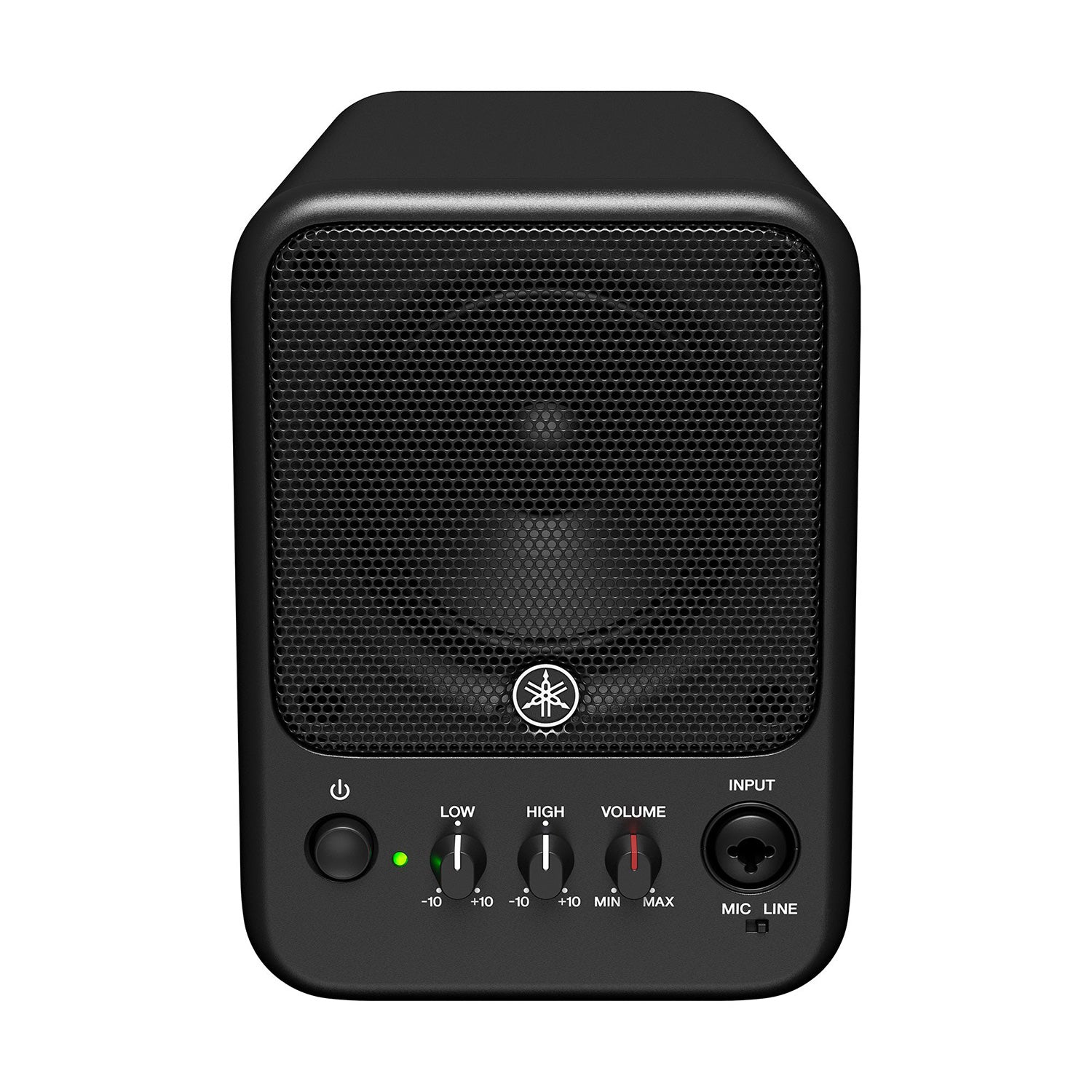

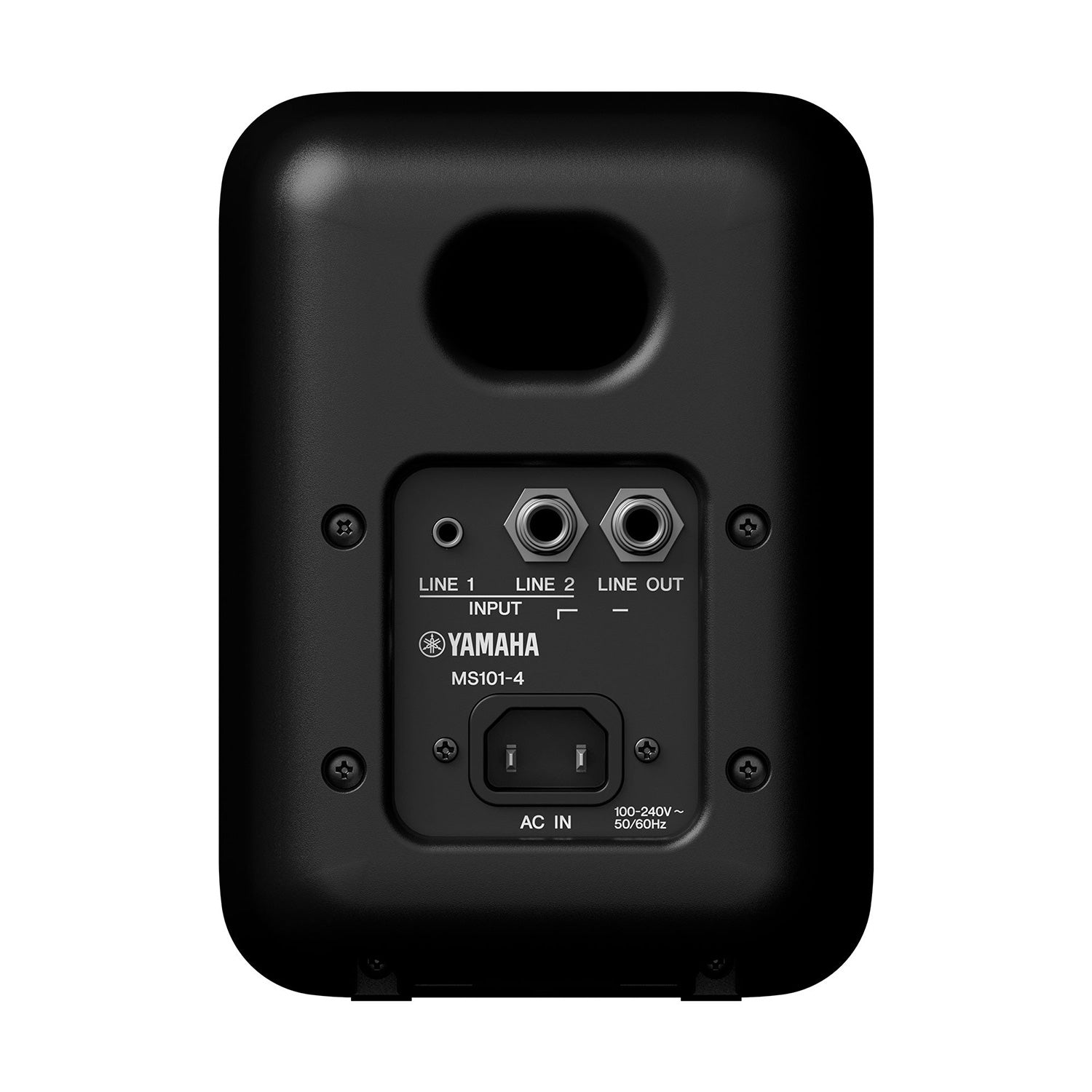

With the controls (power switch, volume and tone controls) and the combo jack input on the lower front panel, you'll find the MS101-4 is easy to operate. The sturdy metal grill offers complete protection for the four-inch cone driver, while the rear panel is equipped with one stereo mini and a TRS Phone input connector, along with an output jack. An AC inlet for a removeable power cord provides excellent portability. The bass reflex port is also located on the rear surface, resulting in a more compact chassis.
| Speaker type | Full range Powered Speaker, Bass-reflex Type | |
| Frequency range (-10dB) | 77 HzÐ20 kHz | |
| Maximum output level (1m; on axis) | 115 dB SPL *1 | |
| Components | LF-HF | 4" Cone, 1" Voice coil, Ferrite magnet |
| Dimensions | W | 142 mm |
| H | 196 mm | |
| D | 187 mm | |
| Net weight | 2.1 kg (4.6 lbs) | |

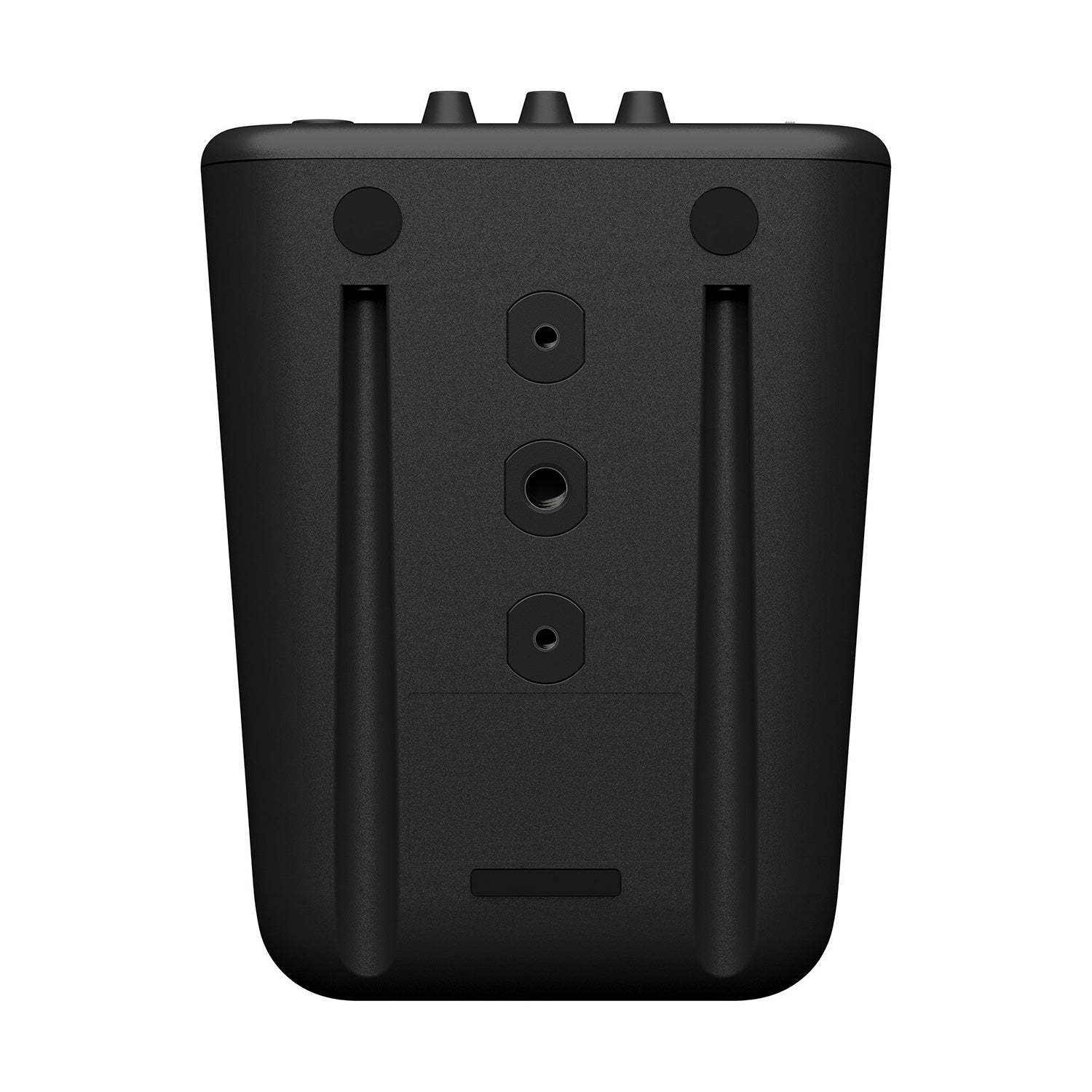

| Flying and mounting hardware | Screw threads (bottom): 2 x M5 depth 11 mm pitch 60 mm (for 2, M5 x 6-10 mm screws), 1 x 3/8" depth 12 mm (for 1 x 3/8" x 9-11 mm screw) | |
| Amplifier class | Class-D | |
| Power rating | Dynamic | 30 W |
| Continuous | 20 W | |
| Cooling | Natural cooling (no fan) | |
| I/O Connectors | Mic Input | [Front] INPUT: Combo, [Rear] INPUT LINE 1: Stereo Mini, INPUT LINE 2: Phone (TRS) |
| Line Out | 1 x Phone (TRS) | |
| AC | 1 x AC inlet | |
| Input impedance | [Front] INPUT: LINE=5.4 k½ / MIC= 5.4 k½, [Rear] INPUT LINE 1,2: 10 k½ | |
| Input sensitivity | [Front] INPUT: LINE=-10 dBu / MIC=-40 dBu, [Rear] INPUT LINE 1, 2: -10 dBu (VOLUME: Maximum) | |
| Input Level | [Front] INPUT: LINE=+5 dBu / MIC=-25 dBu, [Rear] INPUT LINE 1, 2: +5 dBu (Nominal Input Level / VOLUME: Center), [Front] INPUT: LINE=+20 dBu / MIC=-10 dBu, [Rear] INPUT LINE 1, 2: +20 dBu (Maximum Input Level) | |
| Others | Controls: 1 x VOLUME, 1 x LOW CONTROL, 1 x HIGH CONTROL, POWER | |
| Indicators | POWER (Green LED) | |
| Power consumption | 1/8 Power Consumption: 10 W, Idle Power Consumption: 3 W | |
| Power requirements | 100 V - 240 V, 50/60 Hz | |
| Options | Mic stand adaptor BMS-10A, Free-angle clamp BAS-10, Wall mounting bracket BWS20-190, Ceiling bracket BCS20-150 / BCS20-210 | |
