Yamaha MSP3A - Powered Studio Monitor (Single)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The versatile MSP3A reference monitor has been reborn as the MSP3A, featuring a new Twisted Flare Port that delivers clearer bass from a simpler, more beautiful design. With a 22W built-in amplifier, the MSP3A produces true-to-source sound. Like its predecessor, this model has a variety of inputs and controls and is compatible with numerous optional support brackets.
The MSP3A is an ideal choice for small studios and post-production setups, and also for monitoring electronic instruments and surround reproduction.
Features:
- Great performance in a small, accurate design
- Fexible input connectivity for most any situation

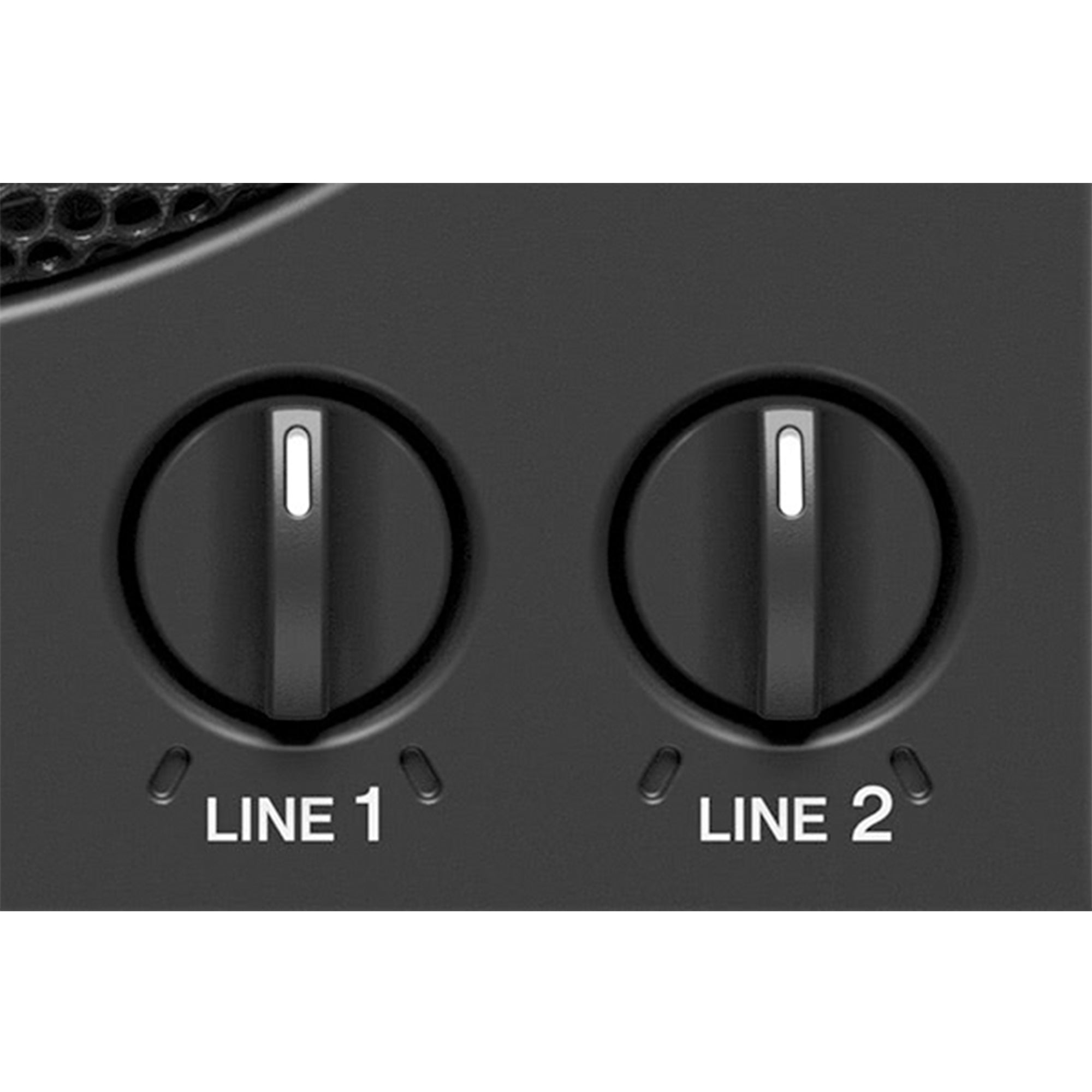

- Fraont panel controls allow fast adjustments
- Yamaha's Twisted Flare Port improves bass accuracy

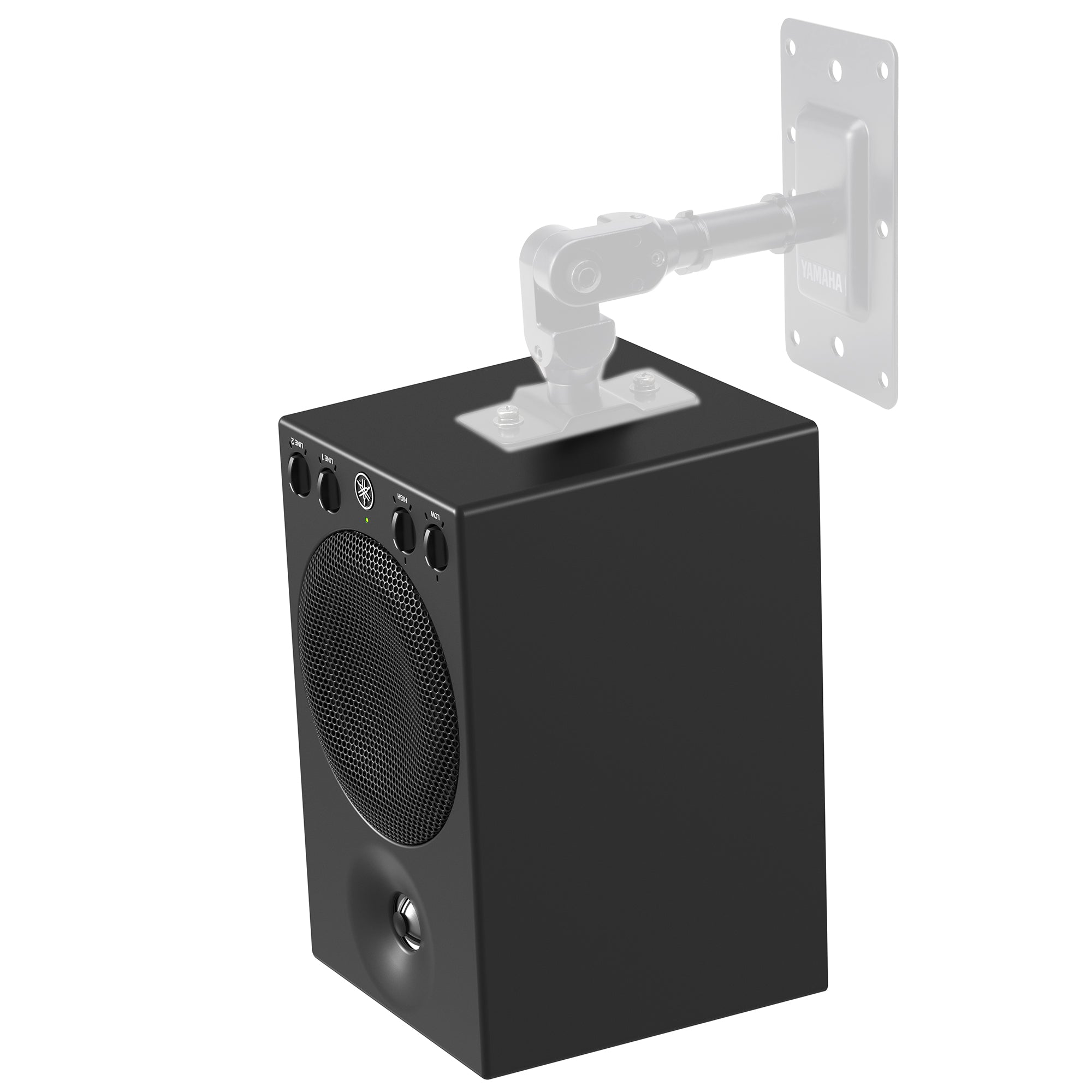

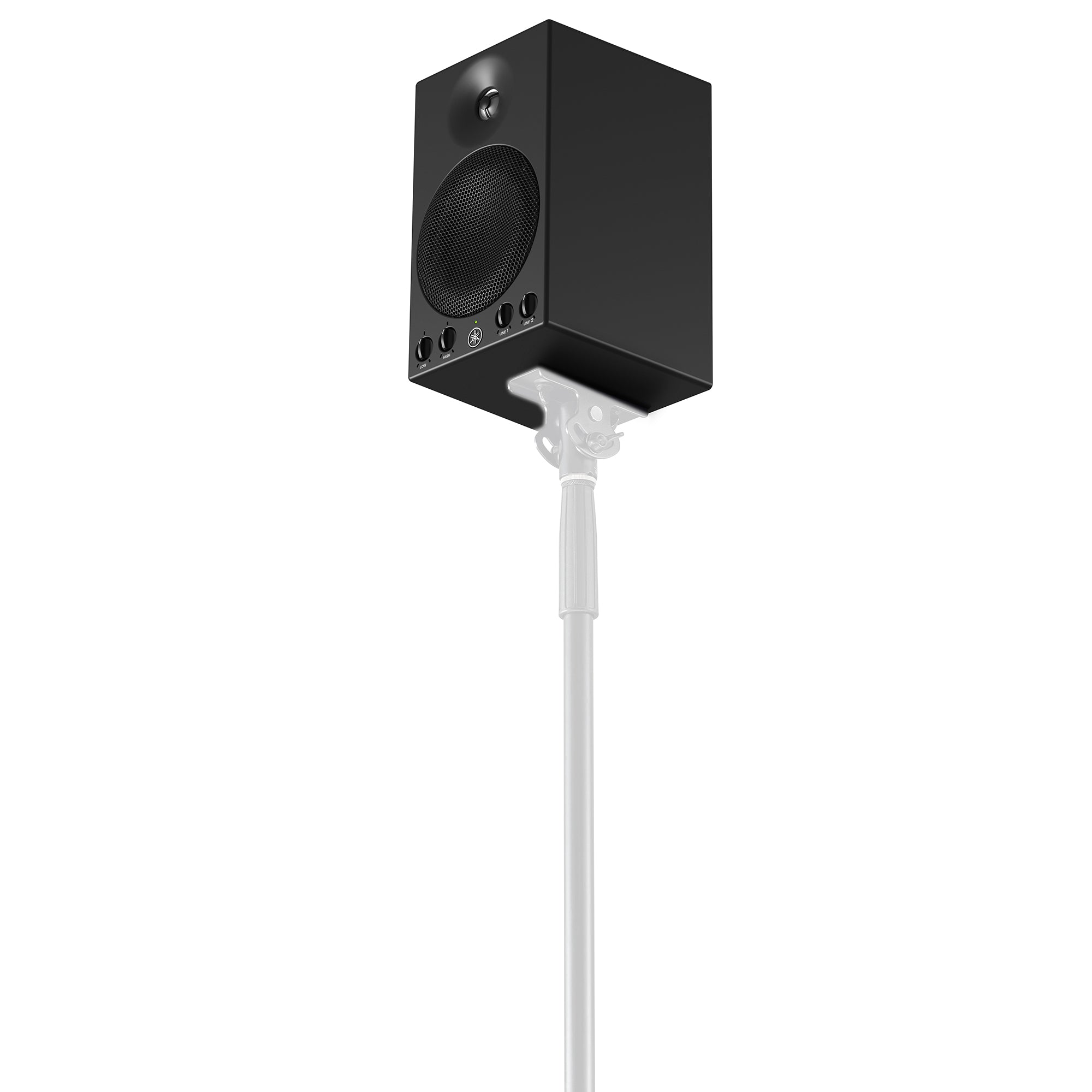

- Built-in mounting capability for wall, ceiling or stand mounting.

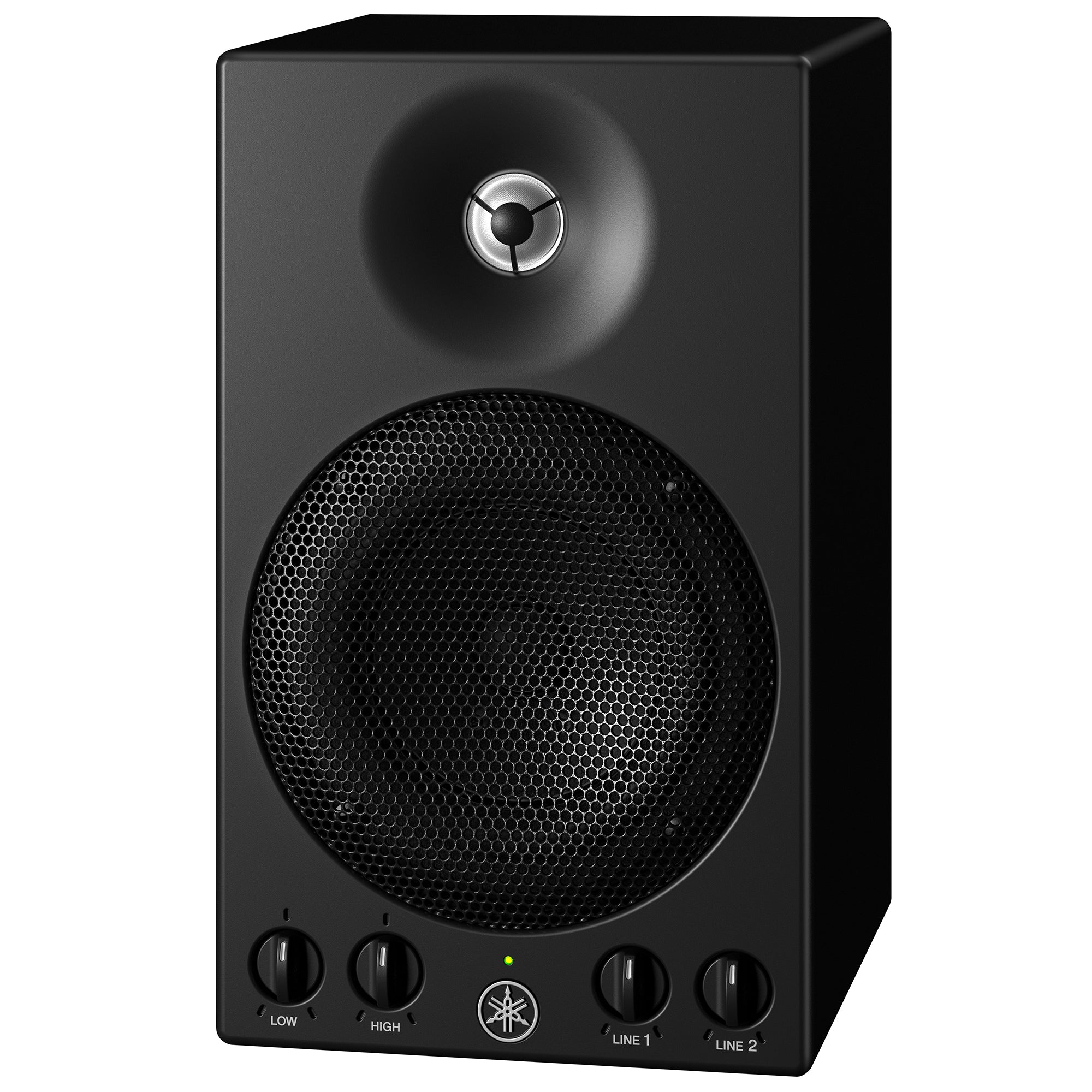

The MSP3A Powered Speaker System features a compact bass reflex cabinet, with a 4" (10 cm) two-way cone speaker and a 0.8" (2.2 cm) dome speaker. This powered speaker system faithfully reproduce sound and can be used for a wide range of applications, from personal home recordings to serious professional use.
| System type | Powered Speaker |
| Frequency Response (-10dB) | 67Hz - 22kHz |
| Crossover Frequency | 4kHz |
| Maximum Output Level | Ê99 dB SPL |
| Power consumption | 30W |
| Dimensions (W x H x D) | 144 x 236 x 166mm, 5 3/4" x 9 5/16" x 6 9/16" in |
| Weight | 3.6 kg, 7.9 lbs. |
| Maximum Output | 22W, THD 0.1%, 1kHz, Rl= 4_ |
| Input Sensitivity | Input sensitivity, Input Impedance Line 1 : -10dBu, 10k_ (RCA) Input Sensitivity, Input Impedance Line 2 : +4.0dBu, 10k_ (COMBO) |

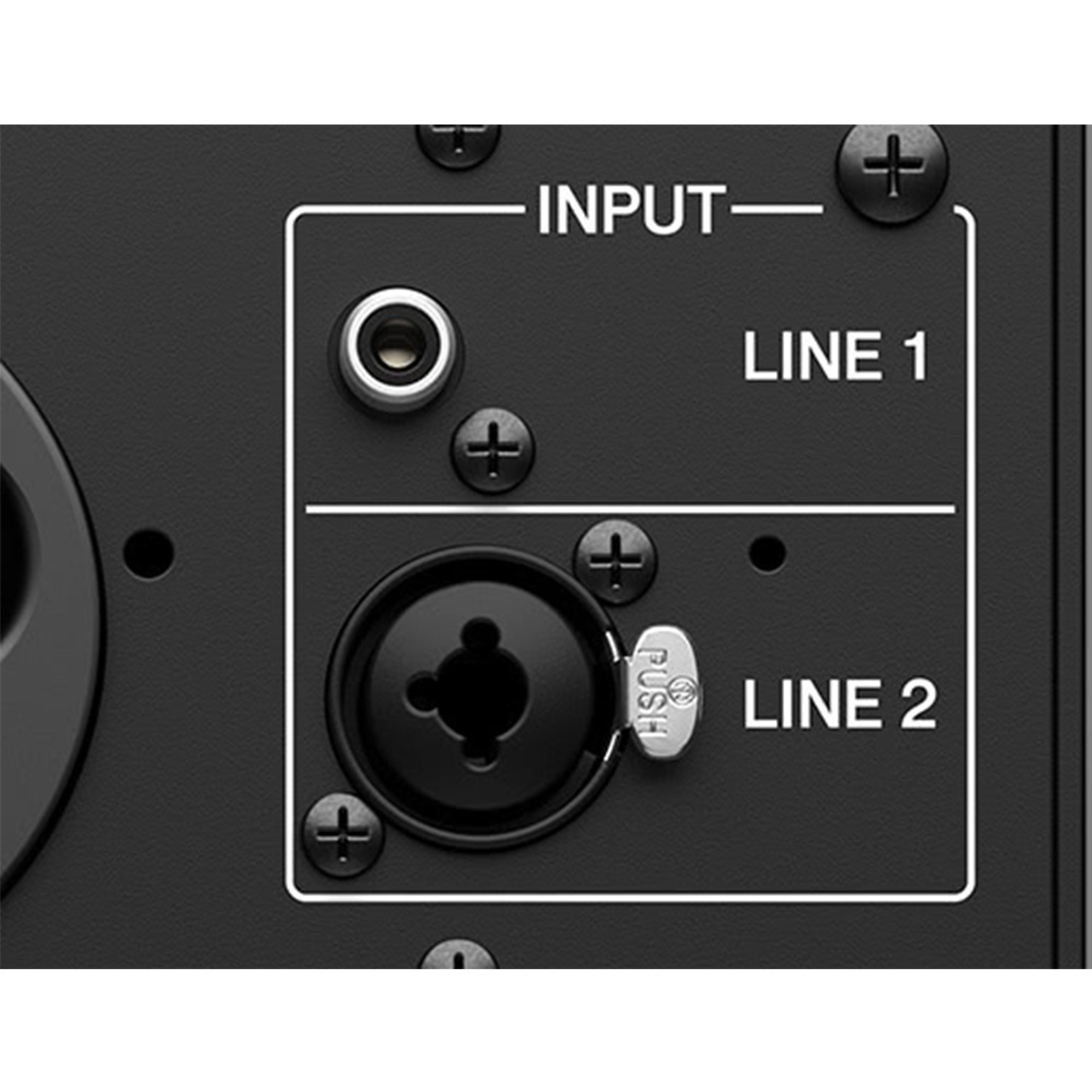

| Input Connectors | Line 1 : RCA Line 2 : Combo (XLR/Phone) |

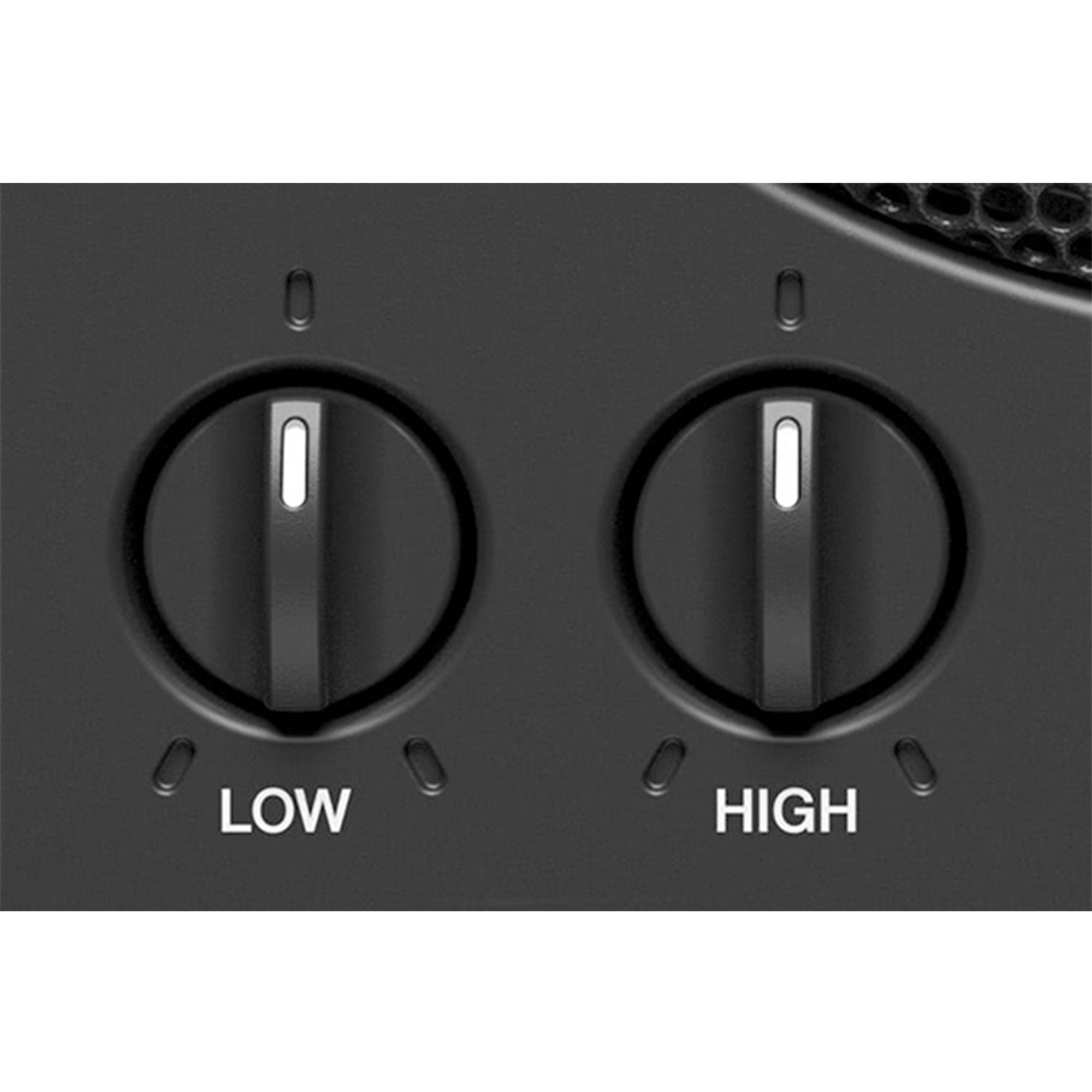

| Tone Control Characteristic | Low = Center REF =100Hz, 2V High = Center REF = 10kHz, 2V |
| Indicator | Green LED |
| Enclosure | 2-Way, Bass-reflex type |
| Transducers | HF (Tweeter) : 0.8" (2.2cm) Dome LF (Woofer) : 4" (10 cm) Cone |
| Included Accessories | Power cord, owner's manual |
| Optional Accessories | BMS10A Mic Stand Adapter BWS20-190 Wall Mount Bracket BCS20 Ceiling Mount Bracket |
The versatile MSP3A reference monitor has been reborn as the MSP3A, featuring a new Twisted Flare Port that delivers clearer bass from a simpler, more beautiful design. With a 22W built-in amplifier, the MSP3A produces true-to-source sound. Like its predecessor, this model has a variety of inputs and controls and is compatible with numerous optional support brackets.
The MSP3A is an ideal choice for small studios and post-production setups, and also for monitoring electronic instruments and surround reproduction.
Features:
- Great performance in a small, accurate design
- Fexible input connectivity for most any situation
- Fraont panel controls allow fast adjustments
- Yamaha's Twisted Flare Port improves bass accuracy
- Built-in mounting capability for wall, ceiling or stand mounting.
The MSP3A Powered Speaker System features a compact bass reflex cabinet, with a 4" (10 cm) two-way cone speaker and a 0.8" (2.2 cm) dome speaker. This powered speaker system faithfully reproduce sound and can be used for a wide range of applications, from personal home recordings to serious professional use.
| System type | Powered Speaker |
| Frequency Response (-10dB) | 67Hz - 22kHz |
| Crossover Frequency | 4kHz |
| Maximum Output Level | Ê99 dB SPL |
| Power consumption | 30W |
| Dimensions (W x H x D) | 144 x 236 x 166mm, 5 3/4" x 9 5/16" x 6 9/16" in |
| Weight | 3.6 kg, 7.9 lbs. |
| Maximum Output | 22W, THD 0.1%, 1kHz, Rl= 4_ |
| Input Sensitivity | Input sensitivity, Input Impedance Line 1 : -10dBu, 10k_ (RCA) Input Sensitivity, Input Impedance Line 2 : +4.0dBu, 10k_ (COMBO) |
| Input Connectors | Line 1 : RCA Line 2 : Combo (XLR/Phone) |
| Tone Control Characteristic | Low = Center REF =100Hz, 2V High = Center REF = 10kHz, 2V |
| Indicator | Green LED |
| Enclosure | 2-Way, Bass-reflex type |
| Transducers | HF (Tweeter) : 0.8" (2.2cm) Dome LF (Woofer) : 4" (10 cm) Cone |
| Included Accessories | Power cord, owner's manual |
| Optional Accessories | BMS10A Mic Stand Adapter BWS20-190 Wall Mount Bracket BCS20 Ceiling Mount Bracket |
