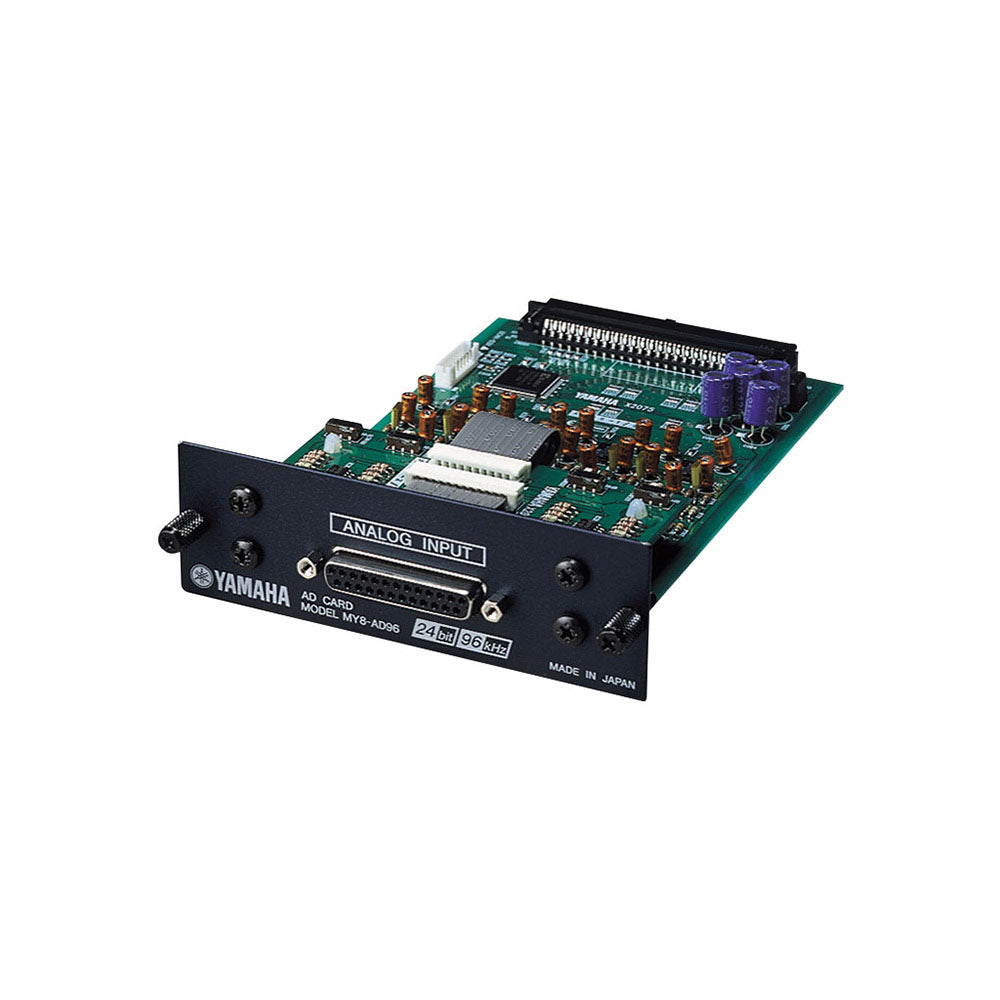

Yamaha MY8-AD96 8-Channel Analog Input Card (for Yamaha Digital Mixers)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
24-bit, 96 kHz eight-channel line-level analog input card with 25-pin D-sub connector for Yamaha MY (Mini-YGDAI) products.
Individual Gain Switches per Input Channel:
+18dB - Max Input Level Before Clip: +18dB
+24dB (default) - Max Input Level Before Clip: +24dB
| Function | A to D in |
| Number of Inputs | 8 |
| Res / Freq | 24-bit 44.1/48/88.2/96 kHz |
| Connector | D-sub 25pin |
24-bit, 96 kHz eight-channel line-level analog input card with 25-pin D-sub connector for Yamaha MY (Mini-YGDAI) products.
Individual Gain Switches per Input Channel:
+18dB - Max Input Level Before Clip: +18dB
+24dB (default) - Max Input Level Before Clip: +24dB
| Function | A to D in |
| Number of Inputs | 8 |
| Res / Freq | 24-bit 44.1/48/88.2/96 kHz |
| Connector | D-sub 25pin |
