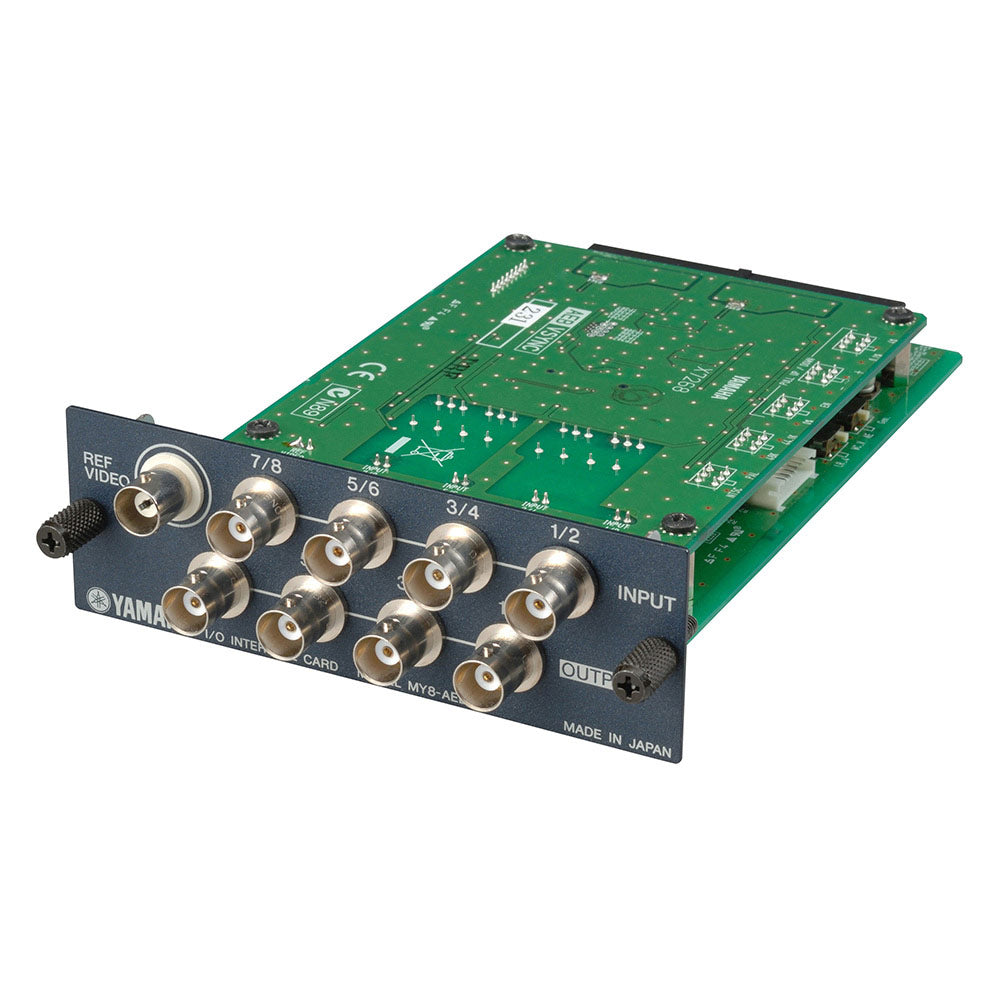

Yamaha MY8-AEB 8-Channel AES I/O Card (for Yamaha Digital Mixers)


  • Dale #:

    YAMA-MY8AEB
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 8:30 am to 5:30 pm

Description

The MY8-AEB is one of Yamaha's MY-series plug-in interface cards, providing expanded I/O functionality for compatible Yamaha digital audio products. Specifically, the MY8-AEB provides 8 channels of AES-3id-1995 standard (75O BNC connectors) digital audio input and output with advanced video synch... Read More

Call for Price

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Description

The MY8-AEB is one of Yamaha's MY-series plug-in interface cards, providing expanded I/O functionality for compatible Yamaha digital audio products. Specifically, the MY8-AEB provides 8 channels of AES-3id-1995 standard (75O BNC connectors) digital audio input and output with advanced video synchronization capability.

In addition to 8 BNC connectors (4 stereo inputs and 4 stereo outputs) the MY8-AEB has a REF VIDEO input that can be used to receive a PAL or NTSC format Reference video (Black Burst) signal that will provide the synchronization word clock for the device into which the card is installed. For maximum system reliability the MY8-AEB features a unique Yamaha eXi-Clock function that is capable of seamlessly continuing word clock generation even if the Reference video signal is interrupted.

The MY8-AEB makes it easy and convenient to use high-performance Yamaha digital mixers for video post production, making it possible to maintain the highest audio quality with reliable synchronization to a wide range of video sources.

  • 8-in/8-out AES-3id-1995 standard with 75O BNC connectors
  • Reference video input connector
  • eXi-Clock synchronization maintenance function

More +

Product Specs

I/OInput x 8, Output x 8, REF VIDEO In x 1
ConnectorBNC (Input x 4/Output x 4) based on AES-3id
Fs48 kHz, 44.1 kHz (Pull up/down 0.1%, 4%)

More +
