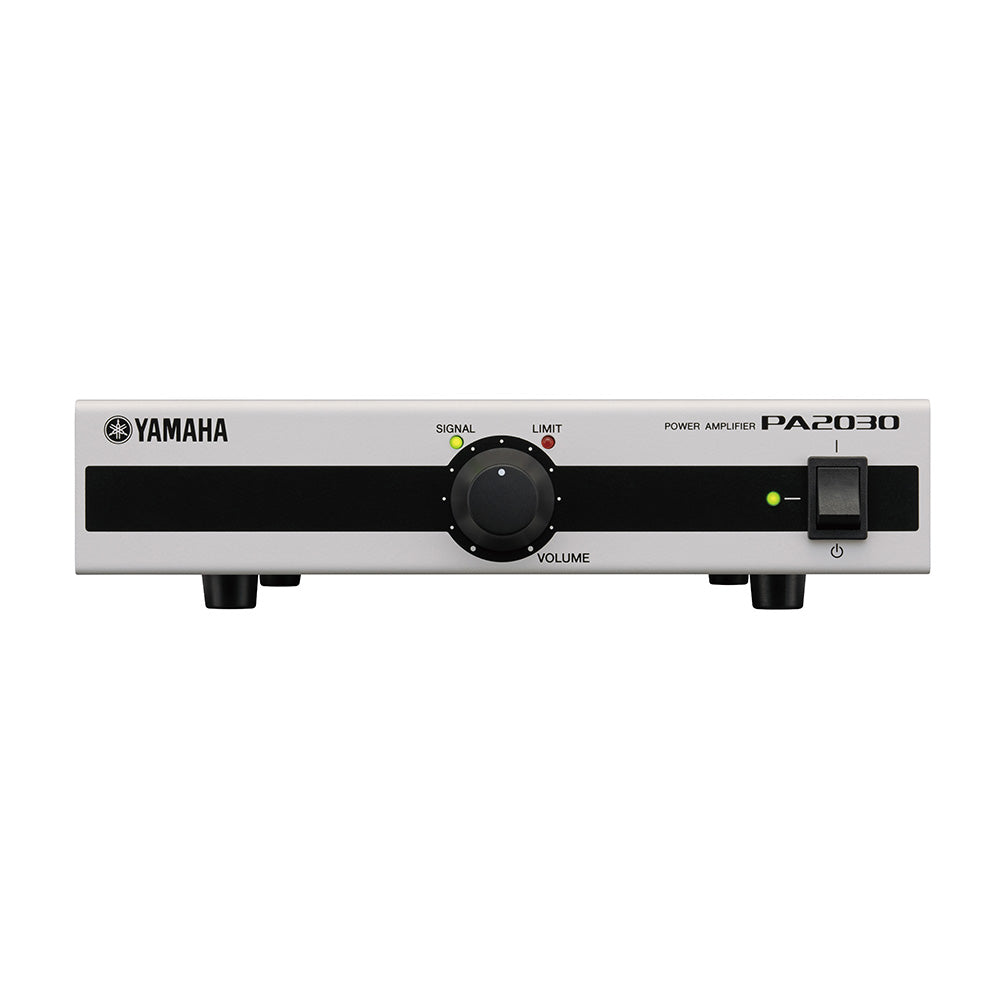

Yamaha PA2030a Install 70/100 Volt Power Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
With quick, easy setup and intuitive operation, the compact MA and PA series power amplifiers make it easier than ever to bring your commercial space to life. The MA2030a and PA2030a are ideal audio solutions for retail stores, eateries, classrooms or public facilities like hospitals. The MA2120 and PA2120 meet the demands of a wide range of applications requiring higher power as well as more flexible DSP functionality and zone control. All models combine approachable, unobtrusive design with efficient, flexible performance. The MA2030a and MA2120 offer mixing capability with source EQ (Bass/Treble) control, as well as some of the same state-of-the-art DSP technol-ogies that are acclaimed features of professional Yamaha audio gear. Whether providing background music for a café or restaurant or powering a conference room or other application requiring microphone input, the MA/PA series amplifiers are simple yet powerful tools that can help establish an ideal commercial sound environment.
Features:
- Easy setup, and a user-friendly interface for effortless operation
- Supporting Lo-Z (30W @3?/4?/8?) and Hi-Z (60W x1ch, 70V/100V) speaker systems
- 1 stereo/2mono line inputs
- Built-in speaker EQ optimum for Yamaha VXC/VXS series speaker
- Built-in HPF/LPF
- Intelligent protection function ensures safe, reliable operation
- Certified as Yamaha Eco Products
- Space-saving 1U rack size (*sufficient space must be provided above and below the unit for airflow and cooling.)
| Output power | 1kHz (THD+N=1%: 3½) | 30W x 2 (20ms Burst) |
| 1kHz (THD+N=1%: 4½) | 30W x 2 (20ms Burst) | |
| 1kHz (THD+N=1%: 8½) | 30W x 2 (20ms Burst) | |
| High impedance: 100V line | 60W x 1 | |
| High impedance: 70V line | 60W x 1 | |
| Total harmonic distortion | ² 0.1% (Line in to Speaker out @1kHz, Half power, 3½/4½/8½), ² 0.2% (Line in to Speaker out @1kHz, Half power, 70V/100V) | |
| Frequency response | 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 50Hz to 20kHz, 1W, 3½/4½/8½), 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 90Hz to 20kHz, 1W, 70V/100V) | |
| Crosstalk | - | |
| I/O Connectors | Mic/Line Input | - |
| Line Input | - | |
| Speaker Output | Barrier strip x 2 pairs | |
| Line Out | - | |
| Control ports | - | |
| Mic Input | - | |
| Stereo Input | LINE IN: Stereo RCA pin (unbalanced), 3.5mm Euroblock (3-pin, balanced) x 2 | |
| Input Level | Line input (unbalanced): -10dBV (Sensitivity), -10dBV (Nominal), +10dBV (Max before clip) / Line input (balanced): +4dBu (Sensitivity), +4dBu (Nominal), +24dBu (Max before clip) | |
| Output Level | - | |
| Processors | Speaker EQ (VXS:Full Range, VXC, VXS10S/ST), HPF (150Hz), LPF (150Hz, 200Hz) | |
| Protection circuit | Load protection | Power switch on/off: Mute the output*, Output voltage protection: Compress the output*, DC-fault: Power supply shutdown (*Restored automatically) |
| Amplifier protection | Thermal: Limit the output* _ Mute* _ Shutdown, Over current: Mute the output*, Integrated power limit: Compress the output* (*Restored automatically) | |
| Power supply protection | Thermal: Power supply shutdown, Over voltage: Power supply shutdown, Over current: Power supply shutdown | |
| Amplifier class | Class D | |
| Cooling | Conventional cooling, bottom to up airflow | |
| Power requirements | 100V, 120V, 230V-240V; 50Hz/60Hz | |
| Power consumption | 30W (1/8max. power, 3½, AC 100V, pink noise at all channels) | |
| Dimensions | W | 215mm (8.5”) *1 |
| H | 54mm (2.1”) *1 | |
| D | 288mm (11.4”) *1 | |
| Net weight | 1.8kg (4.0lbs) | |
| Accessories | AC power cable, 3.5mm Euroblock plug (3-pin) x 2, Owner’s manual, Specification sheet | |
| Options | RKH1 (Rack-mount Accessory) | |
| Certificate | - | |
| Others | Operating Temperature: 0¡C to + 40¡C, Storage Temperature: -20¡C to + 60¡C, Rack-mountable when ensuring sufficient ventilation above and below the unit | |
With quick, easy setup and intuitive operation, the compact MA and PA series power amplifiers make it easier than ever to bring your commercial space to life. The MA2030a and PA2030a are ideal audio solutions for retail stores, eateries, classrooms or public facilities like hospitals. The MA2120 and PA2120 meet the demands of a wide range of applications requiring higher power as well as more flexible DSP functionality and zone control. All models combine approachable, unobtrusive design with efficient, flexible performance. The MA2030a and MA2120 offer mixing capability with source EQ (Bass/Treble) control, as well as some of the same state-of-the-art DSP technol-ogies that are acclaimed features of professional Yamaha audio gear. Whether providing background music for a café or restaurant or powering a conference room or other application requiring microphone input, the MA/PA series amplifiers are simple yet powerful tools that can help establish an ideal commercial sound environment.
Features:
- Easy setup, and a user-friendly interface for effortless operation
- Supporting Lo-Z (30W @3?/4?/8?) and Hi-Z (60W x1ch, 70V/100V) speaker systems
- 1 stereo/2mono line inputs
- Built-in speaker EQ optimum for Yamaha VXC/VXS series speaker
- Built-in HPF/LPF
- Intelligent protection function ensures safe, reliable operation
- Certified as Yamaha Eco Products
- Space-saving 1U rack size (*sufficient space must be provided above and below the unit for airflow and cooling.)
| Output power | 1kHz (THD+N=1%: 3½) | 30W x 2 (20ms Burst) |
| 1kHz (THD+N=1%: 4½) | 30W x 2 (20ms Burst) | |
| 1kHz (THD+N=1%: 8½) | 30W x 2 (20ms Burst) | |
| High impedance: 100V line | 60W x 1 | |
| High impedance: 70V line | 60W x 1 | |
| Total harmonic distortion | ² 0.1% (Line in to Speaker out @1kHz, Half power, 3½/4½/8½), ² 0.2% (Line in to Speaker out @1kHz, Half power, 70V/100V) | |
| Frequency response | 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 50Hz to 20kHz, 1W, 3½/4½/8½), 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 90Hz to 20kHz, 1W, 70V/100V) | |
| Crosstalk | - | |
| I/O Connectors | Mic/Line Input | - |
| Line Input | - | |
| Speaker Output | Barrier strip x 2 pairs | |
| Line Out | - | |
| Control ports | - | |
| Mic Input | - | |
| Stereo Input | LINE IN: Stereo RCA pin (unbalanced), 3.5mm Euroblock (3-pin, balanced) x 2 | |
| Input Level | Line input (unbalanced): -10dBV (Sensitivity), -10dBV (Nominal), +10dBV (Max before clip) / Line input (balanced): +4dBu (Sensitivity), +4dBu (Nominal), +24dBu (Max before clip) | |
| Output Level | - | |
| Processors | Speaker EQ (VXS:Full Range, VXC, VXS10S/ST), HPF (150Hz), LPF (150Hz, 200Hz) | |
| Protection circuit | Load protection | Power switch on/off: Mute the output*, Output voltage protection: Compress the output*, DC-fault: Power supply shutdown (*Restored automatically) |
| Amplifier protection | Thermal: Limit the output* _ Mute* _ Shutdown, Over current: Mute the output*, Integrated power limit: Compress the output* (*Restored automatically) | |
| Power supply protection | Thermal: Power supply shutdown, Over voltage: Power supply shutdown, Over current: Power supply shutdown | |
| Amplifier class | Class D | |
| Cooling | Conventional cooling, bottom to up airflow | |
| Power requirements | 100V, 120V, 230V-240V; 50Hz/60Hz | |
| Power consumption | 30W (1/8max. power, 3½, AC 100V, pink noise at all channels) | |
| Dimensions | W | 215mm (8.5”) *1 |
| H | 54mm (2.1”) *1 | |
| D | 288mm (11.4”) *1 | |
| Net weight | 1.8kg (4.0lbs) | |
| Accessories | AC power cable, 3.5mm Euroblock plug (3-pin) x 2, Owner’s manual, Specification sheet | |
| Options | RKH1 (Rack-mount Accessory) | |
| Certificate | - | |
| Others | Operating Temperature: 0¡C to + 40¡C, Storage Temperature: -20¡C to + 60¡C, Rack-mountable when ensuring sufficient ventilation above and below the unit | |
