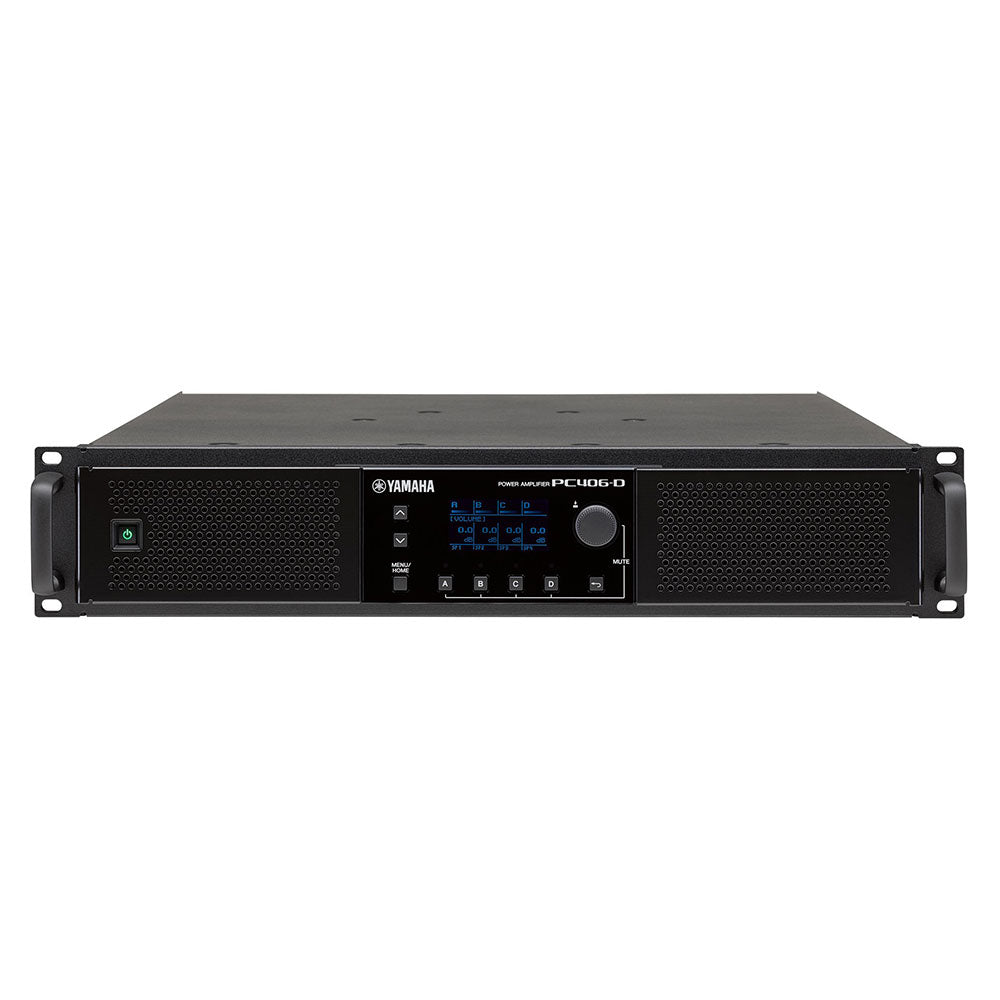

Yamaha PC406-D - Four-Channel Touring Power Amplifier with Dante


  • Dale #:

    YAMA-PC406D
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The PC-D / DI series are so much more than just high power amplifier. The impressive 20 x 8 input matrix capability of PC-D / DI Series amplifiers combines with Dante I/O to provide dramatic improvements to the versatility of any system. Featuring powerful onboard speaker processors as standard. ... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The PC-D / DI series are so much more than just high power amplifier. The impressive 20 x 8 input matrix capability of PC-D / DI Series amplifiers combines with Dante I/O to provide dramatic improvements to the versatility of any system. Featuring powerful onboard speaker processors as standard. PC-D / DI series are also compatible with ProVisionaire Touch and ProVisionaire Control, and we can provide customized remote controls if required. 600W x 4 at 8?.

Features:

  • 4 x 600W at 8?
  • 20 x 8 powerful input matrix function
  • Sampling frequency is up to 96k
  • 16ch Dante input/output
  • Speaker processor such as 16 band PEQ, crossover, filters, delay and limiter
  • Yamaha speaker presets
  • Remote control via ProVisionaire Touch/Control


Power. Versatility. Control
The PC-D / DI series are so much more than just amplifiers-they are the first power amps ever to be capable of forming the core of a completely connected audio network for multi-zone installed or live sound applications. The ever-changing demands and rapid advances of amplifier technology and sound reinforcement in general require both versatility and power, and this series has plenty of both. Now you can leverage the power and flexibility of the most comprehensive matrix processing to be found on a power amplifier, all enhanced by the simplicity and ease of Dante connectivity, to create a fully integrated, effective sound solution. What's more, full compatibility with ProVisionaire series gives you complete control over the entire network chain, from mixers through to amplifiers, processors, and speakers. In short, the PC-D / DI series gives you what every sound engineer has always dreamed of-total control.

Powerful Matrix Functionality and Dante I/O provides Superior Flexibility
The impressive 20 x 8 input matrix capability of PC-D / DI Series amplifiers combines with Dante I/O to provide dramatic improvements to the versatility of any system. The PC-D / DI Series can be used as a supplementary matrix to expand the overall system matrix, and even in systems without mixers or additional DSP, allows direct sound input from other analog devices or Dante-equipped gear to offer more flexible routing capabilities. The onboard Dante inputs and outputs also allow redundant connections for handling 16 input/16 output audio at up to 96 kHz with low latency, while combining the PC-D / DI Series with remote software such as ProVisionaire Control provides even more flexibility and intuitive control.

Using matrix applications for flexible routing
Sound from an analog mixer is input into a PC412-D, in addition to sound output from a digital mixer. Input matrix functionality can be used to output the combined sound to speakers or other Dante devices.

Constructing a mixer-less system
Sound is fed from Dante inputs on two devices to a PC412-DI. Input matrix functionality is used to direct the combined sound to speakers. Additionally, Dante Out can be used to send sound with adjusted EQ to other amlifiers.

Power you can count on
The PC-D / DI Series feature highly efficient Class-D amplifiers that deliver supreme sound quality with outstanding precision and stability even when driving high-load. There are 600 W and 1200 W versions of both the "D" touring models and the "DI" installation models, each with connectivity best suited to their respective applications. The DI models handle high-impedance connections with ease, allowing the construction of systems consisting of numerous speakers. All models come with detachable handles and replaceable filters.

Packed with processing power
Featuring powerful onboard speaker processors as standard, PC-D / DI Series amplifiers offer processing such as 16-band PEQ, delay, peak limiting, and RMS limiting, as well as FIR filter** that achieve linear phase, allowing users to tune speakers perfectly with precision and ease. Dante outputs can be used to transmit further parameter adjustments of Room EQ to other amps, allowing EQ for multiple amp channels to be adjusted centrally. The speaker preset library is well-stocked with optimized presets for the Yamaha CZR Series and others, making it effortless to achieve the perfect speaker tuning for your system.

ProVisionaire Series... from start to finish
ProVisionaire Amp Editor is a dedicated software application for the PC-D / DI Series that can be used to fine-tune individual settings, and also to group amps in order to set EQ and delay parameters and adjust volumes from a single control panel.

PC-D / DI amps are also compatible with ProVisionaire Touch and ProVisionaire Control, and Yamaha can provide customized remote controls if required.

More +

Product Specs

Output Power; 1kHz, Non-clip, 20msec Burst, All channels driven 16Ω 300W x 4
600W x 4
900W x 4
1300W x 4
8Ω (BRIDGE mode) 1800W x 2
4Ω (BRIDGE mode) 2600W x 2
Hi-Z (70V mode) -
Hi-Z (100V mode) -
Amplifier class Class D, Single ended output
Total harmonic distortion 0.01% (8Ω, 1kHz, 10W, All channels driven), 0.1% (4Ω, 1kHz, Half power, All channels driven)
Frequency response +0.5, -1.5dB (8Ω, 1W, 35Hz to 20kHz)
Crosstalk ≦ -60dB (8Ω, 1kHz, Half power, Input 150Ω shunt A-weighted)
S/N ratio 109dB (8Ω, Gain setting = 32dB, A-weighted)
Voltage Gain/Sensitivity 8Ω Volume max 32.0dB/+7.0dBu (Gain setting: 32dB), 26.0dB/+13.0dBu (Gain setting: 26dB), 35.0dB/+4.0dBu (Gain setting: +4dBu), 25.0dB/+14.0dBu (Gain setting: +14.0dBu)
Hi-Z 100V mode, Volume max -
Hi-Z 70V mode, Volume max -
Protection circuit Load protection POWER switch on/off: Output mute, Output voltage protection: Over voltage limiter, user configurable by wattage and speaker preset, DC-fault: Power supply shutdown (NOT restored automatically)
Amplifier protection Thermal: Output limiter (Restored automatically) → Output mute (Restored automatically), Over current: Output mute (Restored automatically), Over voltage: Output limiter (Restored automatically), Integrated Power Limit: Output limiter (Restored automatically)
Power supply protection Thermal: Output limiter (Restored automatically) → Power supply shutdown, Over voltage: Power supply shutdown, Over current: Power supply shutdown
Cooling 7 step variable speed fan x 3, front to rear airflow
Maximum input voltage +25dBu
Input impedance 20kΩ (balanced)
Sampling frequency rate 96kHz
A/D D/A Converters AD: 32-bit linear, 64 times over sampling; DA: 32-bit linear, 128 times over sampling
Dante Interface Channel count 16 IN with Dante Redundancy, 16 OUT
Sampling frequency 96/88.2/48/44.1kHz
Dante latency 0.25/0.5/1/2/5ms
Bit depth 32/24bit
Processors 20 x 8 input matrix mixer, Room EQ: 16 band IIR EQ, Room Delay: 0 - 1000msec, Speaker Processor: X-Over (IIR/FIR*), PEQ (16 band IIR/FIR*), Delay, Peak Limiter, RMS Limiter
Latency Analog Input to Speakers: 0.9msec; Dante Input to Speakers (Dante latency setup = 0.25msec): 1.5msec (fs=96kHz), 1.6msec (fs=88.2kHz), 2.0msec (fs=48kHz), 2.1msec (fs=44.1kHz)
I/O Connectors Analog Input XLR-3-31 x 4
Digital I/O Dante Interface: etherCON x 2 (Redundant/Daisy Chain)
Speaker Output Neutrik speakON NL4 x 4
Control ports RJ45 x 1
AC AC inlet (powerCON 20A) x 1
Others Remote, Fault Output: Euro block 8pin (mini) x2 (GPI x 4, GPO x 6, +5V x 2)
Indicators Power (Green) x 1; Channel Status x 4 : Signal (Green), Limit (Yellow), Protect/Mute (Red); Auto LED off and dimmer feature (except POWER LED)
Power requirements 100V - 240V 50Hz/60Hz **
Power consumption 1050W (1/8 MAX power, 2Ω, Pink noise at all channels), 165W (Idle), 100W (Sleep, all channels), 9W (Standby 100V/120V), 12W (Standby 230V)
Operating temperature 0°C to +40°C
Storage temperature -20°C to +60°C
Dimensions W 480mm (18.90 inch)
H 88mm (3.46 inch): 2U
D 528mm (20.79 inch)
Net weight 15.6 kg (34.4 lbs)
Accessories Owner's Manual x 1, Power Cable (2.0m) x 1, GPIO Mini Euro block plug 3.5mm 8p x 2, Air filter (L x 1, R x 1), Grill (L x 1, R x 1), Handle x 2, Screw x 4
