Yamaha SWP2-10SMF - Dante Network Switch with Single-Mode Fiber Ports

  • Dale #:

    YAMA-SWP210SMF
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The SWP2 series L2 switch is ideal for Dante 96kHz network systems. It features 10 etherCON ports and two single mode fiber opticalCON ports. Features: etherCON Connectors: 4 front / 6 rear opticalCON Connectors: 2 front Dimensions (WxHxD): 480 x 44 x 362 mm (18.9" x 1.7" x 14.2") ... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The SWP2 series L2 switch is ideal for Dante 96kHz network systems. It features 10 etherCON ports and two single mode fiber opticalCON ports.

Features:

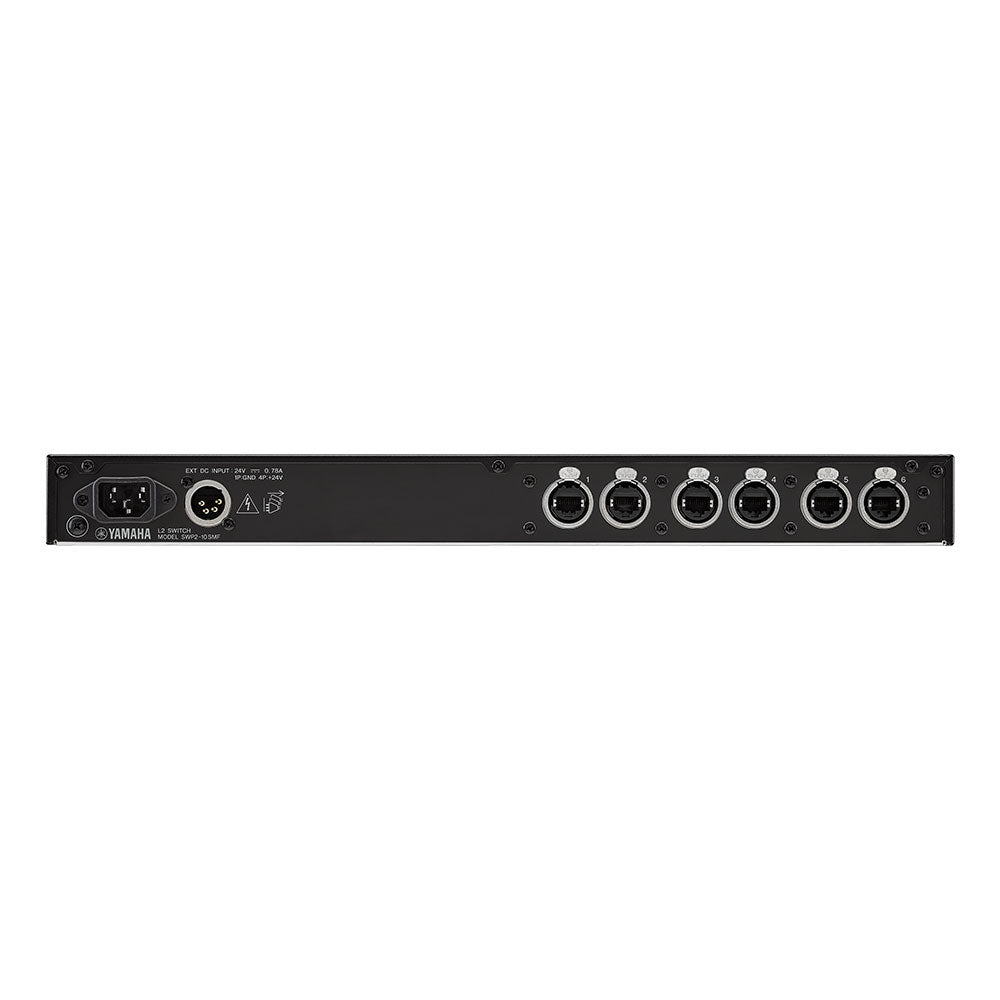

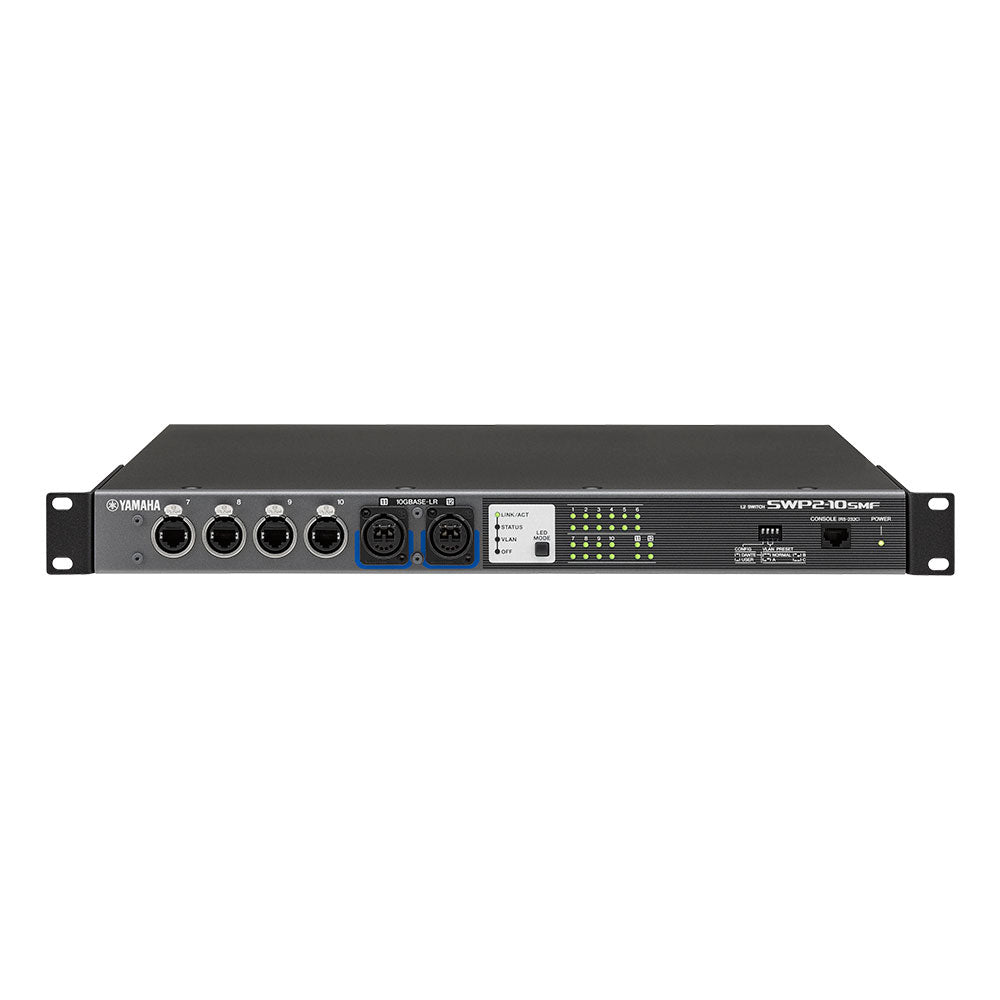

  • etherCON Connectors: 4 front / 6 rear
  • opticalCON Connectors: 2 front
  • Dimensions (WxHxD): 480 x 44 x 362 mm (18.9" x 1.7" x 14.2")
  • Net Weight: 4.6 kg (10.1 lbs)
  • In-build RADIUS server for advanced security management


Dante Ready Switches with Visual Network Monitoring
Complex network switch setup that was previously better left to an IT technician can now be easily accomplished by anyone. A simple switch setting is all it takes to optimize SWP series network switches for Dante operation, and a dedicated computer application called Yamaha LAN Monitor provides “network visibility” for comprehensive monitoring and control.

Developed since 1995
Yamaha entered the router business in 1995, and has grown to hold a significant share of Japan’s small to medium enterprise and SOHO network market. Yamaha gigabit L2 switches that could be linked to Yamaha routers/firewalls were introduced in 2011, with features that significantly reduced the network setup, maintenance, and management workload.

Simple set up, comprehensive network monitoring and easy trouble shooting
SWP series has been designed specifically for sound installation and live sound networking, with simple DIP switch Dante optimization and comprehensive graphical interfacing via a computer application. The SWP2 series support 10 gigabit, allowing operation without fear of insufficient bandwidth even on a Dante network that is set to a sampling frequency of 96kHz. SWP2 series network switches were born out of a desire to give our customers easier solutions that they could operate with confidence, without the need for any special networking know-how.

A refined Yamaha solution
Yamaha Pro Audio is known around the globe as a provider of innovative, top-quality solutions for the sound industry. The Yamaha lineup includes a number of world-standard mixing consoles, signal processors incorporating industry-leading DSP technology, power amplifiers based on energy-efficient drive technology, and an extensive range of speakers suitable for everything from live sound to commercial installations. SWP series network switches are a solution the pro audio market has been waiting for, offering an ideal a balance of IT and pro audio know-how that only Yamaha could provide.

DIP Switch Dante Optimization
Simple Dante networks are not difficult to set up and operate, but as network complexity grows the switches used need to be optimized for Dante operation in order to achieve maximum stability. Setting up QoS, IGMP Snooping, and other parameters on an intelligent switch can be a complex task, requiring specialized knowledge that is more the domain of IT technicians than audio engineers. The SWP2 series allows a Dante optimized setup to be recalled by simply flipping one DIP switch. No expertise or training is required.

3 Preset VLAN Types
A truly efficient network should be able to handle multiple services simultaneously: Dante communication, StageMix and other smart device functions, computer software that allows digital mixer or power amplifier control, and perhaps more. But the more communication you combine on one network, the greater the chance for interference and problems. The use of virtual VLAN domains to isolate the various types of data is the ideal solution, but this type of setup also requires some IT expertise. The SWP2 series includes three VLAN presets that can be simply selected via a DIP switch. There’s also a USER mode that allows fully customized VLAN setup.

etherCON Connectors for Live Sound Reliability
Reliability is essential in live sound applications. Nothing can be allowed to interrupt the show. Conventional network switches usually have RJ45 connectors to match the connectors on the computers to which they will be connected, but the SWP series features durable, reliable etherCON connectors that are directly compatible with the etherCON connectors on Yamaha CL/QL series consoles and other Dante capable devices.

10G uplink Optical Fiber, Network Redundancy Support
The SWP2 series equips the 10G uplink optical ports, allowing operation without fear of insufficient bandwidth even on a Dante network that is set to a sampling frequency of 96 kHz. It is a scalable solution that grows with a 96kHz Dante network system. The SWP2-10MMF includes multi-mode fiber capable opticalCON connectors and SWP2-10SMF includes single-mode fiber capable opticalCON connectors. Both multi and single-mode models allow for longer distance transmission. MMF models allow transmission over distance of up to 300 meters and SMF model allows transmission over distance of up to 10 kilometers. SWP2 seiries can be added to allow two optical fiber cables to be run for redundant connection. Spanning tree protocol (MSTP) is also supported for redundant connections.

Intelligent Security Management
Augmenting the VLAN functionality included in the SWP2 series is built-in RADIUS server function. By setting up one switch as a RADIUS server and linking other switches to it, unauthorized network access can be effectively blocked for enhanced security, even in complex large-scale installations. Device authentication can be set up quickly and easily via a web-based GUI.

EXT DC INPUT for Power Supply Redundancy
SWP series switches include an XLR-4-32 type EXT DC INPUT connector in addition to the standard AC IN connector. +24V DC supplied to the EXT DC INPUT connector provides redundant power that can keep the device running if a problem occurs in the AC supply. For further reliability the AC connector is a locking type (V-Lock) that minimizes the possibility of accidental disconnection.

Network Visibility Advantages
Effective Dante network management hinges on a range of parameters such as network traffic, switch status, and individual Dante device information. The dedicated Yamaha LAN Monitor application provides a comprehensive single-screen view of all necessary parameters when used with SWP/SWR series switches. We refer to this type of graphical overview as “network visbility.” You can even take a snapshot of the normal network status and set an alarm to warn you if any of the parameters changes, so that problems can be identified and resolved quickly and easily. The Dante Controller application can also be launched from the Yamaha LAN Monitor with a single click, providing a total Dante network solution on a single computer.

More +

Product Specs

Number of LAN ports (1000BASE-T/100BASE-TX/10BASE-T, etherCON connector) 10
Number of SFP+ ports (10GBASE-SR, opticalCON DUO connector) 0
Number of SFP+ ports (10GBASE-LR, opticalCON DUO connector) 2
Console port 1 (RJ-45)
Automatic negotiation Available
Auto MDI/MDI-X Available
DIP switches CONFIG, VLAN PRESET
Indicators Front: POWER, LED MODE×4, PORT×10×2*, SFP+ ×2×2
Operating temperature 0 to 40°C
Storage temperature -20 to 60°C
Power supply (AC IN inlet) AC100V-240V, 50/60Hz, Internal power supply (no power switch), Power supply inlet: locking type
Power supply (EXT DC INPUT inlet) 24VDC±2V, 0.78A, XLR-4-32 type Connector
Maximum power consumption 21W, 0.35A
Heat dissipation 18.5 kcal/h
Body material Metal case, no fan
Hazardous substances management RoHS compliant
Dimensions W 18.9" / 480mm
H 1.7" / 44mm
D 14.3" / 362 mm
Weight 9.9 lbs / 4.5 kg (excluding accessories)
Accessories Power code, Owner's manual
Options PA-700 (AC adaptor)
