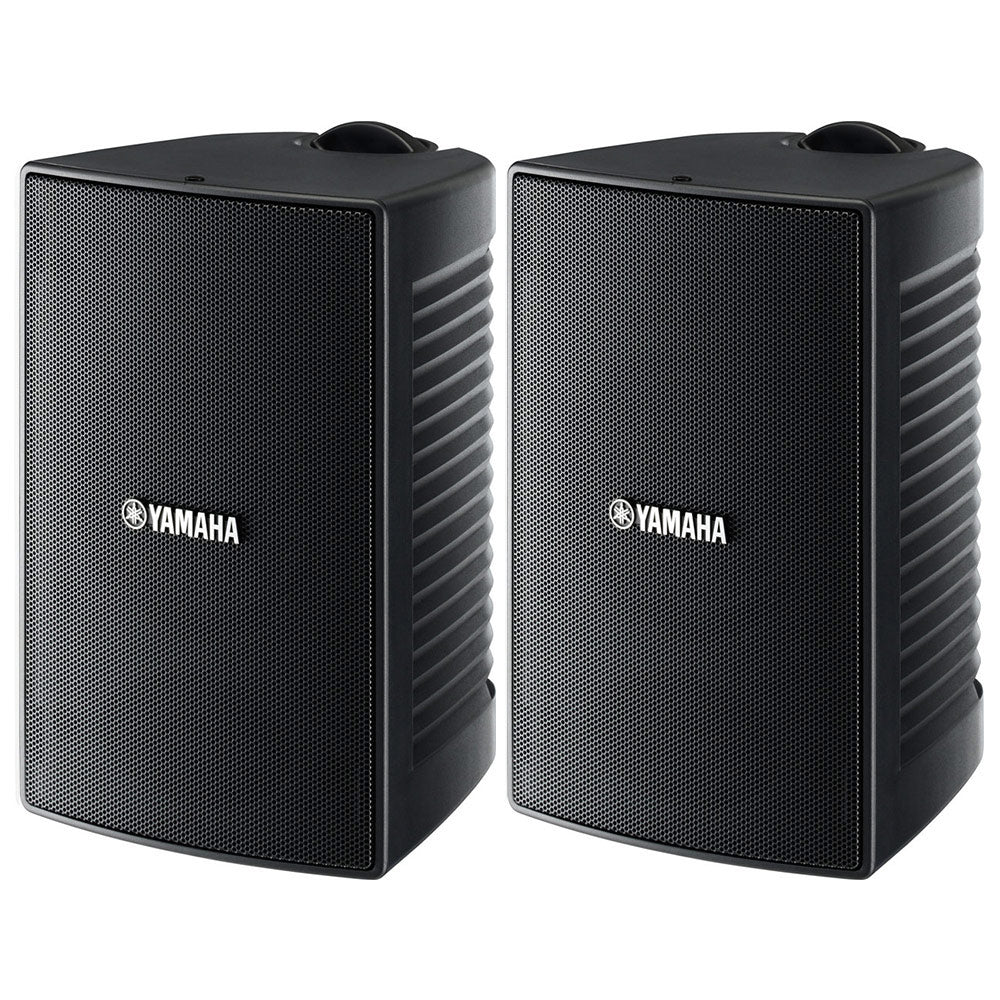

Yamaha VS4 Two-Way 4-Inch Surface Mount Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually, but sold in pairs.
4" cone woofer with a 1" balanced dome tweeter.
A superb blend of aesthetic simplicity and functional sophistication, the VS Series delivers high quality sounds in a variety of indoor and outdoor settings, particularly locations where interior design is a consideration. Let the VS Series be the perfect complement to your sonic needs.
Features:
- Compact surface mount speakers with superior sound quality and sleek, functional design.
- Series comprises two models: the VS6 (6.5" woofer) and VS4 (4" woofer) - both models feature a 1" balanced dome tweeter and are available in Black or White.
- Waterproof construction meeting the IEC60529 IPX3 rating requirements for outdoor usage.
- Internally mounted transformers allowing operation in 70V or 100V distributed sound systems.
- Dedicated, color-matched steel U-bracket enclosed for horizontal or vertical installation.
- Paintable enclosure and grill to match any decor.
- Overload protection circuit provided to protect speaker components.
| Frequency response | -10dB | 100Hz - 20kHz |
| Nominal coverage | H | 110 |
| V | 110 | |
| Components | LF | 4"(100mm) cone driver |
| HF | 1"(25mm) balanced dome tweeter | |
| Crossover | 15kHz | |
| Power rating | NOISE | 15W |
| PGM | 30W | |
| PEAK | 60W | |
| Nominal impedance | 8? | |
| Transformer taps | 100V | 15W, 7.5W, 3.8W |
| 70V | 15W, 7.5W, 3.8W, 1.9W | |
| SPL | Sensitivity (1W; 1m on axis) | 88dB SPL |
| Peak (Calculated) | 106dB SPL (60W) | |
| I/O connectors | 2 pairs of barrier strip (parallel-wired) | |
| Shape | Rectangular | |
| Cabinet material | HIPS, 94-HB | |
| Finish | VS4: Black, VS4W: White | |
| Flying and mounting hardware | U-bracket (4 x ?5.5mm and 2 x ?11mm holes) | |
| Waterproof | IEC60529 IPX3 splash proof rating | |
| Dimensions | W | 152 mm (6") |
| H | 243 mm (9 9/16") | |
| D | 172 mm (6 3/4") | |
| Net weight | 1.9kg (4.2lbs) | |
| Accessories | U-bracket, Owner's Manual, Retaining knob, Terminal cover, Terminal cover screw, SPECIFICATIONS | |
Priced individually, but sold in pairs.
4" cone woofer with a 1" balanced dome tweeter.
A superb blend of aesthetic simplicity and functional sophistication, the VS Series delivers high quality sounds in a variety of indoor and outdoor settings, particularly locations where interior design is a consideration. Let the VS Series be the perfect complement to your sonic needs.
Features:
- Compact surface mount speakers with superior sound quality and sleek, functional design.
- Series comprises two models: the VS6 (6.5" woofer) and VS4 (4" woofer) - both models feature a 1" balanced dome tweeter and are available in Black or White.
- Waterproof construction meeting the IEC60529 IPX3 rating requirements for outdoor usage.
- Internally mounted transformers allowing operation in 70V or 100V distributed sound systems.
- Dedicated, color-matched steel U-bracket enclosed for horizontal or vertical installation.
- Paintable enclosure and grill to match any decor.
- Overload protection circuit provided to protect speaker components.
| Frequency response | -10dB | 100Hz - 20kHz |
| Nominal coverage | H | 110 |
| V | 110 | |
| Components | LF | 4"(100mm) cone driver |
| HF | 1"(25mm) balanced dome tweeter | |
| Crossover | 15kHz | |
| Power rating | NOISE | 15W |
| PGM | 30W | |
| PEAK | 60W | |
| Nominal impedance | 8? | |
| Transformer taps | 100V | 15W, 7.5W, 3.8W |
| 70V | 15W, 7.5W, 3.8W, 1.9W | |
| SPL | Sensitivity (1W; 1m on axis) | 88dB SPL |
| Peak (Calculated) | 106dB SPL (60W) | |
| I/O connectors | 2 pairs of barrier strip (parallel-wired) | |
| Shape | Rectangular | |
| Cabinet material | HIPS, 94-HB | |
| Finish | VS4: Black, VS4W: White | |
| Flying and mounting hardware | U-bracket (4 x ?5.5mm and 2 x ?11mm holes) | |
| Waterproof | IEC60529 IPX3 splash proof rating | |
| Dimensions | W | 152 mm (6") |
| H | 243 mm (9 9/16") | |
| D | 172 mm (6 3/4") | |
| Net weight | 1.9kg (4.2lbs) | |
| Accessories | U-bracket, Owner's Manual, Retaining knob, Terminal cover, Terminal cover screw, SPECIFICATIONS | |
