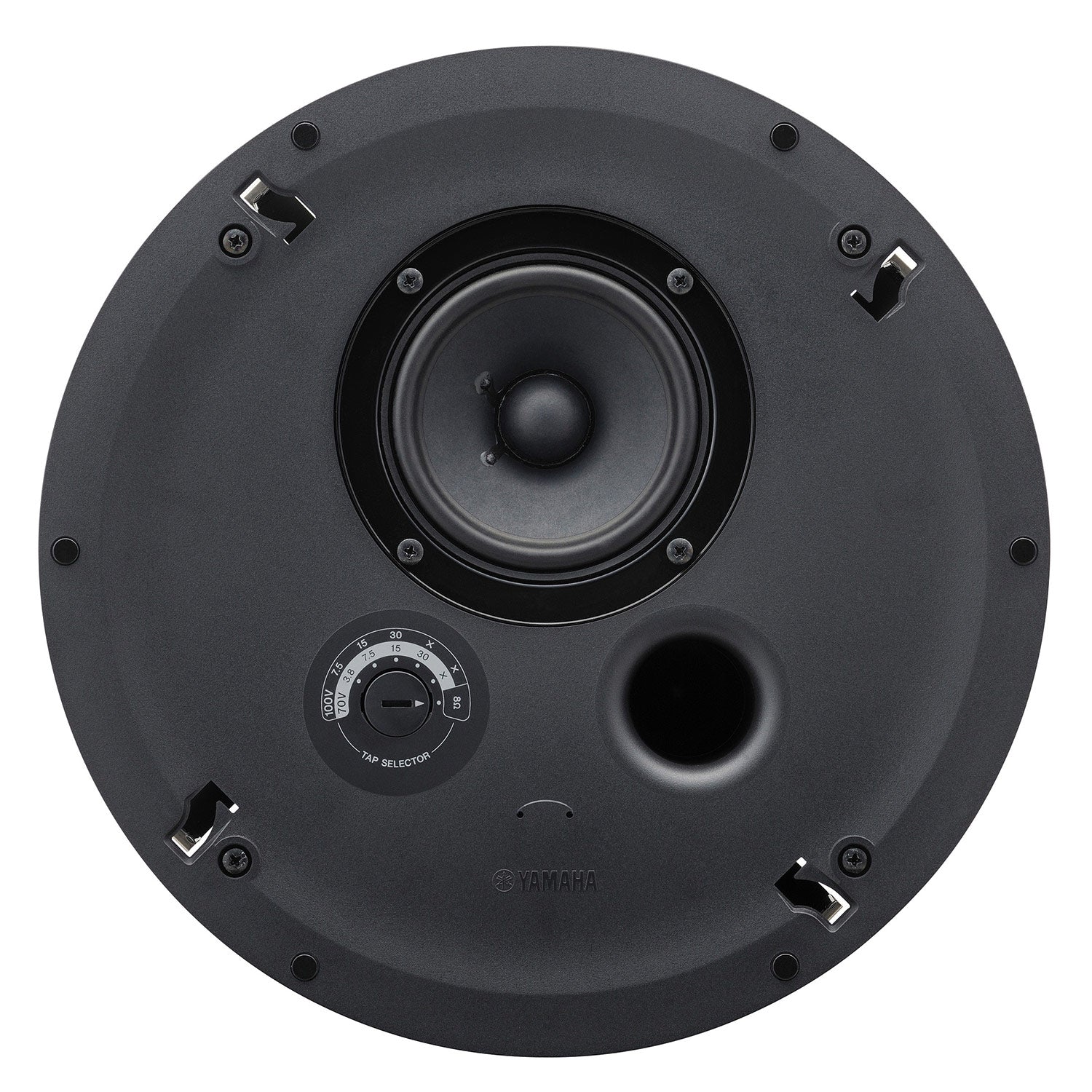

Yamaha VXC5F Full-Range 4.5-Inch Ceiling Mount Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually, but sold in pairs.
4.5" full-range ceiling loudspeaker.
Features:
- 4.5" full-range speaker unit
- Engineered for optimum BGM reproduction
- Wide coverage allows a single speaker to cover a wide area
- Direct support for low-impedance or high-impedance connections
- Low-profile design facilitates installation in limited ceiling spaces

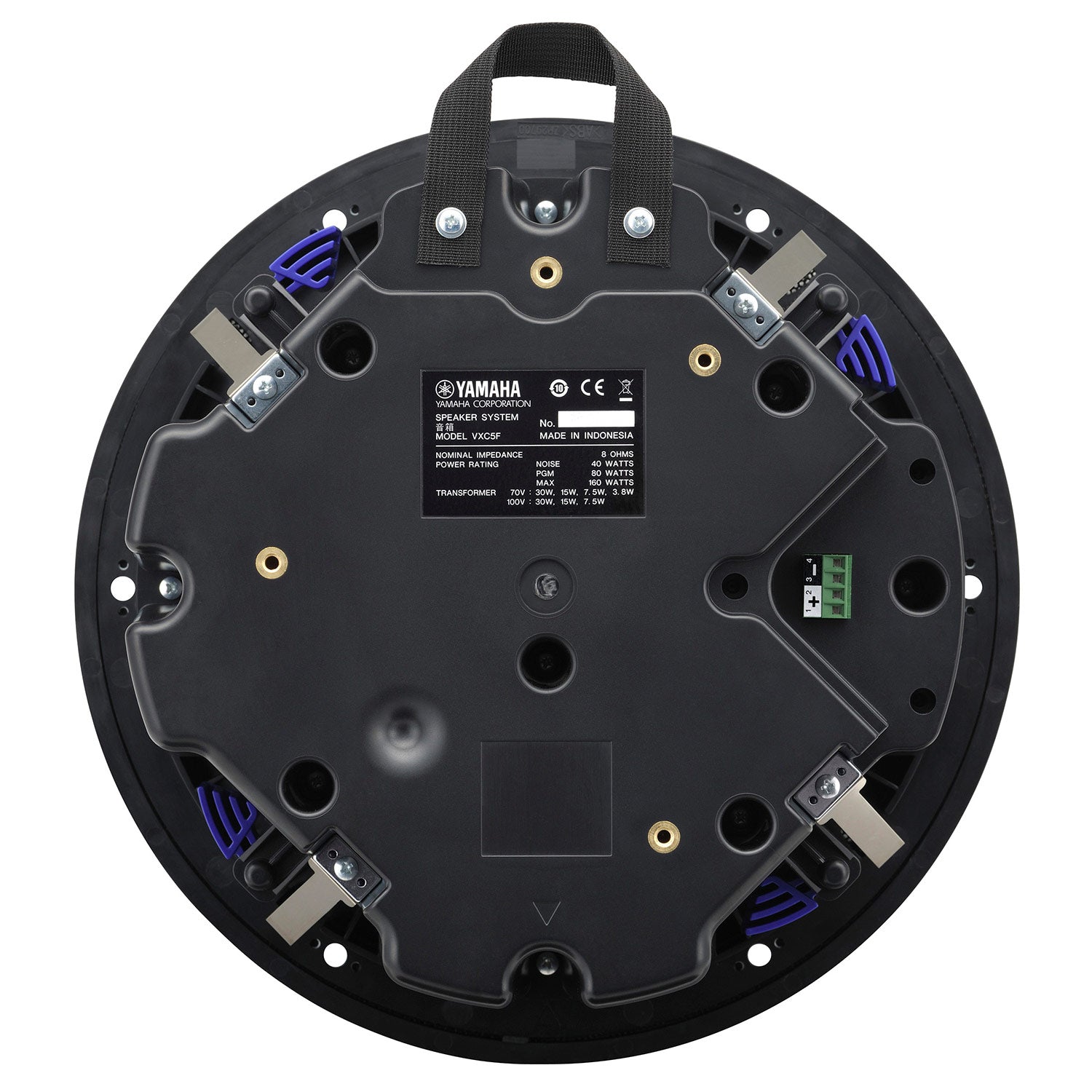

- Built-in carrying band increases safety during installation
- Anti-drop tab mechanism provide secure temporary positioning during installation
- Double-threaded speaker clamp screws for speedy tightening
- Paintable grilles with magnetic catches
- Black and white versions available
- 3.1kg (6.8lbs), O324 x D143 mm (O12-13/16" x D5-11/16")
Music can play an integral role in defining the aesthetic and atmosphere of a commercial space, greatly enhancing the overall experience for customers and clientele. By combining Yamaha's unrivaled acumen for developing state of the art musical instruments and professional audio technologies, with a flexible approach towards design and application, VXC-F ceiling speakers allow you to streamline the installation process and seamlessly integrate high-quality audio into a restaurant, retail, or professional environment. Featuring a newly designed speaker unit, optimally tuned for music playback, the VXC-F's shallow, lightweight construction and flexible design can easily adapt to the strictest installation limitations, ensuring superb audio performance wherever they're placed.
| Speaker type | Full range, Bass reflex | |
| Frequency range (-10dB) | 60 Hz - 20 kHz (Half-space:2?) | |
Nominal coverage | 130 deg. conical (Half-space :2?) | |
| Components | LF-HF | 4.5" Full range unit |
| Power rating | NOISE | 40 W |
| PGM | 80 W | |
| PEAK | 160 W | |
| Nominal impedance | 8 ? | |
| Transformer taps | 100V | 30 W, 15W, 7.5 W |
| 70V | 30 W, 15 W, 7.5 W, 3.8 W | |
| SPL | Sensitivity (1W; 1m on axis) | 89 dB SPL (Half-space:2?) |
| Peak (Calculated) | 111 dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression) | |

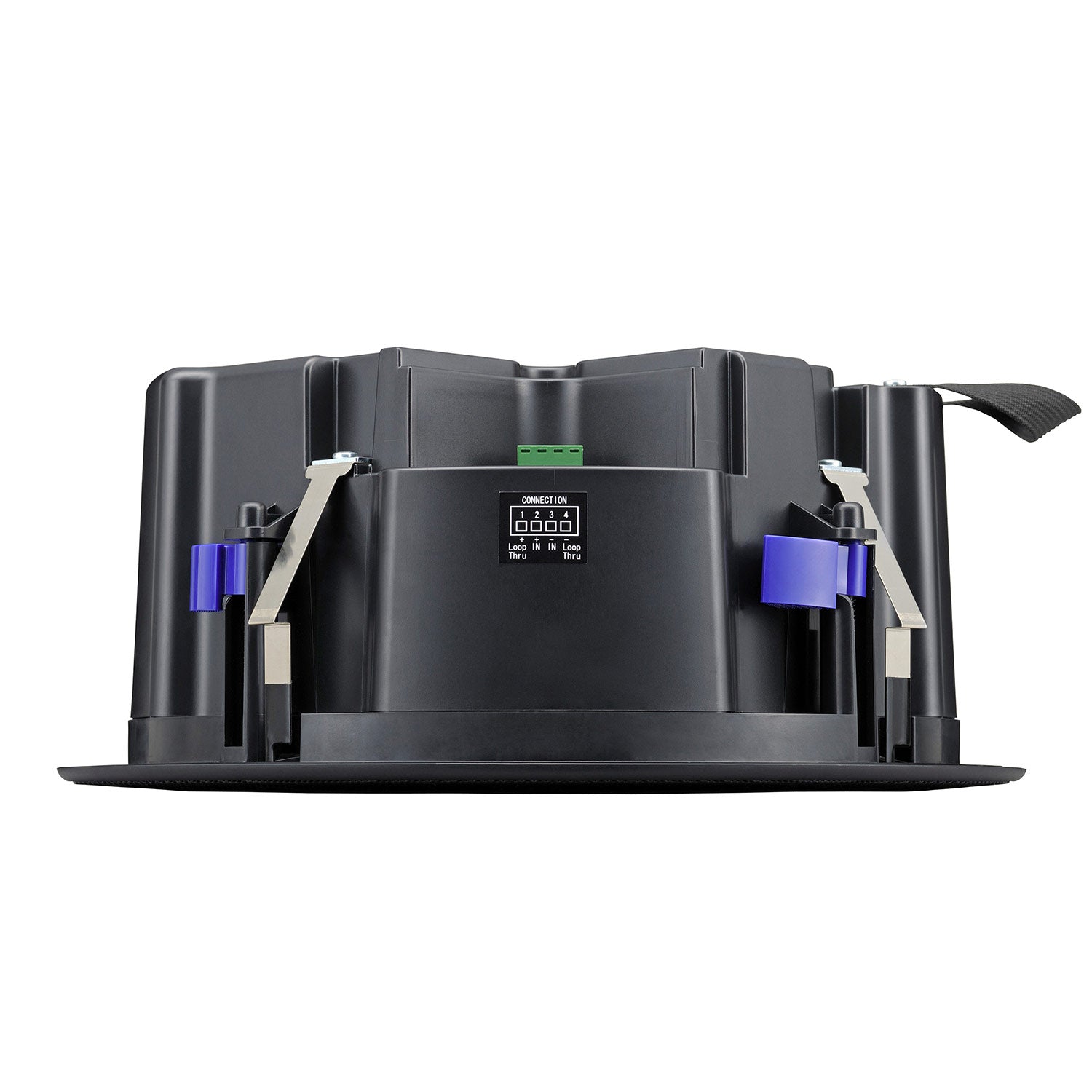

| I/O connectors | Euroblock (4 pin) x 1 (input: +/-, loop-thru: +/-) | |
| Protection circuit | Load protection | Full-range power limiting to protect network and transducers |
| Finish | VXC5F: Black (approx. Munsell N3), VXC5FW: White (approx. Munsell N9.3) | |
| Dimensions | Diameter | 324 mm (12-13/16") |
| D | 143 mm (5-11/16") | |
| Net weight | 3.1 kg (6.8 lbs) | |
| Cutout size | O285 mm (O11-1/4") | |
| Required ceiling board thickness | 5 mm - 37 mm | |
| Accessories | O-ring, Tile Rail, Cutout Template, Euro Block (4pin), Terminal Cover | |
| Packaging | Packaged in pairs | |
| Certificate | UL1480, NFPA70, CE, EAC, RoHS | |
| EN54-24 compliance | - | |
| Others | Conduit tube: O15.4 mm - O21.3 mm | |
Priced individually, but sold in pairs.
4.5" full-range ceiling loudspeaker.
Features:
- 4.5" full-range speaker unit
- Engineered for optimum BGM reproduction
- Wide coverage allows a single speaker to cover a wide area
- Direct support for low-impedance or high-impedance connections
- Low-profile design facilitates installation in limited ceiling spaces
- Built-in carrying band increases safety during installation
- Anti-drop tab mechanism provide secure temporary positioning during installation
- Double-threaded speaker clamp screws for speedy tightening
- Paintable grilles with magnetic catches
- Black and white versions available
- 3.1kg (6.8lbs), O324 x D143 mm (O12-13/16" x D5-11/16")
Music can play an integral role in defining the aesthetic and atmosphere of a commercial space, greatly enhancing the overall experience for customers and clientele. By combining Yamaha's unrivaled acumen for developing state of the art musical instruments and professional audio technologies, with a flexible approach towards design and application, VXC-F ceiling speakers allow you to streamline the installation process and seamlessly integrate high-quality audio into a restaurant, retail, or professional environment. Featuring a newly designed speaker unit, optimally tuned for music playback, the VXC-F's shallow, lightweight construction and flexible design can easily adapt to the strictest installation limitations, ensuring superb audio performance wherever they're placed.
| Speaker type | Full range, Bass reflex | |
| Frequency range (-10dB) | 60 Hz - 20 kHz (Half-space:2?) | |
Nominal coverage | 130 deg. conical (Half-space :2?) | |
| Components | LF-HF | 4.5" Full range unit |
| Power rating | NOISE | 40 W |
| PGM | 80 W | |
| PEAK | 160 W | |
| Nominal impedance | 8 ? | |
| Transformer taps | 100V | 30 W, 15W, 7.5 W |
| 70V | 30 W, 15 W, 7.5 W, 3.8 W | |
| SPL | Sensitivity (1W; 1m on axis) | 89 dB SPL (Half-space:2?) |
| Peak (Calculated) | 111 dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression) | |
| I/O connectors | Euroblock (4 pin) x 1 (input: +/-, loop-thru: +/-) | |
| Protection circuit | Load protection | Full-range power limiting to protect network and transducers |
| Finish | VXC5F: Black (approx. Munsell N3), VXC5FW: White (approx. Munsell N9.3) | |
| Dimensions | Diameter | 324 mm (12-13/16") |
| D | 143 mm (5-11/16") | |
| Net weight | 3.1 kg (6.8 lbs) | |
| Cutout size | O285 mm (O11-1/4") | |
| Required ceiling board thickness | 5 mm - 37 mm | |
| Accessories | O-ring, Tile Rail, Cutout Template, Euro Block (4pin), Terminal Cover | |
| Packaging | Packaged in pairs | |
| Certificate | UL1480, NFPA70, CE, EAC, RoHS | |
| EN54-24 compliance | - | |
| Others | Conduit tube: O15.4 mm - O21.3 mm | |
