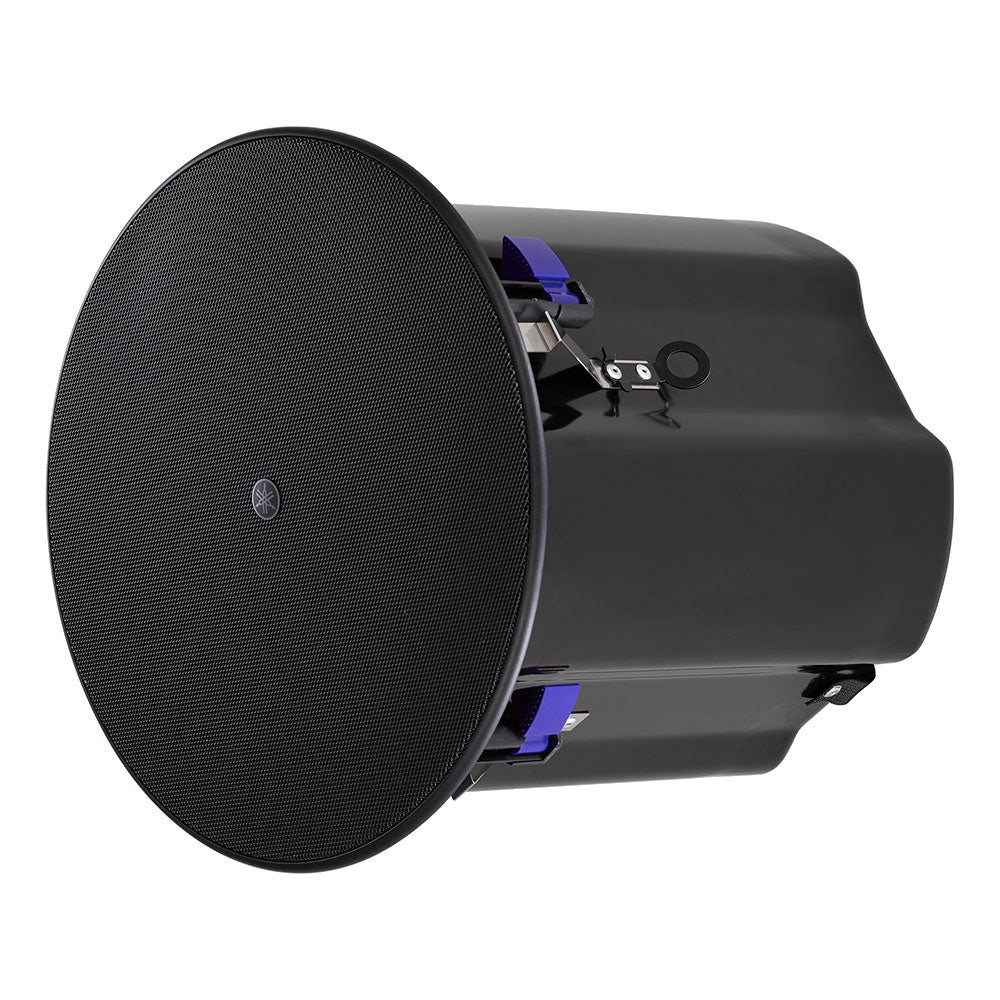

Yamaha VXC8SB In-Ceiling Subwoofer with Tile Bridge (Black)

  • Dale #:

    YAMA-VXC8SBWITHABC8S
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

VXC series "S model" ceiling subwoofers are ideal matches for VXS and VXC series speakers, smoothly extending the low frequency range with superb sonic quality for bigger, more true-to-life musical reproduction without spoiling interior design of architectures. Features: Sound and size idea... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

VXC series "S model" ceiling subwoofers are ideal matches for VXS and VXC series speakers, smoothly extending the low frequency range with superb sonic quality for bigger, more true-to-life musical reproduction without spoiling interior design of architectures.

Features:

  • Sound and size ideally matched to the VXS and VXC series
  • Band-pass design ensures smooth, distortion-free low-frequency extension
  • Direct support for low-impedance or high-impedance connections
  • Built-in carrying band increases safety during installation
  • Anti-drop tab mechanism provide secure temporary positioning during installation
  • Double-threaded speaker clamp screws for speedy tightening
  • Paintable grilles with magnetic catches
  • Black and white versions available
  • 8.7kg (19.2lbs), Ø324 x D314 mm (Ø12-13/16" x D12-23/64")
  • AB-C8S (sold separately) is required to secure safe installation of VXC8S


A Choice of Models for All Low-frequency Needs
Luxurious bass response can enhance musical presence and realism in a big way. The enclosures of VXC series S models incorporate a band-pass design to reduce unwanted vibrations and noise, making it possible to achieve a higher SPL.

Smart Design for Safer, Faster Installation
The VXC-S ceiling speakers come with smart mechanical features that contribute to significantly safer, faster installation. And since these models support both low-impedance and high-impedance connection, the need for extra stock is minimized and systems can be designed to ideally meet the requirements of any application.

Hi-Z or Lo-Z

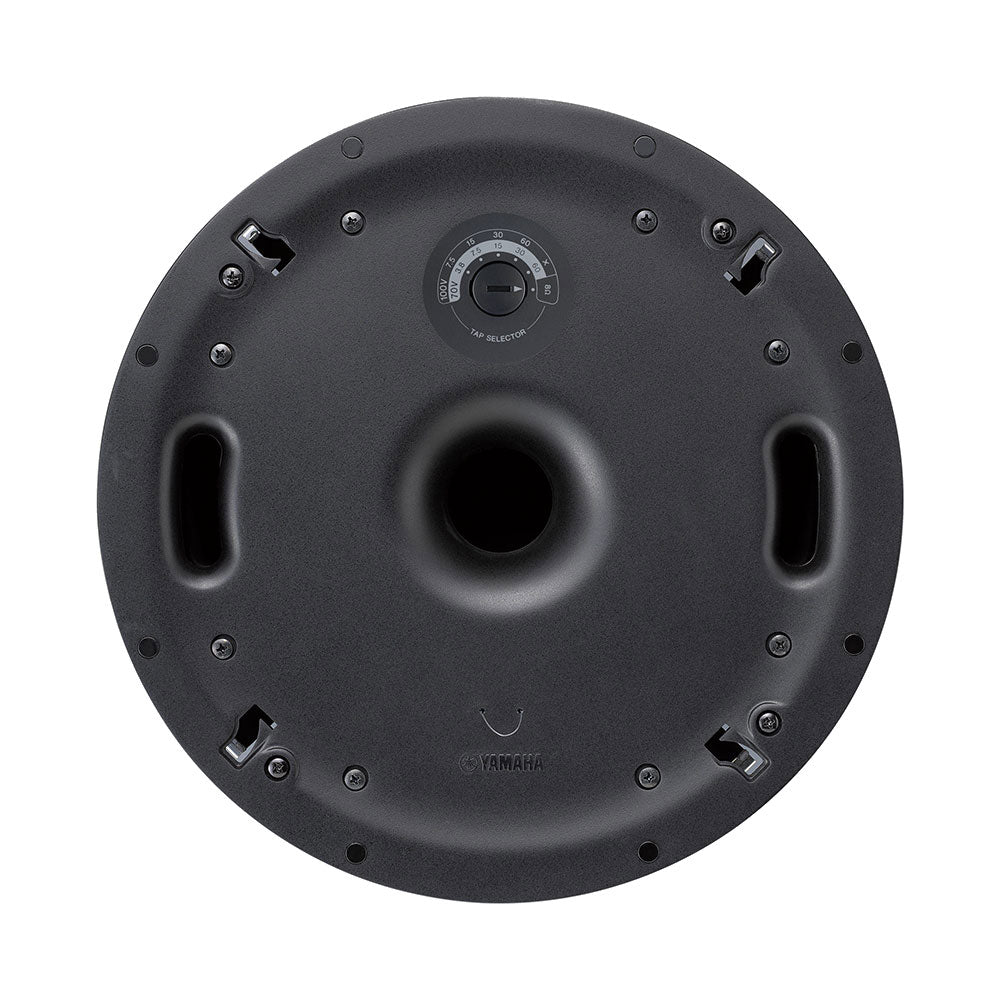

Both high-impedance and low-impedance connections are supported, and speaker wattage can be easily switched even after installation.

Portable

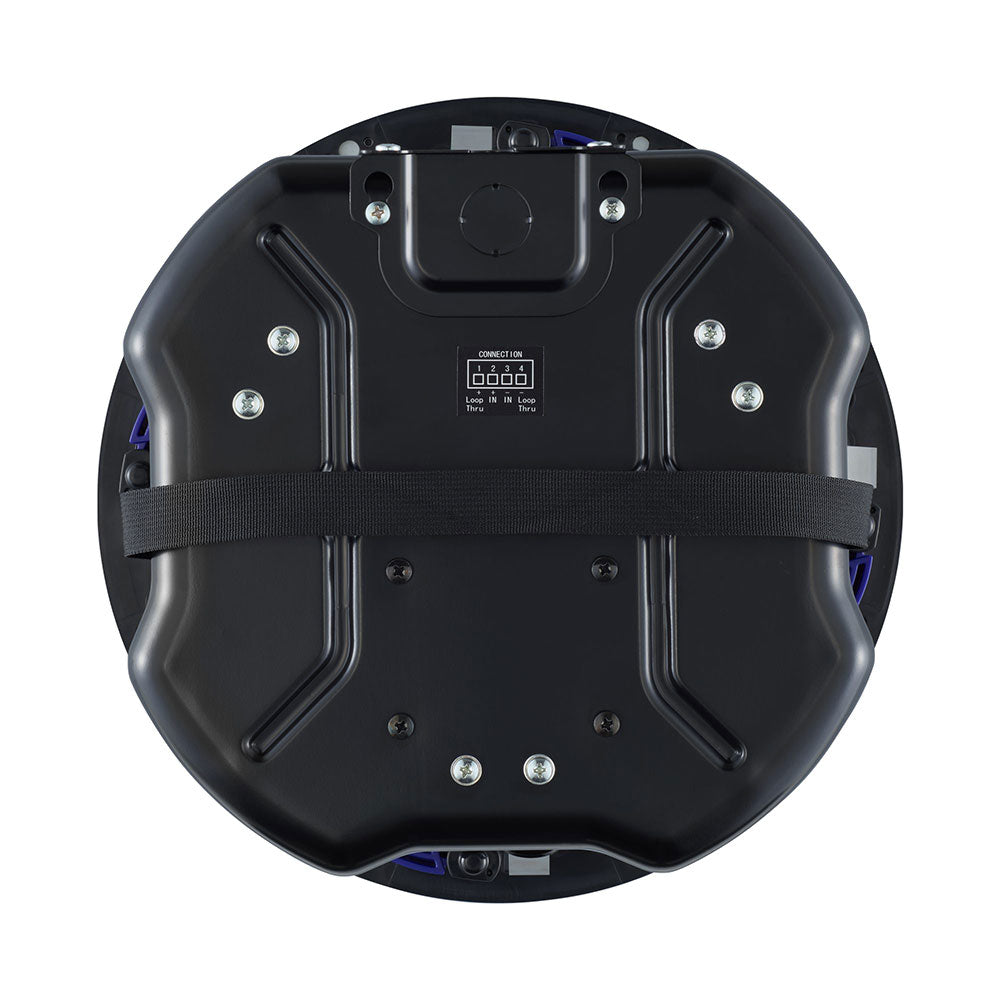

A built-in "carrying band" not only makes the speaker easy to carry around, but also increases safety when working on a stepladder.

Secure

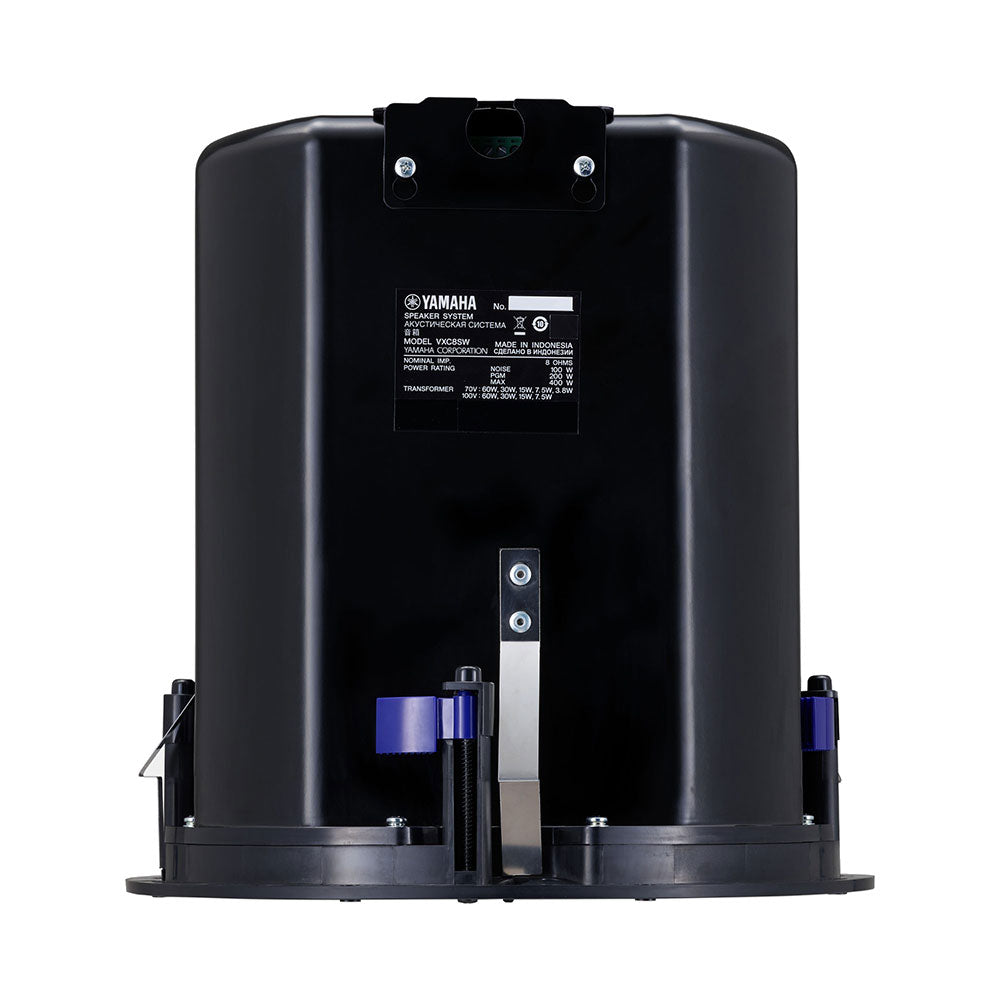

An anti-drop tab mechanism securely holds the speaker in place so that the installation can proceed safely and efficiently. There’s also a release lever that allows the speaker to be smoothly removed from the ceiling as required.

Fast
Double threaded screws used for the speaker clamp mechanism allow the clamps to be tightened twice as fast as conventional screws.

Streamlined

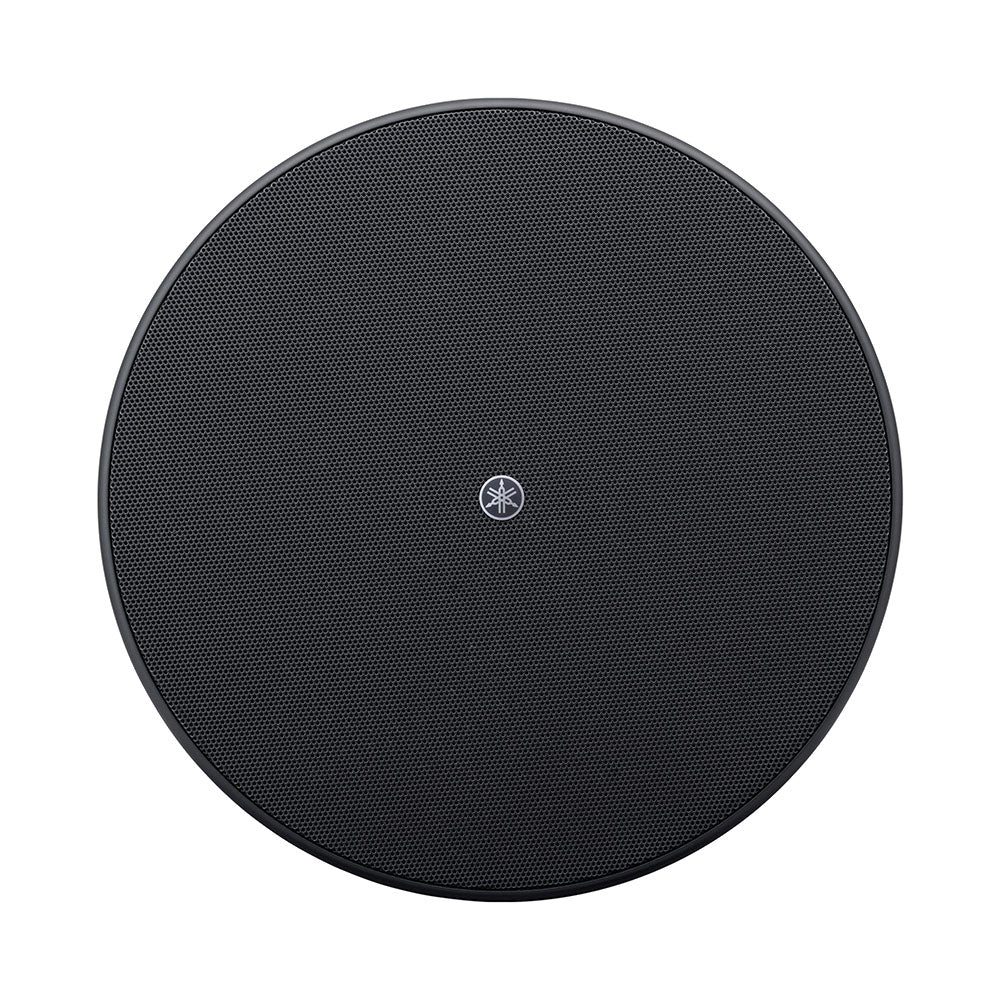

The supplied speaker grilles are firmly and elegantly held in place by powerful magnets. An anti-drop wire is also included.

Paintable
The supplied grilles can be painted any color to match interior decor.

More +

Product Specs

Speaker type Band-pass type Subwoofer
Frequency range (-10dB) 44 Hz - 200 Hz (Half-space 2π)
Nominal coverage -
Components LF-HF 8" Cone
Power rating NOISE 100 W
PGM 200 W
PEAK 400 W
Nominal impedance 8 Ω
Transformer taps 100V 60 W, 30 W, 15 W, 7.5 W
70V 60 W, 30 W, 15 W, 7.5 W, 3.8 W
SPL Sensitivity (1W; 1m on axis) 88 dB SPL (Half-space 2π)
Peak (Calculated) 114 dB SPL (Calculated, 1m)

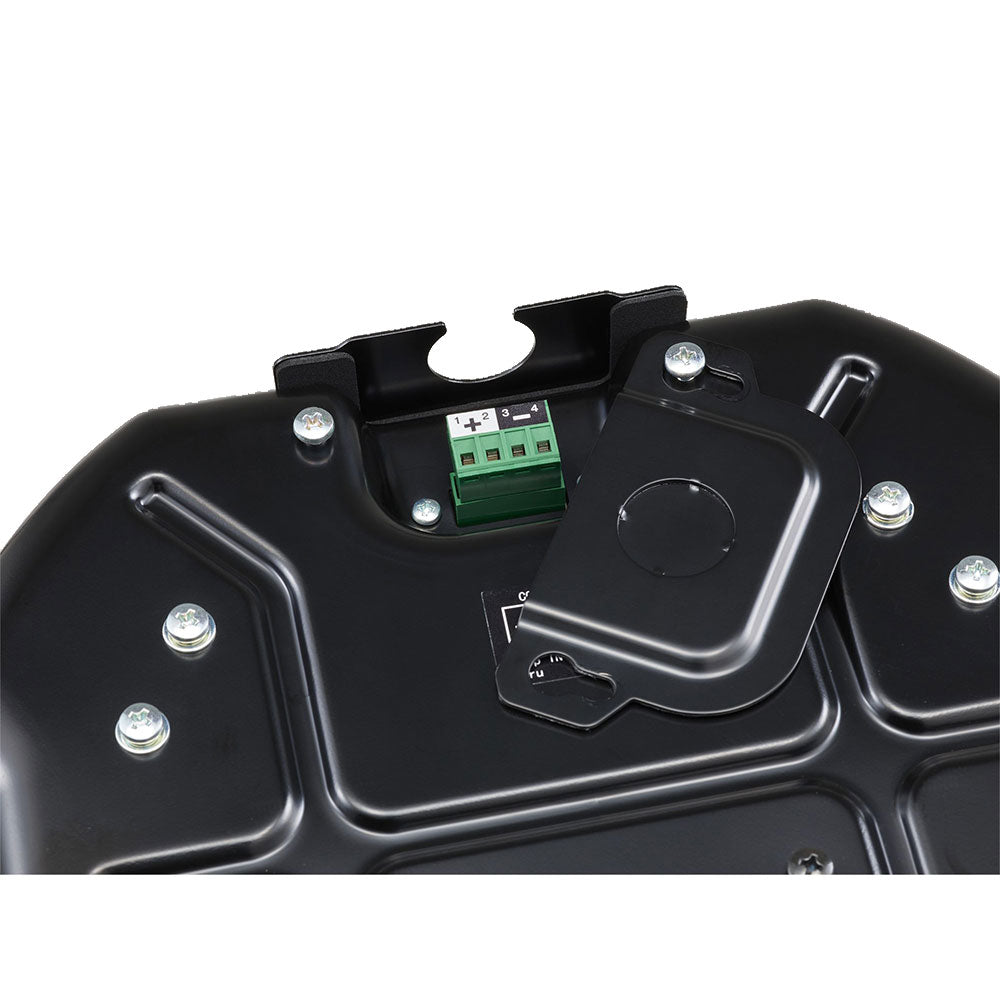

I/O connectors Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-)
Protection circuit Load protection Full-range power limiting to protect network and transducers
Finish VXC8SB: Black (approx. Munsell N3), VXC8SW: White (approx. Munsell N9.3)
Dimensions Diameter 324 mm (12-13/16")
D 314 mm (12-23/64")
Net weight 8.7 kg (19.2 lbs)
Cutout size Ø285 mm (Ø11-7/32")
Required ceiling board thickness 5 mm - 37 mm
Accessories Cutout Template
Packaging Single package
Certificate UL1480, UL2043, NFPA70, CE, EAC, RoHS
EN54-24 compliance -
Others Conduit tube: Ø15.4 mm - Ø21.3 mm

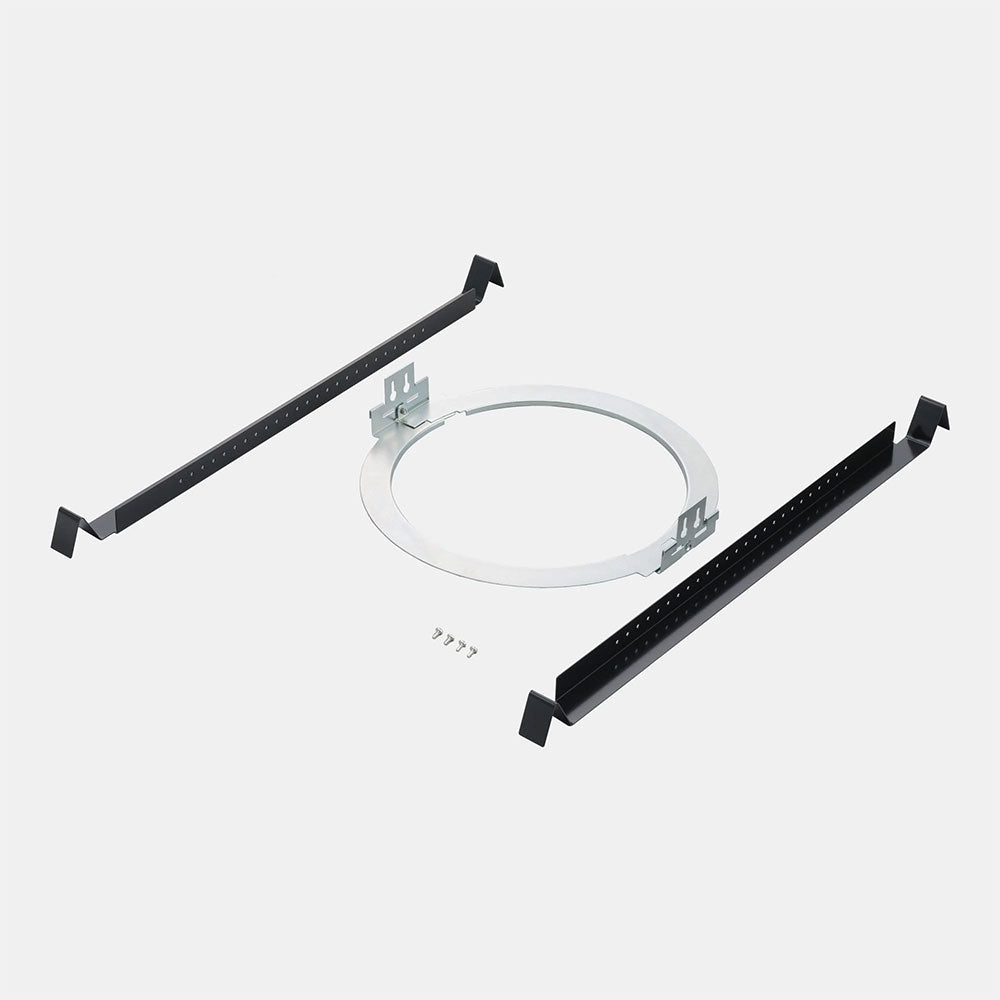

Options AB-C8S: O-ring + Tile Rail kit
