Yamaha VXH6 - Two-Way 6.5-Inch Pendant Loudspeaker (Black)

  • Dale #:

    YAMA-VXH6B
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

2-way system with 6.5-inch woofer and 1-inch tweeter. Features: Wide dispersion (120°) and 300W power handling Engineered for optimum BGM and voice reproduction Pendant speaker suitable for high, open structure or sloped ceilings Direct support for low-impedance or high-impedance connections Pai... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

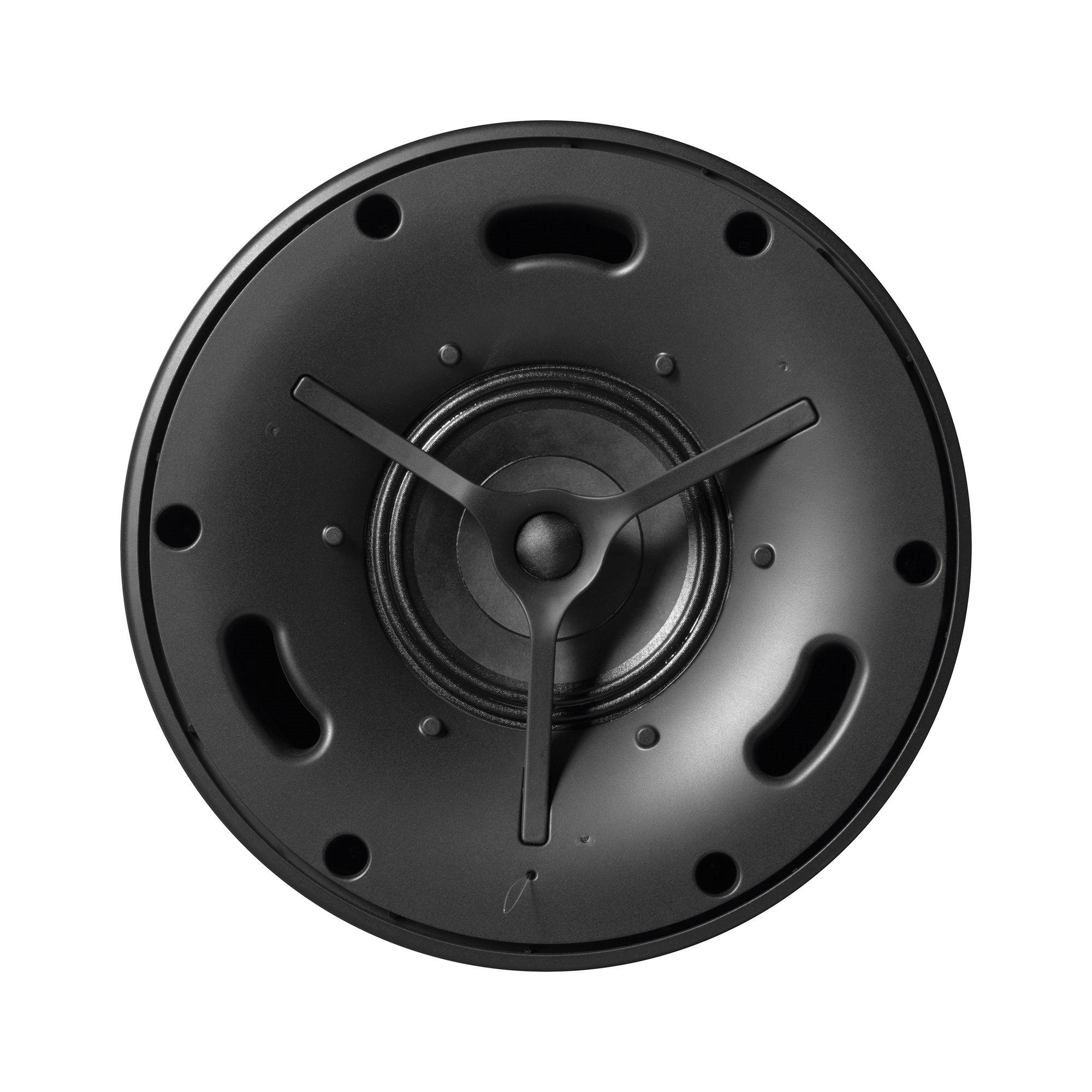

2-way system with 6.5-inch woofer and 1-inch tweeter.

Features:

  • Wide dispersion (120°) and 300W power handling
  • Engineered for optimum BGM and voice reproduction
  • Pendant speaker suitable for high, open structure or sloped ceilings
  • Direct support for low-impedance or high-impedance connections
  • Paintable grilles with magnetic catches

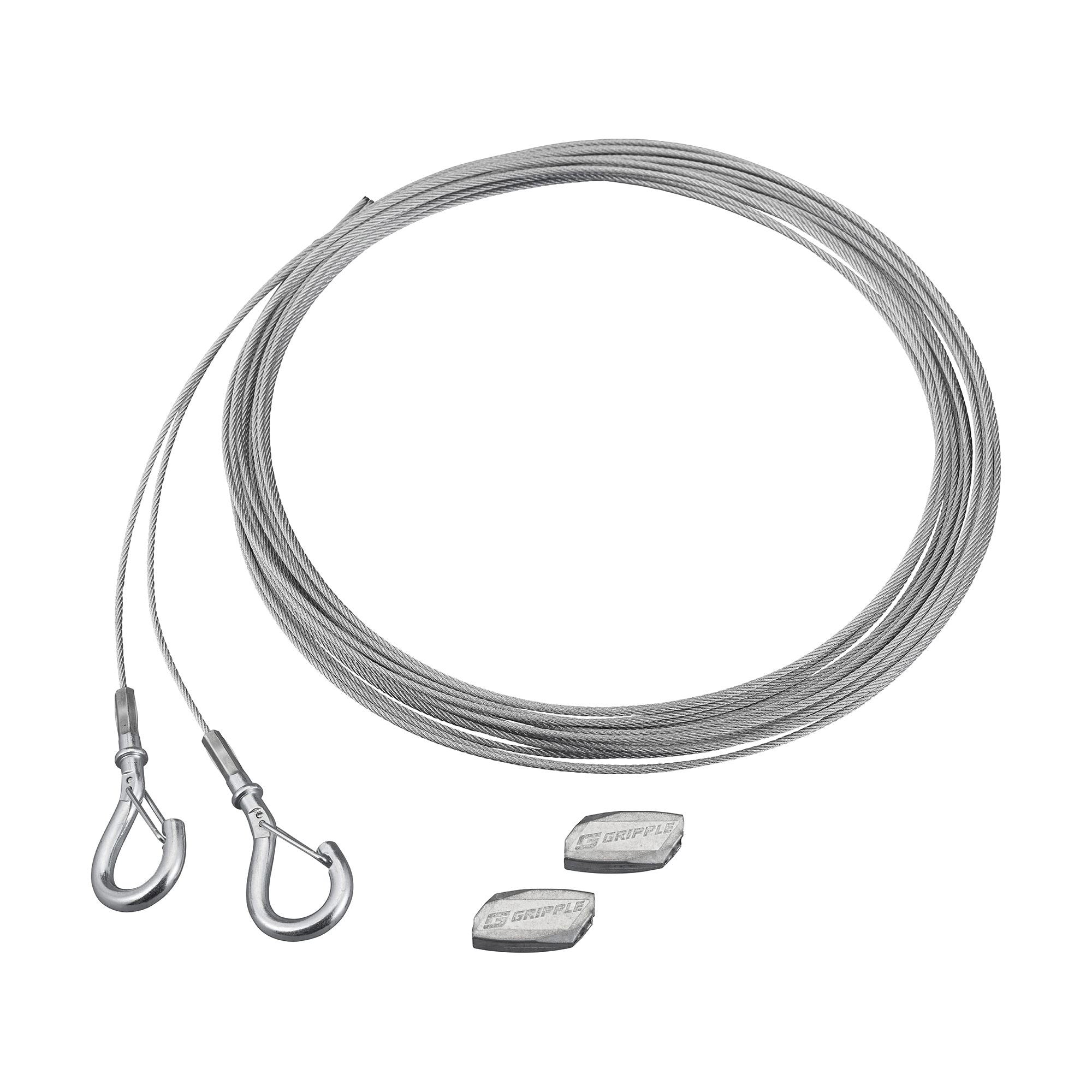

  • 2 x 6m steel wire cables by Gripple
  • Black and white versions available
  • 5.7 kg (12.6 lbs), Dia.340 x D368 mm (Dia.13-3/8" D14-1/2")
  • Single unit package


Stunning sound from any ceiling
VXH series pendant speakers are an ideal choice for open-structure or sloped ceilings, adding versatility for a variety of environments and sonic needs.

Recommended Applications
Installations for high-ceiling, huge space and open structure or sloped ceiling such as amusement facility, large hall sales floor, gymnastic hall and other design-conscious restaurant, clothing store,etc.

Models for a wide range of applications
Two models are available to adapt varying heights in a wide range of applications. The wide-dispersion 6.5-inch VXH6 is ideal for use where the speakers are to be suspended at a relatively low position, while the high-power 8-inch VXH8 has narrower dispersion that is suited for high suspension positions.

Stylish Yet Unobtrusive
Clean architectural settings require fixtures that seamlessly blend into their environments while maintaining full functionality. VXH series combine unprecedented acoustical performance and a music instrument inspired design that will be at home in a wide variety of settings.

World-class Installation Ease and Safety
Gripple suspension hardware and wire kit included for easy, safe height adjustment during installation.

High-impedance and low-impedance supported
Both high-impedance and low-impedance connections are supported, and speaker wattage can be easily switched even after installation. The need for additional units is minimized and systems can be designed to ideally meet the requirements of any application.

Secure Installation
A suspension hardware and wire kit from Gripple, the world standard in suspension products, ensures safe height adjustment during installation.

Dust and Water Protection
VXH Series speakers are IP45 rated for use in a wide range of environments, including outdoors.

* Not for use in humid places.

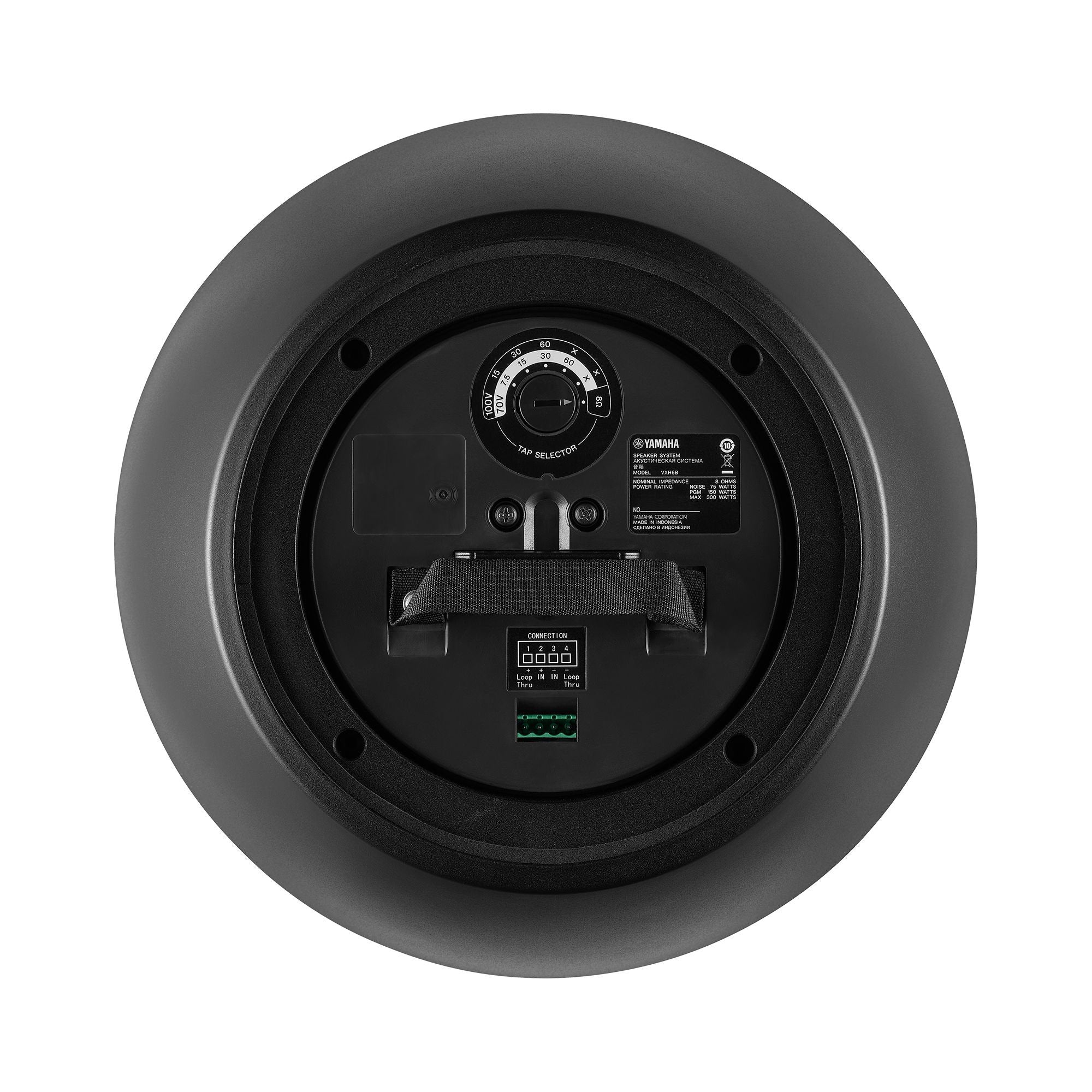

Hi-Z or Lo-Z
Both high-impedance and low-impedance connections are supported, and speaker wattage can be easily switched even after installation.

Portable
A built-in "carrying band" not only makes the speaker easy to carry around, but also increases safety when working on a stepladder.

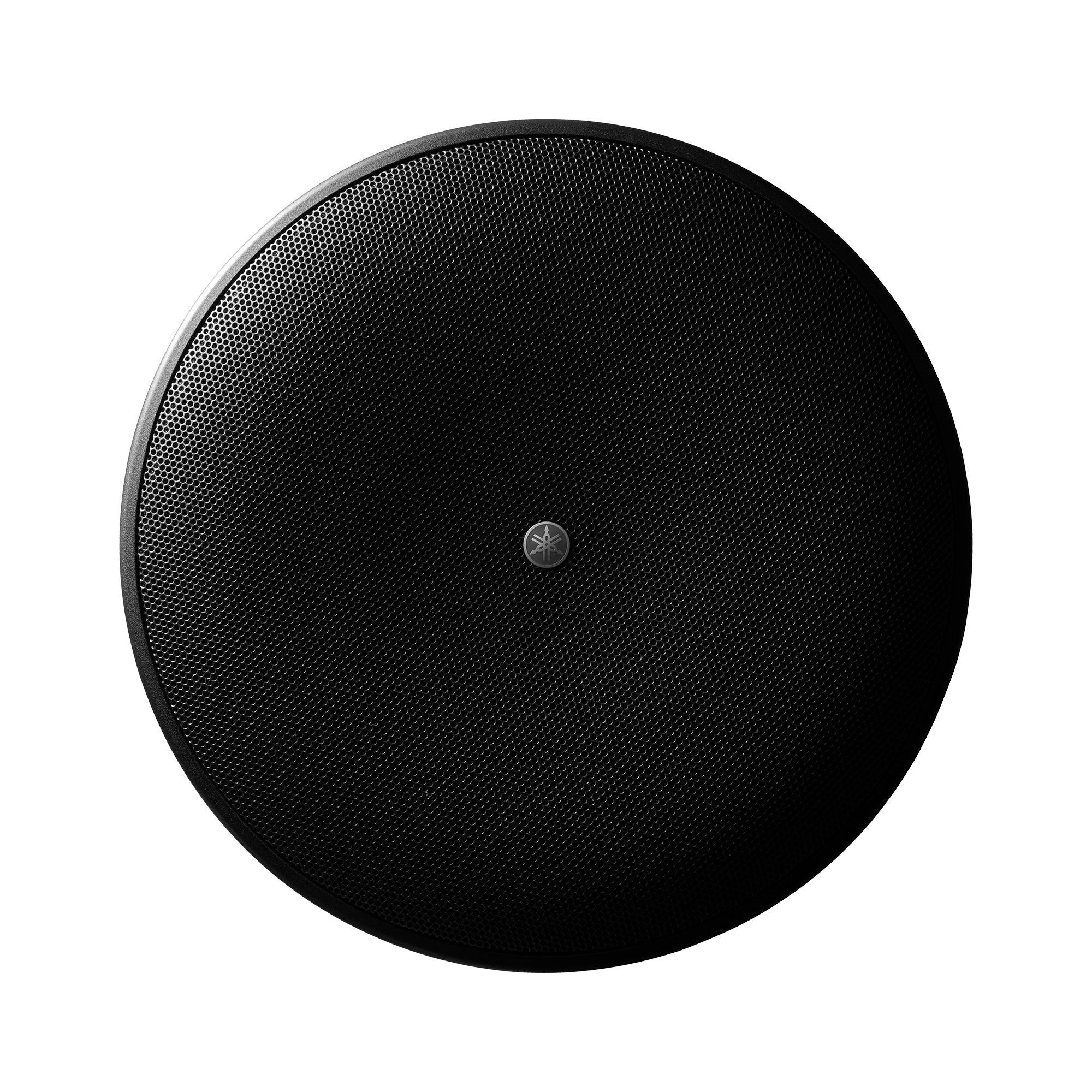

Paintable
The supplied grilles can be painted any color to match interior decor.

More +

Product Specs

Speaker type Coaxial 2 way, Bass reflex type
Frequency range (-10dB) 55 Hz - 20 kHz (Full-space:4π)
Nominal coverage 120° conical (Full-space:4π)
Crossover Frequencies 3 kHz
Components LF 6.5" (16 cm) Cone
HF 1" (2.5 cm) Soft Dome
Power rating NOISE 75 W
PGM 150 W
PEAK 300 W
Nominal impedance 8 Ω
Transformer taps 100V 60 W, 30 W, 15 W
70V 60 W, 30 W, 15 W, 7.5 W
SPL Sensitivity (1W; 1m on axis) 93 dB (Full-space:4π)
Peak (Calculated) 118 dB (Calculated, 1 m)
I/O connectors Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-): Min. wire size AWG 24 (0.2 sq), Max. wire size AWG 12 (3.5 sq)
Protection circuit Load protection Full-range power limiting to protect network and transducers
Finish VXH6B Black powder coating (approximate value: Munsell N3), VXH6W White powder coating (approximate value: Munsell N9.3)
Dimensions Diameter Ø341 mm (13 - 3/8")
D 379 mm (14 - 1/2")
Net weight 5.7 kg
Accessories Gripple Kit × 1, Euro Block (4 pin) × 1, Cushion Seal × 1, Back Cover Set × 1, Owner’s Manual × 1, GRIPPLE Kit Installation Guide × 1
Dust and water resistant IP45 (when waterproofing the cover hole)
Packaging Single package
Certificate UL1480A, NFPA70, CE, RoHS

More +
