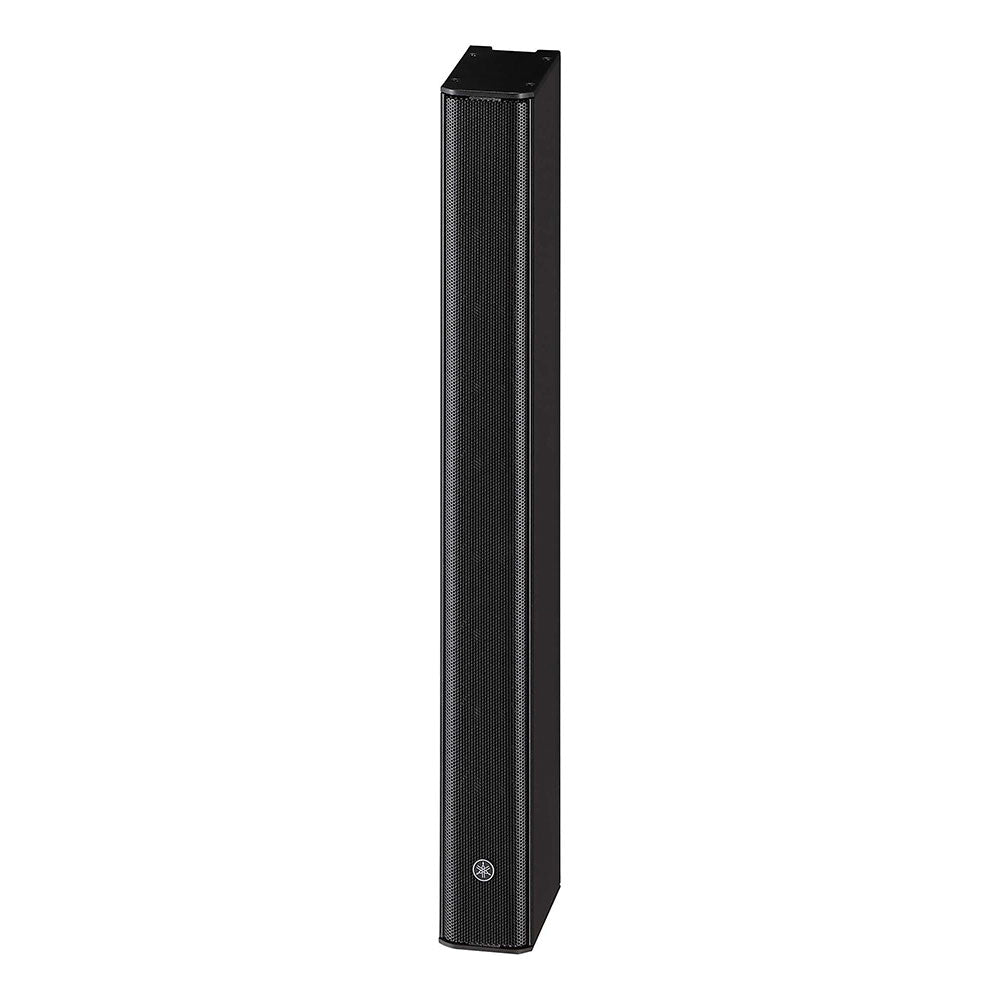

Yamaha VXL1B-8 Slim Line Array Install Speaker with 8 Drivers (Black)

  • Dale #:

    YAMA-VXL1B8
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

VXL series line source loudspeakers offer a unique combination of outstanding sound quality and slim form-factor that is ideal for a variety of environments. VXL line source loudspeakers offer excellent projection as well as uniform volume and sound quality over a wide listening area, making them... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

VXL series line source loudspeakers offer a unique combination of outstanding sound quality and slim form-factor that is ideal for a variety of environments. VXL line source loudspeakers offer excellent projection as well as uniform volume and sound quality over a wide listening area, making them a great choice for highly reflective rooms, lecture halls, conference rooms, and other facilities that require maximum intelligibility throughout the listening area.

The VXL series includes three models VXL1-8, VXL1-16 and the VXL1-24 each featuring 1.5 inch full range drivers, that can be combined to optimally serve a variety of installations and spaces. The slim 2.1-inch (54mm) wide enclosures feature elegantly curved grille designs that blend beautifully with any décor to deliver superior and uniform speech and music reproduction in a wide variety of applications.

Features:

  • 1.5 inch (3.75 cm) full-range loudspeaker units with neodymium magnets
  • 170° horizontal and 40° vertical dispersion for uniform SPL over a wide area
  • Slim design complements any interior décor
  • Available in black or white
  • Enclosures can be painted to match surroundings
  • Wall mount bracket supplied
  • Optional hardware for a wide range of installation needs


Slim Line Source Loudspeakers Blend High Sound Quality with Visual Elegance
The VXL1 series cabinets feature 2.1-inch (54mm) wide enclosure with a slim, elegant profile that blends effortlessly into any décor. At the heart of the designs are high-performance, 1.5-inch, full-range drivers configured to deliver natural response down to 77 Hz* for full-range performance that is ideal for speech and music reproduction.

High-performance drivers with neodymium magnets are arranged vertically to create a line source that achieves outstanding projection. By focusing sound in the vertical direction, reflections can be minimized resulting in high-clarity and intelligible sound in the target area.

Excellent Scalability
The compact drivers used in the VXL1 series contribute to 170° horizontal dispersion and 20° (+10° ~ -10°) vertical dispersion. A rear-panel switch allows vertical dispersion to be expanded downward by 40° (+10° ~ -30°) so that a wide range of applications can be accommodated.* Sound pressure level and coverage can be further adjusted as required by combining models with different numbers of driver units, expanding the range of potential applications.

Vertical Coverage Expansion
Vertical coverage can easily be adjusted via a rear-panel switch. The "Wide" setting expands the dispersion angle in the downward direction only, improving coverage at the front of the listening area.

Flexible Installation Options
In addition to the included wall-mount brackets, a comprehensive range of optional hardware is available for VXL1 series enclosures to facilitate mounting and setup in multiple environments.

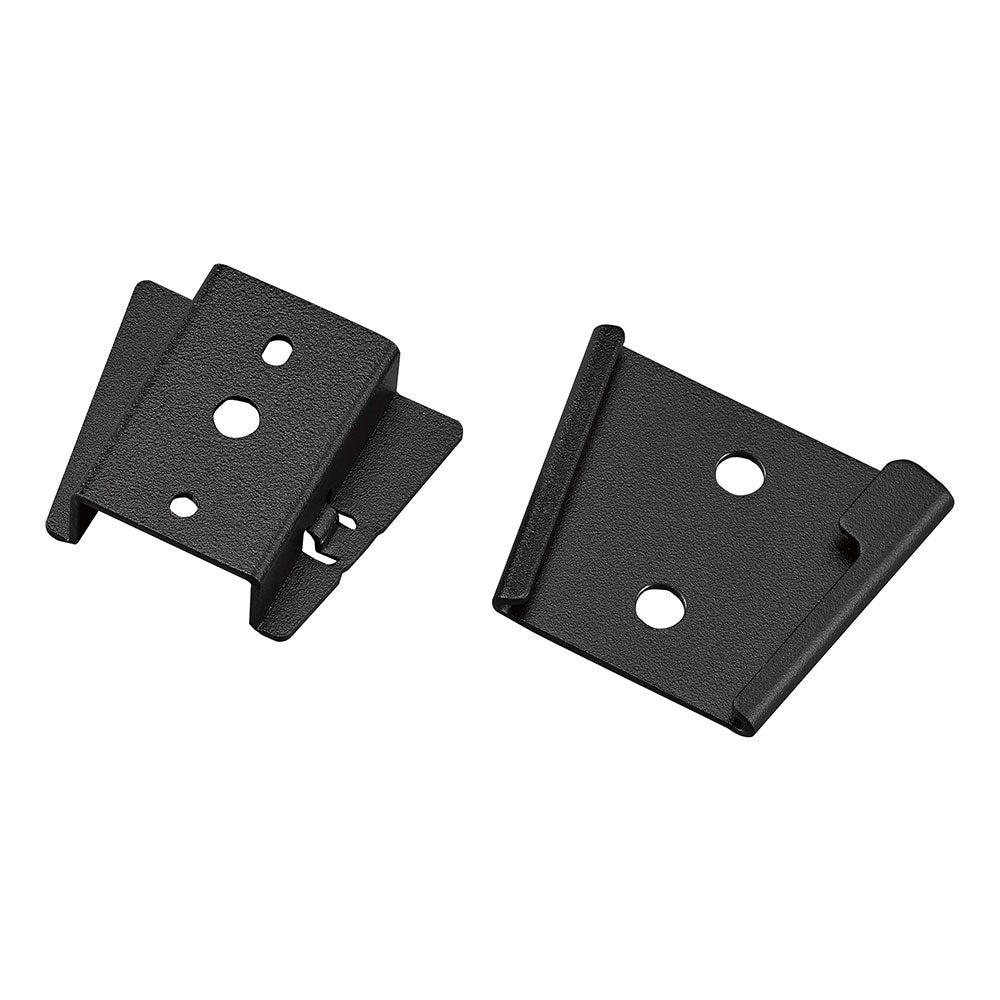

The WMB-L1 wall mount bracket provides vertical and horizontal angle adjustments, the VCB-L1 bracket allows a VXL1 enclosure to be stacked on top of another, VCSB-L1 brackets enable two VXL1 enclosures to be stacked on top of each other along with downward angle adjustment of the entire array, while the HCB-L1 bracket facilitates horizontal deployment of two VXL1 loudspeakers in an array. For high-impedance (70V/100V) applications, the low saturation ST-L1 transformer is also available.

Dedicated Speaker Presets
The VXL series come with dedicated speaker presets to maximize their sound performance according to the type of installation and application.

More +

Product Specs

Speaker type Full-range, Bass reflex
Frequency range (-10dB) 70 Hz – 20 kHz *1 110 Hz - 20kHz 1 (w/ port cover)
Coverage area Horizontal: 170°, Vertical:40°(+20° – -20°)
Components LF-HF 1.5” (3.75 cm) Cone × 8
Power rating NOISE 40 W
PGM 80 W
PEAK 160 W
Nominal impedance 16Ω
SPL Sensitivity (1W; 1m on axis) 89 dB SPL (1 m/1 W) *1 *2
Peak (Calculated) 111 dB SPL (1 m) *3
I/O connectors Euroblock (2 pin) × 2 (input: +/-) Max. wire size AWG 12 (3.3 mm²)
Protection circuit Load protection Full-range power limiting to protecting network and transducers
Finish VXL1B-8: Black painting (approximate value: Munsell N3.0), VXL1W-8: White painting (approximate value: Munsell N9.0)
IP-Rating Dust and water resistant : IP35
Packaging Packaged in 1 pc
Dimensions (W x H x D) 2.1 x 18.9 x 4.1 in. (54 x 480 x 104 mm) - Speaker Only, 2.1 x 18.9 x 4.4 in. (54 x 1212 x 111.5 mm) - with Included Bracket
Weight 2.1 kg / 4.6 lbs (Speaker only)
