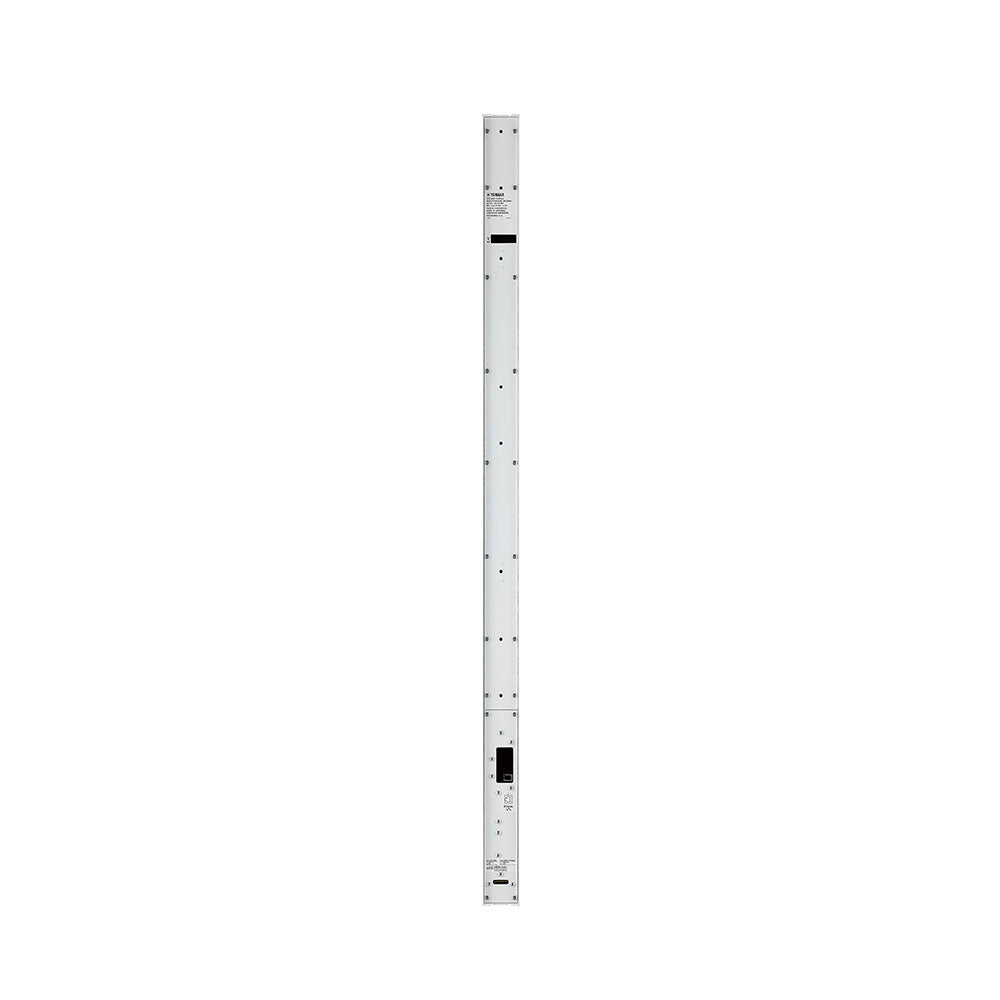

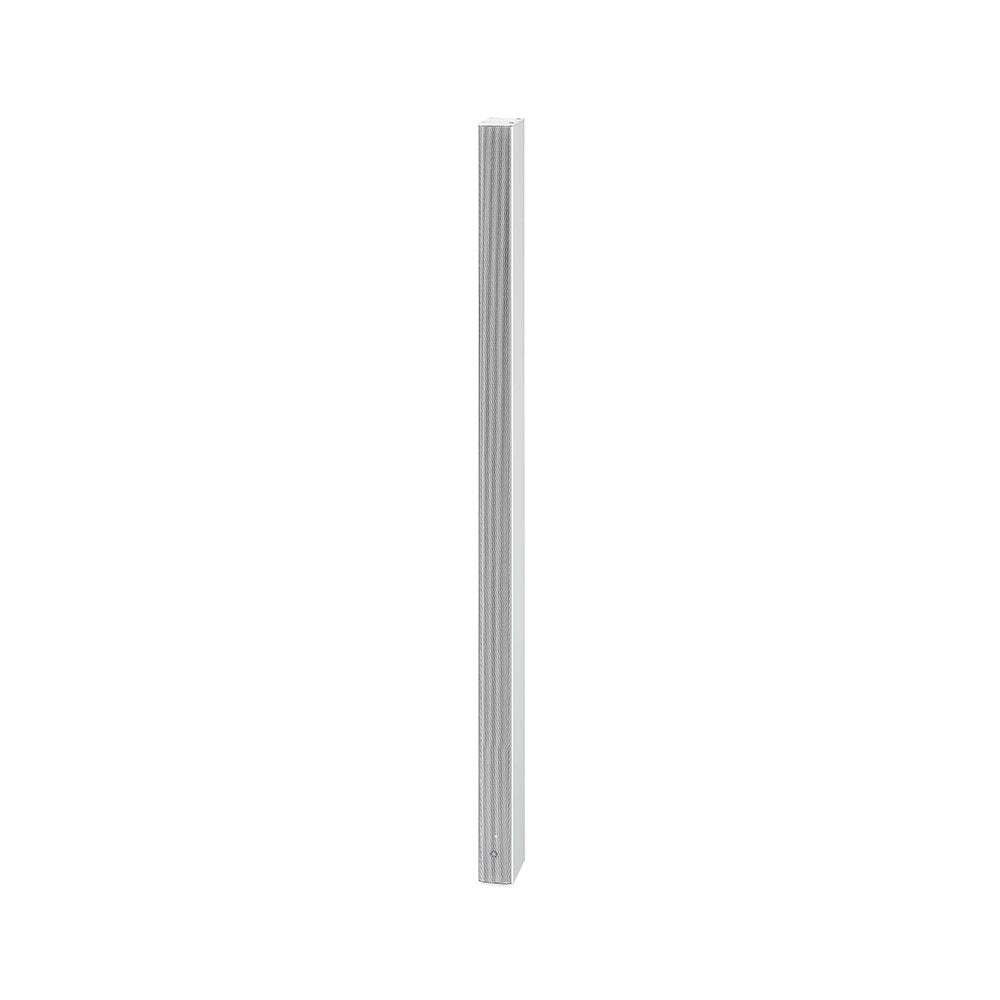

Yamaha VXL1W-16P - Dante PoE Powered Speaker System (White)

  • Dale #:

    YAMA-VXL1W16P
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The VXL1B-16P and VXL1W-16P support the Dante audio network, and use a slim line-array configuration, making them an easy fit perfectly for conference rooms (in the size range of 12m x 10m) that demand vocal clarity while imposing numerous constraints on space, and require both functionality and ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The VXL1B-16P and VXL1W-16P support the Dante audio network, and use a slim line-array configuration, making them an easy fit perfectly for conference rooms (in the size range of 12m x 10m) that demand vocal clarity while imposing numerous constraints on space, and require both functionality and a sense of design. With audio distributed via a Dante network and PoE power* supplied from a PoE compliant L2 switch, the speaker system can be constructed as a network, allowing existing IT infrastructure to be effectively utilized. Simple wiring via LAN cables, easy installation, and no need for a power amp contribute to the flexibility of installation, allowing you to construct an elegant sound system that will not interfere with the design of the conference room.

Features:

  • 1.5 inch (3.75 cm) full-range speaker units with neodymium magnets
  • Slim design complements any interior décor
  • Available in black or white
  • Enclosures can be painted to match surroundings

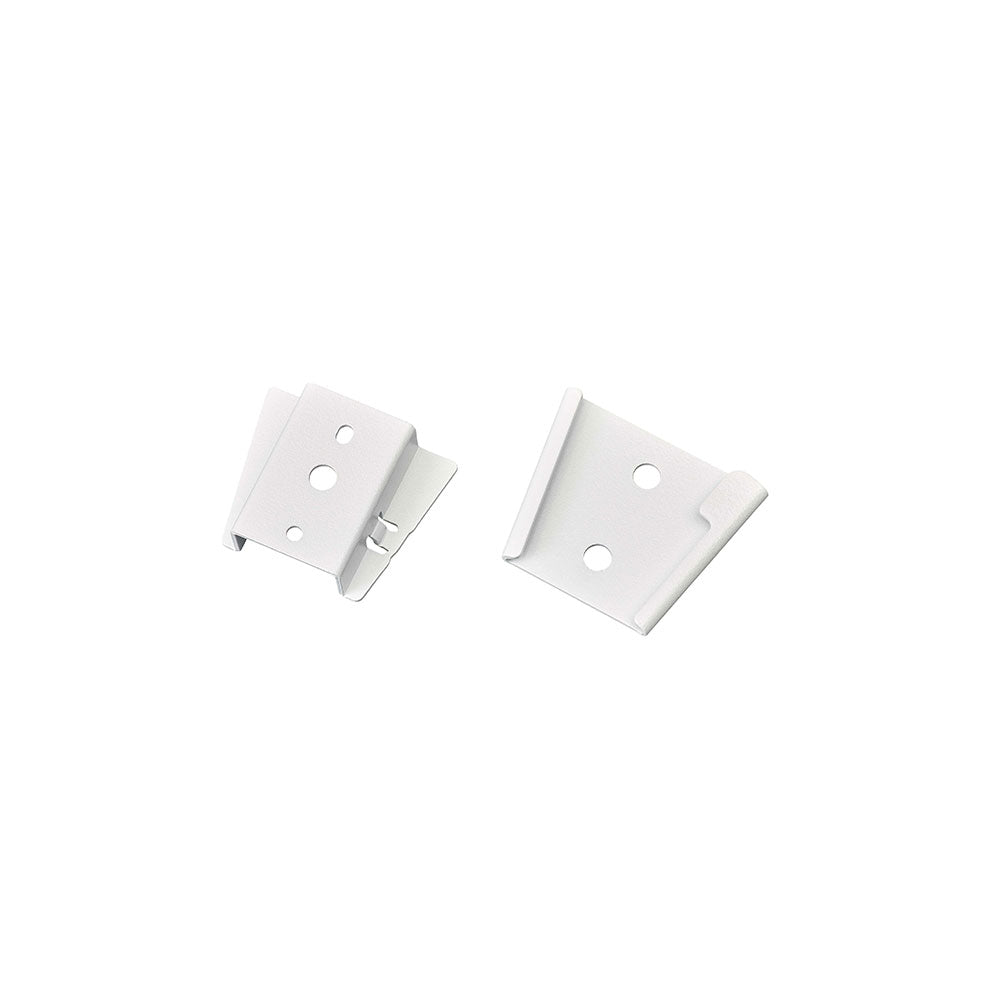

  • Wall mount bracket supplied
  • Optional hardware for a wide range of installation needs


Dante PoE powered speaker system
With audio distributed via a Dante network and PoE power* supplied from a PoE compliant L2 switch, the speaker system can be constructed as a network, allowing existing IT infrastructure to be effectively utilized. Simple wiring via LAN cables, easy installation, and no need for a power amp contribute to the flexibility of installation, allowing you to construct an elegant sound system that will not interfere with the design of the conference room.

* When using an IEEE802.3at compliant PoE power supply device, the maximum speaker output is 15W; when using an IEEE802.3af compliant PoE power supply device, the maximum speaker output is 6W.

Sound quality and design to match conference room requirements
The VXL1-16P is equipped with 16 drivers. A line array configuration is used, placing the audio sources linearly to reduce sound dispersion in the vertical direction, thereby limiting reflections from the ceiling and walls, and preventing sound energy from being dispersed, ensuring that clear sound can be delivered to long distance. The drivers are 3.75 cm (1.5 inch) full-range units that extravagantly use neodymium magnets, and are placed in a slim enclosure (chassis) that is 5.4 cm wide. This allows easy installation even in locations that have various limitations on placement space, without impairing the décor of the office conference room.

Flexible Installation Options
In addition to the supplied wall-mount brackets, a comprehensive range of optional hardware is available for convenient system mounting and setup in just about any environment. In addition to the WMB-L1 wall mount bracket with vertical and horizontal angle adjustment capability, HCB-L1 bracket for horizontal speaker coupling, and PA-L1B pole mount adaptor is suitable for pole diameter of 35 mm.

Wireless control on iPad
This product can be remotely controlled from a "ProVisionaire Touch" custom control panel for the iPad via a Wi-Fi network. For example, operations such as adjusting the volume balance of conference audio that's input to an MRX7-D signal processor and raising the speaker volume can be performed from a single screen of an iPad.

Intelligent L2 switch with Dante optimization function and PoE power supply
The "SWR2311P-10G" is an intelligent L2 switch that provides the ideal functionality for the Dante audio network, allowing construction of a stable network that simplifies settings, monitoring, management, and operation. When you connect the VXL1-16P to the SWR2311P-10G, optimal settings for Dante are made automatically via LLDP that is a protocol for passing system management data between a device and its neighboring device. PoE compliant ports can supply a maximum of 30W for all ports simultaneously.Using the dedicated "Yamaha LAN Monitor" software allows quick troubleshooting; you can check the PoE power supply status, turn the PoE power supply, and use the snapshot function to inform you whether a fault has occurred by detecting any difference in the state of the network since it was set up. The web GUI provides a full range of monitoring functionality, including dead/alive monitoring settings for PoE devices, allowing you to restart the PoE device if a fault occurs, or informing you via email of a fault. Using them with the "MRX7-D" Dante-network-enabled signal processor allows an intelligent conference room system to be constructed.

More +

Product Specs

Speaker type Full-range, powered speaker, bass reflex
Frequency range (-10dB) 80Hz - 20kHz *1
Nominal coverage H 170°
V 25° (+12.5° - -12.5°)
Effective coverage (-10dB) H 180°
V 30° (+15° - -15°)
Components LF-HF 1.5"(3.75cm) Cone x 16
Maximum output level (1m; on axis) 102 dB SPL (when using PoE+(IEEE 802.3at)) *2
Power rating Dynamic 15W (PoE+ (IEEE 802.3 at)), 6W (PoE (IEEE 802.3 af))
Continuous 15W (PoE+ (IEEE 802.3 at)), 6W (PoE (IEEE 802.3 af))
I/O connectors RJ-45 (Dante) x1
Protection circuit Speaker processing Clip limiting, Integral power protection
Amplifier protection Over current protection, Over temperature protection, Under voltage lock out, DC detection, Clock detection
Power supply protection Over load protection, Over voltage protection, Under voltage lock out
Cooling Natural convection
Power requirements PoE+(IEEE 802.3at), PoE(IEEE 802.3af)
Power consumption Idle: 3W, 1/8(Pink Noise): 6W (PoE+(IEEE 802.3at)), 4.3W (PoE(IEEE 802.3af))
Finish VXL1B-16P: Black painting (approximate value: Munsell N3.0), VXL1W-16P: White painting (approximate value: Munsell N9.0)
Magnetic shielding No
Dust and water resistant No
Accessories Mounting bracket x2, Bracket base x2, Safety wire x1, Machine screws (M5x10) x2, Template x1, Owner's manual
Options WMB-L1B (W), HCB-L1B, PA-L1B
Packaging Packaged in 1 pc
Dimensions (W x H x D) W54 x H1120 x D104 mm (Speaker only)
Weight 5.0kg (Speaker only)
