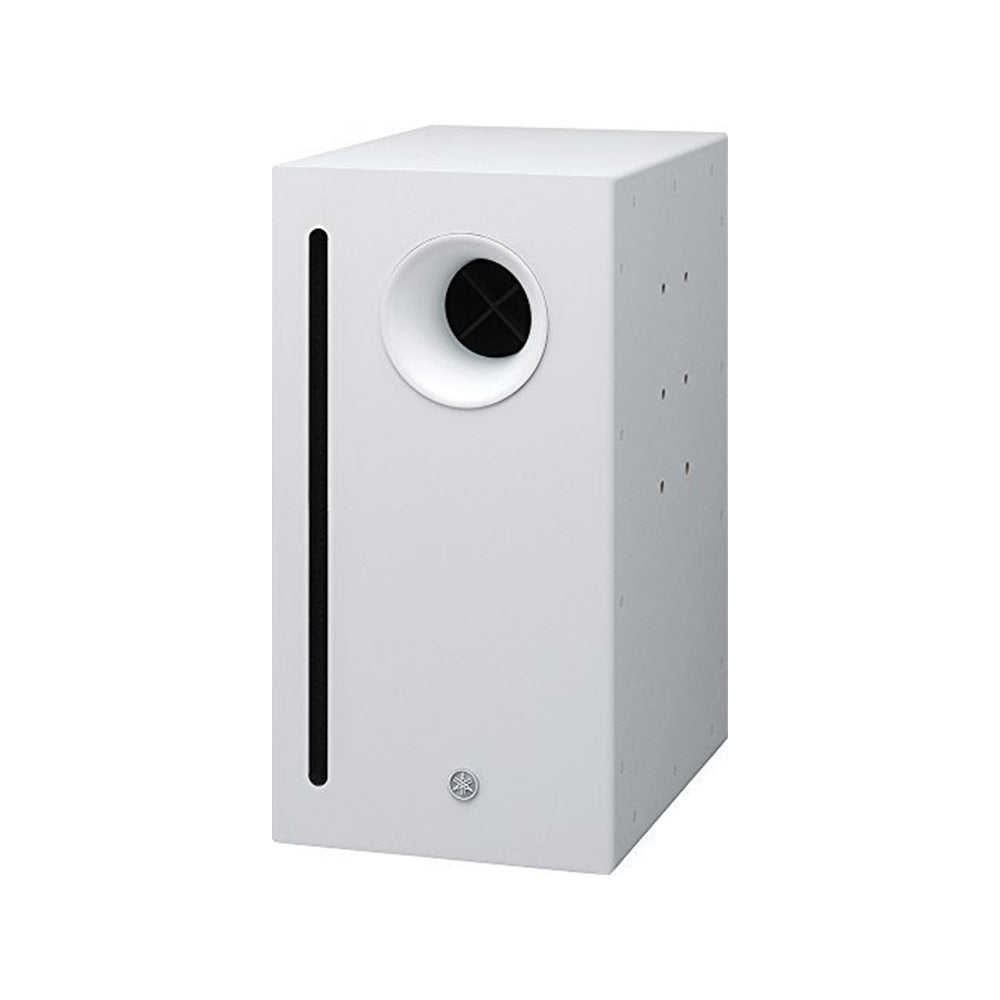

Yamaha VXS10S Surface Mount 10-Inch Subwoofer (White)


  • Dale #:

    YAMA-VXS10SW
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

10" dual voice coil subwoofer for low impedance systems. VXS series "S" model subwoofers are ideal matches for VXS and VXC series speakers, smoothly extending the low frequency range with superb sonic quality for bigger, more true-to-life musical reproduction. Although no larger than a compact su... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

10" dual voice coil subwoofer for low impedance systems.

VXS series "S" model subwoofers are ideal matches for VXS and VXC series speakers, smoothly extending the low frequency range with superb sonic quality for bigger, more true-to-life musical reproduction. Although no larger than a compact surface-mount speaker the VXS3S delivers solid, natural-sounding low-end reinforcement, while the VXS10S and VXS10ST make even more low-frequency power available for situations that require maximum bass authority.

Features:

  • Versatile low-impedance subwoofer
  • Sound and size ideally matched to the VXS and VXC series
  • Bass-reflex design ensures smooth, distortion-free low-frequency extension
  • Dual voice coil configuration supports stereo sources
  • Satellite connectors for easy setup
  • Dedicated wall-mount hardware supplied
  • Black and white models available
  • Recommended satellite speakers: VXS3F, VXS5, VXS8, VXC4, VXC6, VXC8, VXC3F

More +

Product Specs

Speaker type Bass-reflex type Subwoofer
Frequency range (-10dB) 45Hz - 250Hz
Components LF 10" Dual Voice Coil
Power rating NOISE 100W + 100W
PGM 200W + 200W
PEAK -
Nominal impedance 8Ω + 8Ω
Satellite impedance 8Ω load per satellite output recommended
Transformer taps 100V -
70V -
SPL Sensitivity (1W; 1m on axis) 96dB SPL *1
Peak (Calculated) 125dB SPL *2
I/O connectors Input: 1x Euroblock (4P)(CH1: + / -, CH2: + / -), Satellite Output: 1x Euroblock (4P)(ST 1: + / -, ST 2: + / -)
Protection circuit Load protection Full-range power limiting for protecting network and transducers
Shape Rectangular
Cabinet material MDF
Finish VXS10S: Black (approximate value:Munsell N3), VXS10SW: White (approximate value:Munsell 3.5PB9.0/1)
Dimensions W 260mm (10.2") *3
H 500mm (19.7") *3
D 389mm (15.3") *3
Net weight 16.5kg (36.4lbs) *3
Accessories Wall mount bracket
Packaging Packaged each
Certificate CE, EAC, RoHS

More +
