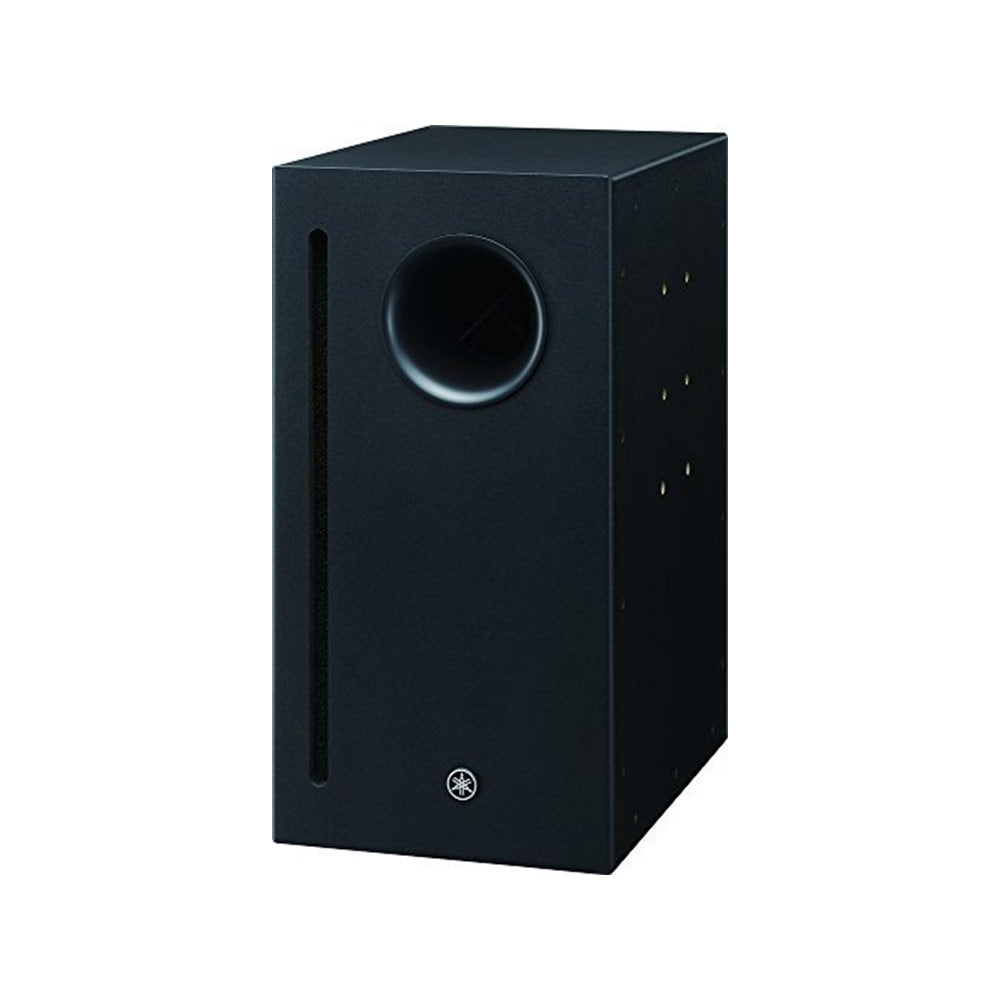

Yamaha VXS10T Surface Mount 70/100 Volt Subwoofer (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
10" dual voice coil subwoofer for high impedance systems.
VXS series "S" model subwoofers are ideal matches for VXS and VXC series speakers, smoothly extending the low frequency range with superb sonic quality for bigger, more true-to-life musical reproduction. Although no larger than a compact surface-mount speaker the VXS3S delivers solid, natural-sounding low-end reinforcement, while the VXS10S and VXS10ST make even more low-frequency power available for situations that require maximum bass authority.
Features:
- Versatile high-impedance subwoofer
- Sound and size ideally matched to the VXS and VXC series
- Bass-reflex design ensures smooth, distortion-free low-frequency extension
- Dual voice coil configuration supports stereo sources
- Satellite connectors for easy setup
- Dedicated wall-mount hardware supplied
- Black and white models available
- Recommended satellite speakers: VXS3F, VXS5, VXS8, VXC4, VXC6, VXC8, VXC3F
| Speaker type | Bass-reflex type Subwoofer | |
| Frequency range (-10dB) | 45Hz - 250Hz | |
| Components | LF | 10" Dual Voice Coil |
| Power rating | NOISE | - |
| PGM | - | |
| PEAK | - | |
| Nominal impedance | - | |
| Satellite impedance | 8½ load per satellite output recommended | |
| Transformer taps | 100V | 200W (50½), 100W (100½), 50W (200½) |
| 70V | 200W (25½), 100W (50½), 50W (100½), 25W (200½) | |
| SPL | Sensitivity (1W; 1m on axis) | 96dB SPL *1 |
| Peak (Calculated) | - | |
| I/O connectors | Input: 1x Euroblock (4P)(Input: + / -, Loop Thru: + / -), Satellite Output: 1x Euroblock (4P)(ST 1: + / -, ST 2: + / -) | |
| Protection circuit | Load protection | Full-range power limiting for protecting network and transducers |
| Shape | Rectangular | |
| Cabinet material | MDF | |
| Finish | VXS10S: Black (approximate value:Munsell N3), VXS10SW: White (approximate value:Munsell 3.5PB9.0/1) | |
| Dimensions | W | 260mm (10.2") *3 |
| H | 500mm (19.7") *3 | |
| D | 389mm (15.3") *3 | |
| Net weight | 19.5kg (43.0lbs) *3 | |
| Accessories | Wall mount bracket | |
| Packaging | Packaged each | |
| Certificate | CE, EAC, RoHS | |
10" dual voice coil subwoofer for high impedance systems.
VXS series "S" model subwoofers are ideal matches for VXS and VXC series speakers, smoothly extending the low frequency range with superb sonic quality for bigger, more true-to-life musical reproduction. Although no larger than a compact surface-mount speaker the VXS3S delivers solid, natural-sounding low-end reinforcement, while the VXS10S and VXS10ST make even more low-frequency power available for situations that require maximum bass authority.
Features:
- Versatile high-impedance subwoofer
- Sound and size ideally matched to the VXS and VXC series
- Bass-reflex design ensures smooth, distortion-free low-frequency extension
- Dual voice coil configuration supports stereo sources
- Satellite connectors for easy setup
- Dedicated wall-mount hardware supplied
- Black and white models available
- Recommended satellite speakers: VXS3F, VXS5, VXS8, VXC4, VXC6, VXC8, VXC3F
| Speaker type | Bass-reflex type Subwoofer | |
| Frequency range (-10dB) | 45Hz - 250Hz | |
| Components | LF | 10" Dual Voice Coil |
| Power rating | NOISE | - |
| PGM | - | |
| PEAK | - | |
| Nominal impedance | - | |
| Satellite impedance | 8½ load per satellite output recommended | |
| Transformer taps | 100V | 200W (50½), 100W (100½), 50W (200½) |
| 70V | 200W (25½), 100W (50½), 50W (100½), 25W (200½) | |
| SPL | Sensitivity (1W; 1m on axis) | 96dB SPL *1 |
| Peak (Calculated) | - | |
| I/O connectors | Input: 1x Euroblock (4P)(Input: + / -, Loop Thru: + / -), Satellite Output: 1x Euroblock (4P)(ST 1: + / -, ST 2: + / -) | |
| Protection circuit | Load protection | Full-range power limiting for protecting network and transducers |
| Shape | Rectangular | |
| Cabinet material | MDF | |
| Finish | VXS10S: Black (approximate value:Munsell N3), VXS10SW: White (approximate value:Munsell 3.5PB9.0/1) | |
| Dimensions | W | 260mm (10.2") *3 |
| H | 500mm (19.7") *3 | |
| D | 389mm (15.3") *3 | |
| Net weight | 19.5kg (43.0lbs) *3 | |
| Accessories | Wall mount bracket | |
| Packaging | Packaged each | |
| Certificate | CE, EAC, RoHS | |
