Description

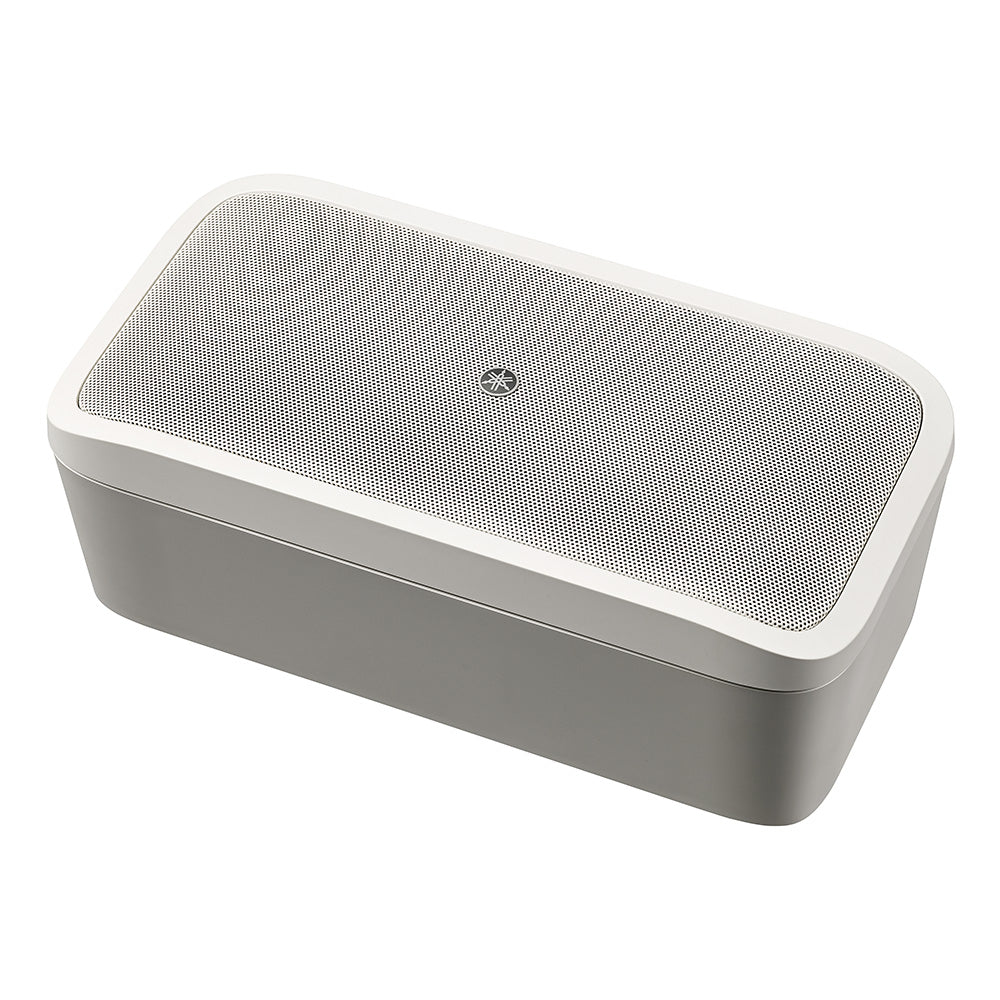

3.5" Dual SR-Bass™ subwoofer for high and low impedance systems.
VXS series "S" model subwoofers are ideal matches for VXS and VXC series speakers, smoothly extending the low frequency range with superb sonic quality for bigger, more true-to-life musical reproduction. Although no larger than a compact surface-mount speaker the VXS3S delivers solid, natural-sounding low-end reinforcement, while the VXS10S and VXS10ST make even more low-frequency power available for situations that require maximum bass authority.
Features:
- Versatile subwoofer compatible with low and high impedance systems
- Sound and size ideally matched to the VXS1ML
- SR-Bass™ technology delivers solid bass in a compact unit
- Satellite connectors for easy setup
- Dedicated wall/ceiling mount hardware supplied
- Black and white models available
- Paintable enclosures and grilles
- Recommended satellite speakers: VXS1ML
Speaker type | SR-Bassª type Subwoofer | |
Frequency range (-10dB) | 65Hz-180Hz | |
Components | LF | 3.5" Cone |
Power rating | NOISE | 20W |
PGM | 40W | |
PEAK | 80W | |
Nominal impedance | 8½ | |
Satellite impedance | 8½ load per satellite output recommended | |
Transformer taps | 100V | 15W, 7.5W, 3.8W |
70V | 15W, 7.5W, 3.8W, 1.9W | |
SPL | Sensitivity (1W; 1m on axis) | 79dB SPL *1 |
Peak (Calculated) | 98dB SPL *2 | |

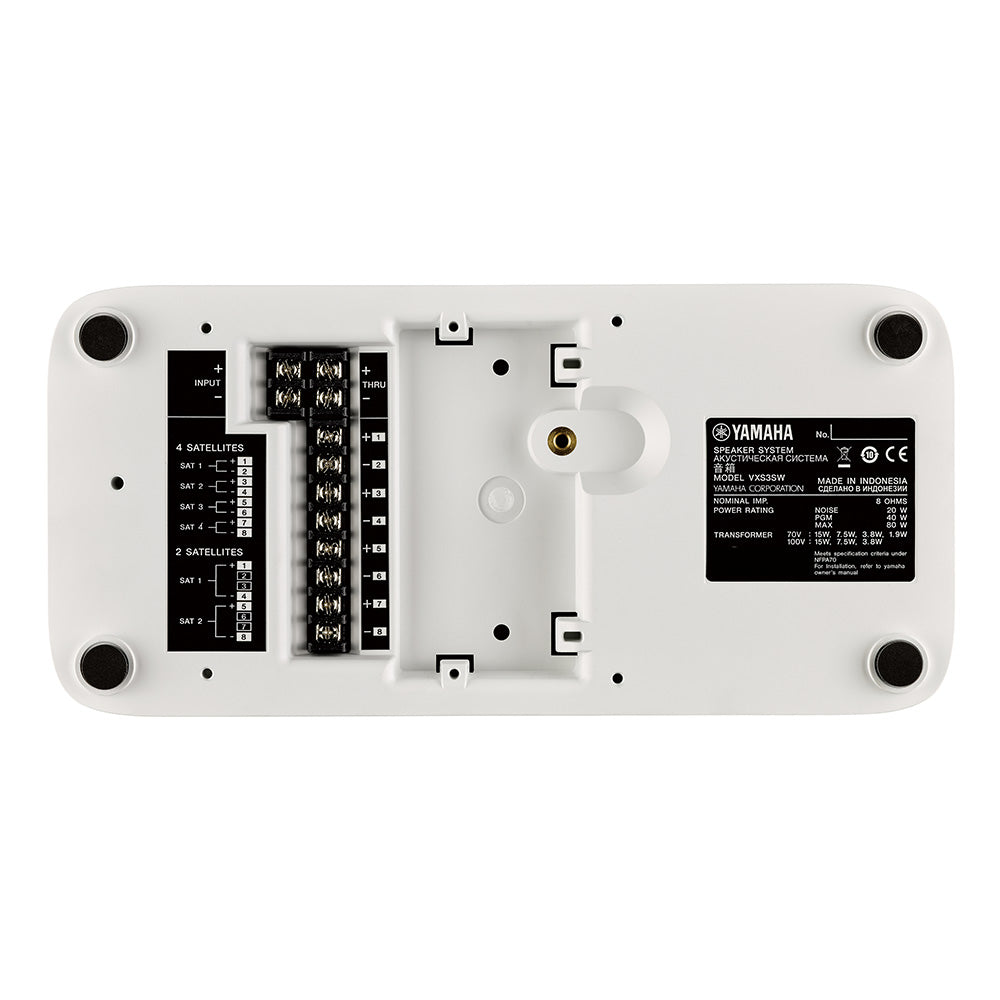

I/O connectors | TERMINAL BLOCKS(4pin) Input: +/-, Loop-thru: +/-, TERMINAL BLOCKS(8pin) Satellite output:+/- (ST1_ST4) | |
Protection circuit | Load protection | Full-range power limiting for protecting network and transducers |
Shape | Rectangular | |
Cabinet material | ABS | |
Finish | VXS3SB:Black (approximate value:Munsell N3) VXS3SW:White (approximate value:Munsell N9) | |
Dimensions | W | 322mm (12.7") *3 |
H | 162mm (6.4") *3 | |
D | 118mm (4.6") *3 | |
Net weight | 2.7kg (6.0 lbs) *3 | |
Accessories | Mounting bracket, Safety wire, Spacer, Screw, Masking sheet | |
Packaging | Packaged each | |
Certificate | NFPA70, CE, RoHS |
