Zaxcom Bluefin 8dB Passive Antenna for 500 - 750 MHz
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

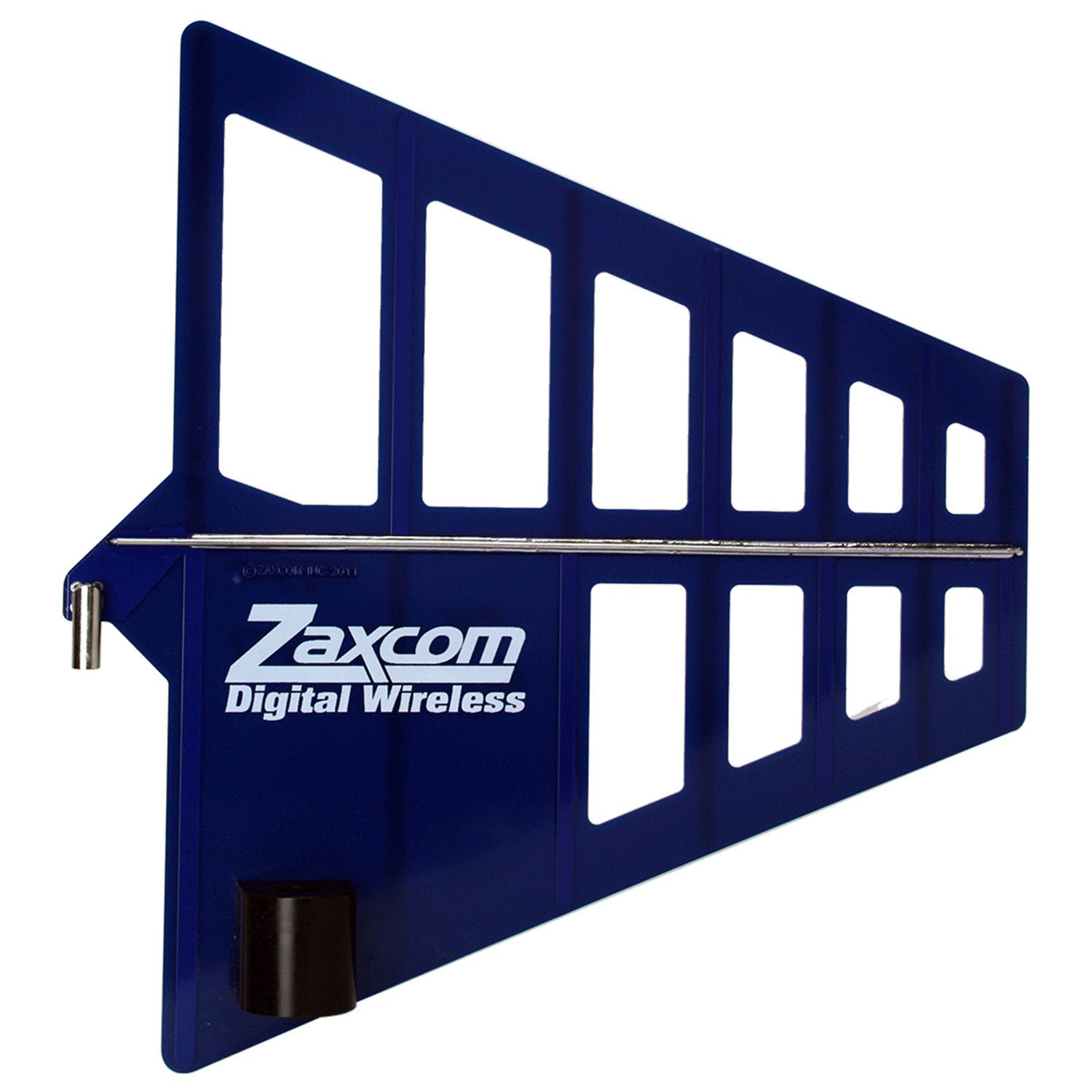

Zaxcom's BlueFin is an aerodynamic 8dB high gain directional antenna for use between the frequencies of 500 and 750 MHz. It provides a low VSWR for use as a receiving or transmitting antenna. The BlueFin supplies 8dB of forward gain and attenuates interfering signals that are coming from directions greater than 45 degrees off the front of the antenna.
Features:
-
WIDE BAND RECEPTION
Receives any frequency between 500MHz and 750MHz -
AERODYNAMIC
Cut-outs for wind make the BlueFin perfect for exterior locations -
REACH FARTHER
8db of gain, the perfect companion for your QRX
| IMPEDANCE | 50 ohms |
| CONNECTOR | BNC Female |
| SIZE | 1_ x 1_ |
| WEIGHT | 0.6 Pounds |
| MOUNTING | 5/8 Threaded Microphone Stand Mount |
| MAXIMUM TRANSMITTER POWER | 10 Watts |
| FORWARD GAIN | 8 dB |
| FREQUENCY RANGE | 500MHz to 750MHz |
| USABLE BEAM WIDTH | 90 Degrees |
Zaxcom's BlueFin is an aerodynamic 8dB high gain directional antenna for use between the frequencies of 500 and 750 MHz. It provides a low VSWR for use as a receiving or transmitting antenna. The BlueFin supplies 8dB of forward gain and attenuates interfering signals that are coming from directions greater than 45 degrees off the front of the antenna.
Features:
-
WIDE BAND RECEPTION
Receives any frequency between 500MHz and 750MHz -
AERODYNAMIC
Cut-outs for wind make the BlueFin perfect for exterior locations -
REACH FARTHER
8db of gain, the perfect companion for your QRX
| IMPEDANCE | 50 ohms |
| CONNECTOR | BNC Female |
| SIZE | 1_ x 1_ |
| WEIGHT | 0.6 Pounds |
| MOUNTING | 5/8 Threaded Microphone Stand Mount |
| MAXIMUM TRANSMITTER POWER | 10 Watts |
| FORWARD GAIN | 8 dB |
| FREQUENCY RANGE | 500MHz to 750MHz |
| USABLE BEAM WIDTH | 90 Degrees |
