Zaxcom IFB300 - ZaxNet IFB Transmitter
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The IFB300 is a ZaxNet™ transmitter that sends high-quality, fully encrypted IFB audio, timecode, and remote control commands to Zaxcom Digital Recording Wireless transmitters and ERX receivers. The signals are carried on a single RF channel over 2.4 GHz which can be used license-free in almost any country.

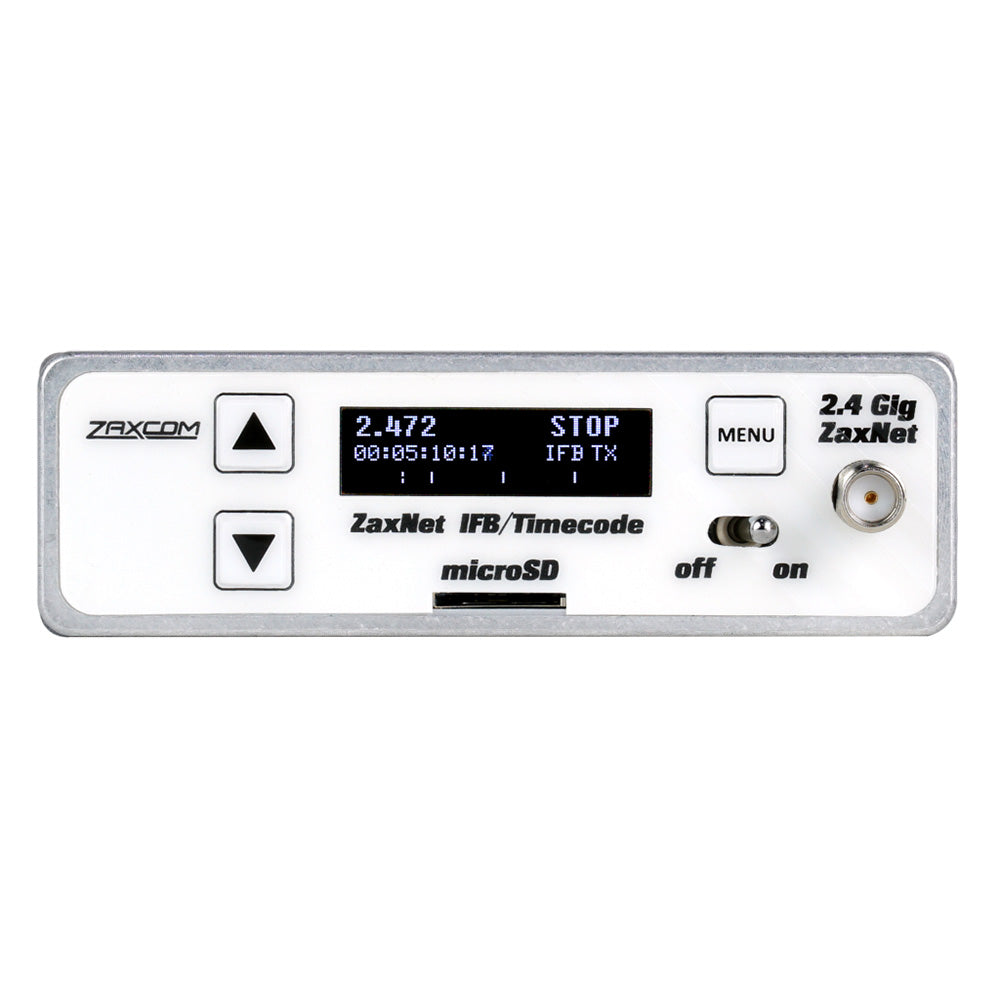

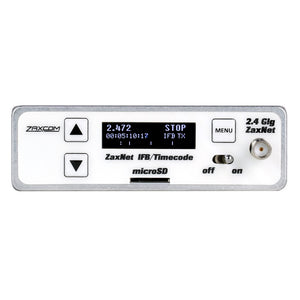

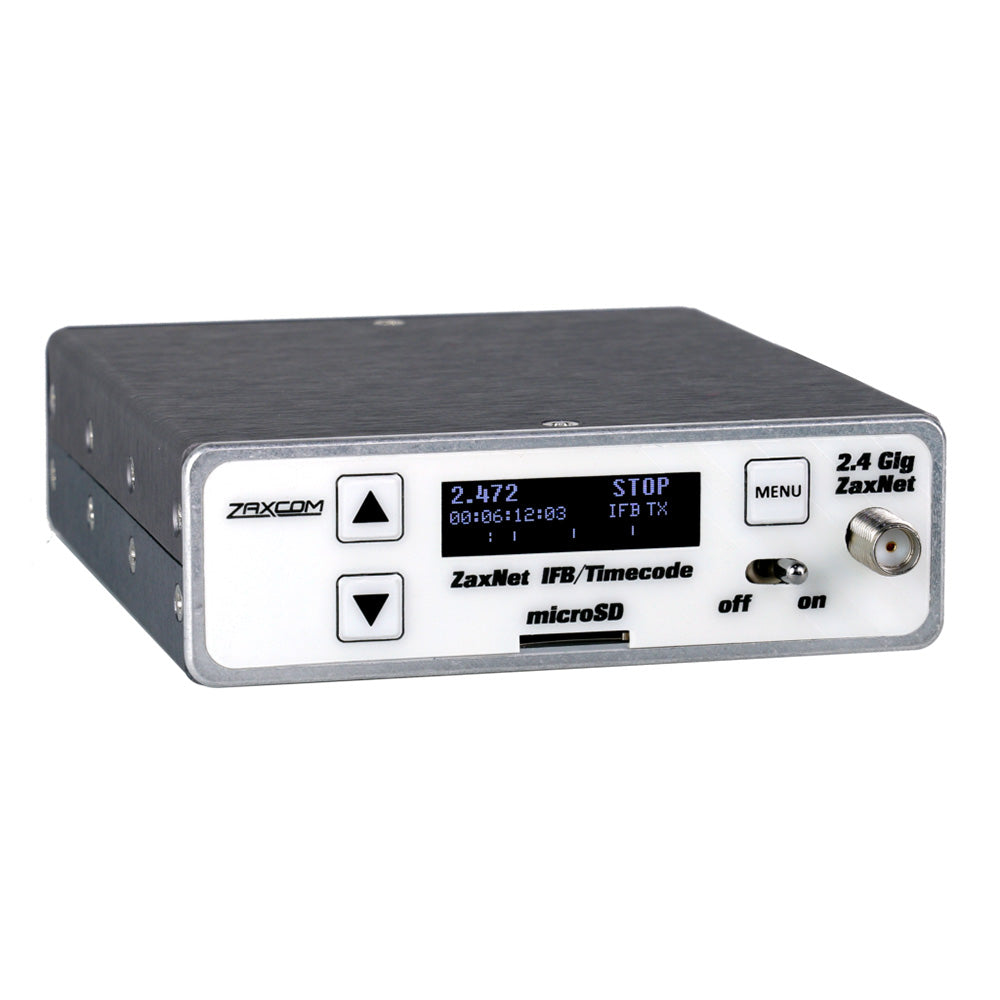

Weighing 7.3 oz, it’s constructed from an impact-resistant metal casing that’s cool to the touch. A bright OLED display provides easy menu navigation.
CONNECTIVITY

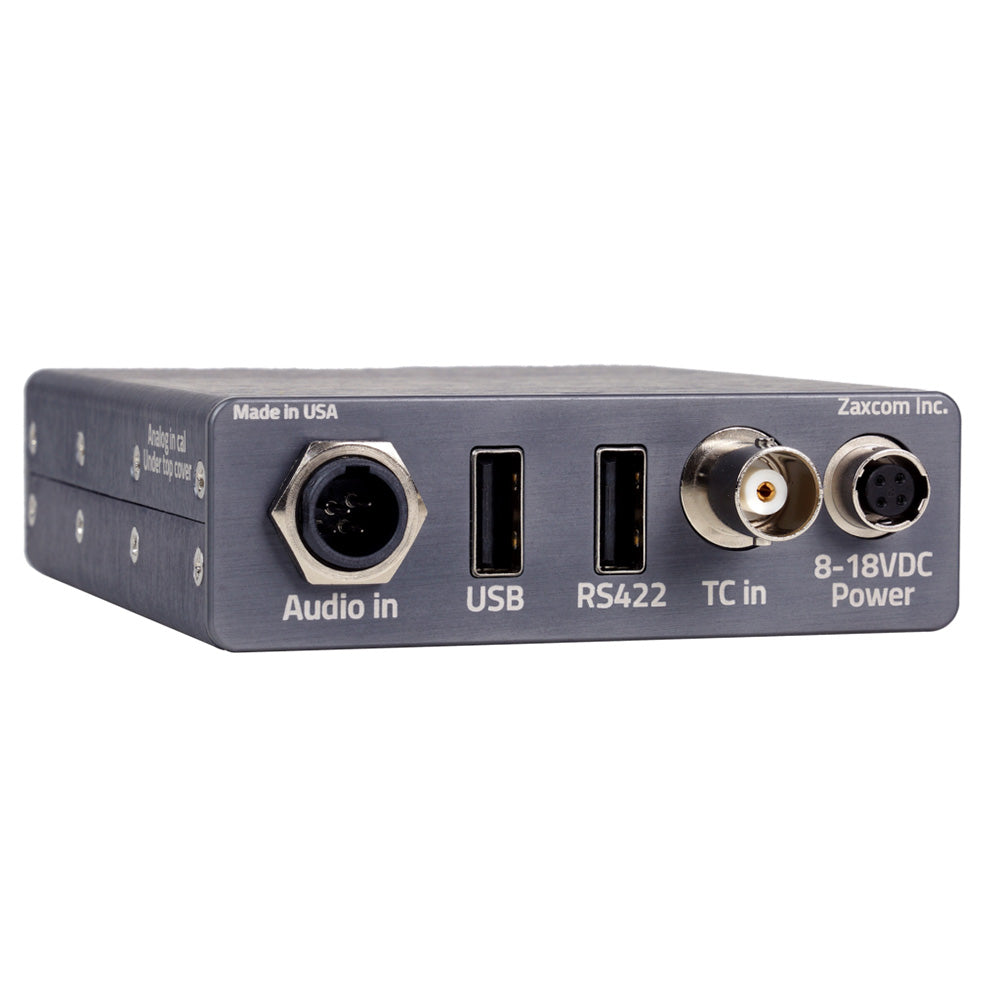

The TA5 audio input offers balanced stereo line level or sample rate converting AES. The BNC connector provides timecode in.
New on the IFB300 is an RS422 port for direct connection to the Zaxcom GUI Bridge so you can easily setup URX50/100 and remote control your wireless via any device that can access the internet.
ENCRYPTED AUDIO
The IFB300 transmits using 100% digital modulation and audio is fully encrypted to keep transmissions private, just make sure you don’t give the director an ERX with your teams private IFB feed...
INTERNAL RECORDING
Audio can be simultaneously transmitted and internally recorded to a microSD card using MARF (Mobile Audio Recording Format) which eliminates file corruption common to recordings due to loss of power or early card removal.
THE ULTIMATE FLEXIBILITY
The IFB300 and ZGB combo gives you the ultimate remote control in the palm of your hand. You can remotely chance frequency, input level gain, output power levels, and record status right from the palm of your hand!
| IFB RF Transmitter | |
| RF Power Output | 75 mW |
| RF Modulation | Digital Spread Spectrum |
| RF Frequency Range | 2.403 to 2.475 GHz |
| RF Frequency Step | 0.001 GHz (1 MHz) |
| RF Bandwidth | 1 MHz |
| Channel Separation | 2 MHz |
| Antenna Connector | 50-ohm SMA Female |
| Emission Designator | 180 KV2E |
| FCC Part | CFR Title 47, Part 15 |
| IFB Audio Transmitter | |
| Dynamic Range | 103 dB |
| Distortion | 0.01% |
| Frequency Response | 20 Hz to 12 kHz |
| Highpass Filter | Off or 30 to 220 Hz, Step |
| System Group Delay | 10 ms |
| IFB Analog or Digital Audio Input | |
| Connector | TA-5M |
| Type | Balanced |
| Level | -10 dBu tp +4 dBu |
| Impedance | 10 k ½ |
| ADC Bit-depth | 24 bits |
| ADC Sampling Rate | 48 kHz |
| Timecode I/O | |
| Connector | BNC |
| Input Level Range | 1 to 5V, P-P |
| Output level | 2V P-P |
| Impedance | 75 ½ |
| Timecode Reader/Generator | |
| Clock Accuracy | 1.54 PPM (1 frame out in 6 hours) |
| Timecode Type | SMPTE |
| Timecode Frame Rates | 23.98, 24, 25, 29.97NDF, 29.97DF, 30NDF, 30DF |
| Physical | |
| Weight | 7.3 oz |
| Dimensions | 3.6_ x 3.23_ x 1.0_ |
| External Power | 8 to 18 VDC @ 180 mA |
| Internal Power | N/A |
| Display | Graphic LCD Panel |
The IFB300 is a ZaxNet™ transmitter that sends high-quality, fully encrypted IFB audio, timecode, and remote control commands to Zaxcom Digital Recording Wireless transmitters and ERX receivers. The signals are carried on a single RF channel over 2.4 GHz which can be used license-free in almost any country.
Weighing 7.3 oz, it’s constructed from an impact-resistant metal casing that’s cool to the touch. A bright OLED display provides easy menu navigation.
CONNECTIVITY
The TA5 audio input offers balanced stereo line level or sample rate converting AES. The BNC connector provides timecode in.
New on the IFB300 is an RS422 port for direct connection to the Zaxcom GUI Bridge so you can easily setup URX50/100 and remote control your wireless via any device that can access the internet.
ENCRYPTED AUDIO
The IFB300 transmits using 100% digital modulation and audio is fully encrypted to keep transmissions private, just make sure you don’t give the director an ERX with your teams private IFB feed...
INTERNAL RECORDING
Audio can be simultaneously transmitted and internally recorded to a microSD card using MARF (Mobile Audio Recording Format) which eliminates file corruption common to recordings due to loss of power or early card removal.
THE ULTIMATE FLEXIBILITY
The IFB300 and ZGB combo gives you the ultimate remote control in the palm of your hand. You can remotely chance frequency, input level gain, output power levels, and record status right from the palm of your hand!
| IFB RF Transmitter | |
| RF Power Output | 75 mW |
| RF Modulation | Digital Spread Spectrum |
| RF Frequency Range | 2.403 to 2.475 GHz |
| RF Frequency Step | 0.001 GHz (1 MHz) |
| RF Bandwidth | 1 MHz |
| Channel Separation | 2 MHz |
| Antenna Connector | 50-ohm SMA Female |
| Emission Designator | 180 KV2E |
| FCC Part | CFR Title 47, Part 15 |
| IFB Audio Transmitter | |
| Dynamic Range | 103 dB |
| Distortion | 0.01% |
| Frequency Response | 20 Hz to 12 kHz |
| Highpass Filter | Off or 30 to 220 Hz, Step |
| System Group Delay | 10 ms |
| IFB Analog or Digital Audio Input | |
| Connector | TA-5M |
| Type | Balanced |
| Level | -10 dBu tp +4 dBu |
| Impedance | 10 k ½ |
| ADC Bit-depth | 24 bits |
| ADC Sampling Rate | 48 kHz |
| Timecode I/O | |
| Connector | BNC |
| Input Level Range | 1 to 5V, P-P |
| Output level | 2V P-P |
| Impedance | 75 ½ |
| Timecode Reader/Generator | |
| Clock Accuracy | 1.54 PPM (1 frame out in 6 hours) |
| Timecode Type | SMPTE |
| Timecode Frame Rates | 23.98, 24, 25, 29.97NDF, 29.97DF, 30NDF, 30DF |
| Physical | |
| Weight | 7.3 oz |
| Dimensions | 3.6_ x 3.23_ x 1.0_ |
| External Power | 8 to 18 VDC @ 180 mA |
| Internal Power | N/A |
| Display | Graphic LCD Panel |
