Description

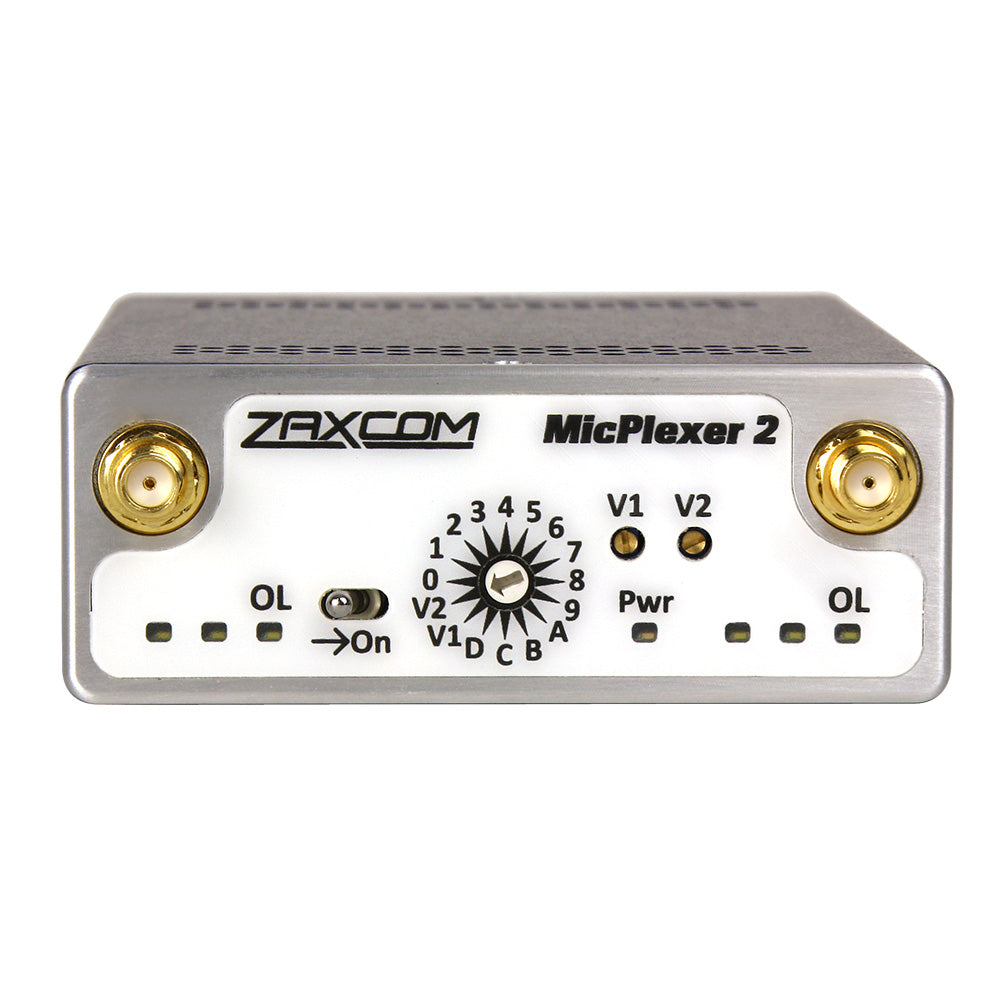

The MicPlexer 2 is a multi-coupler for Zaxcom ENG receivers with a tuneable filter. Includes a long shaft power connector.
Features:
- NOTIFICATION
MicPlexer 2's smart LED's tell you when there's too much RF signal overloading your wireless and interfering with performance. - AMPLIFICATION
MicPlexer 2 provides an additional 6 dB of gain on every antenna output. - FILTRATION
Improve your wireless performance by removing unwanted RF from your work space, choose from seven pre-set frequency blocks (20 - 26) or create your own 35 MHz window in one of the two user-assignable positions.
FREQUENCY TUNING RANGE | 512-702 MHZ (35 MHZ BAND, USER SELECTABLE) |
TUNED PASS BAND | 35 MHZ |
ATTENUATION +/- 25 MHZ | 12.5 DB |
ATTENUATION +/- 50 MHZ | 35 DB |
ATTENUATION +/- 75 MHZ | 51 DB |
RF GAIN | 6 DB |
RF CHANNELS | 2 |
CHANNEL CROSS-TALK | LESS THAN 40 DB |
AMPLIFIER NOISE FIGURE | .35 DB |
OIP3 DISTORTION | +37 DB |
POWER REQUIREMENT | 8 - 18 VDC @ 100 MA |
SIZE | 1.25" X 3.25" D 4.75" |
WEIGHT | 8 OUNCES |
The MicPlexer 2 is a multi-coupler for Zaxcom ENG receivers with a tuneable filter. Includes a long shaft power connector.
Features:
- NOTIFICATION
MicPlexer 2's smart LED's tell you when there's too much RF signal overloading your wireless and interfering with performance. - AMPLIFICATION
MicPlexer 2 provides an additional 6 dB of gain on every antenna output. - FILTRATION
Improve your wireless performance by removing unwanted RF from your work space, choose from seven pre-set frequency blocks (20 - 26) or create your own 35 MHz window in one of the two user-assignable positions.
FREQUENCY TUNING RANGE | 512-702 MHZ (35 MHZ BAND, USER SELECTABLE) |
TUNED PASS BAND | 35 MHZ |
ATTENUATION +/- 25 MHZ | 12.5 DB |
ATTENUATION +/- 50 MHZ | 35 DB |
ATTENUATION +/- 75 MHZ | 51 DB |
RF GAIN | 6 DB |
RF CHANNELS | 2 |
CHANNEL CROSS-TALK | LESS THAN 40 DB |
AMPLIFIER NOISE FIGURE | .35 DB |
OIP3 DISTORTION | +37 DB |
POWER REQUIREMENT | 8 - 18 VDC @ 100 MA |
SIZE | 1.25" X 3.25" D 4.75" |
WEIGHT | 8 OUNCES |
