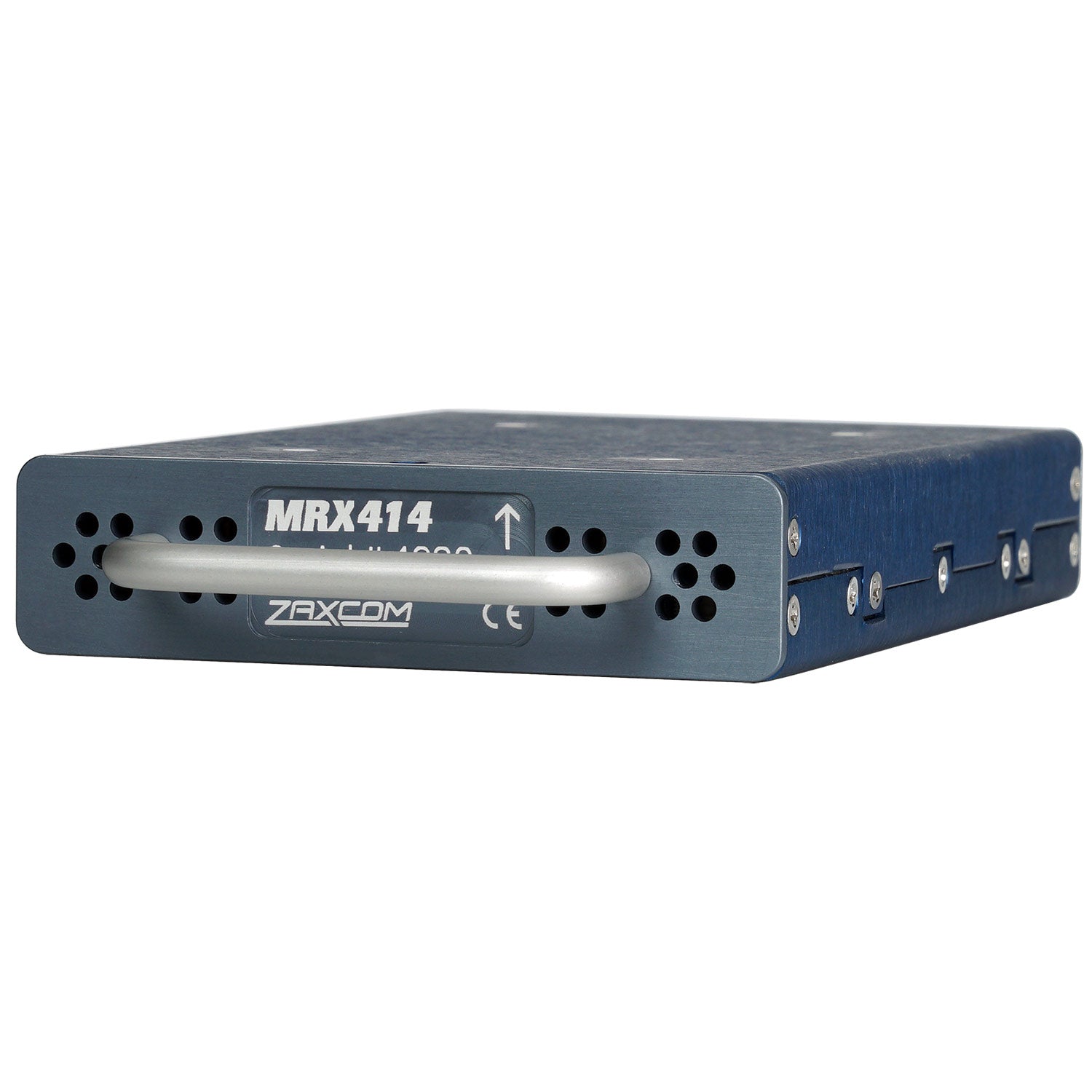

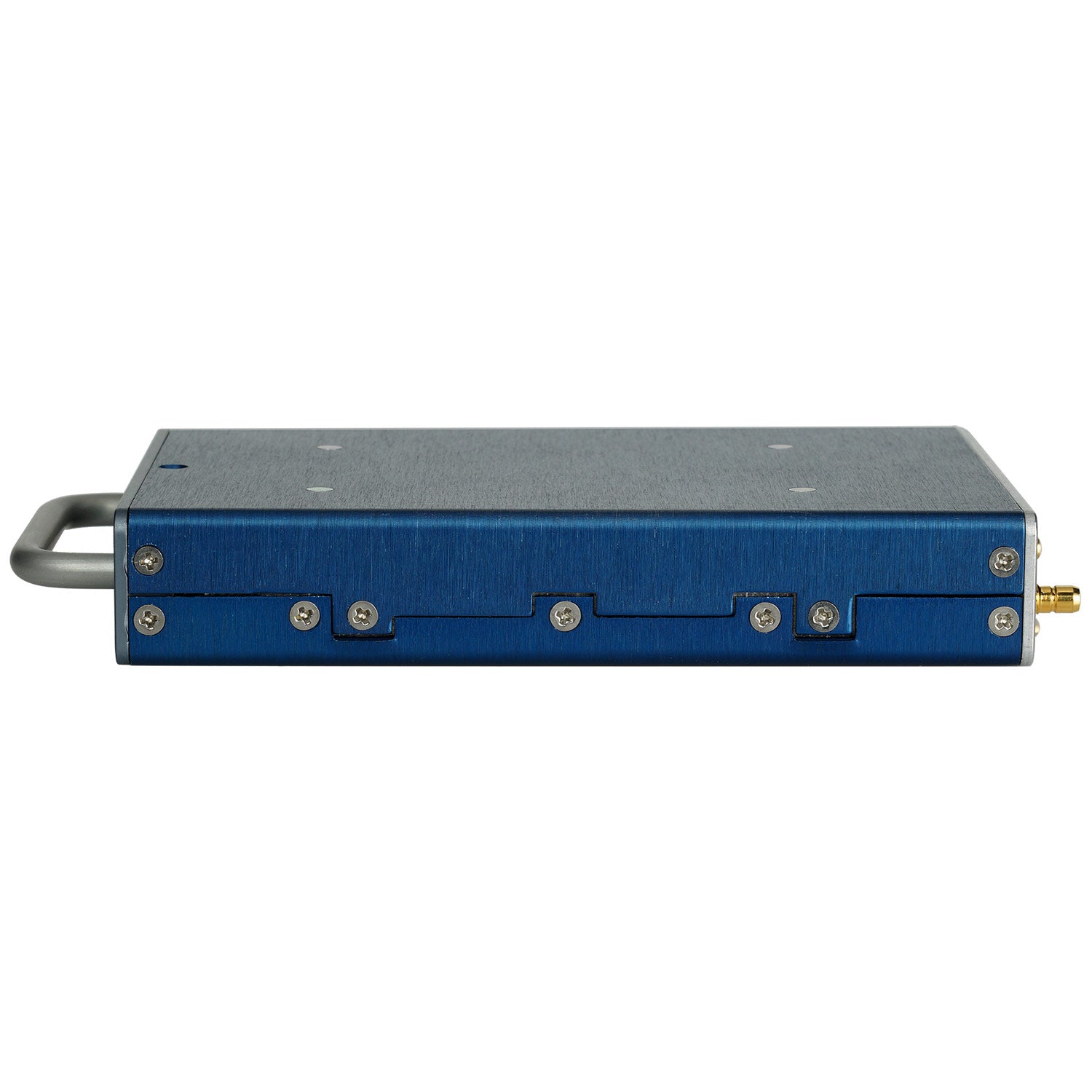

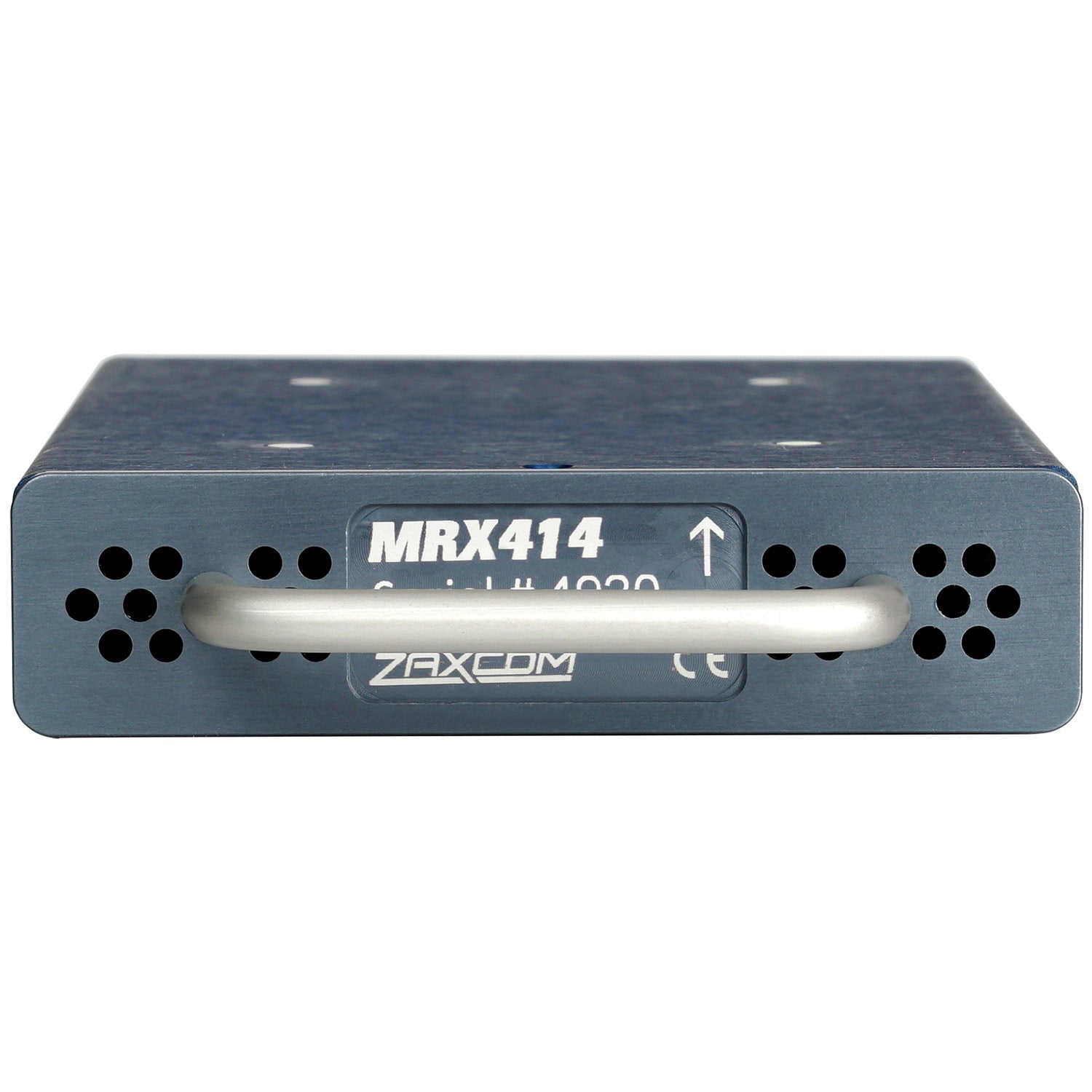

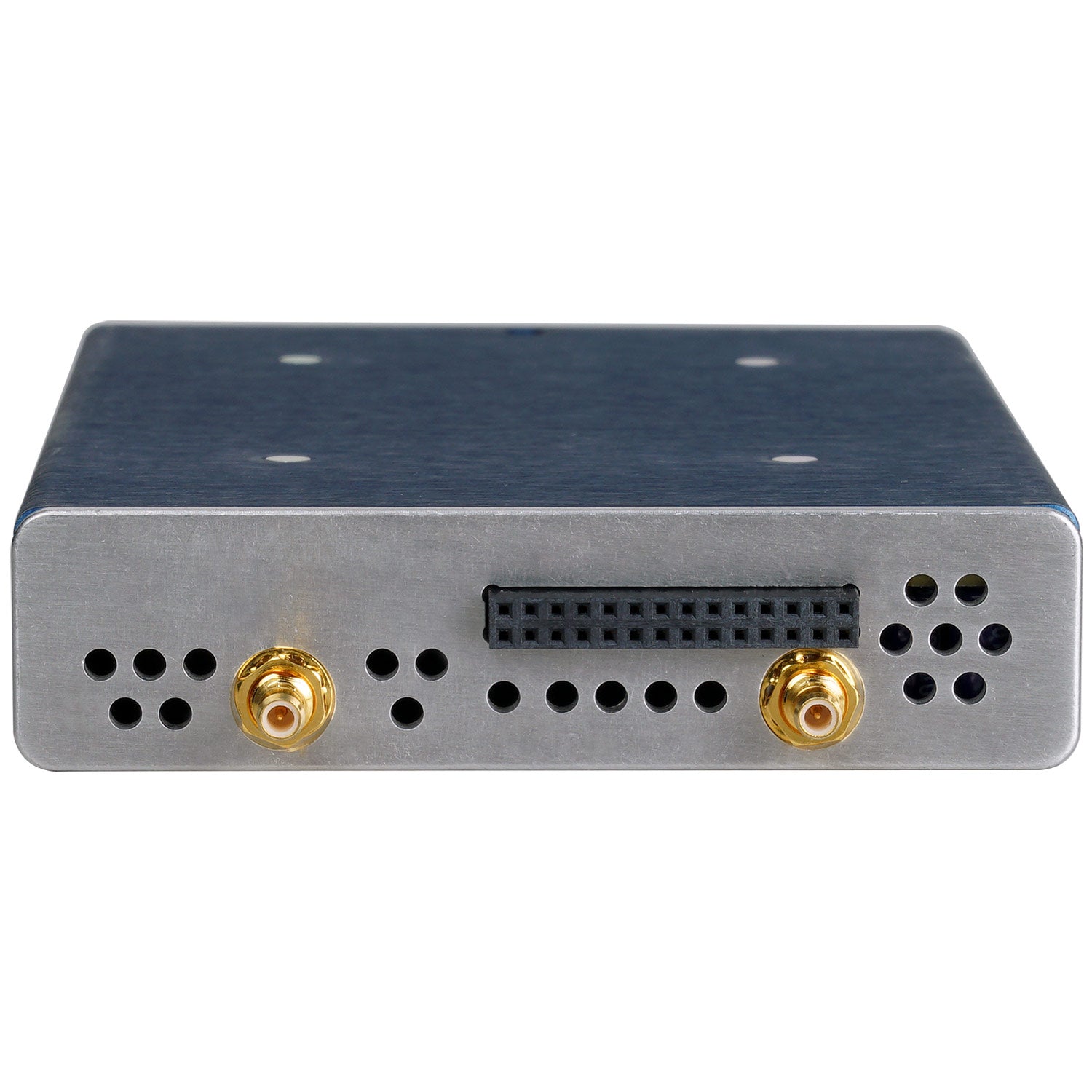

Zaxcom MRX414-L Hot Swappable Module Receiver (512 - 614 MHz)

  • Dale #:

    ZAXC-MRX414L
  • Availability:

    Not in Stock - Reserve Yours
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

MRX414 is a hot swappable module receiver designed for use in our Nova mixer / recorder, RX-12 and RX-12R.CONNECTIVITYMRX414 is a module style receiver compatible with the Nova mixer / recorder, RX-12 and RX-12R. The UHF diversity receiver utilizes the High Q tunable tracking front end filter wit... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

MRX414 is a hot swappable module receiver designed for use in our Nova mixer / recorder, RX-12 and RX-12R.

CONNECTIVITY

MRX414 is a module style receiver compatible with the Nova mixer / recorder, RX-12 and RX-12R. The UHF diversity receiver utilizes the High Q tunable tracking front end filter within it's host device to combat interference and extend range. The module is compatible with any Zaxcom digital recording wireless transmitter and with all current Zaxcom modulations (Mono, Stereo, XR and ZHD96).

CHANNEL COUNT

Let's break down the name - M (module) RX (receiver) 4 (four transmitters) 1 (for no reason) 4 (up to 4 channels of audio).

RF PERFORMANCE

Part of Zaxcom's 4th generation of digital wireless receiver technology the MRX414 sets a new standard for RF performance. The ultra-low noise floor (-135 dB) RF design will provide ultra-long range. The MRX is almost impossible to overload. Close distance transmitters have virtually no effect on the reception of distant transmitters. The RF performance exceeds the previous generation of Zaxcom receivers by 5 dB while enhancing the rejection of interfering signals from things like walkie talkies, cell phones and HD Television transmission by 10 dB.

POWER

The MRX414 is an extremely efficient digital wireless receiver - the module draws 300 mA @ 13 VDC (150 mA per receiver).

More +

Product Specs

OUTPUTHost Dependent
RECEIVER
RF ConnectorsHost dependent
RF Impedance50 ohm
RF Gain Input / Output4 dB
RF Amp Noise Figure.5 dB
RF Amp IP3+30 dB input
RF Filter Band Pass35 MHz
RF Tuning RangeMRX414-L Tuning Range: 512 - 614 MHz
MRX414-M Tuning Range: 536 - 652 MHz
MRX414-H Tuning Range: 596 - 698 MHz
MRX414 MODULE
Receivers Per Module4
Receiver ModulationZaxcom Proprietary Digital
Tuning Range512 - 698 MHz
Power Consumption300 mA @ 13 VDC
Size5" x 3" x .8" (L x W x H)
Weight7oz
