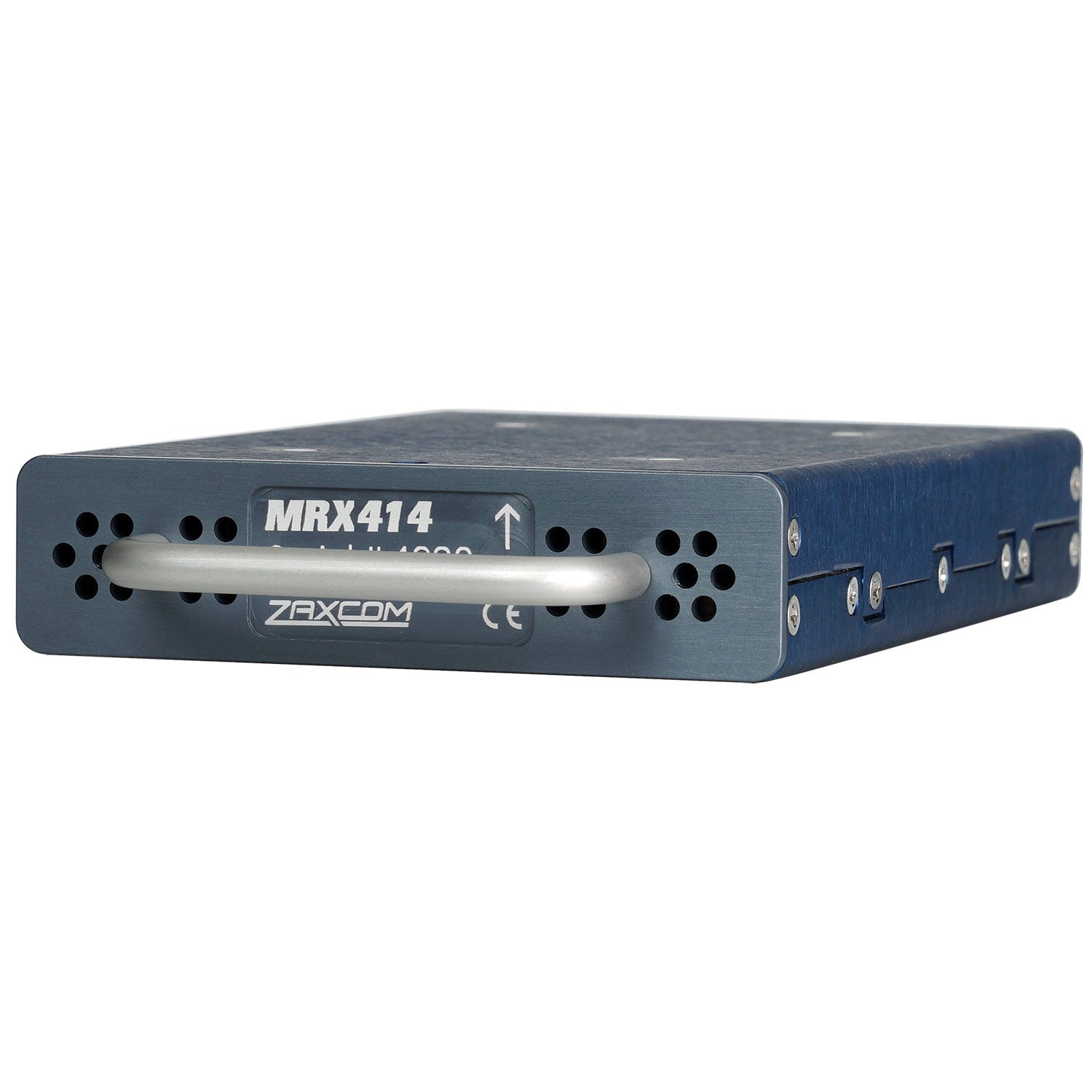

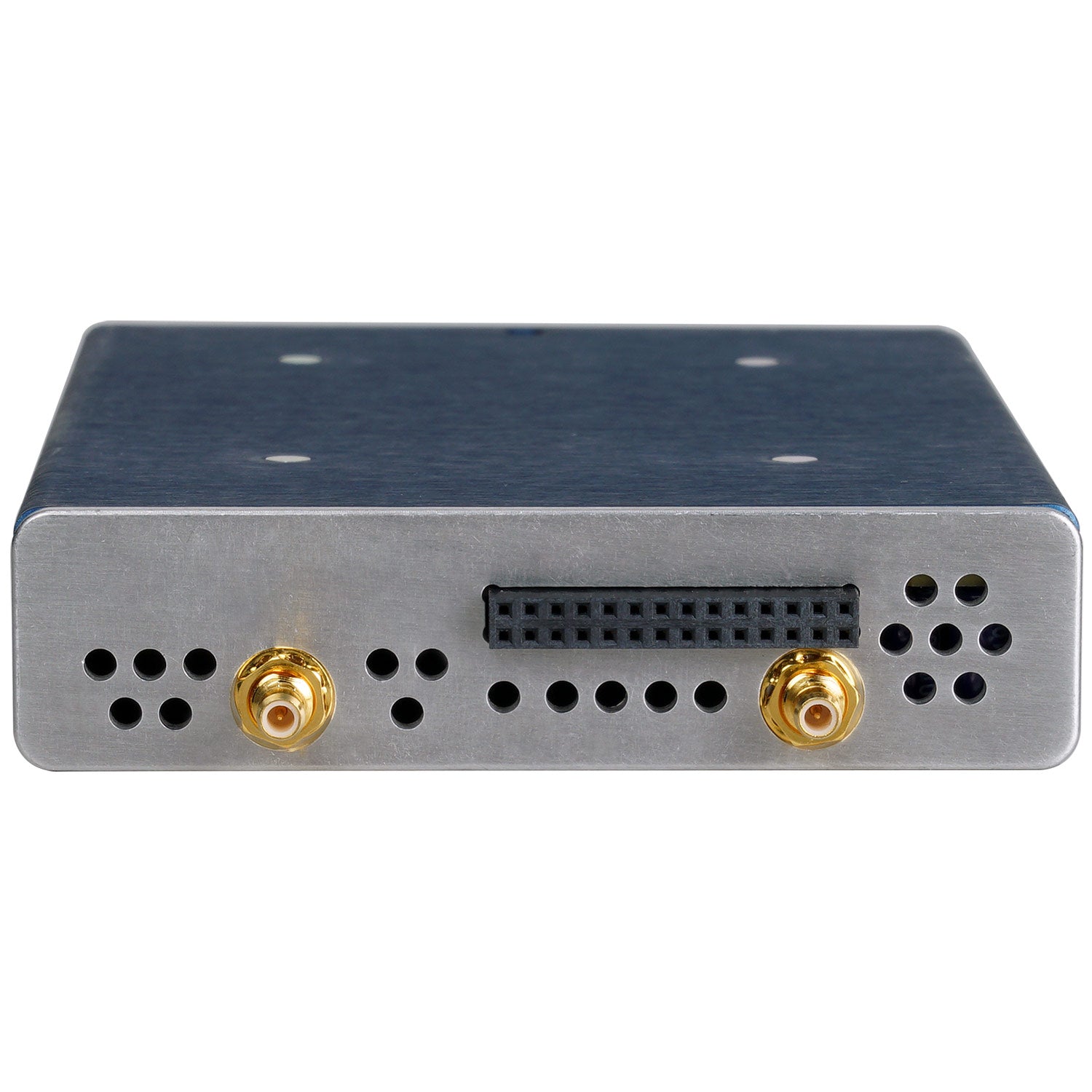

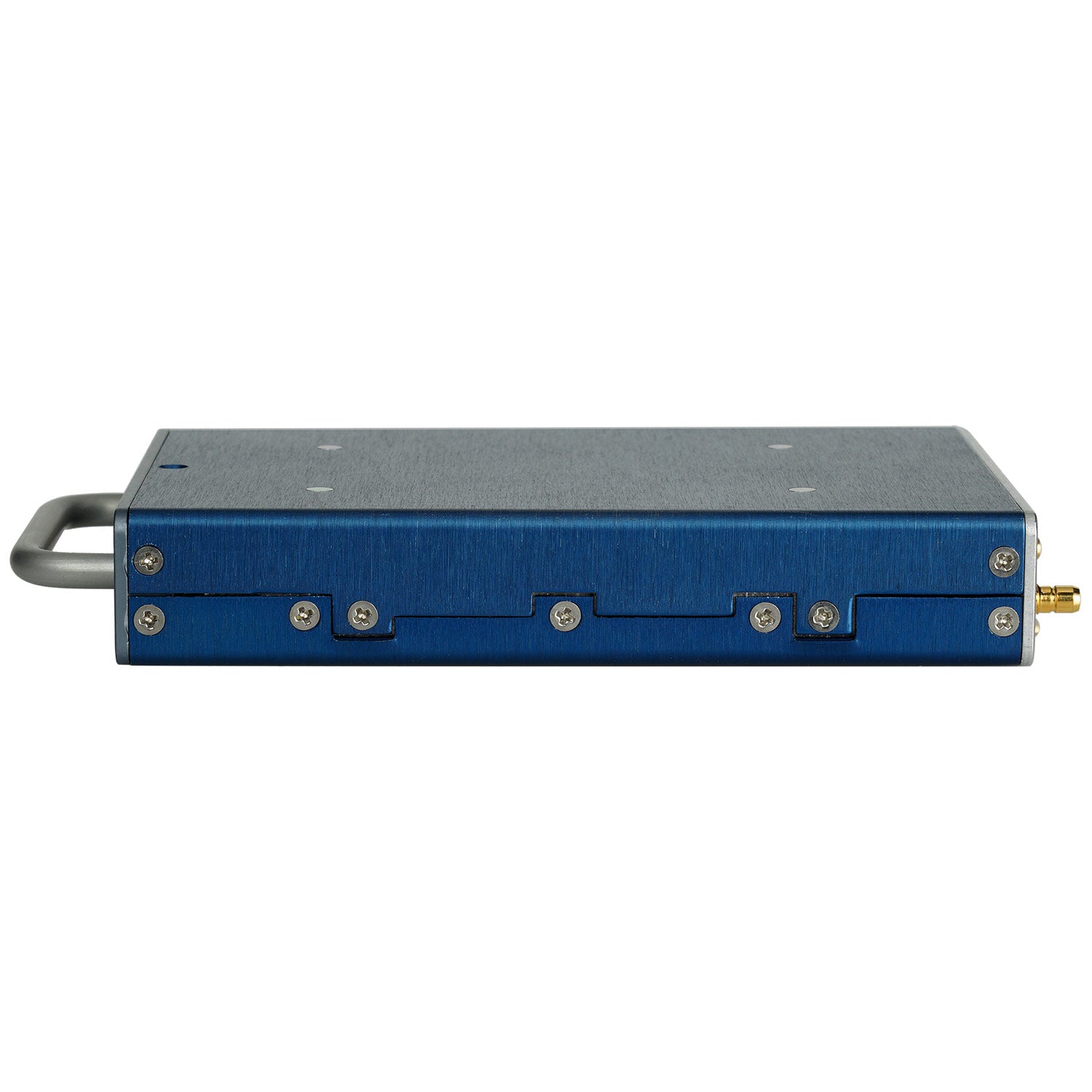

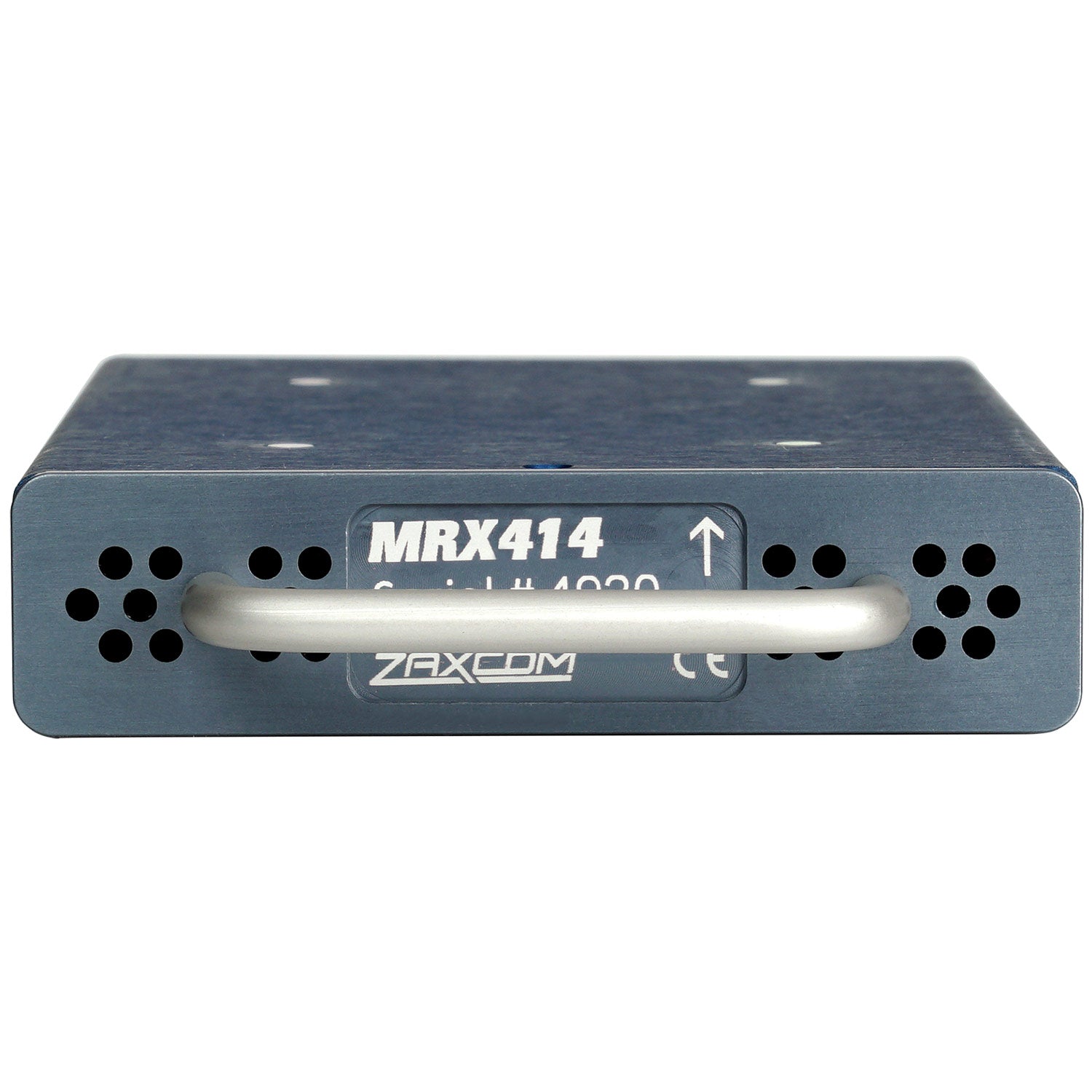

Zaxcom MRX414-M Hot Swappable Module Receiver (550 - 660 MHz)

MRX414 is a hot swappable module receiver designed for use in our Nova mixer / recorder, RX-12 and RX-12R.

CONNECTIVITY

MRX414 is a module style receiver compatible with the Nova mixer / recorder, RX-12 and RX-12R. The UHF diversity receiver utilizes the High Q tunable tracking front end filter within it's host device to combat interference and extend range. The module is compatible with any Zaxcom digital recording wireless transmitter and with all current Zaxcom modulations (Mono, Stereo, XR and ZHD96).

CHANNEL COUNT

Let's break down the name - M (module) RX (receiver) 4 (four transmitters) 1 (for no reason) 4 (up to 4 channels of audio).

RF PERFORMANCE

Part of Zaxcom's 4th generation of digital wireless receiver technology the MRX414 sets a new standard for RF performance. The ultra-low noise floor (-135 dB) RF design will provide ultra-long range. The MRX is almost impossible to overload. Close distance transmitters have virtually no effect on the reception of distant transmitters. The RF performance exceeds the previous generation of Zaxcom receivers by 5 dB while enhancing the rejection of interfering signals from things like walkie talkies, cell phones and HD Television transmission by 10 dB.

POWER

The MRX414 is an extremely efficient digital wireless receiver - the module draws 300 mA @ 13 VDC (150 mA per receiver).
