Zaxcom Oasis Control Surface for Nomad 12 Portable Recorder
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

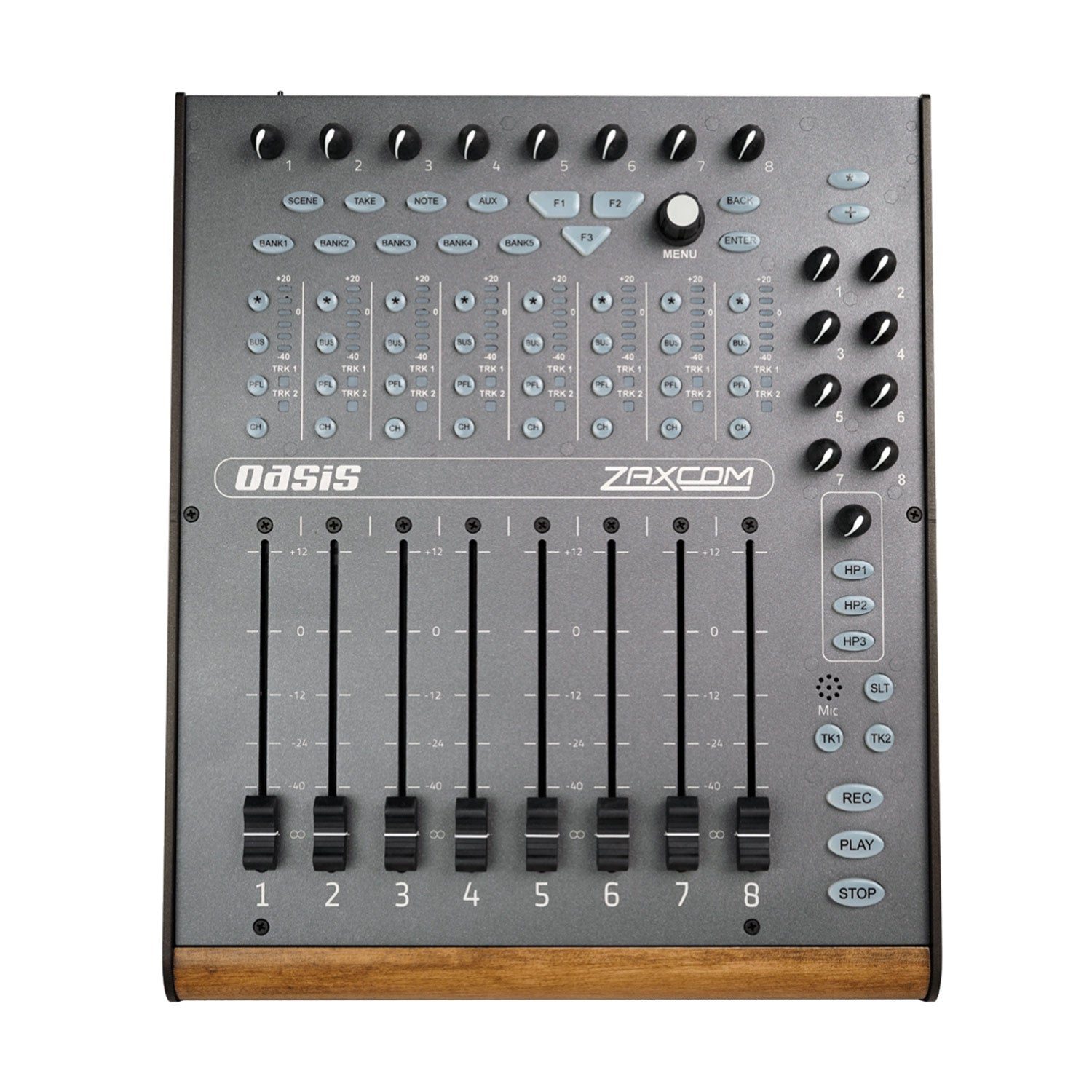

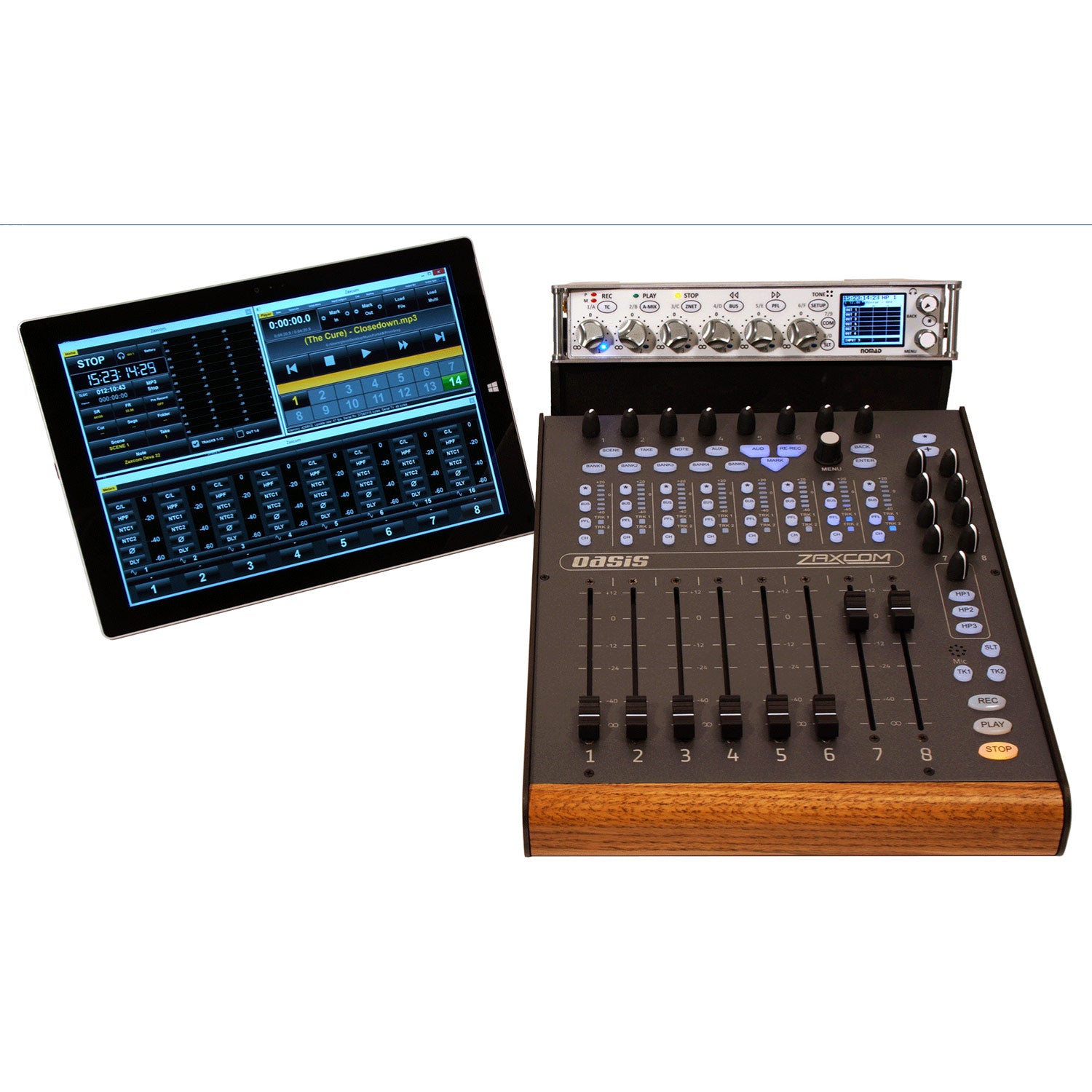

The Oasis is a full featured mixing panel with 8 motorized, touch sensitive faders on 3 active banks for up to 40 assignable fader channels. In addition you've got hardware trim controls, transport control, dedicated PFL keys, routing control and more! The Oasis controls Nomad 12 via a single serial control cable, all the processing and recording stay within the Nomad. This turns Nomad 12 into a no compromise cart based mixing and recording system that can quickly and seamlessly transition from a cart to a bag.
Features:
- Full featured touch screen and / or computer interface
- Direct ZaxNet gain control of Digital Recording Wireless
- Full function playback controller for simultaneous audio playback while recording
- Direct interface with the Zaxcom RX-12 wireless receiver
- Ultra-low power consumption of 2.4 watts (200ma @ 12 volts)
- Direct access to all Nomad mixing control
- Instant access and editing of metadata via touch screen or keyboard
- MovieSlate® Wi-Fi interface for direct sharing of metadata
- MP3 transcription recorder with timecode and metadata writes directly to microSD card for instant client delivery
- MP3 file transfer directly from Nomad Touch via standard Wi-Fi connection via e-mail or FTP
| PHYSICAL | |
| Required | Nomad 12 |
| Meters | 8 with 6 LED segments per meter |
| Faders | 8 x 100 mm motorized |
| Trimmers | 8 rotary |
| Weight | 4 lbs (1.8 kg) |
| Dimensions (H x W x D) | 3_ x 10.75_ x 12.75_ / 76 mm x 273 mm x 324 mm |

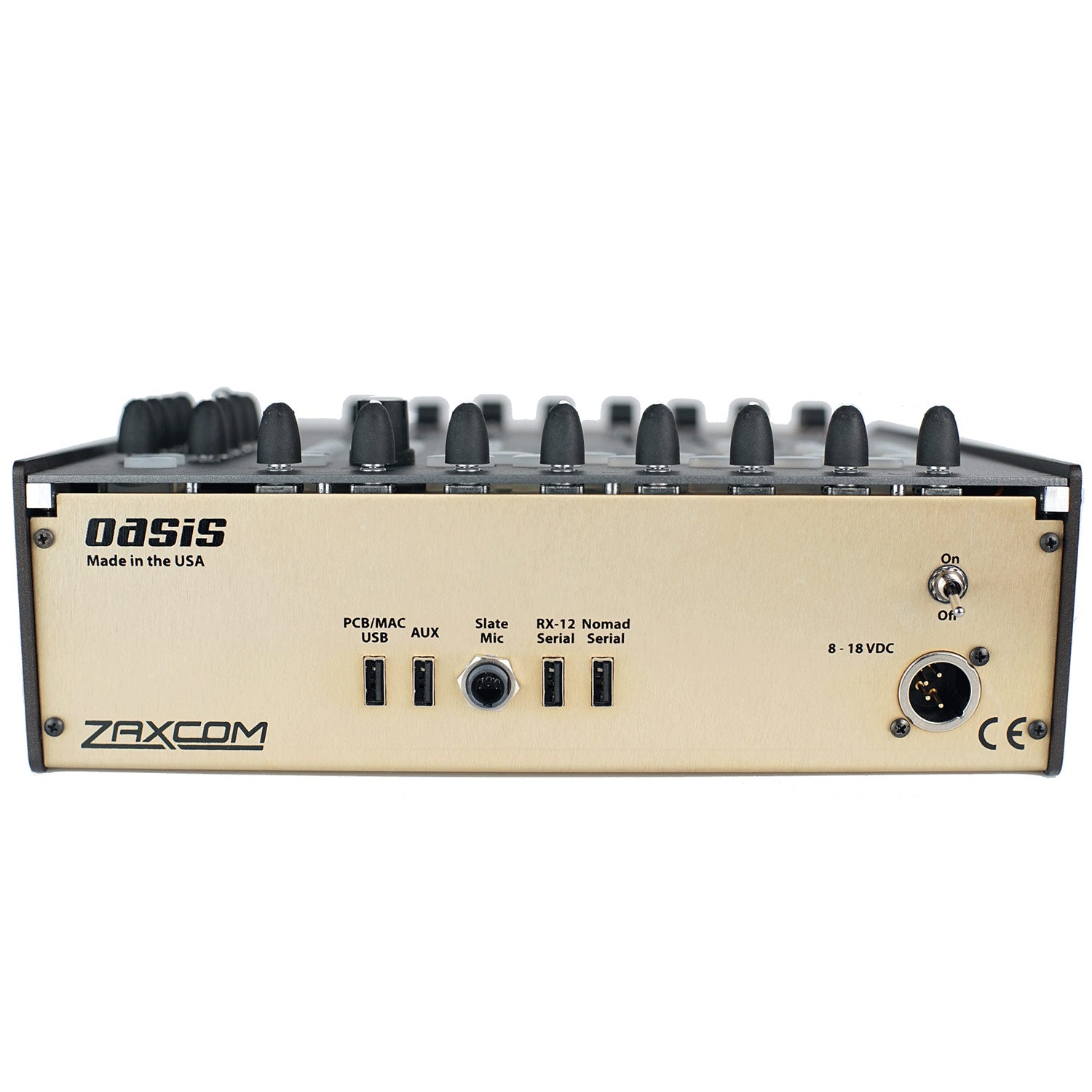

| DATA CONNECTION | USB: 1 computer connection Serial: 3 x RS422 |
| POWER | Power Consumption: 8 to 16 VDC @ 300 mA Power Connector: 4-Pin XLR Male |
| FUNCTIONS | 8 x 100mm Linear fader 5 x Fader bank selections 8 x Input trim adjustments 8 x Output level adjustments 3 x Headphone memory selections 8 x PFL keys 8 x Bus routing keys 3 x Communication keys |
The Oasis is a full featured mixing panel with 8 motorized, touch sensitive faders on 3 active banks for up to 40 assignable fader channels. In addition you've got hardware trim controls, transport control, dedicated PFL keys, routing control and more! The Oasis controls Nomad 12 via a single serial control cable, all the processing and recording stay within the Nomad. This turns Nomad 12 into a no compromise cart based mixing and recording system that can quickly and seamlessly transition from a cart to a bag.
Features:
- Full featured touch screen and / or computer interface
- Direct ZaxNet gain control of Digital Recording Wireless
- Full function playback controller for simultaneous audio playback while recording
- Direct interface with the Zaxcom RX-12 wireless receiver
- Ultra-low power consumption of 2.4 watts (200ma @ 12 volts)
- Direct access to all Nomad mixing control
- Instant access and editing of metadata via touch screen or keyboard
- MovieSlate® Wi-Fi interface for direct sharing of metadata
- MP3 transcription recorder with timecode and metadata writes directly to microSD card for instant client delivery
- MP3 file transfer directly from Nomad Touch via standard Wi-Fi connection via e-mail or FTP
| PHYSICAL | |
| Required | Nomad 12 |
| Meters | 8 with 6 LED segments per meter |
| Faders | 8 x 100 mm motorized |
| Trimmers | 8 rotary |
| Weight | 4 lbs (1.8 kg) |
| Dimensions (H x W x D) | 3_ x 10.75_ x 12.75_ / 76 mm x 273 mm x 324 mm |
| DATA CONNECTION | USB: 1 computer connection Serial: 3 x RS422 |
| POWER | Power Consumption: 8 to 16 VDC @ 300 mA Power Connector: 4-Pin XLR Male |
| FUNCTIONS | 8 x 100mm Linear fader 5 x Fader bank selections 8 x Input trim adjustments 8 x Output level adjustments 3 x Headphone memory selections 8 x PFL keys 8 x Bus routing keys 3 x Communication keys |
