Zaxcom RX-4 Module Interface for MRX Series (L Band / 512 - 614 MHz)

  • Dale #:

    ZAXC-RX4L
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The RX-4 is an interface to convert Zaxcom’s MRX214 and MRX414 receiver modules into stand-alone receivers. VERSATILITY The MRX414 broke new ground as the first receiver to receive audio from four separate transmitters. Now with the RX-4, the MRX414 can be used as a standalone portable receiver... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The RX-4 is an interface to convert Zaxcom’s MRX214 and MRX414 receiver modules into stand-alone receivers.

VERSATILITY
The MRX414 broke new ground as the first receiver to receive audio from four separate transmitters. Now with the RX-4, the MRX414 can be used as a standalone portable receiver outside of a host unit, making the combo a great way to get started with the Zaxcom Digital Recording Wireless ecosystem.

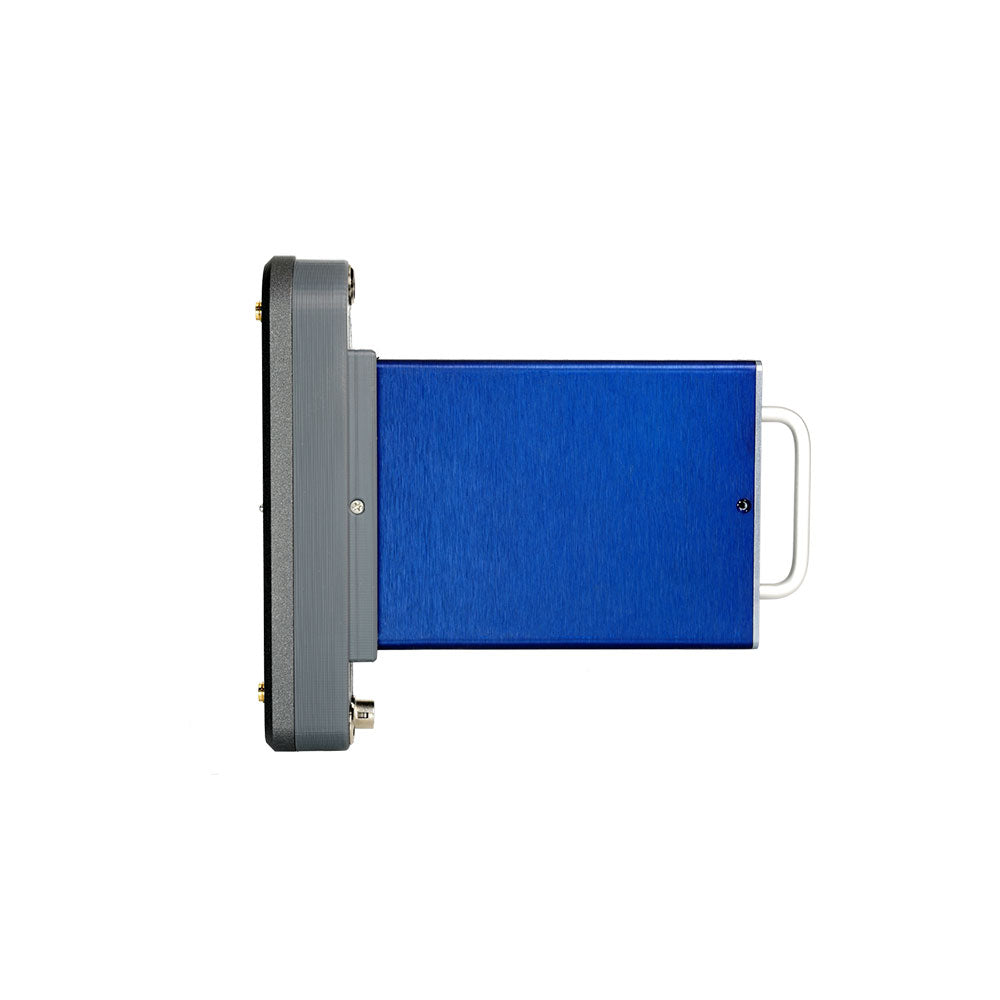

The RX-4 is an affordable and invaluable accessory, increasing the versatility of the MRX so it can be used as a stand-alone receiver in addition to its use in a Nova or an RX-12, etc. allowing for your system to expand as your needs grow.

DESIGN

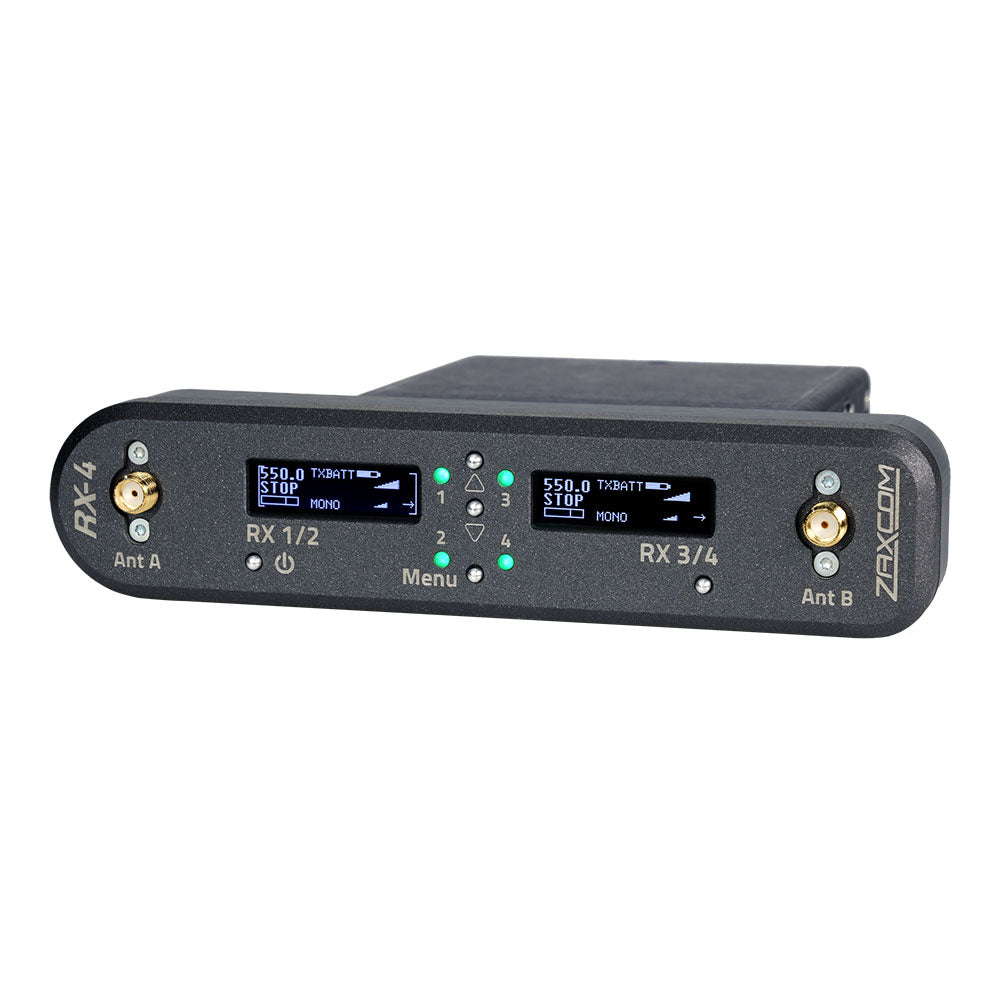

The RX-4’s intelligent design includes two OLED displays to easily visually monitor data from up to 4 separate transmitters. There are four tricolor LEDs to indicate the decode status of each of the 4 receive channels and push buttons for simple navigation of menus.

CONNECTIVITY

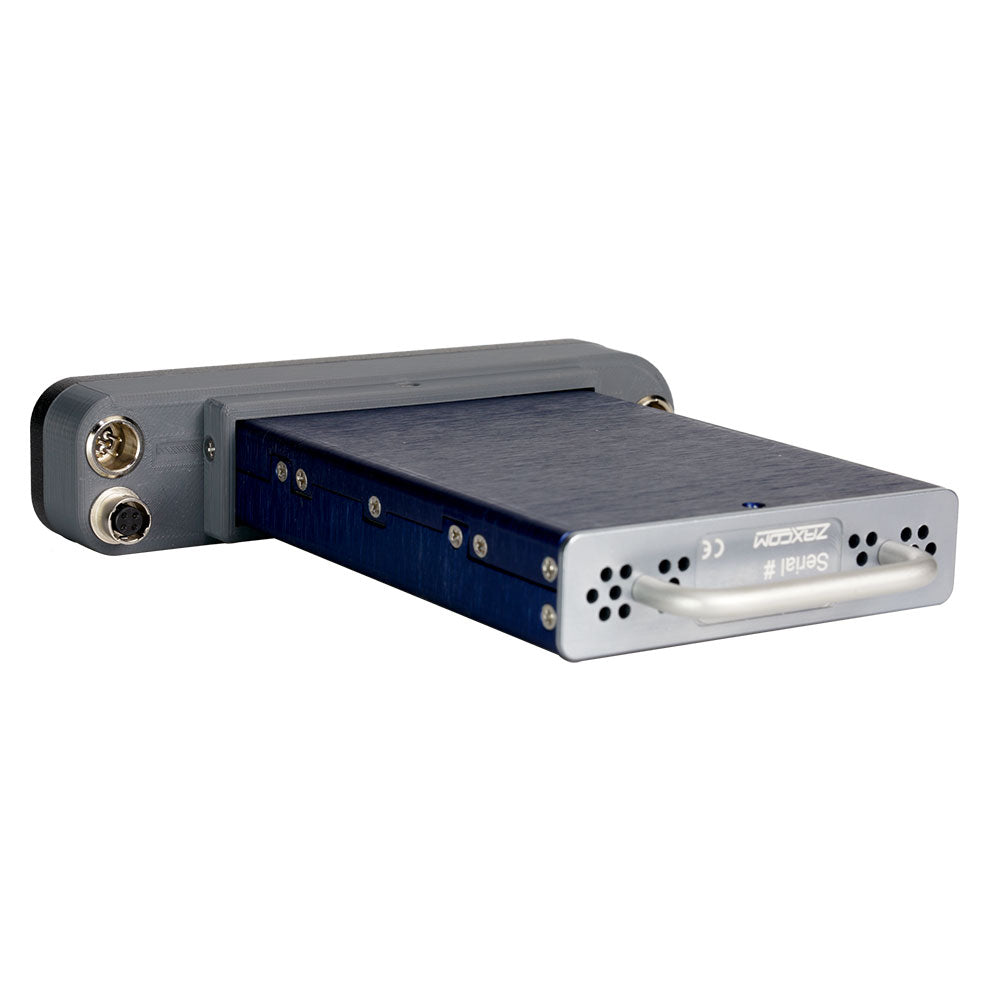

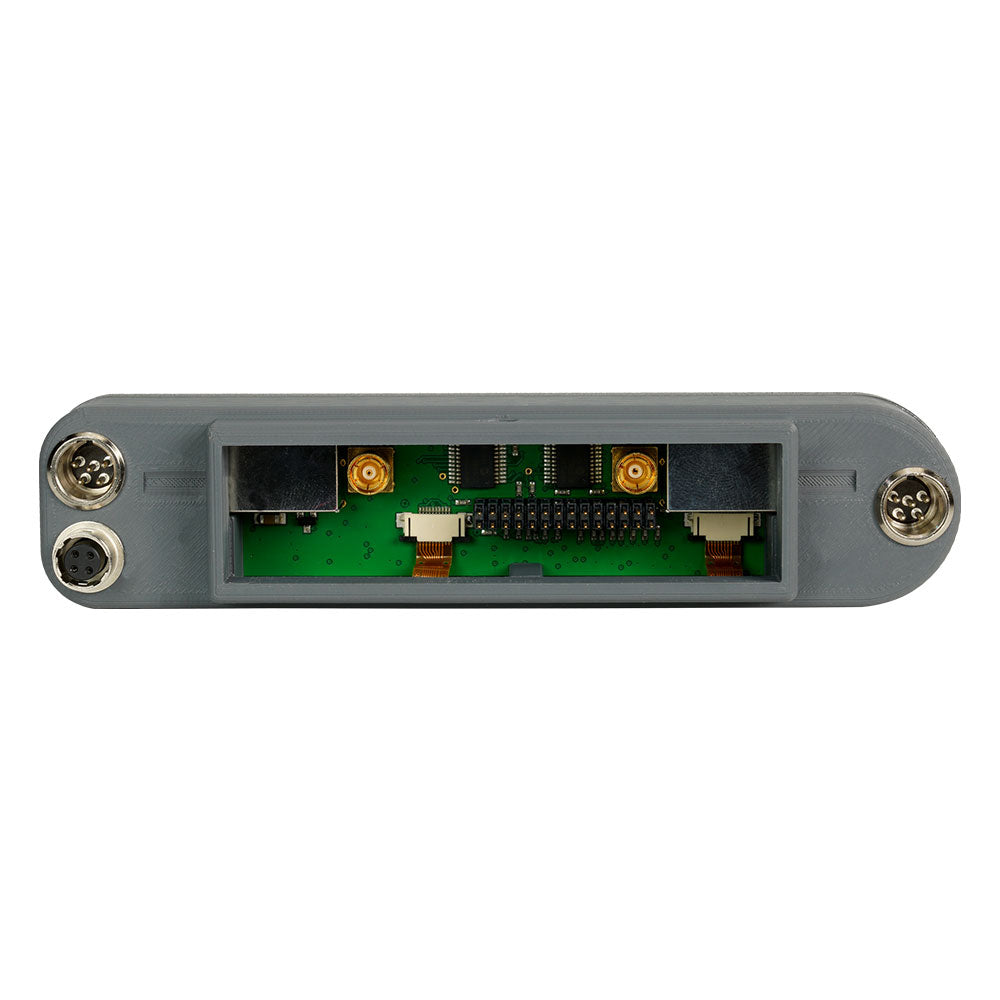

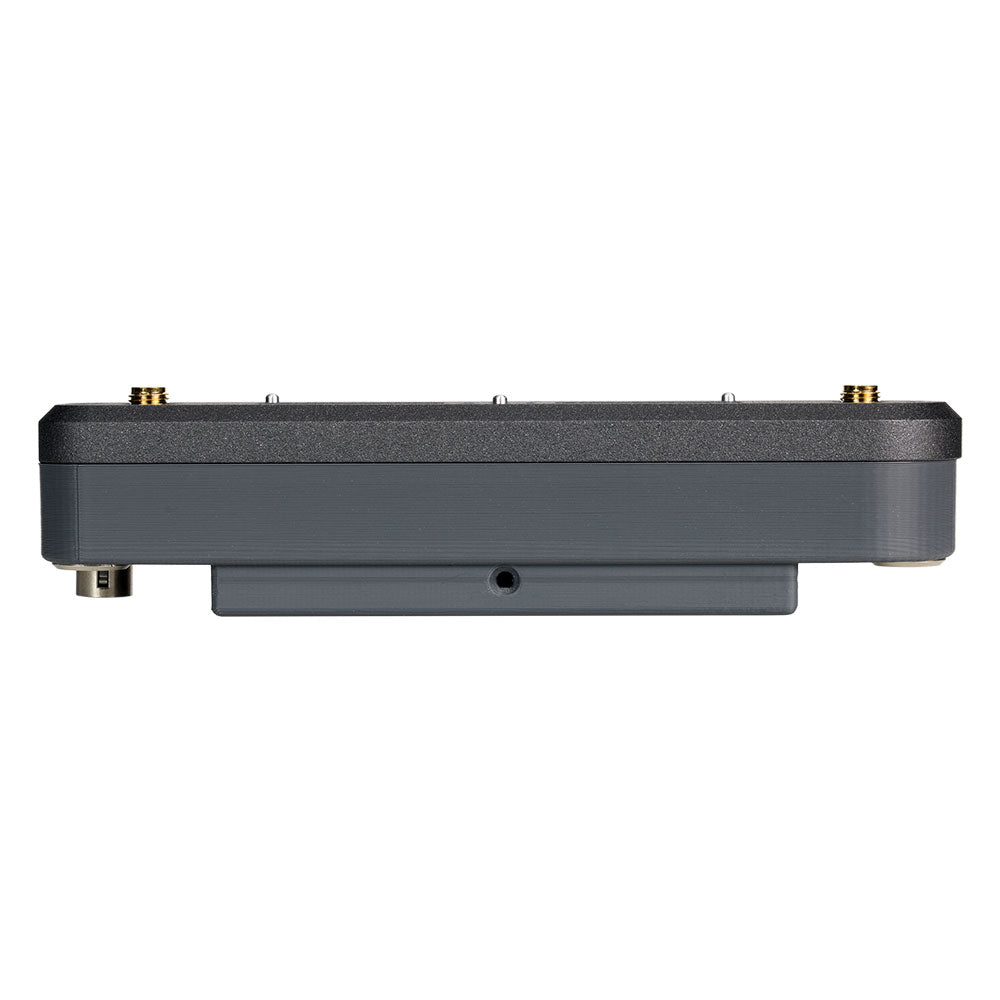

The audio and power connectors are located directly behind the control panel of RX-4 so cables can be conveniently attached without taking apart the sound bag. The audio output interface is via two TA5 connectors, either digital out via two AES3 connections or balanced line-level analog out. Power is connected via a 4-pin Hirose.
Cable wiring is the same across the entire line of Zaxcom receivers for easy integration.

CHANNEL COUNT
The RX-4 can receive 4 channels of audio from up to four transmitters when used with an MRX414. It can receive up to 4 channels of audio from two transmitters when used with an MRX214.

RF PERFORMANCE
The RX-4 has a brand-new dual-track-tuned front-end filter with a 44 MHz tuning window. There’s also an internal passive filter making it impossible to overload the RX-4, this means increased range, no intermodulation, and no interference from walkie-talkies and mobile phones.

RF SCAN AND RE-FREQ
The RX-4 can scan the entire frequency range, and re-freq all 4 receivers instantly to avoid localized interference at new locations. Receivers can be used anywhere in the frequency range of the RX-4 but need to be within the 44 MHz window of the tuned front-end filter.

FREQUENCY RANGE
The RX-4 is available in two frequency ranges:
RX-4L – covers Blocks 20 – 23 (512-614 MHz)
RX-4H – covers Blocks 23 – 26 (598-698 MHz)

POWER
The RX-4 consumes no power, it runs off the module and produces no additional heat. The MRX414 consumes only 350ma when all four channels are active.

More +

Product Specs

OUTPUT
Analog Audio Output 4-Channel Balanced 0dB @ -20 dBFS
Digital Audio Output 2 x AES3 Pairs (32 kHz Sample Rate)
Audio Connectors 2 x TA5M
RECEIVER INTERFACE
RF Connectors 2 x SMA
RF Impedance 50 ohm
RF Sensitivity -110 dB
RX Decode Level 6 dB signal to noise in XR Modulation
RF Filter Band Pass 44 MHz
Frequency Band RX-4L Tuning Range: 512 - 614 MHz
RX-4H Tuning Range: 598 - 698 MHz
MRX414 MODULE
Receivers Per Module 4
Receiver Modulation Zaxcom Proprietary Digital
Frequency Band MRX414-L Tuning Range: 512 - 614 MHz
MRX414-M Tuning Range: 536 - 652 MHz
MRX414-H Tuning Range: 596 - 698 MHz
Power Consumption 300 ma @ 12 VDC
Size 5" x 3" x .8" (L x W x H)
Weight 7oz
MRX214 MODULE
Receivers Per Module 2
Receiver Modulation Zaxcom Proprietary Digital
Frequency Band MRX214-L Tuning Range: 512 - 614 MHz
MRX214-M Tuning Range: 536 - 652 MHz
MRX214-H Tuning Range: 596 - 698 MHz
Power Consumption 160 mA @ 13 VDC
Size 5" x 3" x .8" (L x W x H)
Weight 7oz
MISC
Power 8 VDC to 18 VDC (12 VDC nominal @ 30 ma)
Power Connector Hirose HR10A-7P-4P
Display 2 x Graphic OLED Display
Size 1.25" x 5.5" x 1.25" (L x W X H) - (H 5.5" w/MRX414 less pull handle)
Weight 4 oz
