Description

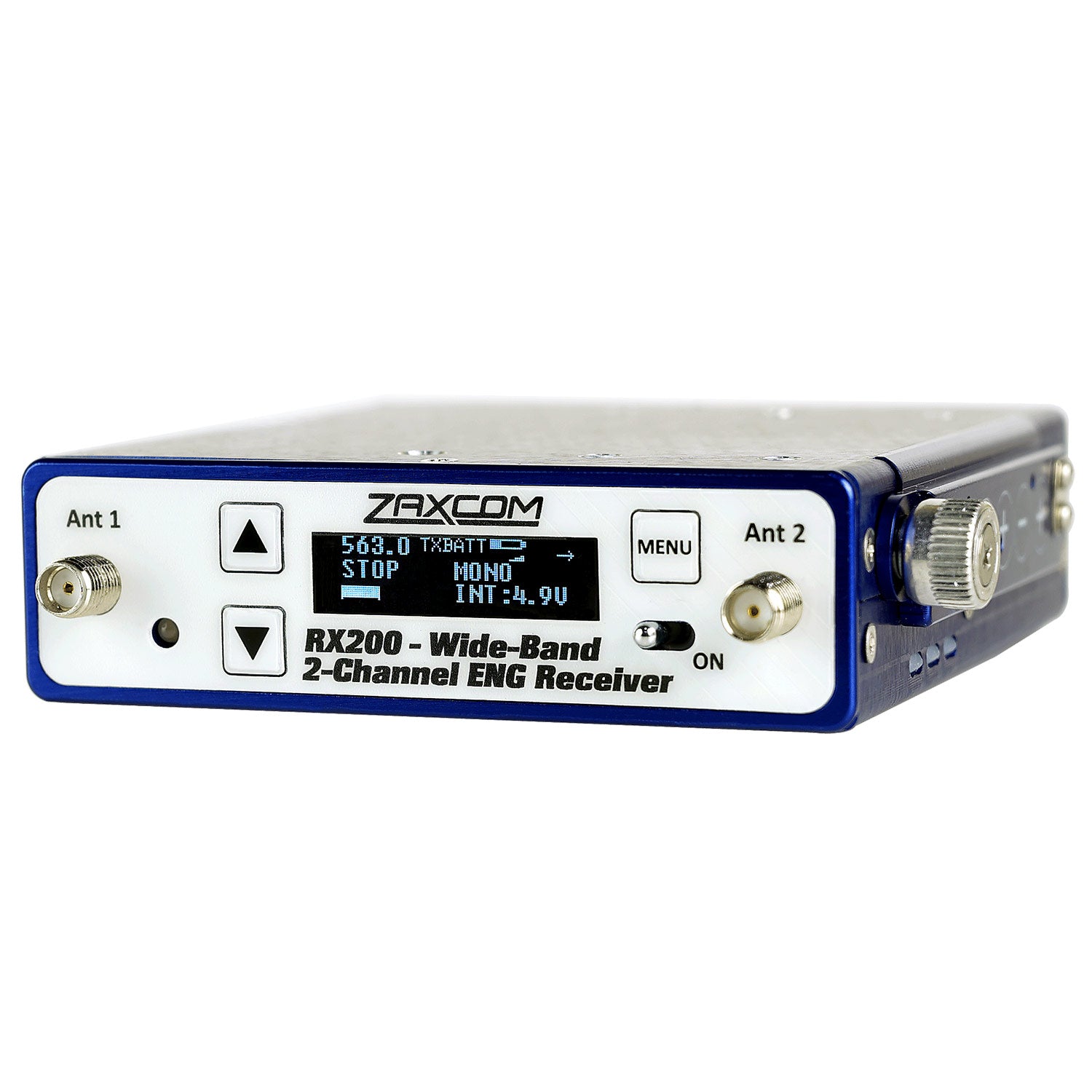

The RX200 is a 200 MHz wide compact battery powered ENG receiver. It has a tunable tracking front end filter for receiving any frequency in any block from 20 through 27, or 512 - 698 MHz, while still filtering out unwanted RF.
RX200 can output AES digital audio or analog audio at -35dB mic level, -10dB consumer level, or 0dB line level on a single TA5 connector. It's is also capable of receiving and outputting the embedded SMPTE time code on a BNC connector also on mic, line or consumer levels.
The RX200 / TRX900CL Camera Link combo is a great solution for sending two channels of 100% digital audio with embedded SMPTE timecode from bag to camera. Small and light-weight with Zaxcom's patented side-mounted LED's, the RX200 is easy to mount on any camera - from small format DSLR to a full size ENG rig.
Features:
- DIGITAL MODULATION
100% digital modulation for superior audio quality -
ENCRYPTED AUDIO
keeps transmitted audio private -
TIMECODE
built-in timecode reader and generator -
FLEXIBILITY FROM AFAR
RX200 has an automatic tracking front end filter so you can receive on any frequency in any block from 20 through 27 (512-698MHz) with impressive range -
SELF SUFFICIENT

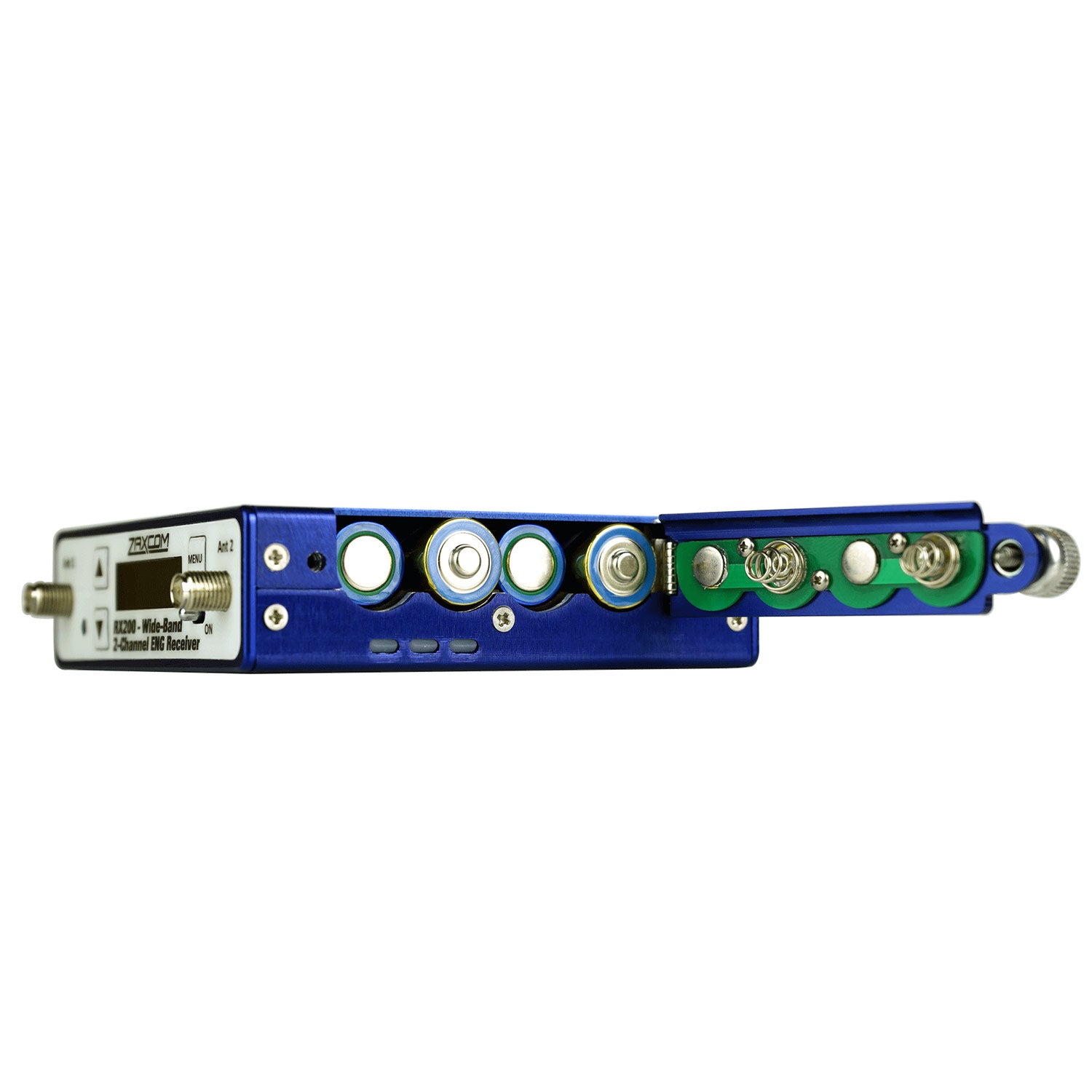

The ultra compact RX200 isn't only small, but powers itself on 4 internal AA batteries for up to 12 hours for use with any camera big or small -
GOING ALL OUT

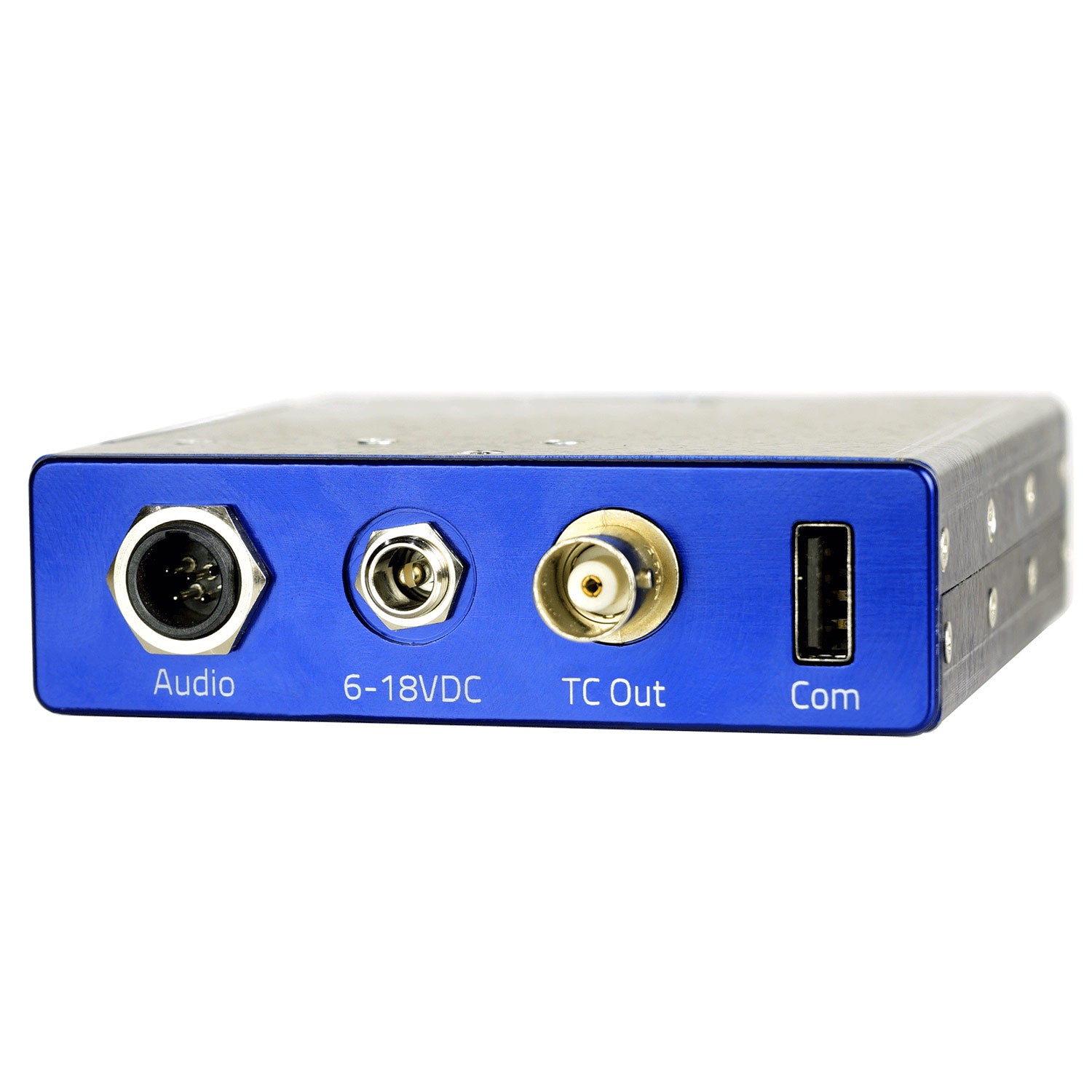

Output AES digital or analog audio via a single TA5 connector and timecode from a dedicated BNC connector
RECEIVER | Receiver RF Channels: 1 Diversity method: antenna switching RF Modulation: proprietary digital method RF Frequency Range: 518 to 698 MHz RF Frequency Step: 100 KHz RF Signal Bandwidth: 200 KHz Channel Separation: 500 KHz (700 KHz recommended) Sensitivity: -114 dBm Antenna Connector: 50-ohm SMA female X 2 |
RECEIVER AUDIO Ð ANALOG OUTPUT X 2 | Dynamic Range: 116 dB Distortion: 0.002% Frequency Range: 20Hz to 16kHz DAC Bit-depth: 24 bits Connector: TA-5M Audio Output: Active analog balanced Audio Output Level: -35dBm (mic), -10dBm (consumer) or 0dBm (line) |
RECEIVER AUDIO Ð DIGITAL OUTPUT | Signal Format: AES Balanced AES dynamic range: 123dB Frequency Range: 20Hz to 16kHz AES output: AES3 balanced at 96KHz Audio Output Connector: TA-5M |
TIMECODE | Timecode output connector: BNC Timecode output level: .01VPP, .2VPP, .5VVP, .9VPP, 1.5VPP Time code output rate: 23.98, 24, 25, 29.97 ND, 29.97 DF, 30 |
POWER | External Power: 6 to 18 VDC (140mA @ 12VDC) Power Connector: Switchcraft 760k Internal Power: 4 AA Batteries Li-Ion Battery Life: Up to 12 hours NiMH Battery Life: Up to 8.5 hours Alkaline Battery life: Up to 7 hours |
MISC. | Serial Control Port: RS422 Weight: 7.7 oz (without internal batteries) Dimensions: 1.0_ x 3.5_ x 3.5_ (25mm x 89mm x 89mm) Display: Graphic White OLED Panel |
