Zaxcom TRXCL5 - Camera Link Wireless Transmitter with ZaxNet
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

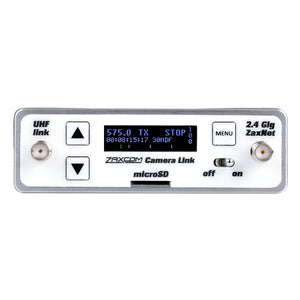

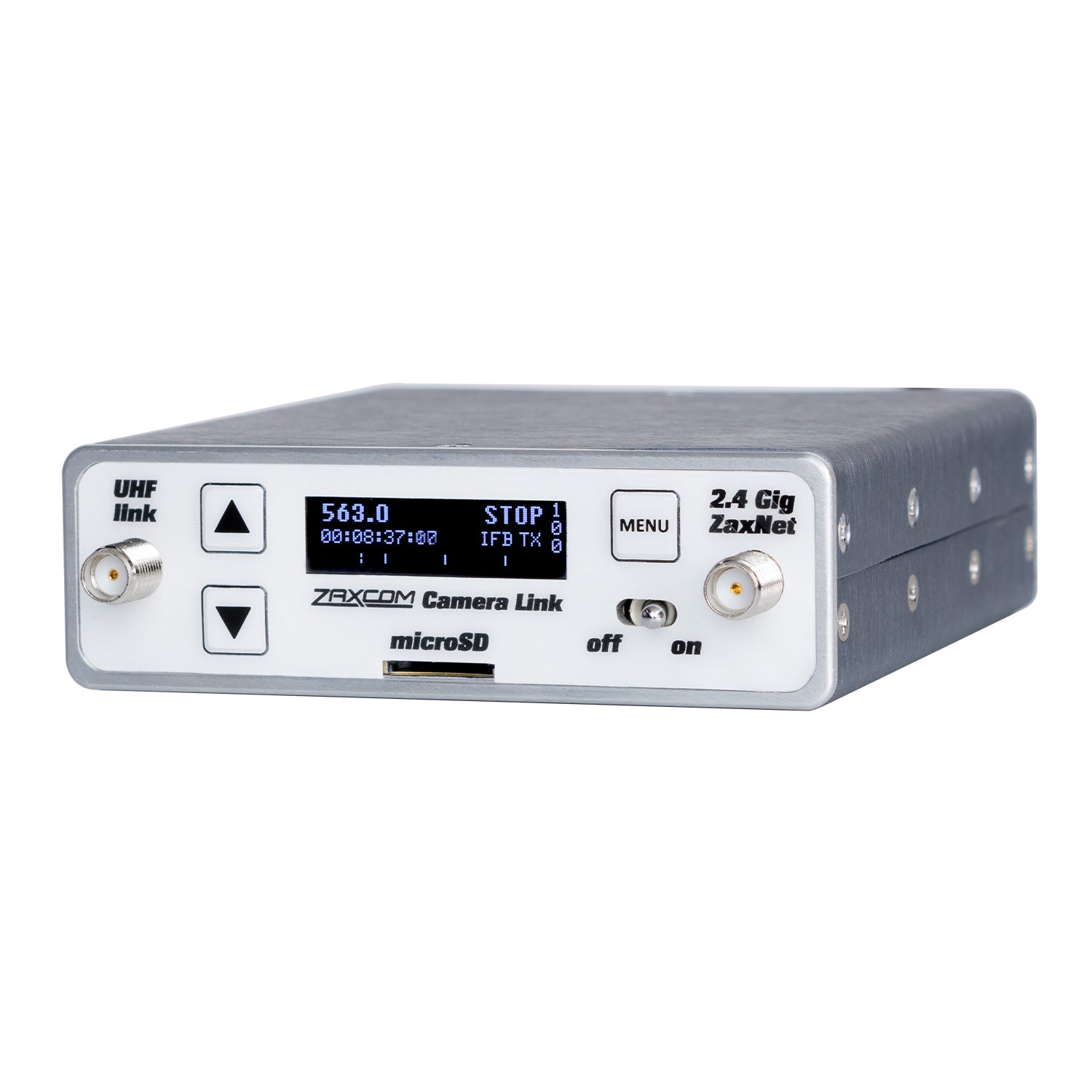

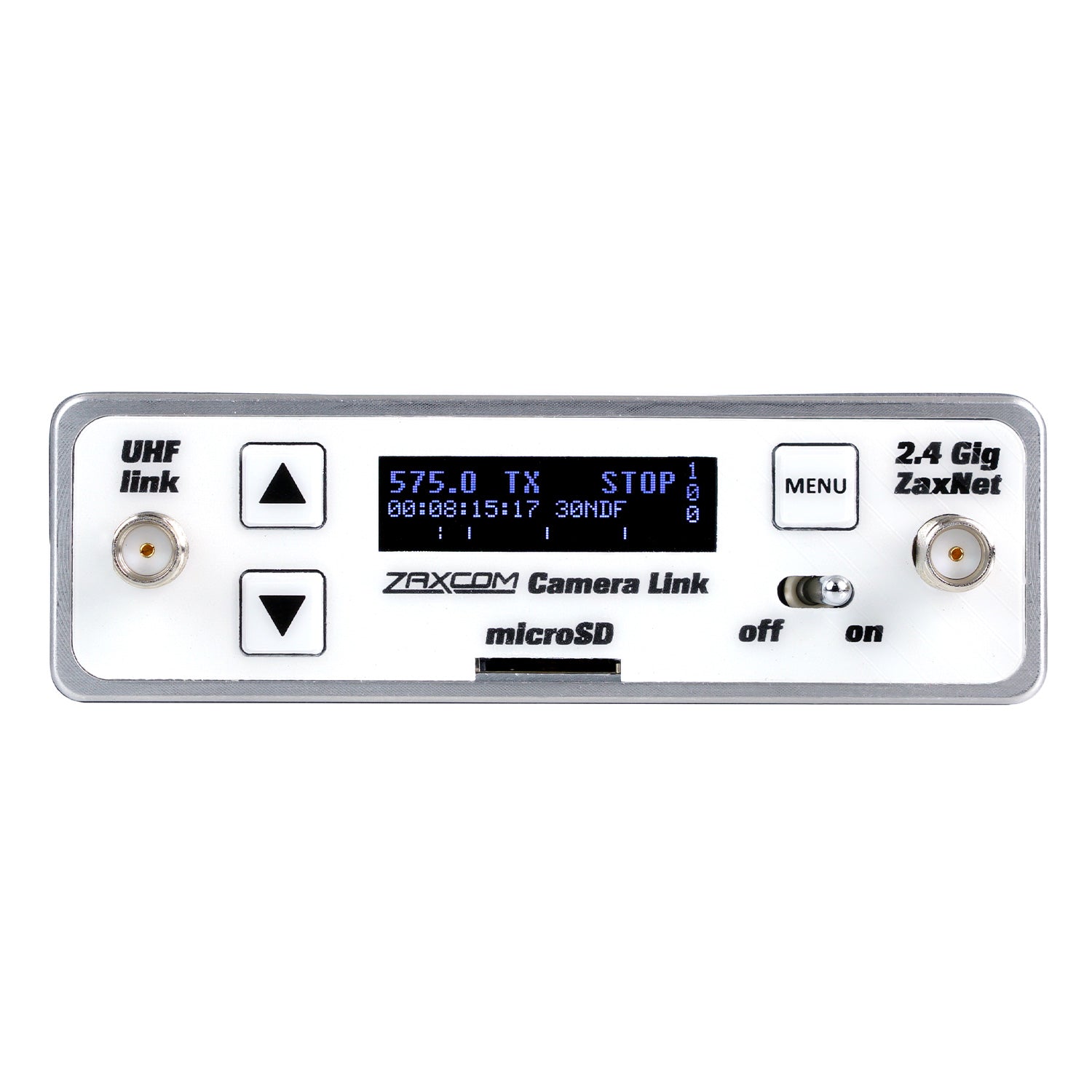

Deliver pristine audio quality with the TRXCL5 wide-band camera link transmitter for sound professionals in film, television, or ENG applications. This new model covers Blocks 20 – 26, where legal. Weighing 7.3 oz, it’s constructed from an impact-resistant metal casing that’s cool to the touch. A bright OLED display provides easy menu navigation.
CONNECTIVITY
The TRXCL5 sends audio with embedded timecode to camera via a UHF signal to any Zaxcom receiver – QRX200, RX200, QRX235 or MRX/RX-4. It can also send audio and timecode via ZaxNet’s 2.4 GHz signal to an ERX3TCD receiver, or remote control commands to any Zaxcom digital recording wireless transmitter.

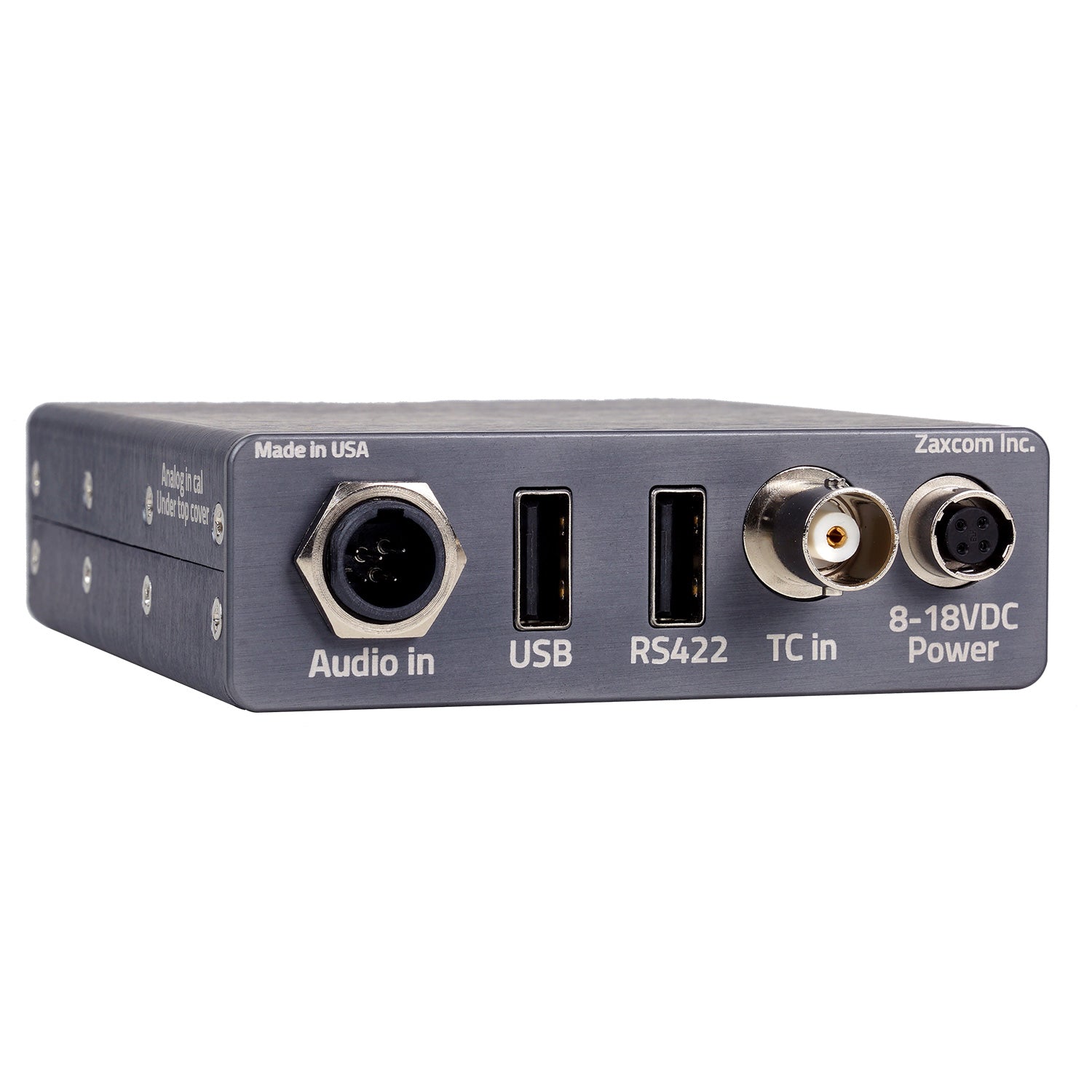

A TA5 audio input offers balanced stereo line level or sample rate converting AES. The BNC connector provides timecode in.
New on the CL5 is an RS422 port for direct connection to the Zaxcom GUI Bridge so you can easily setup URX50/100 and remote control your wireless via any device that can access the internet.
ENCRYPTED AUDIO
The TRXCL5 transmits using 100% digital modulation and audio is fully encrypted to keep recordings private.
INTERNAL RECORDING
Audio can be simultaneously transmitted and internally recorded to a microSD card using MARF (Mobile Audio Recording Format) which eliminates file corruption common to recordings due to loss of power or early card removal.
BETTER WORKFLOW
The TRXCL5 is designed to limit intermodulation which can occur when multiple transmitters are in close proximity to each other and mix together.
ADVANCED FEATURES
ZaxNet allows you to send scratch-track audio, timecode, and remote control commands.
MHZ BANDS AND POWER OUTPUT
In the United States, the TRXCL5 runs in the frequencies and power outputs as follows:
512.0 to 607.9 (up to 100mW)
614.1 to 615.9 (20mW)
653.1 to 662.9 (20mW)
Globally, the TRXCL5 runs between 512.0 – 698.0 MHz
| Transmitter | |
| RF Modulation | Proprietary Digital Method |
| TRXCL5 US RF Freq Ranges | 512.0 to 607.9 MHz 614.1 to 615.9 MHz 653.1 to 662.9 MHz |
| Global RF Freq Range | 512 to 698 MHz |
| RF Frequency Step | 100 KHz |
| RF Bandwidth in ZHD Mode | 50 KHz |
| RF Bandwidth | 200 KHz |
| Channel Separation in XR Mode | 400 KHz |
| Antenna Connector | 50 ½ SMA Female |
| Emission Designator | 180 KV2E |
| FCC Part | 74.861 |
| Transmitter Audio | |
| Dynamic Range | 114 dB |
| Distortion | 0.002% |
| Frequency Response | Mode 0 is 20 Hz to 16 kHz / T / M Mode is 0.2 Hz to 16 kHz |
| System Group Delay | 3.5 ms |
| Audio input connector | TA5 male |
| Analog Input Range | -10 to +4 dBu |
| Analog input type | balanced line level |
| Audio input Impedance | 4.7 k ½ |
| ADC Bit-Depth | 24 Bits |
| ADC Sampling-Rate | 48 kHz |
| AES input | Balanced with sample rate conversion |
| Sample rate range | 32 Khz to 96 Khz |
| Timecode Reader / Generator | |
| Clock Accuracy | 1.54 PPM (1 Frame Out in 6 Hours) |
| Timecode Type | SMPTE |
| Timecode Frame-Rates | 23.98, 24, 25, 29.97NDF, 29.97DF, 30NDF, 30DF |
| Internal Recording | Media |
| MicroSD Card (Flash Memory) | |
| File Format | .ZAX |
| Recording Time | 96 Hours (16 GB Card) |
| 2.4 GHz ZaxNet Transmitter | |
| RF Frequency Range | 2.403 to 2.475 GHz |
| RF Modulation | Digital Spread Spectrum |
| RF Frequency Step | 0.001 GHz (1 MHz) |
| RF Bandwidth | 1 MHz |
| Channel Separation | 2 MHz |
| Sensitivity | -96 dBm |
| RF power output | 100 mW max |
| Physical | |
| Weight | 7.3 oz |
| Dimensions (H x W x D) | 1Óx 3.55Ó x 3.23Ó |
| Display | Graphic OLED |
| Power Output | 25 / 50 / 100 mW Ð Software Selectable |
| Power consumption | 2.13 watts |
Deliver pristine audio quality with the TRXCL5 wide-band camera link transmitter for sound professionals in film, television, or ENG applications. This new model covers Blocks 20 – 26, where legal. Weighing 7.3 oz, it’s constructed from an impact-resistant metal casing that’s cool to the touch. A bright OLED display provides easy menu navigation.
CONNECTIVITY
The TRXCL5 sends audio with embedded timecode to camera via a UHF signal to any Zaxcom receiver – QRX200, RX200, QRX235 or MRX/RX-4. It can also send audio and timecode via ZaxNet’s 2.4 GHz signal to an ERX3TCD receiver, or remote control commands to any Zaxcom digital recording wireless transmitter.
A TA5 audio input offers balanced stereo line level or sample rate converting AES. The BNC connector provides timecode in.
New on the CL5 is an RS422 port for direct connection to the Zaxcom GUI Bridge so you can easily setup URX50/100 and remote control your wireless via any device that can access the internet.
ENCRYPTED AUDIO
The TRXCL5 transmits using 100% digital modulation and audio is fully encrypted to keep recordings private.
INTERNAL RECORDING
Audio can be simultaneously transmitted and internally recorded to a microSD card using MARF (Mobile Audio Recording Format) which eliminates file corruption common to recordings due to loss of power or early card removal.
BETTER WORKFLOW
The TRXCL5 is designed to limit intermodulation which can occur when multiple transmitters are in close proximity to each other and mix together.
ADVANCED FEATURES
ZaxNet allows you to send scratch-track audio, timecode, and remote control commands.
MHZ BANDS AND POWER OUTPUT
In the United States, the TRXCL5 runs in the frequencies and power outputs as follows:
512.0 to 607.9 (up to 100mW)
614.1 to 615.9 (20mW)
653.1 to 662.9 (20mW)
Globally, the TRXCL5 runs between 512.0 – 698.0 MHz
| Transmitter | |
| RF Modulation | Proprietary Digital Method |
| TRXCL5 US RF Freq Ranges | 512.0 to 607.9 MHz 614.1 to 615.9 MHz 653.1 to 662.9 MHz |
| Global RF Freq Range | 512 to 698 MHz |
| RF Frequency Step | 100 KHz |
| RF Bandwidth in ZHD Mode | 50 KHz |
| RF Bandwidth | 200 KHz |
| Channel Separation in XR Mode | 400 KHz |
| Antenna Connector | 50 ½ SMA Female |
| Emission Designator | 180 KV2E |
| FCC Part | 74.861 |
| Transmitter Audio | |
| Dynamic Range | 114 dB |
| Distortion | 0.002% |
| Frequency Response | Mode 0 is 20 Hz to 16 kHz / T / M Mode is 0.2 Hz to 16 kHz |
| System Group Delay | 3.5 ms |
| Audio input connector | TA5 male |
| Analog Input Range | -10 to +4 dBu |
| Analog input type | balanced line level |
| Audio input Impedance | 4.7 k ½ |
| ADC Bit-Depth | 24 Bits |
| ADC Sampling-Rate | 48 kHz |
| AES input | Balanced with sample rate conversion |
| Sample rate range | 32 Khz to 96 Khz |
| Timecode Reader / Generator | |
| Clock Accuracy | 1.54 PPM (1 Frame Out in 6 Hours) |
| Timecode Type | SMPTE |
| Timecode Frame-Rates | 23.98, 24, 25, 29.97NDF, 29.97DF, 30NDF, 30DF |
| Internal Recording | Media |
| MicroSD Card (Flash Memory) | |
| File Format | .ZAX |
| Recording Time | 96 Hours (16 GB Card) |
| 2.4 GHz ZaxNet Transmitter | |
| RF Frequency Range | 2.403 to 2.475 GHz |
| RF Modulation | Digital Spread Spectrum |
| RF Frequency Step | 0.001 GHz (1 MHz) |
| RF Bandwidth | 1 MHz |
| Channel Separation | 2 MHz |
| Sensitivity | -96 dBm |
| RF power output | 100 mW max |
| Physical | |
| Weight | 7.3 oz |
| Dimensions (H x W x D) | 1Óx 3.55Ó x 3.23Ó |
| Display | Graphic OLED |
| Power Output | 25 / 50 / 100 mW Ð Software Selectable |
| Power consumption | 2.13 watts |
