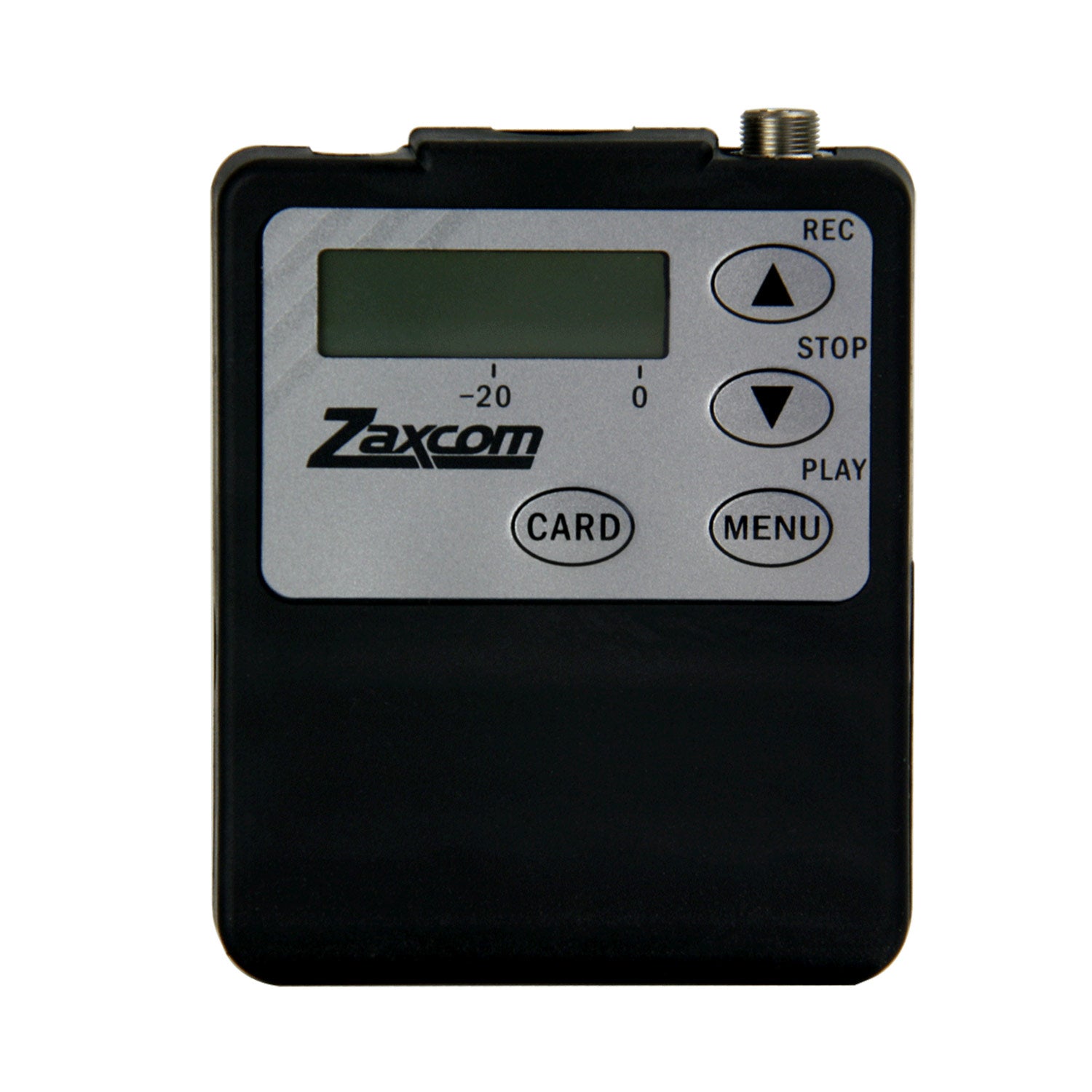

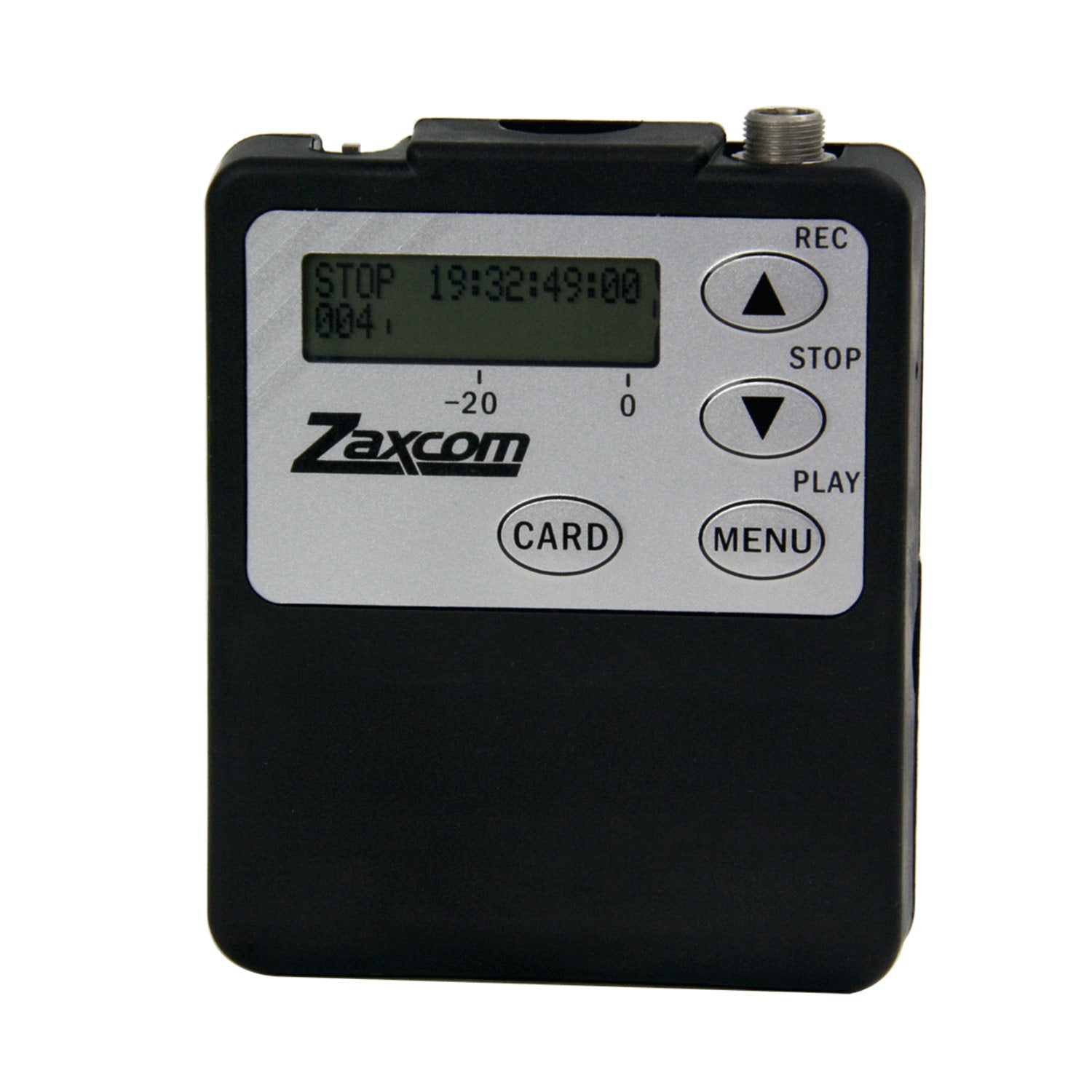

Zaxcom ZFR300NC Bodypack Digital Audio Recorder with Neverclip



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:ZAXC-ZFR300NC

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)
  • The Zaxcom ZFR 300 (Zaxcom Flash Recorder) is the same size as Zaxcom TRXLA2 wireless transmitter and can accept standard lavaliere microphones. A stereo ZFR can accept two lavaliere microphones, or two unbalanced microphone inputs.

    The ZFR can be used as an easy way to record ISO tracks on multiple talent with no fears of being out of range or having to deal with RF issues. On power up the ZRF will jam time code via the ZaxNet 2.4Ghz signal and will then start transmitting QC audio with time code within 10 seconds. The built-in ZaxNet transmitter is used for quality control monitoring and can be used as a timecode master to wirelessly jam other recording body pack recorders or recording wireless transmitters. The body packs can optionally re-jam time code every few minutes to maintain sub-frame accurate time code lock. At the end of your shoot you gather each SD memory card from the ZFR and deliver them to post. Post production can then easily drop each ISO track into their non-linear edit system and have a clean timecoded audio track to work with.

    Recording systems can be as simple as a single ZFR recorder and a single ERX2TCD receiver to wirelessly monitor the audio and time code from the recorder. Any number of ZFR recorders and wireless transmitters can be utilized to form an unlimited virtual multi-track recording system. The advantage of this system is that for production sound it eliminates the limitations of wireless microphones.

    Features:

    • Records timecoded audio files
    • MARF highly reliable lossless recording format
    • Neverclip gives you an incredible dynamic range without clipping your audio
    • Built-in timecode reader and generator
    • Zaxnet provides wireless timecode, ZaxNet audio and remote control between Zaxcom products
    • ZaxNet QC Audio quality control confidence monitoring without returning to your cart
  • RECORDER AUDIO
    Dynamic Range 123 dB
    Distortion <0.01%
    Frequency Response 20 Hz to 16 kHz
    Highpass Filter Off or 70 to 220 Hz, step: 10 Hz (6 dB per octave)
    Mic Power 3.3 VDC @ 10mA max
    Mic Connector 3-pin micro LEMO (mic side = FGB.00.303.CLAD22)
    Input Range -60 to -24 dBu
    Impedance 4.7 k ohms
    ADC Bit-depth 24 bits
    TIMECODE READER / GENERATOR
    Clock Accuracy 1.54 PPM (1 frame out in 6 hours)
    Timecode Type SMPTE
    Timecode Rame-rates 23.98, 24, 25, 29.97NDF, 29.97DF, 30NDF, 30DF
    RECORDING
    Media microSD card (Flash memory)
    File Format .ZAX
    Recording Time Card dependent - Up to 96 hours on a 16GB card
    2.4 GHZ ZAXNET
    RF Frequency Range 2.403 to 2.475 GHz
    RF Modulation Digital Spread Spectrum
    RF Frequency Step 0.001 GHz (1 MHz)
    RF Bandwidth 1 MHz
    Channel Separation 2 MHz
    PHYSICAL
    Weight 3.1 oz without battery
    Dimensions (H x W x D) 3.0″ x 2.4″ x .65″

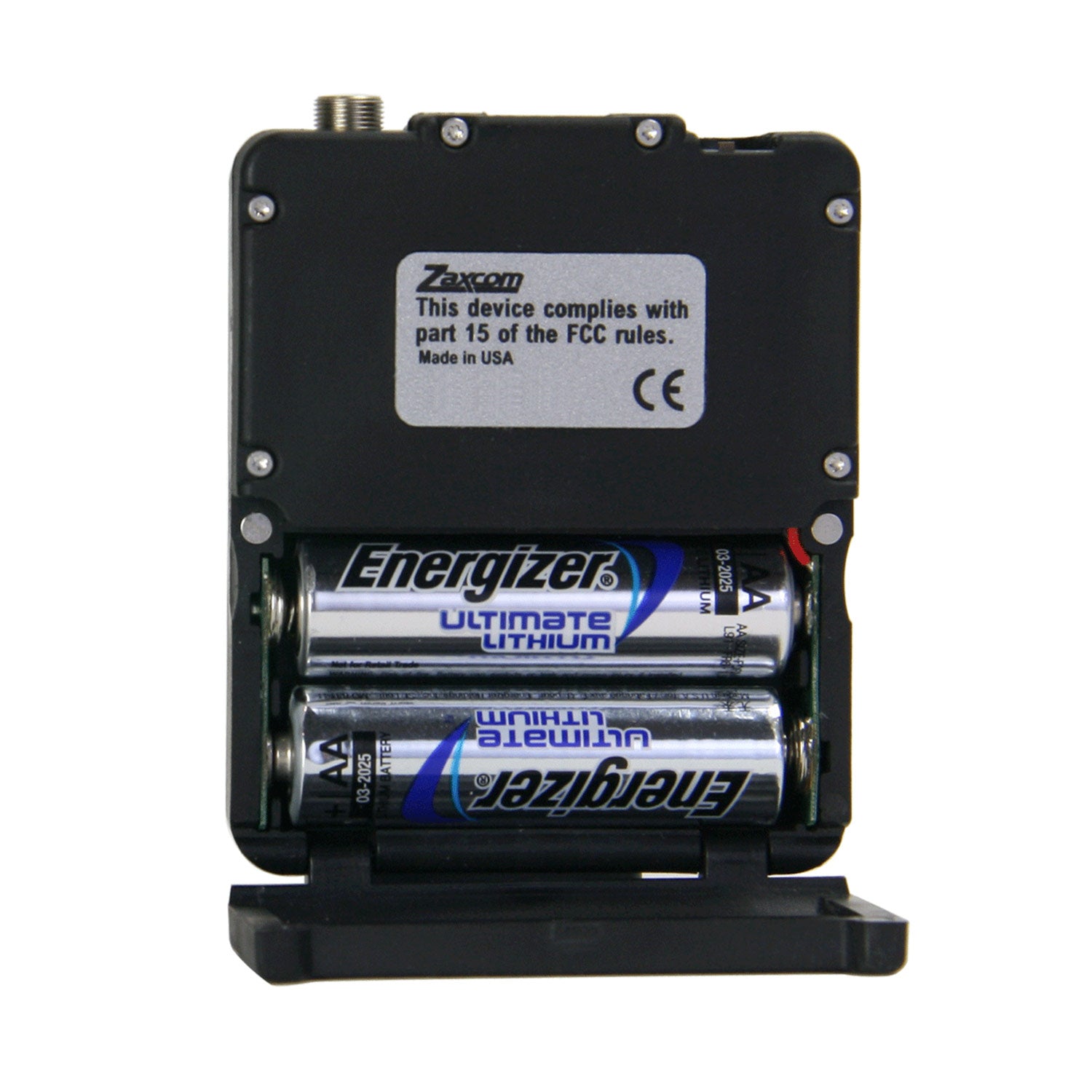

    Power Up to 12 hours (2 AA lithium or NiMH)
    Display Graphic LCD panel
