Zaxcom ZFR400 Miniature Recorder with ZaxNet

  • Dale #:

    ZAXC-ZFR400
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The ZFR400 a ultra small bodypack timecode stamped audio recorder with features you can't get anywhere but Zaxcom! NeverClip™ and ZaxNet remote control are just the beginning. ZFR400 can be used stand alone recorder or as part of Zaxcom's patented virtual multi-track recording system. Zaxcom ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The ZFR400 a ultra small bodypack timecode stamped audio recorder with features you can't get anywhere but Zaxcom!
NeverClip™ and ZaxNet remote control are just the beginning. ZFR400 can be used stand alone recorder or as part of Zaxcom's patented virtual multi-track recording system. Zaxcom ZFR recorders have been used on countless productions over the years to record talent audio directly on the bodypack instead of using wireless microphones and multi-track recorders. It's a savior when RF isn't an option.

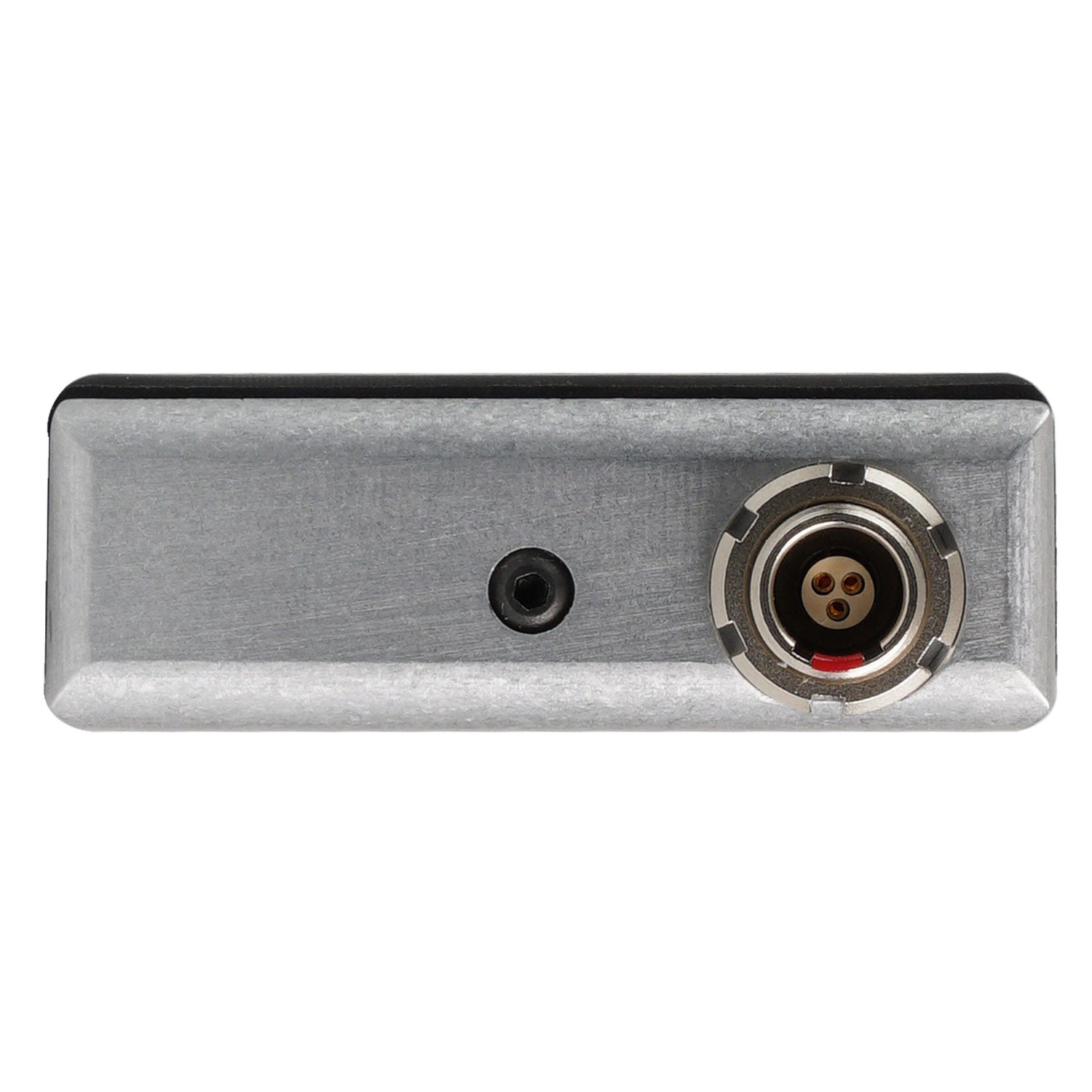

A new feature of the ZFR400 is a direct audio / timecode output directly from the LEMO connector either independently or simultaneously alongside the microphone input.

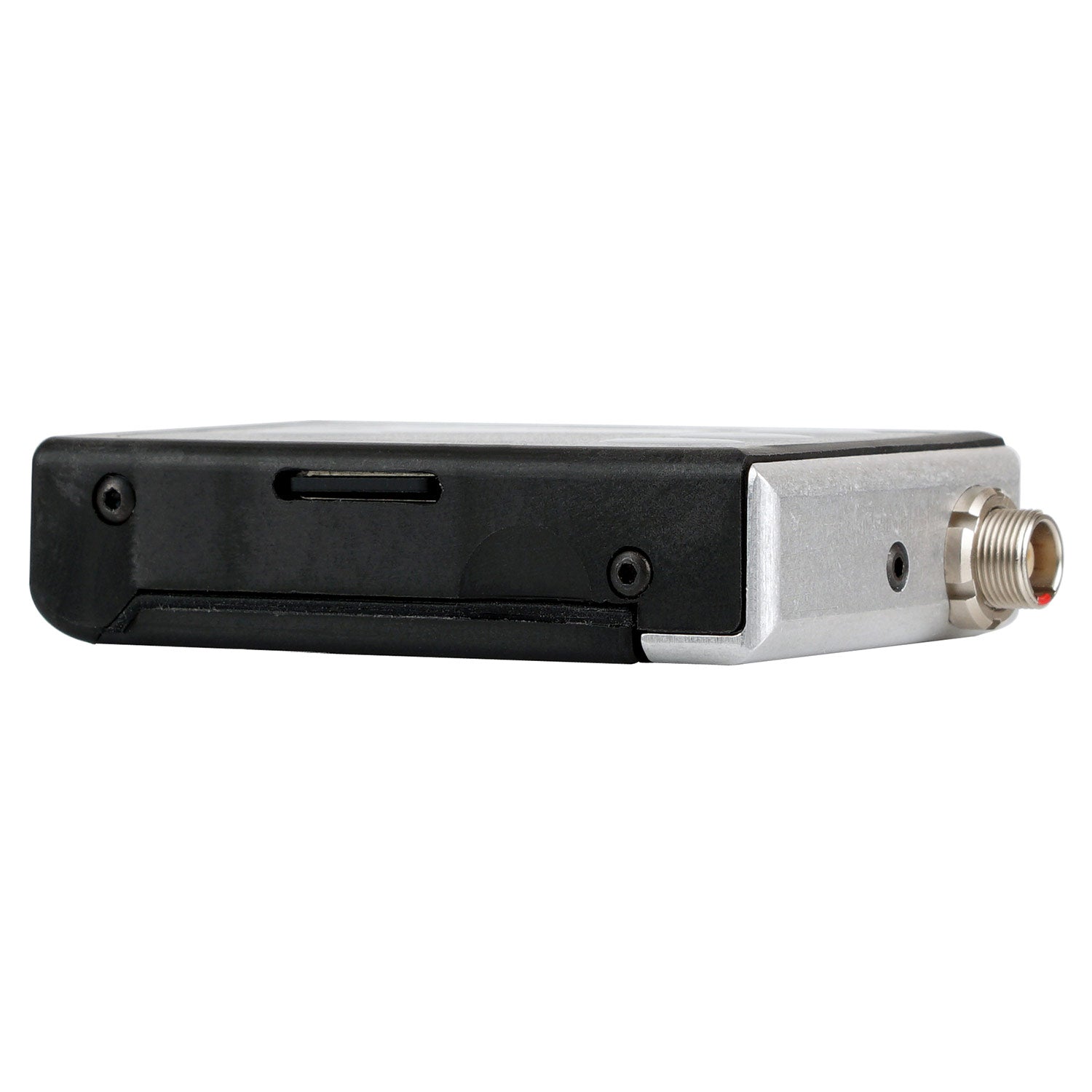

Small and durable, it's housed in a high strength, impact resistant nylon polymer casing with rounded edges, machined metal and rubber gaskets. ZFR400 runs cool, the combination of the nylon composite case and its power efficiency make the heat transfer practically non existent.

The ZFR400 works with ZaxNet, Zaxcom’s 2.4-GHz RF network that distributes remote control commands, timecode and IFB audio. With ZaxNet, one can remotely control transmitter settings such as gain and transport controls. The ZFR400 also sends a Quality Control audio signal over ZaxNet so when micing someone you can use an ERX to listen to the mic right on the spot.

More +

Product Specs

Recorder Audio
Dynamic Range 128 dB
Distortion <0.01%
Frequency Response 20 Hz to 16 kHz
Highpass Filter Off or 70 to 220 Hz, step: 10 Hz (6 dB per octave)
Mic Power 3.3 VDC @ 10mA max
Mic Connector 3-pin micro LEMO (mic side = FGB.00.303.CLAD22)
Input Range -60 to -24 dBu
Impedance 4.7 k Ω
ADC Bit-depth 32 bits
Timecode Reader / Generator
Timecode output 3-Pin Micro LEMO
Clock Accuracy 1.54 PPM (1 frame out in 6 hours)
Timecode Type SMPTE
Timecode Rame-rates 23.98, 24, 25, 29.97NDF, 29.97DF, 30NDF, 30DF
Recording
Media microSD card (Flash memory)
File Format .ZAX / Converts to BWAV or MP3
Recording Time Card dependent - Up to 96 hours on a 16GB card
2.4 GHz ZaxNet
RF Frequency Range 2.403 to 2.475 GHz
RF Modulation Digital Spread Spectrum
RF Frequency Step 0.001 GHz (1 MHz)
RF Bandwidth 1 MHz
Channel Separation 2 MHz
Playback Audio
Audio Output Connector 3-Pin Micro LEMO
Level 3 V-PP
Output Choices Playback / E to E Audio - user selectable
Physical
Weight 2.2 oz without battery
Dimensions (H x W x D) 2.2″ x 1.6″ x .55″

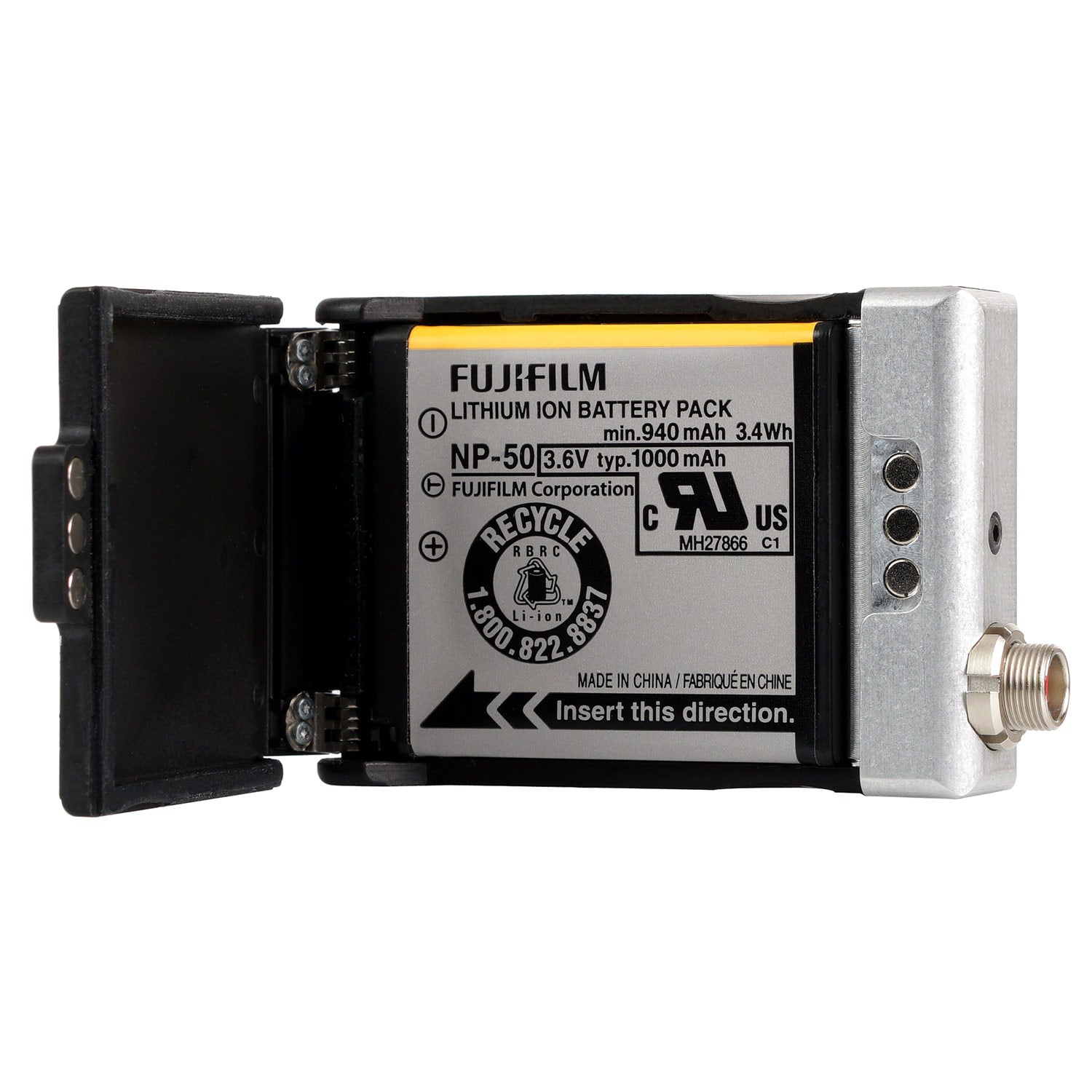

Battery Type NP-50
Battery Life Up to 10 Hours
Display OLED
