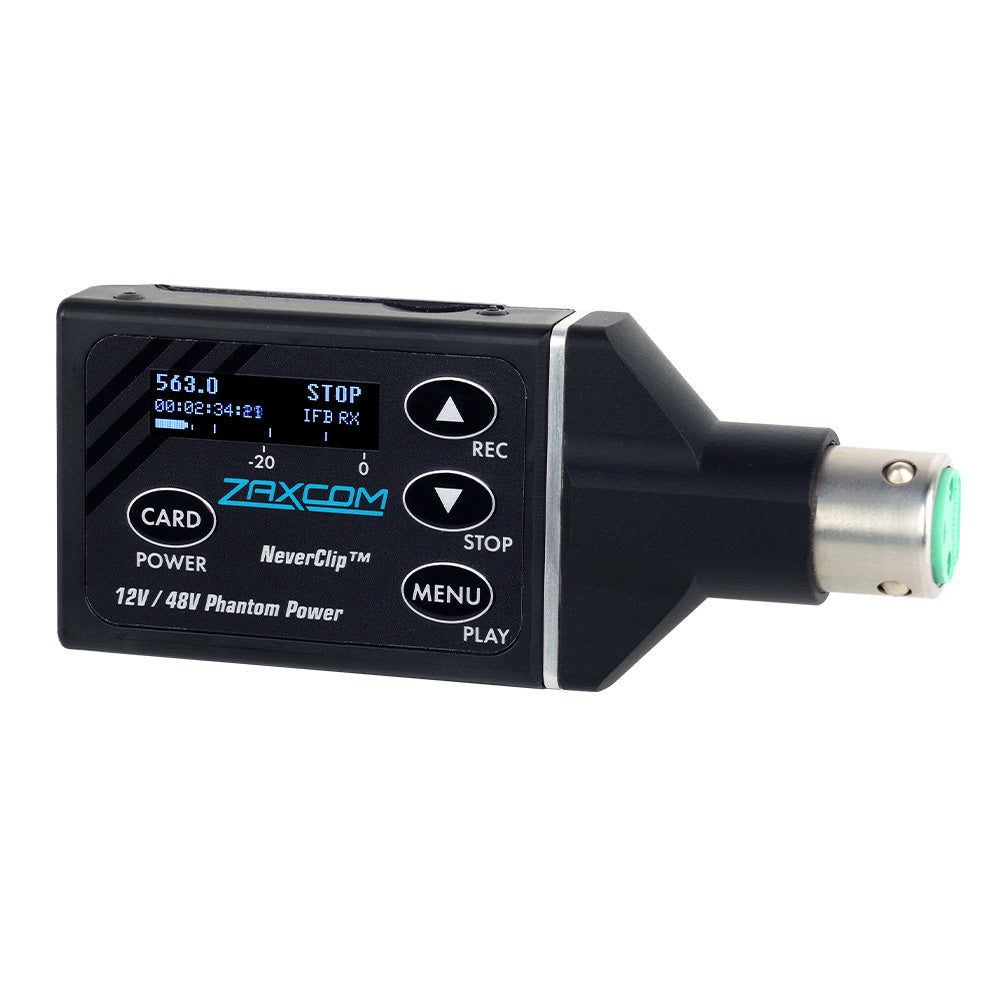

Zaxcom ZMT4.5-HM - Lightweight Plug-On Transmitter with ZaxNet (512-608 MHz)


  • Dale #:

    ZAXC-ZMT45HM
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The ZMT4-HM is a lightweight plug-on style transmitter with a built-in antenna. It’s perfect for handheld microphones, ENG applications, and plant microphones. This new model has NeverClip™ and better battery life. Please note, this transmitter is NOT intended to be used with a boom pole. Weigh... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The ZMT4-HM is a lightweight plug-on style transmitter with a built-in antenna. It’s perfect for handheld microphones, ENG applications, and plant microphones. This new model has NeverClip™ and better battery life.

Please note, this transmitter is NOT intended to be used with a boom pole.

Weighing only 3.1oz (88g), the ZMT4-HM is constructed in a high-strength impact-resistant nylon polymer casing with rounded edges and machined metal that’s cool to the touch.

MICROPHONE CONNECTIVITY
A 3-pin XLR connector makes it ideal for most microphones.

ENCRYPTED AUDIO
The ZMT4-HM transmits using 100% digital modulation resulting in audio that’s fully encrypted. Digital encryption is the only way to keep all audio transmission private. The digital transmission also transmits crystal clear audio of incredible quality.

INTERNAL RECORDING
Audio can be recorded internally to a microSD card using the highly reliable lossless MARF (Mobile Audio Recording Format) which eliminates file corruption common to recordings due to dead battery or early card removal.

NEVERCLIP
NeverClip™ is a new feature in the ZMT4-HM. It works by utilizing two A-D converters to extend the dynamic range of the transmitter to 136 dB, so there’s never any limiter distortion.

POWER
The ZMT4-HM has selectable Phantom power of 12, 24, 32, and 48V. It runs for up to 7 hours on an NP-50 battery depending on what microphone is being used.

ADVANCED FEATURES
Equipped with ZaxNet™, you can remotely change the frequency, pre-amp gain, and output power or place the internal recorder in record, playback, and stop modes.

MODULATION CHOICES FOR YOUR ENVIRONMENT
The range will always vary depending on your environment, but you’ve got choices to optimize transmission for peak performance. Zaxcom High Density modulation (ZHD) increases the number of available channels from 4 to 9 for every 1 MHz of spectrum space, perfect for reflective environments like busy city streets. XR gives you the maximum distance in less dense / more controlled spaces.

POWER
The ZMT4-HM runs up to 7 hours depending on the microphone it’s powering.

MHZ BANDS
ZMT4-HM is available in the following frequency bands:
“.5 band” (512-608 MHz)
“.6 band” (578-698 MHz)

More +

Product Specs

Transmitter
RF Modulation Proprietary Digital Method
RF Frequency Range ZMT3-HM .5: 512 – 614 MHz
ZMT3-HM .6: 596 – 698 MHz
RF Frequency Step 100 KHz
RF Bandwidth in ZHD48 Mode 50 KHz
RF Bandwidth in ZHD96 Mode 100 KHz
RF Bandwidth in XR Mode 200 KHz
Channel Separation in ZHD48 Mode as close as 100 KHz (receiver dependent)
Channel Separation in ZHD96 Mode as close as 200 KHz
Channel Separation in XR Mode 400 KHz
Antenna Connector 50 Ω SSMA Female
Emission Designator 180 KV2E, 100 KV2E, 50 KV2E
FCC Part 74.861
Transmitter Audio
Dynamic Range 114 dB
Distortion 0.002%
Frequency Response Mode 0
High Pass Filter Off or 30 to 220 Hz, Steps
Mic Power 12v @ 50mA max
Mic Power 48v @ 10mA max
Mic Connector XLR-Female
Mic Configuration Balanced
Input Range -60 to -30 dBu
Mic Impedance 6.8 k Ω
ADC Bit-Depth 24 Bits
ADC Sampling-Rate 48 kHz
Timecode Reader / Generator
Clock Accuracy 1.54 PPM (1 Frame Out in 6 Hours)
Timecode Type SMPTE
Timecode Frame-Rates 23.98, 24, 25, 29.97NDF, 29.97DF, 30NDF, 30DF
Internal Recording
Media MicroSD Card (Flash Memory)
File Format .ZAX / Converts to BWAV or MP3
2.4 GHz ZaxNet Receiver
RF Frequency Range 2.403 to 2.475 GHz
RF Modulation Digital Spread Spectrum
RF Frequency Step 0.001 GHz (1 MHz)
RF Bandwidth 1 MHz
Channel Separation 2 MHz
Sensitivity -96 dBm
Physical
Weight 3.1 oz / 88 grams with Battery
Dimensions (H x W x D) 3.4" x 1.6" x .55" / 86.4 mm x 40.6 mm x 14mm
Display Graphic OLED
Power
Power Output 25 / 50 / 75 mW – Software Selectable
Battery Type NP-50
Battery Life Up to 7 Hours, microphone dependent
