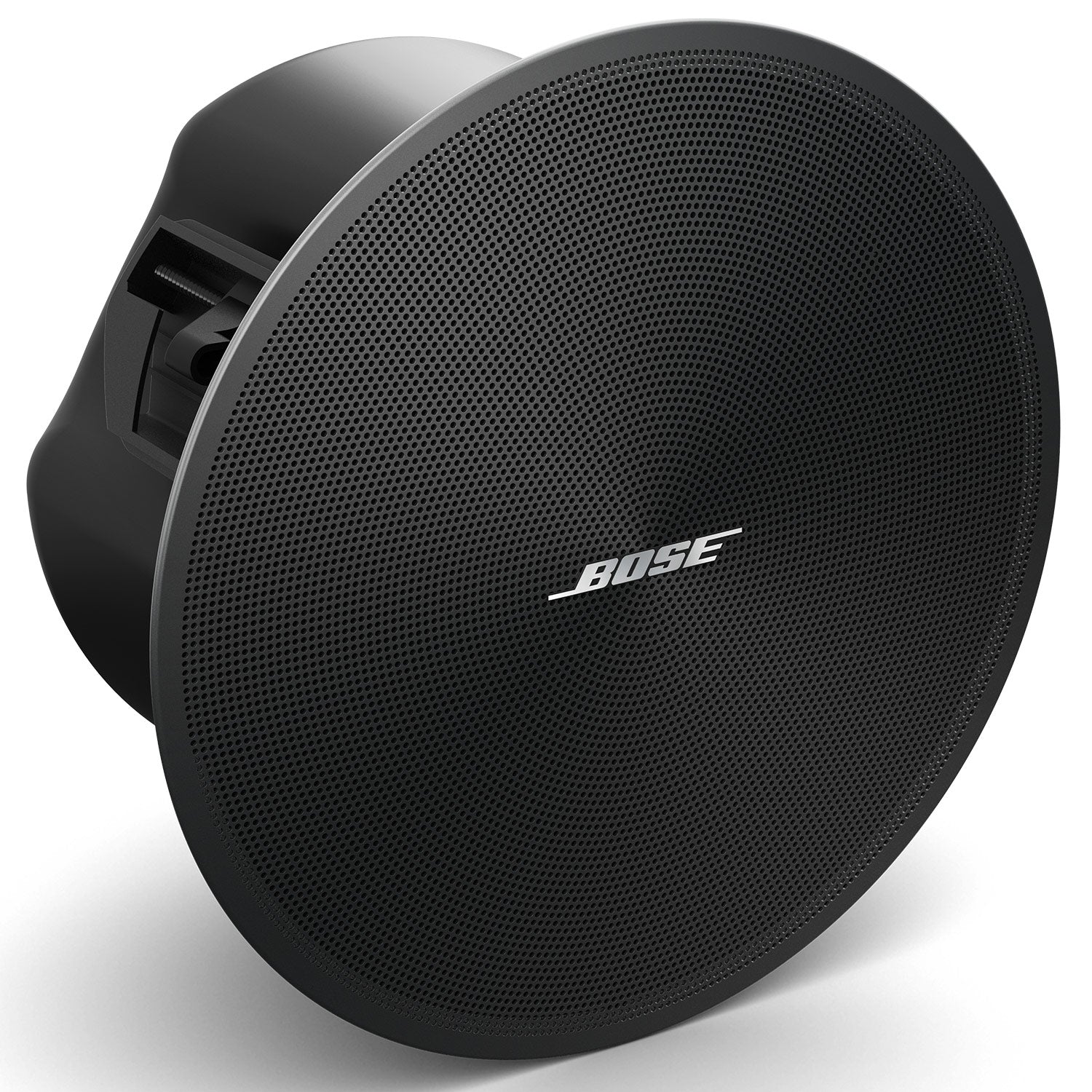

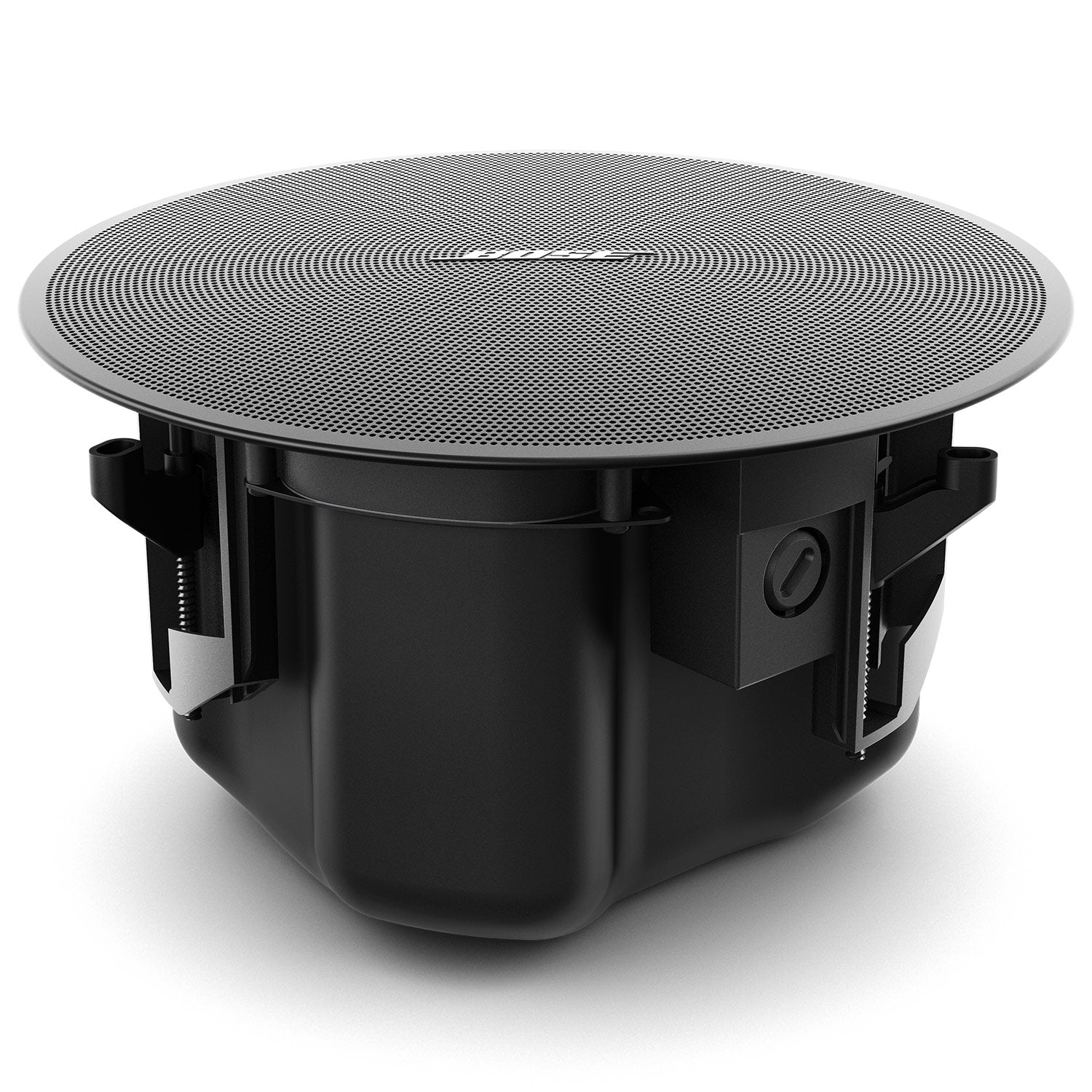

Bose DesignMax DM3C Ceiling Mount Loudspeaker (Black / Pair)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Bose DesignMax DM3C Ceiling Mount Loudspeaker (Black / Pair)
Sale price$462.00
Description
Premium sound to maximize any design.
DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it's easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, reducing strain and hassle - and saving substantial time. And with both black and white versions available, DesignMax loudspeakers integrate seamlessly with any décor.

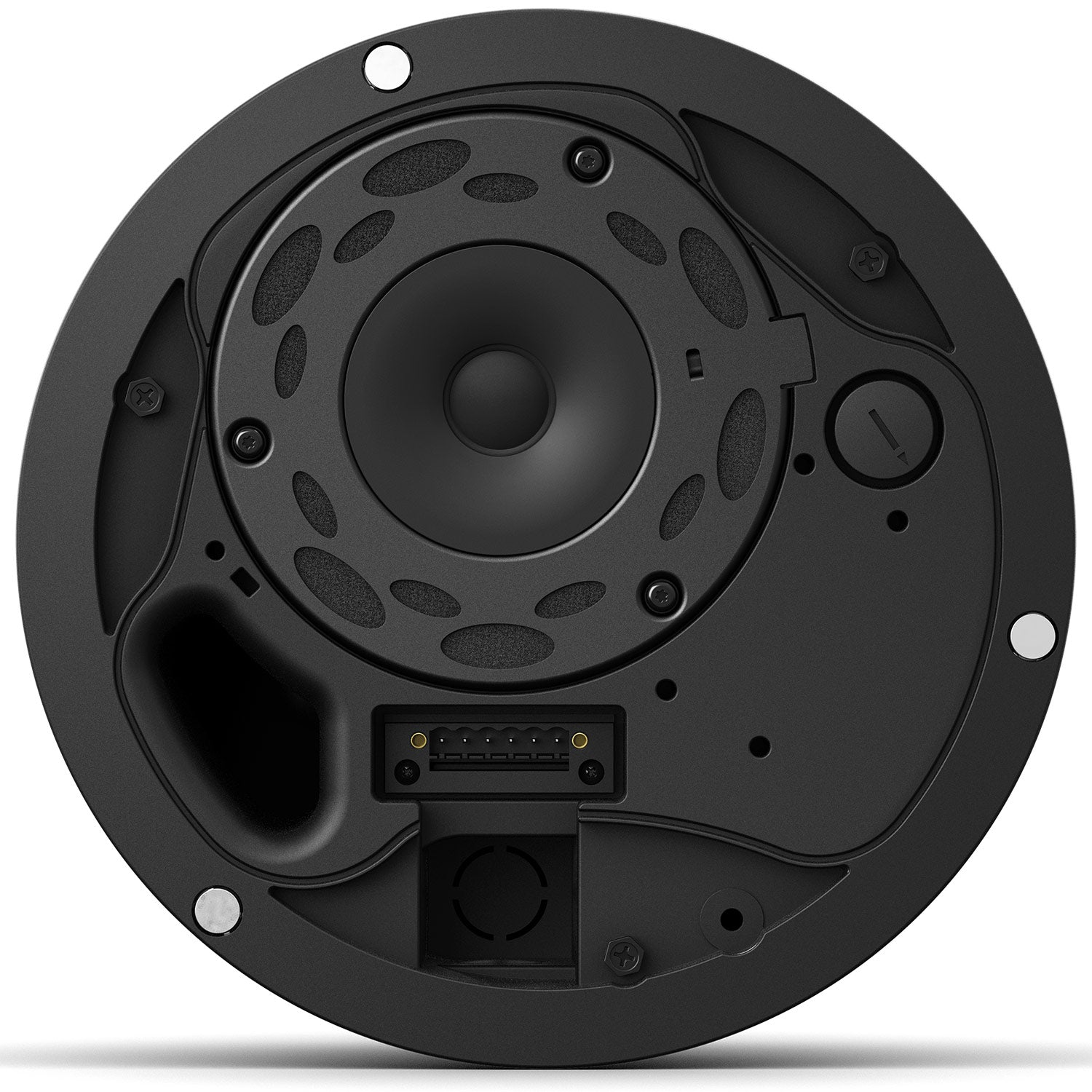

The 25-watt DesignMax DM3C loudspeaker features a two-way 3.5-inch woofer and 3/4-inch tweeter coaxially mounted within the Dispersion Alignment system, producing a frequency range of 70 Hz - 20 kHz. The DM3C is ceiling-mounted and installs easily via QuickHold mounting arms.
Features:
- Combine models to complete any design, big or small - 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
- Deliver instantly impressive sound with custom Bose drivers - no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
- Blend into any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
- Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
- Install easily - all models include Euroblock connectors; ceiling-mounted models include plenum-rated backcans, tile-bridges, and front-access audio wiring that makes installation and troubleshooting easier
Applications:
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
| SINGLE LOUDSPEAKER PERFORMANCE | ||
| Frequency Response (-3 dB) (1) | 95 - 17,000 Hz | |
| Frequency Range (-10 dB) | 70 - 20,000 Hz | |
| Nominal Coverage Angle (H x V) | Conical | |
| Bose extended-lifecycle test (4) | AES component test (5) | |
| Power Handling, long-term continuous | 25 W | 30 W |
| Power Handling, peak | 100 W | 120 W |
| Sensitivity (SPL/ 1W @ 1 m) (2) | 85 dB | 85 dB |
| Calculated Maximum SPL @ 1 m (3) | 99 dB | 100 dB |
| Calculated Maximum SPL @ 1 m, peak | 105 dB | 106 dB |
| Crossover | 1.5 kHz (passive 2-way crossover) | |
| Loudspeaker EQ | Not Required, Bose voicings and SmartBass processing available | |
| Recommended High-Pass Protection | 70 Hz with minimum 12 dB / octave filter | |
| Transformer taps | 70V: 3, 6, 12, 25 W, bypass 100V: 6, 12, 25 W, bypass | |
| TRANSDUCERS | ||
| Low Frequency | 1 x 3.25-inch woofer (83 mm), weather treated | |
| High Frequency | 20 mm (1 x 0.75-inch) neodymium dome tweeter, coaxially mounted, weather-treated | |
| Technology | Dispersion Alignment system, 127 mm (5Ó) system diameter | |
| Nominal Impedance | 8 ohms (transformer bypass) | |
| PHYSICAL | ||
| Enclosure Material | Engineered-plastics front baffle with integrated steel formed back can | |
| Grille | Magnetically attached perforated steel, powder-coated finish, paintable, with safety-tether | |
| Color | Black: RAL 9005, White: Bose Artic White, similar to RAL 9003, Paintable | |
| Environmental / Ingress-Protection | Indoor only | |
| Safety Agency | UL-1480A, S5591/ UL Listed, in compliance with UL2043 for plenum-space installation, NFPA70 and NFPA90-A, in accordance with IEC60268-5, ROHS, CE compliant | |
| Operating Temperature Range | 0 to 50 ¡C (32 ¡F to 122 ¡F) | |
| Connectors | Euroblock 6-pin connector with loop-through, front-baffle mounted. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire | |
| Wire / Conduit Entry | Top and side wire entry point knockouts, allows for 9.5 mm (3/8Ó) conduit | |
| Suspension / Mounting | Three (3) QuickHold, spring-loaded mounting arms plus three (3) safety cable tabs | |
| Maximum Ceiling Thickness | TBD | |
| Product Dimensions (Grille Diameter x Depth) | 255 x 156 mm (10 x 6.1 in) | |
| Backcan Dimensions (Diameter x Depth) | 204 x 144 mm (8 x 5.7 in) | |
| Cut Out Size | 203 mm (8") | |
| Net Weight | TBD | |
| Shipping Weight | TBD | |
| Included Accessories | Adjustable Tile-Bridge, Template | |
| Optional Accessories | Rough-in 6-pack | |
Footnotes:
- (1) Frequency response and range measured on-axis in quarter-space (wall/ceiling boundary) environment with recommended EQ
- (2) 1 khz to 4 khz average
- (3) Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression
- (4) Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration
- (5) AES standard 2-hour duration with IEC system noise
Premium sound to maximize any design.
DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it's easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, reducing strain and hassle - and saving substantial time. And with both black and white versions available, DesignMax loudspeakers integrate seamlessly with any décor.
The 25-watt DesignMax DM3C loudspeaker features a two-way 3.5-inch woofer and 3/4-inch tweeter coaxially mounted within the Dispersion Alignment system, producing a frequency range of 70 Hz - 20 kHz. The DM3C is ceiling-mounted and installs easily via QuickHold mounting arms.
Features:
- Combine models to complete any design, big or small - 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
- Deliver instantly impressive sound with custom Bose drivers - no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
- Blend into any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
- Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
- Install easily - all models include Euroblock connectors; ceiling-mounted models include plenum-rated backcans, tile-bridges, and front-access audio wiring that makes installation and troubleshooting easier
Applications:
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
| SINGLE LOUDSPEAKER PERFORMANCE | ||
| Frequency Response (-3 dB) (1) | 95 - 17,000 Hz | |
| Frequency Range (-10 dB) | 70 - 20,000 Hz | |
| Nominal Coverage Angle (H x V) | Conical | |
| Bose extended-lifecycle test (4) | AES component test (5) | |
| Power Handling, long-term continuous | 25 W | 30 W |
| Power Handling, peak | 100 W | 120 W |
| Sensitivity (SPL/ 1W @ 1 m) (2) | 85 dB | 85 dB |
| Calculated Maximum SPL @ 1 m (3) | 99 dB | 100 dB |
| Calculated Maximum SPL @ 1 m, peak | 105 dB | 106 dB |
| Crossover | 1.5 kHz (passive 2-way crossover) | |
| Loudspeaker EQ | Not Required, Bose voicings and SmartBass processing available | |
| Recommended High-Pass Protection | 70 Hz with minimum 12 dB / octave filter | |
| Transformer taps | 70V: 3, 6, 12, 25 W, bypass 100V: 6, 12, 25 W, bypass | |
| TRANSDUCERS | ||
| Low Frequency | 1 x 3.25-inch woofer (83 mm), weather treated | |
| High Frequency | 20 mm (1 x 0.75-inch) neodymium dome tweeter, coaxially mounted, weather-treated | |
| Technology | Dispersion Alignment system, 127 mm (5Ó) system diameter | |
| Nominal Impedance | 8 ohms (transformer bypass) | |
| PHYSICAL | ||
| Enclosure Material | Engineered-plastics front baffle with integrated steel formed back can | |
| Grille | Magnetically attached perforated steel, powder-coated finish, paintable, with safety-tether | |
| Color | Black: RAL 9005, White: Bose Artic White, similar to RAL 9003, Paintable | |
| Environmental / Ingress-Protection | Indoor only | |
| Safety Agency | UL-1480A, S5591/ UL Listed, in compliance with UL2043 for plenum-space installation, NFPA70 and NFPA90-A, in accordance with IEC60268-5, ROHS, CE compliant | |
| Operating Temperature Range | 0 to 50 ¡C (32 ¡F to 122 ¡F) | |
| Connectors | Euroblock 6-pin connector with loop-through, front-baffle mounted. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire | |
| Wire / Conduit Entry | Top and side wire entry point knockouts, allows for 9.5 mm (3/8Ó) conduit | |
| Suspension / Mounting | Three (3) QuickHold, spring-loaded mounting arms plus three (3) safety cable tabs | |
| Maximum Ceiling Thickness | TBD | |
| Product Dimensions (Grille Diameter x Depth) | 255 x 156 mm (10 x 6.1 in) | |
| Backcan Dimensions (Diameter x Depth) | 204 x 144 mm (8 x 5.7 in) | |
| Cut Out Size | 203 mm (8") | |
| Net Weight | TBD | |
| Shipping Weight | TBD | |
| Included Accessories | Adjustable Tile-Bridge, Template | |
| Optional Accessories | Rough-in 6-pack | |
Footnotes:
- (1) Frequency response and range measured on-axis in quarter-space (wall/ceiling boundary) environment with recommended EQ
- (2) 1 khz to 4 khz average
- (3) Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression
- (4) Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration
- (5) AES standard 2-hour duration with IEC system noise
