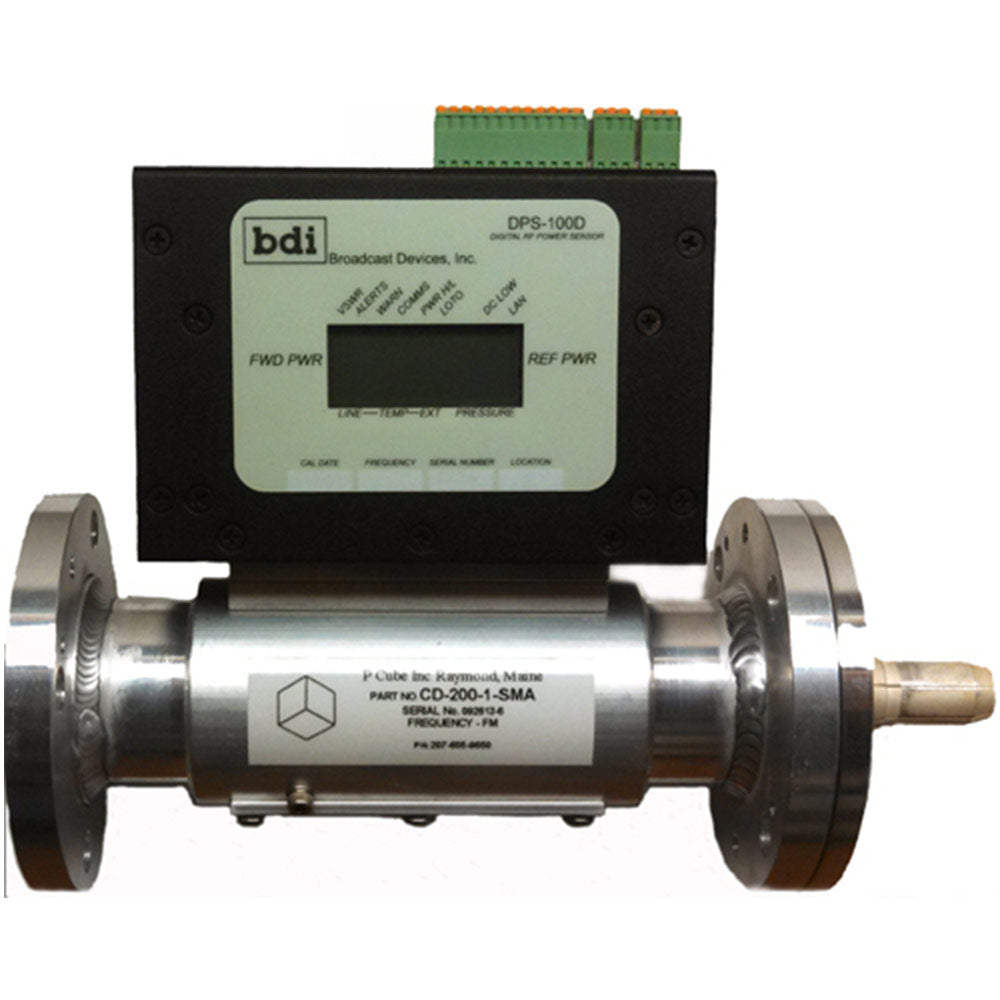

Broadcast Devices DPS-100D-3-1/8 Digital RF Power Measurement System with 3-1/8 Precision Coupler


  • Dale #:

    BRDE-DPS100D318
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The DPS-100D Digital RF Power Measurement System includes a precision directional coupler ordered by EIA line size, and DPS-100D Digital RF power meter electronics package with onboard backlit LCD display. This system is suitable for measuring analog or digital RF signals with accuracy within +/-... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The DPS-100D Digital RF Power Measurement System includes a precision directional coupler ordered by EIA line size, and DPS-100D Digital RF power meter electronics package with onboard backlit LCD display. This system is suitable for measuring analog or digital RF signals with accuracy within +/- 5% of reading.

Use the DPS-100D as a standalone power monitor/antenna protection system or use more than one DPS-100D to create monitor system for master antenna applications or for complete RF facility site monitoring. The DPS-100D is part of a larger family of site monitoring products available from Broadcast Devices, Inc.

Features:

  • Simultaneous Forward/Reflected Power Indication
  • Onboard Backlit LCD Display with proprietary 3 strike protection system for sustained high VSWR conditions
  • Onboard Web Server for remote interrogation of parameters
  • Transmission Line Surface
  • Temperature Indication - Second Temperature Sensor input available*
    • Transmission Line
    • Pressure indication**
  • Phantom Powered RS-485 Communications bus for easy interconnection of other sensors using industry standard category 5 cabling or SWP series supervisory chassis available from BDI
    • Operate standalone or part of a larger system with up to 255 additional DPS-100D sensors
  • Analog 0-5 VDC scaled outputs of power indication for remote control input, 8 Programmable General
  • Purpose inputs for interlock lock out tag out status, remote reset etc.
  • 2 - Form C programmable relays for interlock and alarm indication
  • DPS-100D Digital RF Power Measurement System is available in all EIA standard transmission line sizes and includes 4-1/16", N and DIN -7/16
    • Flange to Flange Coupler Lengths:
      • 7/8" - 6.25"
      • 1-5/8" - 6.50"
      • 3-1/8" - 7.00"
      • 4-1/16" - 7.00"
      • 6-1/8" - 10.50"

* Second temperature indication requires the use of BDI P/N TMP-100 temperature sensor
** Requires use of the BDI P/N PSW-100 pressure sensor and requires a suitable gas termination such as the ERI gas barrier assemblies. These gas barrier assemblies are available in many line sizes including 1-5/8", 3-1/8", 4-1/6", 6-1/8", 8-3/16" and 9" EIA transmission line sizes.


The DPS-100D Digital RF Power Measurement System includes a precision directional coupler ordered by EIA line size, and DPS-100D Digital RF power meter electronics package with onboard backlit LCD display. This system is suitable for measuring analog or digital RF signals with accuracy within +/- 5% of reading. Use the DPS-100D as a standalone power monitor/antenna protection system or use more than one DPS-100D to create a monitor system for master antenna applications or for complete RF facility site monitoring. The DPS-100D is part of a larger family of site monitoring products available from Broadcast Devices, Inc.

More +

Product Specs

Frequency RangeSensor: 50 MHz to 860 MHz
Power RangeSensor-Linear Range -40dbm to +10dbm.
No damage to +23dbm

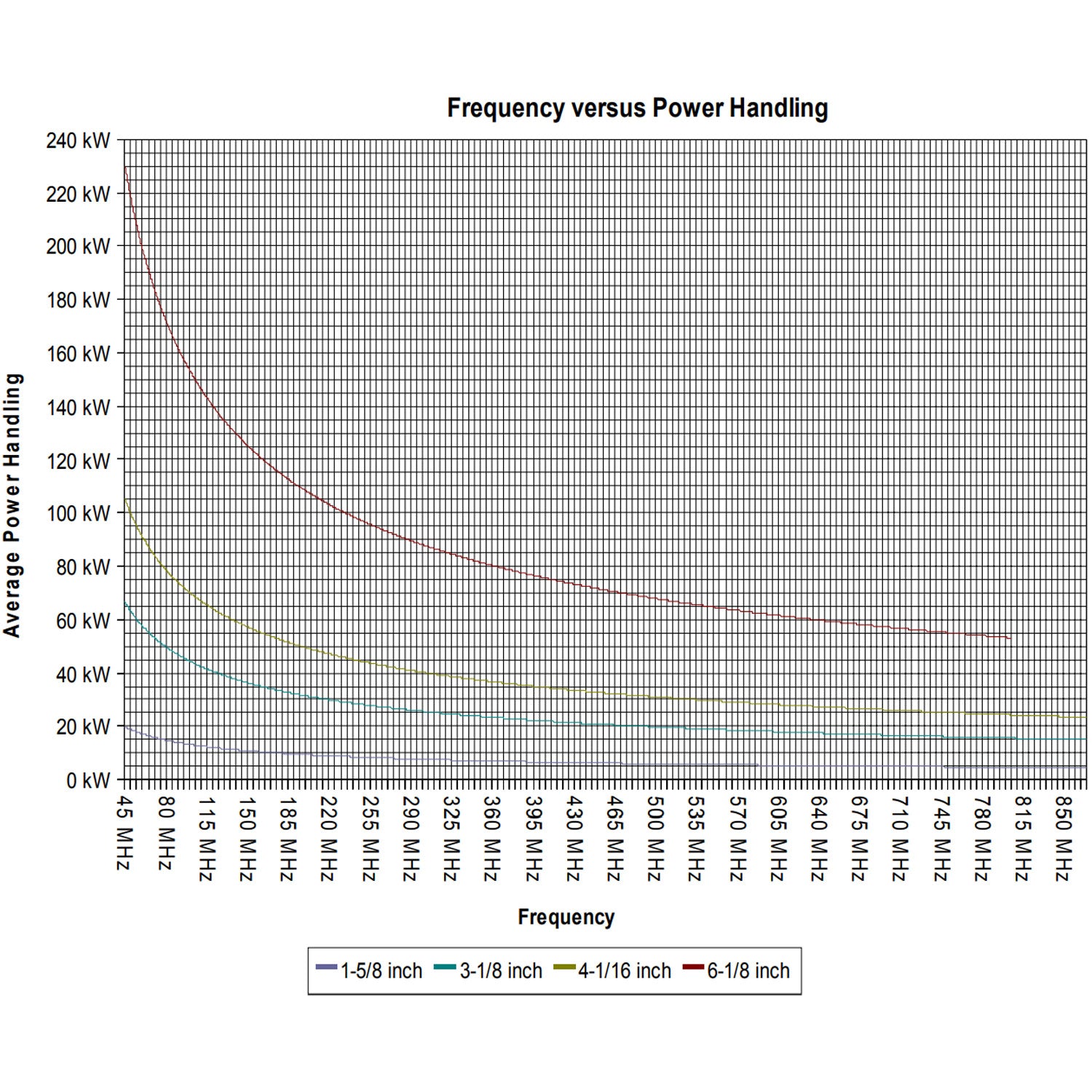

Directional Coupler-See table in images
Coupler Features
Coupler Sizes availableType N, DIN, 7/8", 1-5/8", 3-1/8", 4-1/16", 6-1/8"
Coupler Loss-60 dB
Through Line VSWR1.03:1 or better
Coupled Port Directivity30 dB or better
Frequency Range50 to 860 MHz
Through Line Impedance50 ohms
Measurement TypeTrue RMS - Suitable for CW, multi carrier and high crest factor digital RF signals such as COFDM, 8 VSB, DVB, etc.
Accuracy+/- 5% of reading.
Dynamic Range40db Linear Dynamic Range. Measurements possible over 50db with reduced accuracy.
Power Measurement Range0 - 1 Mega watt - Coupler Line Size Dependent
Measurement CapabilitiesForward and Reflected RF Power, Transmission line temperature (Deg F / Deg C user selectable)
1 - External Temperature and line pressure sensors
6 - User configurable closure inputs. (typically patch panels, lock-out/tag-out)
Integrated Digital Display2 Line x 16 character LCD display of Fwd/Ref
RF Power, Temperature (x2), Line Pressure
Dedicated Icons for VSWR fault, Alert Status
Communications Status, RF Power High/Low thresholds
DC power input status and LAN connection status.
Communications InterfacesEthernet, RS-485, CAN, USB
Network ProtocolsSNMP, SMTP, TCP/IP, UDP, SNTP, HTTP
Remote Control Interface2 - Configurable VDC proportional power outputs
2 - Form C configurable interlock/status relays/On/off
2 - Configurable External GP inputs for fault reset 12 Position Terminal Block
6 - Configurable General Purpose Inputs for lock out tag out, patch panel, external interlock strings, etc.
Ext. Temperature Sensor Input3 - Position terminal block mates with BDI TMP-100 T Temperature Sensor
Ext. Pressure Sensor Input3 Position terminal block mates with BDI PSW-100 Pressure Sensor
DC Input12VDC Power Supply Available from BDI or phantom powered by BDI SWP Series Supervisory Chassis
