Chandler Limited Little Devil EQ 500 Series Module



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:CHAN-LITTLEDEVILEQ

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)
  • British-style EQ Module from Chandler!

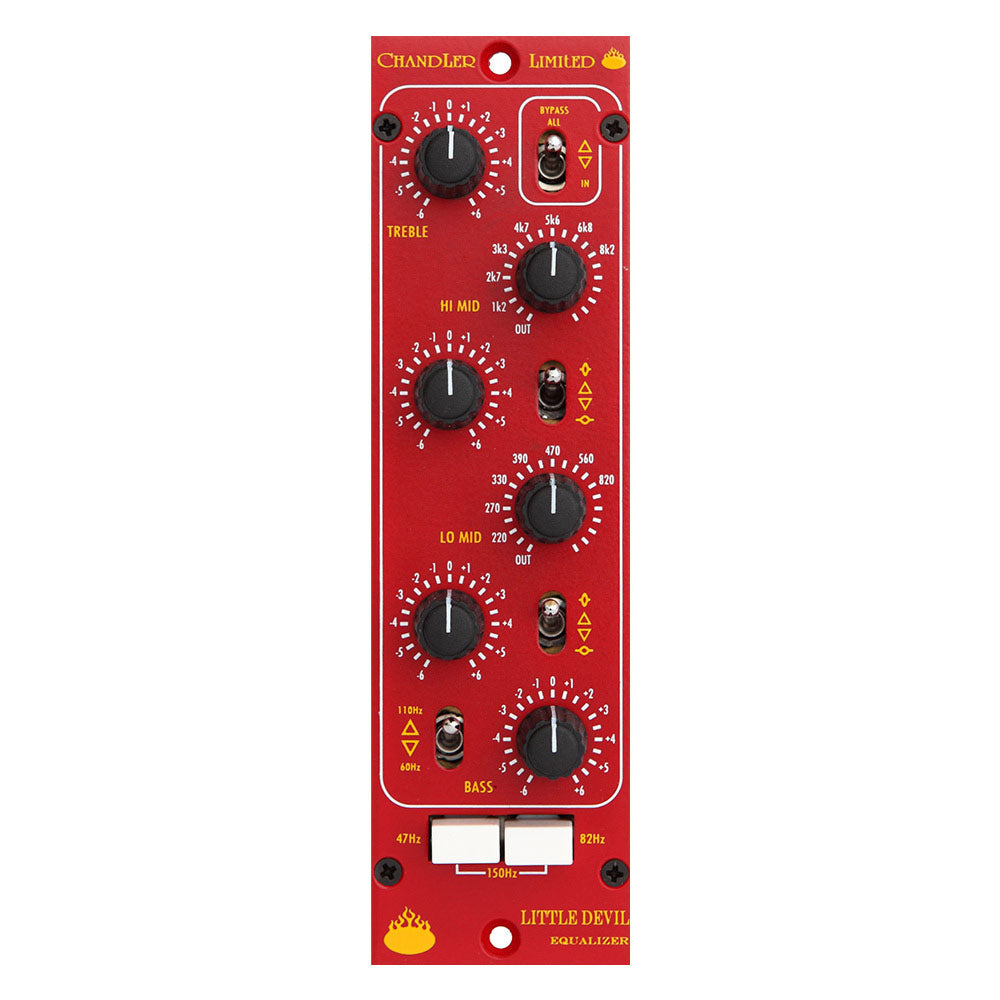

    Chandler Limited's Little Devil Equalizer fits into any 500-series "lunchbox" module, putting Chandler's all-discrete circuitry, transformer-balanced designs, and premier hand-made quality into the popular modern format. The Little Devil Equalizer is an English-style console EQ, which uses concepts from famous 1081 and 33115 vintage units. Its features a treble and bass shelf with +/- 18dB, with treble set to 12k and bass selectable between 50 and 110Hz. Hi-mid and lo-mid offer +/-18dB, with 7-selection "Q" switching on each band. There's also a 3-position filter and hardwire bypass onboard the Chandler Limited Little Devil Equalizer.

    Chandler Limited Little Devil Equalizer Module Features:
    • English-style console Equalizer module
    • Treble and bass shelf +/- 18dB
    • Treble set to 12k, bass selectable between 50Hz and 110Hz
    • Hi- and Lo-mid +/-18dB, with 7-selection "Q" switching
    • Hi-mid - 8k2, 6k8, 5k6, 5k7, 3k3, 2k7, 1k2
    • Lo-mid - 820, 560, 470, 390, 330, 270, 220
    • 3-position filter - 47, 82, and 150Hz
    • Hardwire bypass
    • Runs on any 500 series rack and Power Supply Unit
  • CHANNELS Mono
    CIRCUIT

    Discrete, Transistor, Transformer Balanced

    CONNECTIONS I/O: 500 Series Enclosure
    BYPASS Hardwire
    FREQUENCIES TREBLE and BASS shelf +/-18db. Treble is set to 12k while Bass is selectable 50 and 110hz.
    HI and LO MID +/-18db with HI and LO “Q” switching on each band.
    HI MID - 8k2, 6k8, 5k6, 4k7, 3k3, 2k7, 1k2.
    LO MID - 820, 560 470, 390, 330, 270, 220.
    THREE POSITION FILTER - 47, 82, and 150hz.
