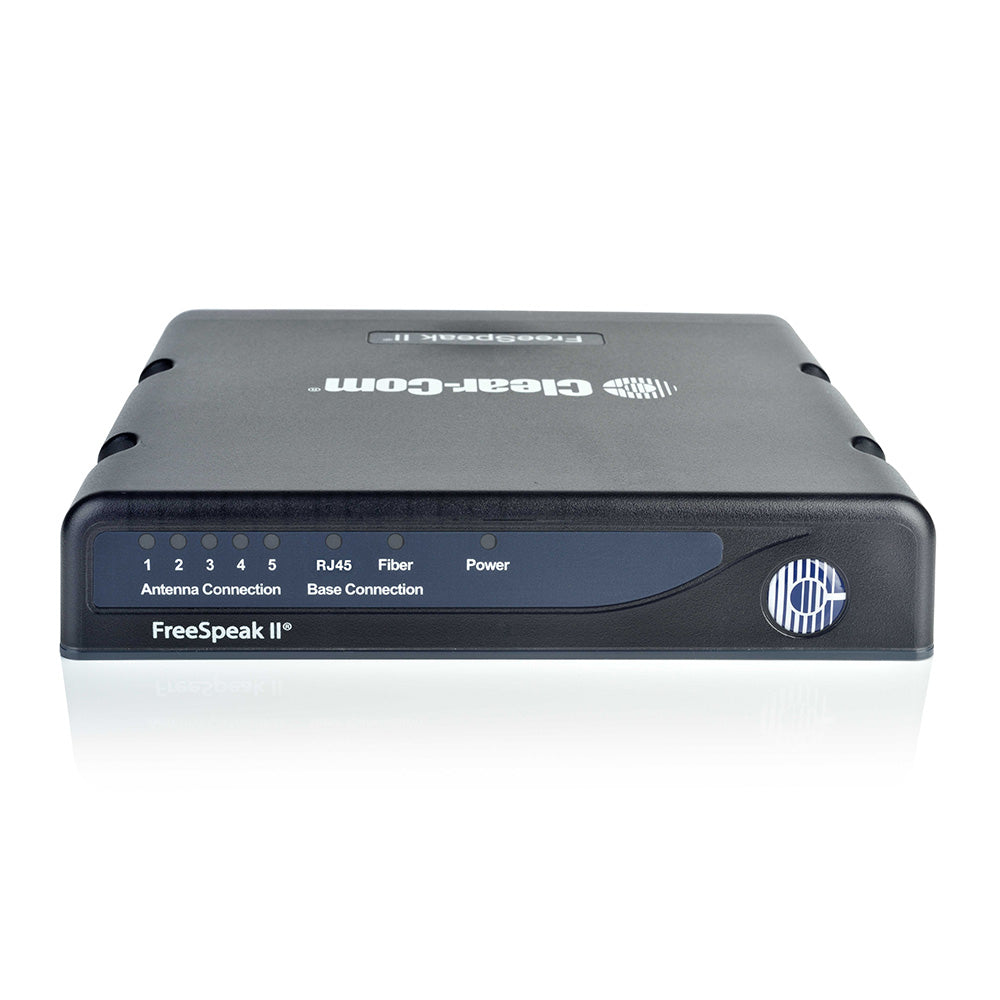

Clear-Com FSII-SPL FreeSpeak II Intercom Antenna Splitter
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The FSII-SPL is an antenna splitter that connects multiple FreeSpeak II transciever antennas to an Eclipse-HX matrix (via an E-QUE-HX frame card) or to a FreeSpeak II base station. The splitter provides up to 5 antenna feeds from one antenna port. An SFP fiber slot allows a fiber link between a FSII-BASE-II base station and splitter (base-to-splitter) or it can be used as a fiber bridge on legacy FreeSpeak II base stations and Eclipse HX matrix frames (splitter-to-splitter).
Features:
- Provides up to 5 FSII transceiver antenna feeds on one antenna port on a FSII-BASE-II base station or E-QUE-HX frame card
- SFP fiber slot for fiber link to FSII-BASE-II or as a fiber bridge between FSII-BASE-II stations and Eclipse HX frames
- Supports both multi-mode and single-mode fiber
- Configure settings using DIP switches
- IP-63 water resistance for outdoor use

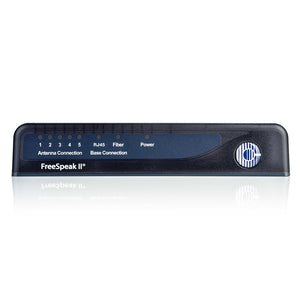

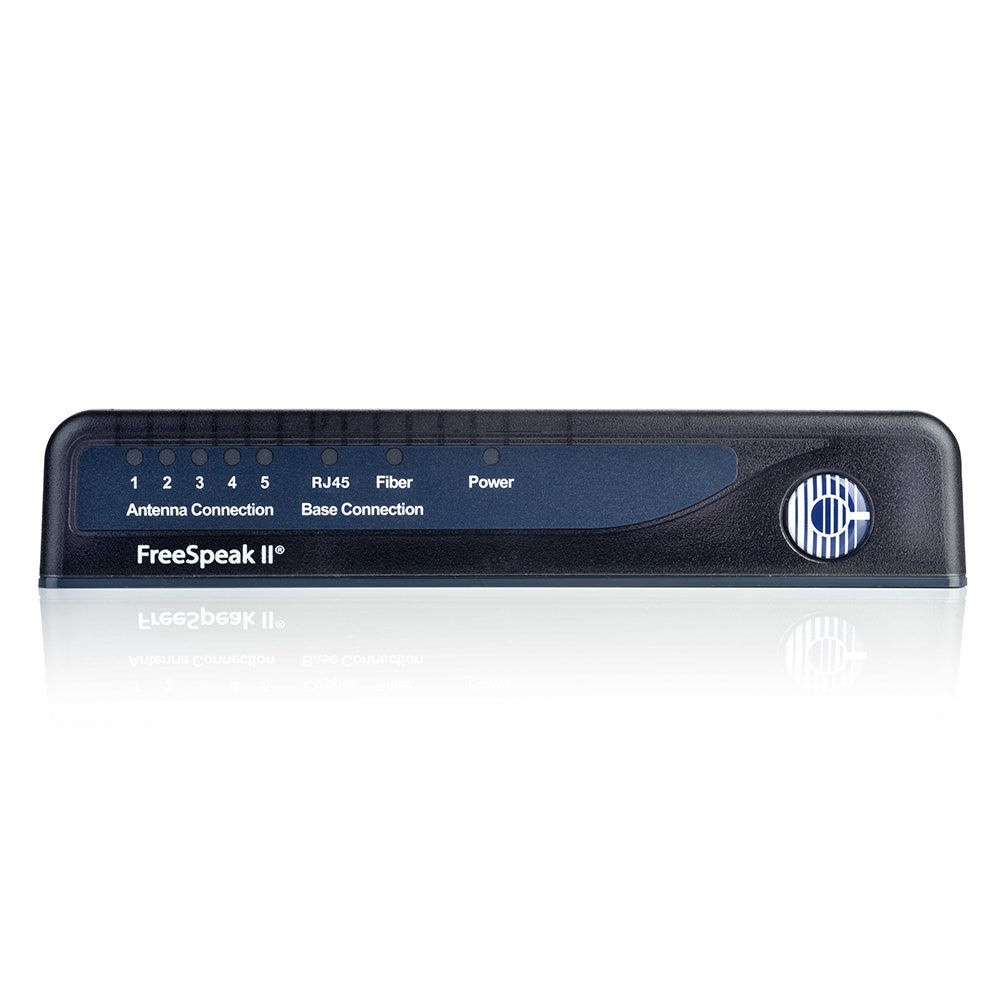

- LED status indicator on front and back
- Mic stand, rackmount or wall mount orientation (metric and imperial threads)

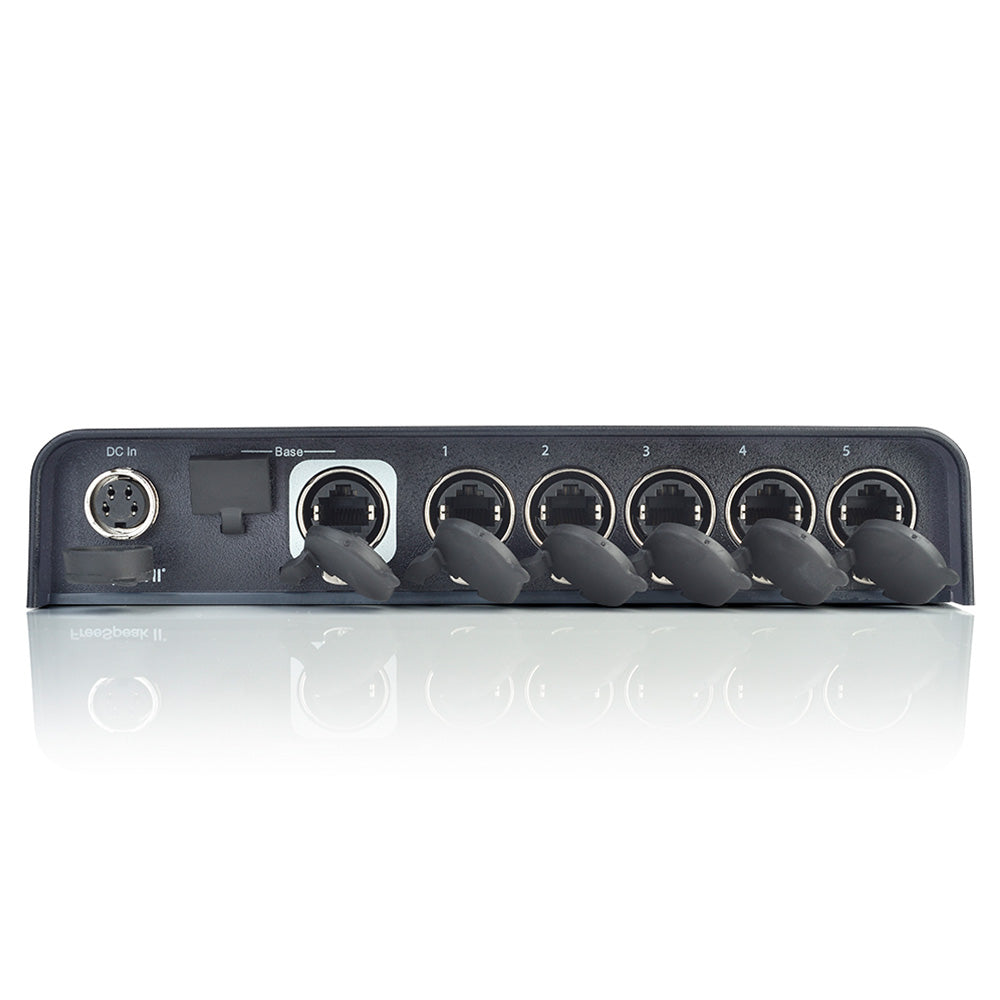

| Connections | Transceiver Antenna: 5 Ethercon RJ-45, each with yellow LED indicators on front and back Matrix: 1 Ethercon RJ-45, with yellow LED indicator on front and back Fiber: 1 SFP port |
| Power | Splitter: Requires external power supply (included) Transceiver Antenna: Provides power to antennas via RJ-45 connections |
| Mounting Options | Wall Mount with 4 mounting points Mic Stand Mount (metric and imperial threads) 1RU Rackmount Shelf |
| Environmental | IP-63 water resistance for outdoor use +32¡F to +122¡F (0¡C to +50¡C) |
| Dimensions | 1.65 x 8.75 x 7.73 in (HxWxD) (42 x 223 x 197 mm) |
| Weight | 24.5 oz (0.69 kg) |
