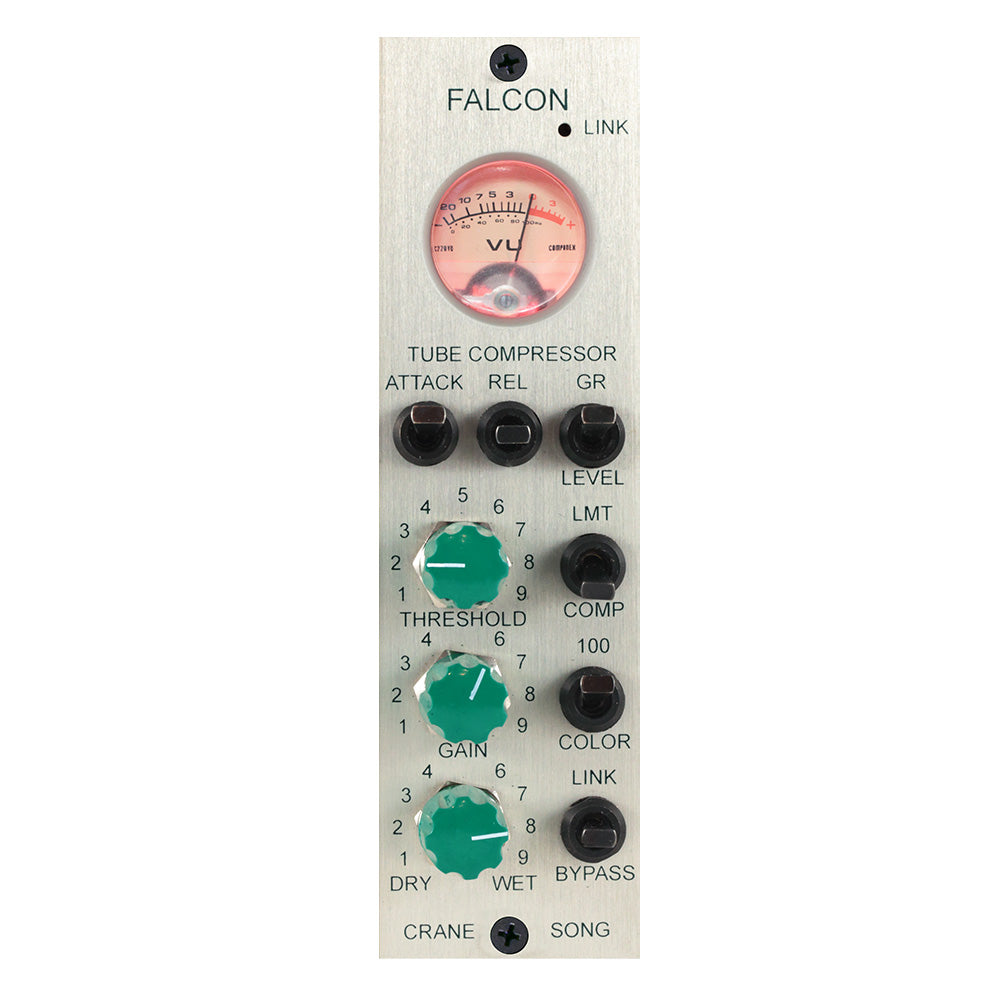

Crane Song Falcon 500 Series Tube Compressor Module
Availability:
Special Order ItemCrane Song products are made to order in the USA - please contact us for lead time.
Description
FALCON is a classic sounding tube compressor in a 500 series package. FALCON features 3 attack and 3 release time settings, hard and soft knee choices for compression or limiting, two different audio path sounds, wet-dry mixing for parallel compression, and is linkable. The audio path color is changed by modifying the tube circuit so it has negative feedback or does not have negative feedback. This along with the optical like quality of the compressor allows for a colored vintage sound or a much cleaner sound with optical characteristics. When linked the master unit controls all functions on the slave except for wet-dry and make up gain. The link system is capable of doing 5.1.
| Connections | The input and output are balanced, with the output being transformer balanced |
| Signal Level | The maximum specified signal level is +26 dbu |
| Noise Floor | -82.5 dbu measured 20Hz to 20 kHz |
| Power | 110mA with 16 volt bipolar power supplies |
| Tube | 12AX7B |
| Attack Time | For a 12 db change, 100uS; 7mS; 20mS |
| Release Time | For a 12 db change, 75mS to 200mS; 300mS to 1S; 1.4S to 3.5S; the release time changes depending on the signal |
FALCON is a classic sounding tube compressor in a 500 series package. FALCON features 3 attack and 3 release time settings, hard and soft knee choices for compression or limiting, two different audio path sounds, wet-dry mixing for parallel compression, and is linkable. The audio path color is changed by modifying the tube circuit so it has negative feedback or does not have negative feedback. This along with the optical like quality of the compressor allows for a colored vintage sound or a much cleaner sound with optical characteristics. When linked the master unit controls all functions on the slave except for wet-dry and make up gain. The link system is capable of doing 5.1.
| Connections | The input and output are balanced, with the output being transformer balanced |
| Signal Level | The maximum specified signal level is +26 dbu |
| Noise Floor | -82.5 dbu measured 20Hz to 20 kHz |
| Power | 110mA with 16 volt bipolar power supplies |
| Tube | 12AX7B |
| Attack Time | For a 12 db change, 100uS; 7mS; 20mS |
| Release Time | For a 12 db change, 75mS to 200mS; 300mS to 1S; 1.4S to 3.5S; the release time changes depending on the signal |
