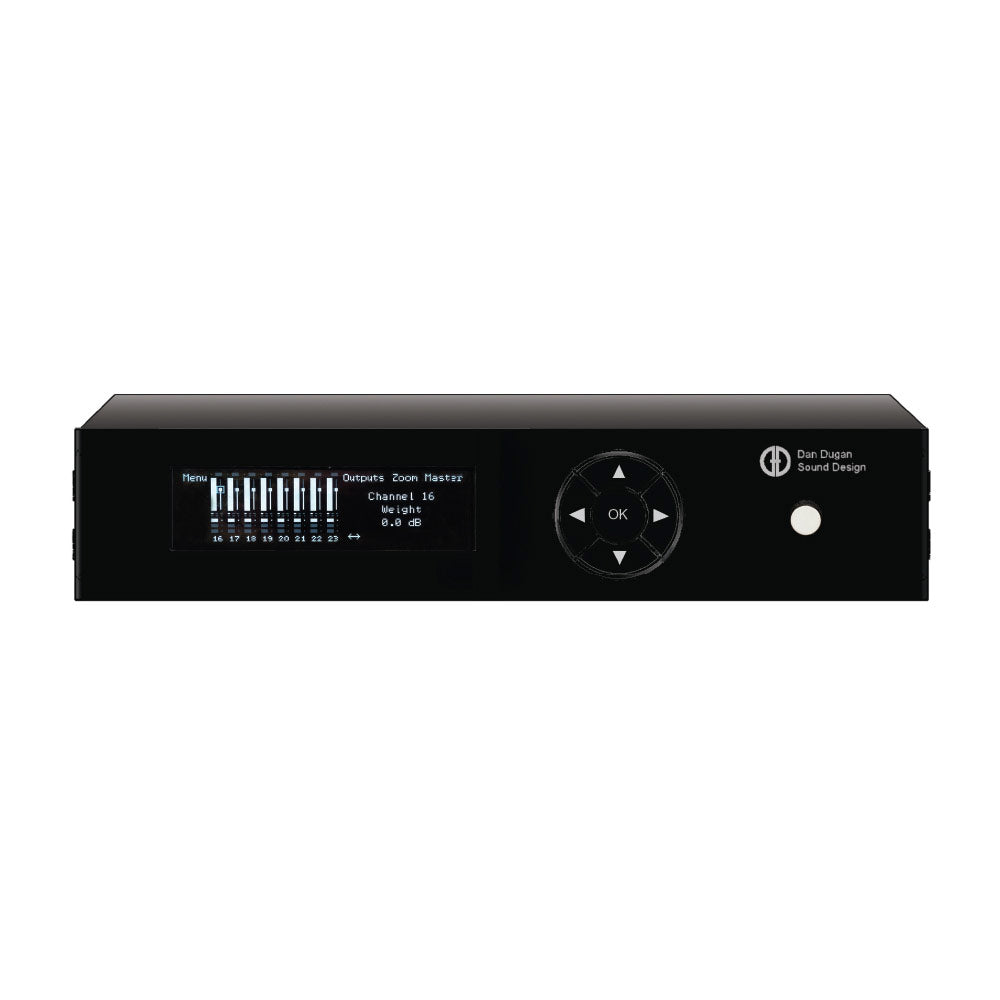

Dan Dugan Model N Automatic Mixing Controller with Dante
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Dan Dugan brings automatic mixing to the world of Dante! The Model N is ideal for TV news and sports panels, political debates, conference reinforcement, video trucks reality shows, game shows, wireless mics for theater, boardrooms, civic meeting rooms, teleconferencing and distance learning, or houses of worship to name but a few. It eliminates late upcuts, reduces PA feedback and studio noise, and reduces comb filtering from adjacent mics.
Features:
- 64 channels of processing
- 96 kHz sampling rate supported (32 channels)
- All Dugan algorithms: Speech System, Music System and Gain Limiting
- Channels may be grouped into three independent automixers
- Primary and secondary Dante network connectors
- Power over Ethernet (PoE) capable
- Remote control from Dugan Control Panel for Java (included) and Dugan Control Panel for iPad (sold separately)
- Physical remote control from Dugan Model K keyboard (sold separately)
- Miniature control panel for setup or adjustments from front panel
- Standard Dugan linking for larger systems or 16 channels ADAT I/O
| dante i/o | 64 channels @ 48 kHz sample rate 32 channels @ 96 kHz sample rate |
| adat | i/o 16 channels |
| gain | Unity |
| sample rate | 48 Ð 96 kHz |
| bit depth | 24 bit |
| audio latency | < 1 ms |
| frequency response | 10 Hz Ð 48 kHz, +/- 0.0075 dB @ 96 kHz |
| output noise | -125 dBFS (20 Hz Ð 20 kHz), -128 dBAFS |
| distortion | -125 dBFS |
| algorithms | Dugan Speech Systemª, Dugan Music Systemª, Dugan Gain Limitingª |
| linking | Up to eight units can be linked into one system using an optical ring network |
| connectors | |
| audio i/o | Dante: Two RJ-45, Primary and Secondary networks ADAT: Two TOSLINK optical |
| word clock i/o | Two BNC 75-Ohm |
| linking i/o | Two TOSLINK optical |
| network | Two RJ-45, one accepts PoE (internal switch) |
| power | |
| connector | Coaxial with locking collar, 5.5 mm o.d., 2 mm i.d., center positive |
| electrical | Nominal 12 VDC, 1.0 A maximum (12 W); accepts 12-24 VDC |
| poe | 02.3af-2003-compliant powered device (PD) |
| external supply | Input: 100-240 VAC, 50-60 Hz, 24W Output: 18 V, 1.3 A Approved: UL, GS, CE, FCC. LPS, CCC(S&E) |
| dimensions | 1 RU H = 1.75 in (4.5 cm) D = 8.3 in (21 cm) W = 8.75 in (22.2 cm) |
| weight | 3.5 lb (1.6 kg) 7 lb (2.5 kg) in shipping box with rack mounting kit and power supply |
