Description
Dealing with mono content in today's live sports surround sound environment presents a number of problems for engineers who are working to deliver the highest quality mixes. Simple mono sound sources just don't always cut it.

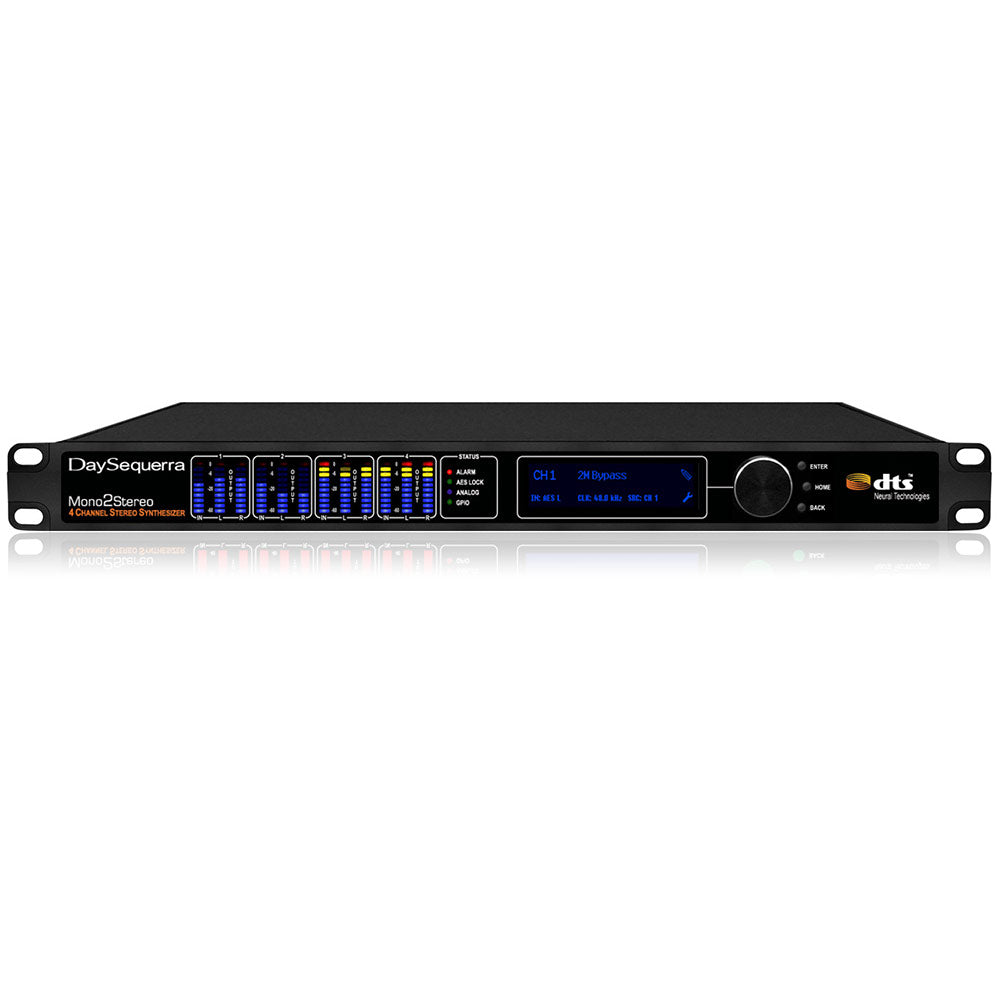

DaySequerra's four-channel synthesizer uses a DTS proprietary algorithm developed to produce an artifact-free, wide soundstage with natural, spectrally balanced stereo from mono content.
- Independently process four stereo channels of audio simultaneously from digital or analog equipment
- User presets simplify setup and allow consistent, easy recall of favorite settings
- Fast responding limiter maintains desired output threshold level
- Built-in low shelf and high shelf filters to help compensate for microphone frequency response and tailor overall mix balance
- Full-time 24 bit Analog-to-Digital, Digital-to-Analog and Sample Rate Conversion
M2S Analog Option
- 4 channel balanced analog inputs and 4 balanced stereo outputs at +24dBu max
- 24bit over-sampling analog to digital and digital to analog converters with 105dB SNR and 0.0015% THD+N

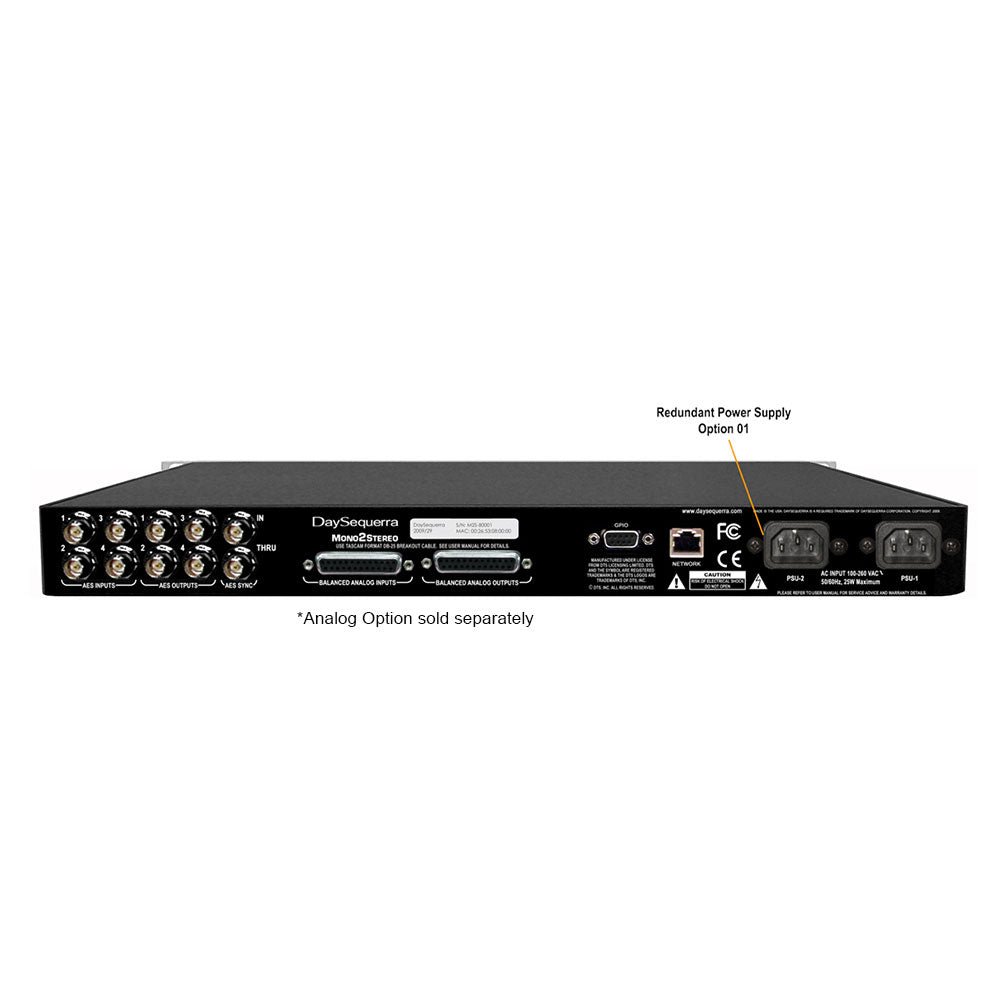

INPUTS | 4 AES PCM inputs 1 AES-3 or AES-11 SYNC 4 balanced analog inputs with Analog Option only |
OUTPUTS | 4 AES PCM outputs 1 AES-3 or AES-11 SYNC pass-through 4 balanced analog outputs with Analog Option only |
I/O INTERFACE | AES/EBU, 75 ohm, unbalanced BNC Balanced 110 ohm analog via DB-25 TASCAM format cable option only |
SAMPLE RATE | 32kHz to 96kHz |
LATENCY | <1msec at 48kHz sample rate |
A TO D/D TO A PERFORMANCE | 24 bit delta/sigma ADC converter 32kHz to 96kHz, 24 bit |
DYNAMIC RANGE/THD+N | 140dB DR/135dB THD+N Digital Input/Output (1) 105db SNE/0.0015% THD+N (2) |
ETHERNET | 10/100-BASE-T for field software updates |
DIMENSIONS AND WEIGHT | 1 RU, 19Ó (482mm) W x 8Ó (203mm) L x 1.75Ó (44mm) H; 7 lb (3.2kg) |
ENVIRONMENTAL | Convection coded. Operating: 0 to 60 degrees C |
REGULATORY | North America - designed to comply with FCC Class A, Part 15 RoHS and WEEE compliant |
POWER SUPPLY | Auto-sensing 100-240v, 50-60Hz EMI supressed male IEC320 connector |
OPTIONS | Balanced Analog I/O via TASCAM interface |
APPLICATIONS INCLUDE | Ingest, Head - End, Uplinks, Post Production |
NOTES | Dynamic Range measured using a -60dB 1kHz sine wave and A weighting THD+N measured using a 20dBu 1kHz sine wave sampled at 48kHz, 20-20kHz A-weighted |
Dealing with mono content in today's live sports surround sound environment presents a number of problems for engineers who are working to deliver the highest quality mixes. Simple mono sound sources just don't always cut it.
DaySequerra's four-channel synthesizer uses a DTS proprietary algorithm developed to produce an artifact-free, wide soundstage with natural, spectrally balanced stereo from mono content.
- Independently process four stereo channels of audio simultaneously from digital or analog equipment
- User presets simplify setup and allow consistent, easy recall of favorite settings
- Fast responding limiter maintains desired output threshold level
- Built-in low shelf and high shelf filters to help compensate for microphone frequency response and tailor overall mix balance
- Full-time 24 bit Analog-to-Digital, Digital-to-Analog and Sample Rate Conversion
M2S Analog Option
- 4 channel balanced analog inputs and 4 balanced stereo outputs at +24dBu max
- 24bit over-sampling analog to digital and digital to analog converters with 105dB SNR and 0.0015% THD+N
INPUTS | 4 AES PCM inputs 1 AES-3 or AES-11 SYNC 4 balanced analog inputs with Analog Option only |
OUTPUTS | 4 AES PCM outputs 1 AES-3 or AES-11 SYNC pass-through 4 balanced analog outputs with Analog Option only |
I/O INTERFACE | AES/EBU, 75 ohm, unbalanced BNC Balanced 110 ohm analog via DB-25 TASCAM format cable option only |
SAMPLE RATE | 32kHz to 96kHz |
LATENCY | <1msec at 48kHz sample rate |
A TO D/D TO A PERFORMANCE | 24 bit delta/sigma ADC converter 32kHz to 96kHz, 24 bit |
DYNAMIC RANGE/THD+N | 140dB DR/135dB THD+N Digital Input/Output (1) 105db SNE/0.0015% THD+N (2) |
ETHERNET | 10/100-BASE-T for field software updates |
DIMENSIONS AND WEIGHT | 1 RU, 19Ó (482mm) W x 8Ó (203mm) L x 1.75Ó (44mm) H; 7 lb (3.2kg) |
ENVIRONMENTAL | Convection coded. Operating: 0 to 60 degrees C |
REGULATORY | North America - designed to comply with FCC Class A, Part 15 RoHS and WEEE compliant |
POWER SUPPLY | Auto-sensing 100-240v, 50-60Hz EMI supressed male IEC320 connector |
OPTIONS | Balanced Analog I/O via TASCAM interface |
APPLICATIONS INCLUDE | Ingest, Head - End, Uplinks, Post Production |
NOTES | Dynamic Range measured using a -60dB 1kHz sine wave and A weighting THD+N measured using a 20dBu 1kHz sine wave sampled at 48kHz, 20-20kHz A-weighted |
