Description

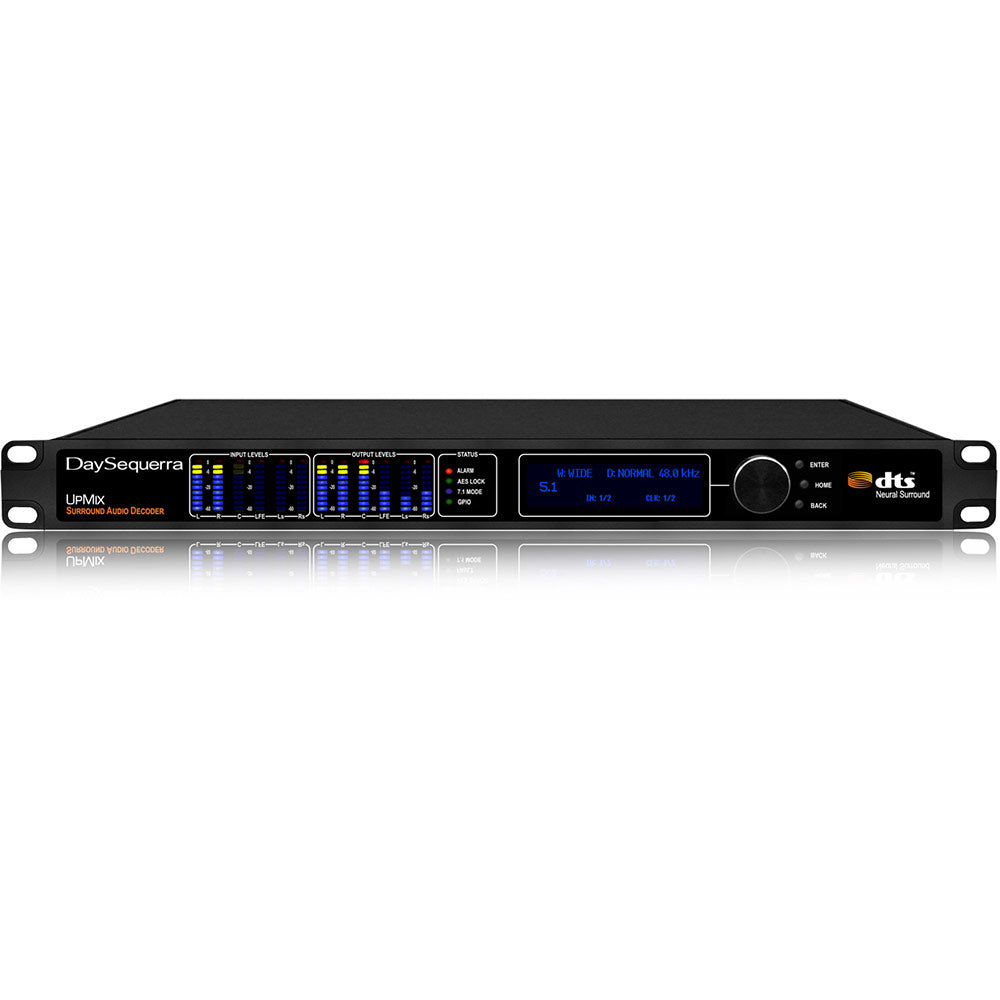

DTS Neural Surround UpMix was ranked #1 in double-blind listening tests, outperforming all other surround decoders in channel discreteness, envelopment, and original spatial location. The DTS UpMix transforms any stereo signal into a surround sound experience. Audio that was encoded using the DTS DownMix algorithm can be restored with the correct information in each of the 5.1 surround channels.
Features:
- Stereo to any channel configuration (2.1, 3.1, 4.1, 5.1, 6.1 or 7.1)
- Great compatibility with all stereo signals(L/R, LtRt, LoRo, ProLogic, ProLogic II or SRS Circle Surround)
- Adaptive filters that eliminate "dialog leakage" traditionally found in matrix audio decoders
- End-toend surround delivery system when combined with the DTS Neural Surround DownMix
Inputs | |
Outputs | |
Digital Inputs and Outputs | AES/EBU, 75 ohm, unbalanced BNC |
AES Sample Rate | 32kHz-96kHz |
Latency | <22 msec |
Dynamic Range | 140db DR, any input to any output; 135dB, any input to any output |
GPIO | DB-9 female connector 0-5V TTL |
Ethernet | 10/100-Base-T for field software updates |
Dimensions and Weight | |
Environmental | Convection Cooled. Operating: 0-60 degrees C |
Regulatory | |
Applications | Ingest, Head-End, Uplinks, Post Production, Quality Control |
Warranty | Three years, limited parts and labor |
DTS Neural Surround UpMix was ranked #1 in double-blind listening tests, outperforming all other surround decoders in channel discreteness, envelopment, and original spatial location. The DTS UpMix transforms any stereo signal into a surround sound experience. Audio that was encoded using the DTS DownMix algorithm can be restored with the correct information in each of the 5.1 surround channels.
Features:
- Stereo to any channel configuration (2.1, 3.1, 4.1, 5.1, 6.1 or 7.1)
- Great compatibility with all stereo signals(L/R, LtRt, LoRo, ProLogic, ProLogic II or SRS Circle Surround)
- Adaptive filters that eliminate "dialog leakage" traditionally found in matrix audio decoders
- End-toend surround delivery system when combined with the DTS Neural Surround DownMix
Inputs | |
Outputs | |
Digital Inputs and Outputs | AES/EBU, 75 ohm, unbalanced BNC |
AES Sample Rate | 32kHz-96kHz |
Latency | <22 msec |
Dynamic Range | 140db DR, any input to any output; 135dB, any input to any output |
GPIO | DB-9 female connector 0-5V TTL |
Ethernet | 10/100-Base-T for field software updates |
Dimensions and Weight | |
Environmental | Convection Cooled. Operating: 0-60 degrees C |
Regulatory | |
Applications | Ingest, Head-End, Uplinks, Post Production, Quality Control |
Warranty | Three years, limited parts and labor |
