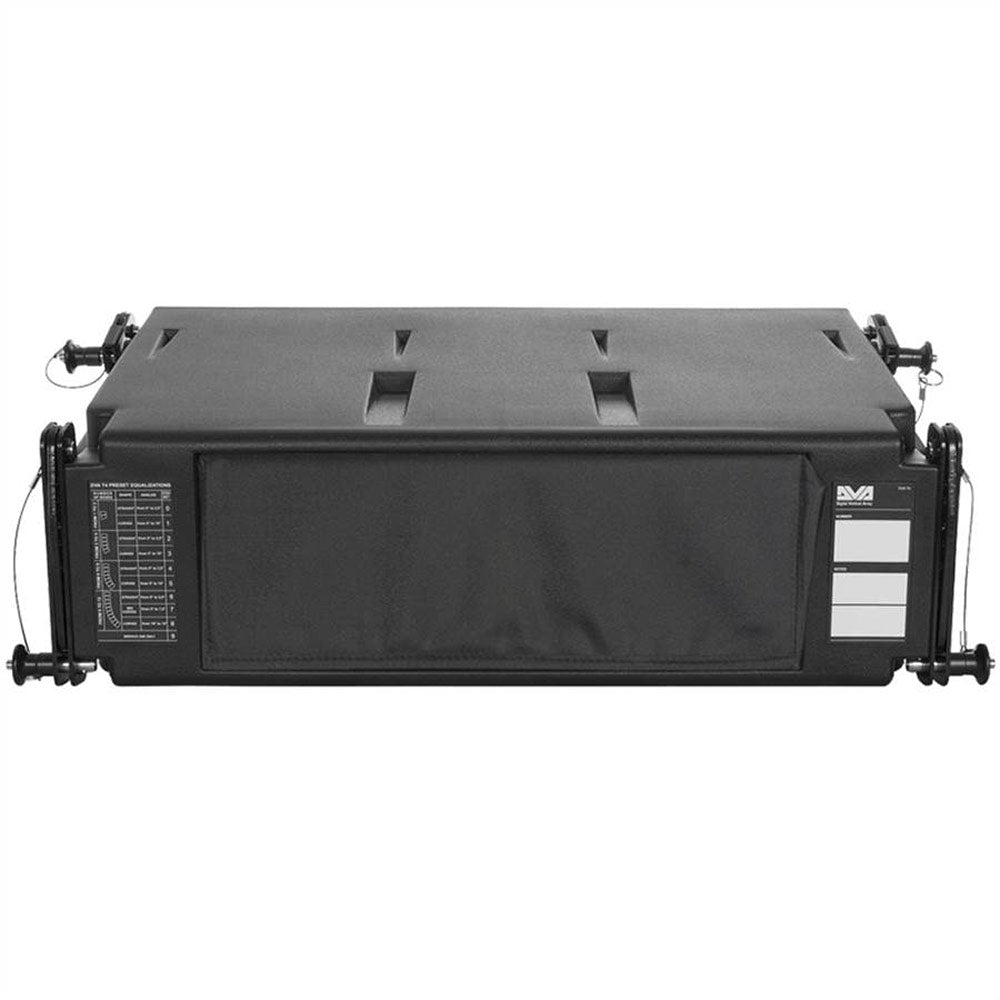

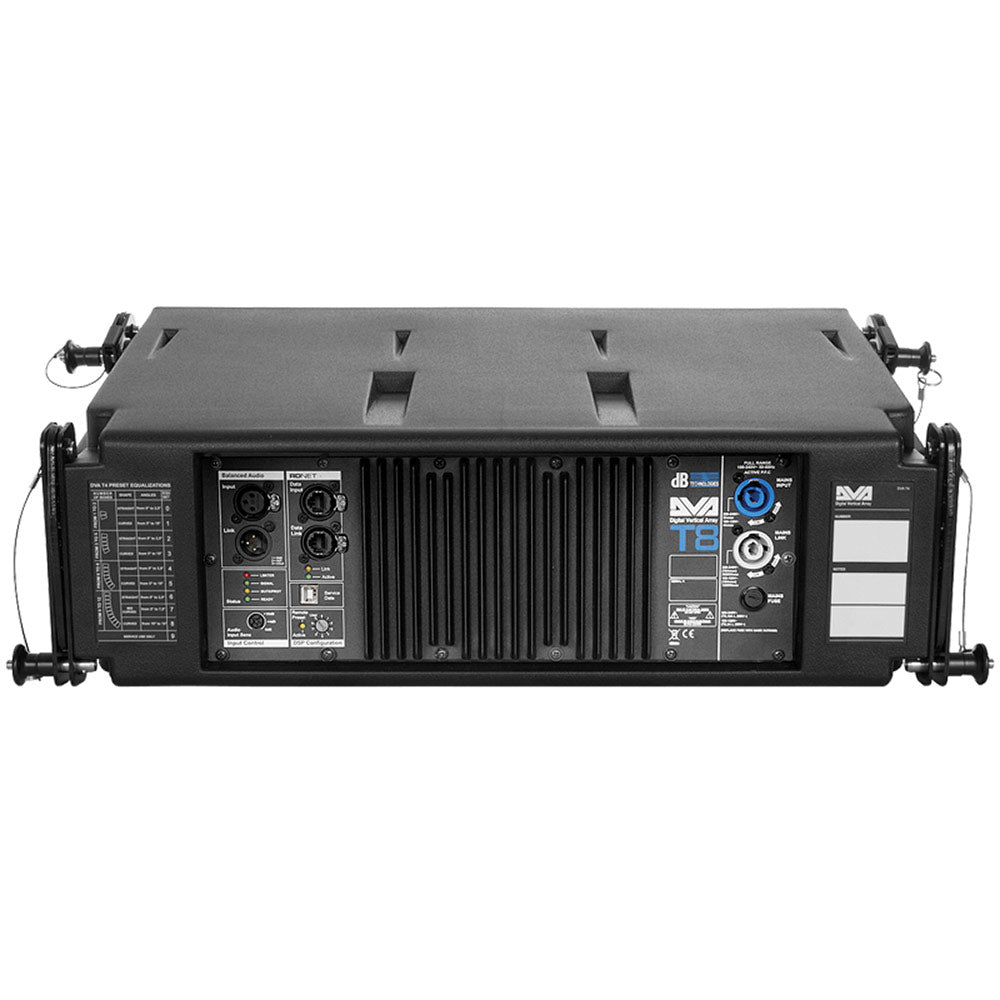

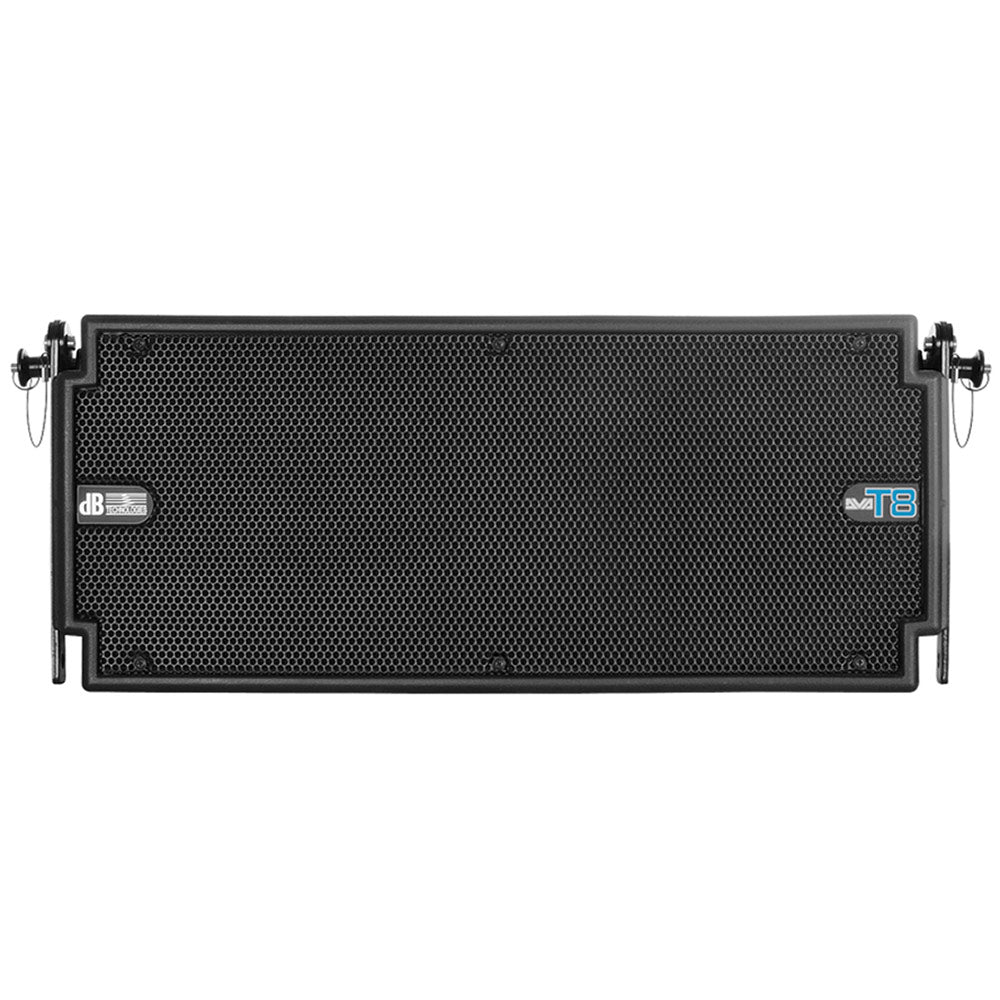

dBTechnologies DVA T8 - 3 Way Active Line Array Module (Black)

The DVA T8 is equipped with three class D amplifiers of DIGIPRO G2 series, high efficiency, which delivers high output power in a compact size and low weight. Thanks to its high efficiency the cooling of the amplifier module is obtained statically, thus avoiding the use of a fan. The power supply circuits of the DIGIPRO G2 amplifier has been conceived to work in full-range mode; thanks to the SMPS (Switched-Mode Power Supplies) technology with PFC (Power Factor Correction) the operation with supply voltages between 100 Vac and 240Vac is guaranteed by ensuring the same sound performances even with floating and non-stabilized power supply systems. The amplifier module is able to deliver 350W (RMS) for the bass section, 175W (RMS) for the mid-section and 175W (RMS) for the treble section. The bass section controls a 8" neodymium woofer (2.5" voice coil) guarantees a high SPL and the obtainment of frequencies of up to 70Hz. The mid-section controls one 6.5" neodymium midranges (2" voice coil), enclosed in its own acoustic chamber and horn loaded with a power factor corrector. The plug phases located in front of the cones prevent the vertical phases from overlapping, creating in fact a local array with 3 output slot that increases directivity. The horn design was specifically created to couple it correctly with the DVA T4 and DVA T12 modules. The treble section controls two 1" neodymium drivers (1.4" voice coil) positioned vertically and spaced to optimize the vertical cover. The horn design was specifically created to couple it correctly with the DVA T4 and DVA T12 modules.

Balanced input at line level. It is able to accept "XLR" sockets. The "XLR" connector connected in parallel with input (1) can be used to send the input audio signal to another amplified speaker
