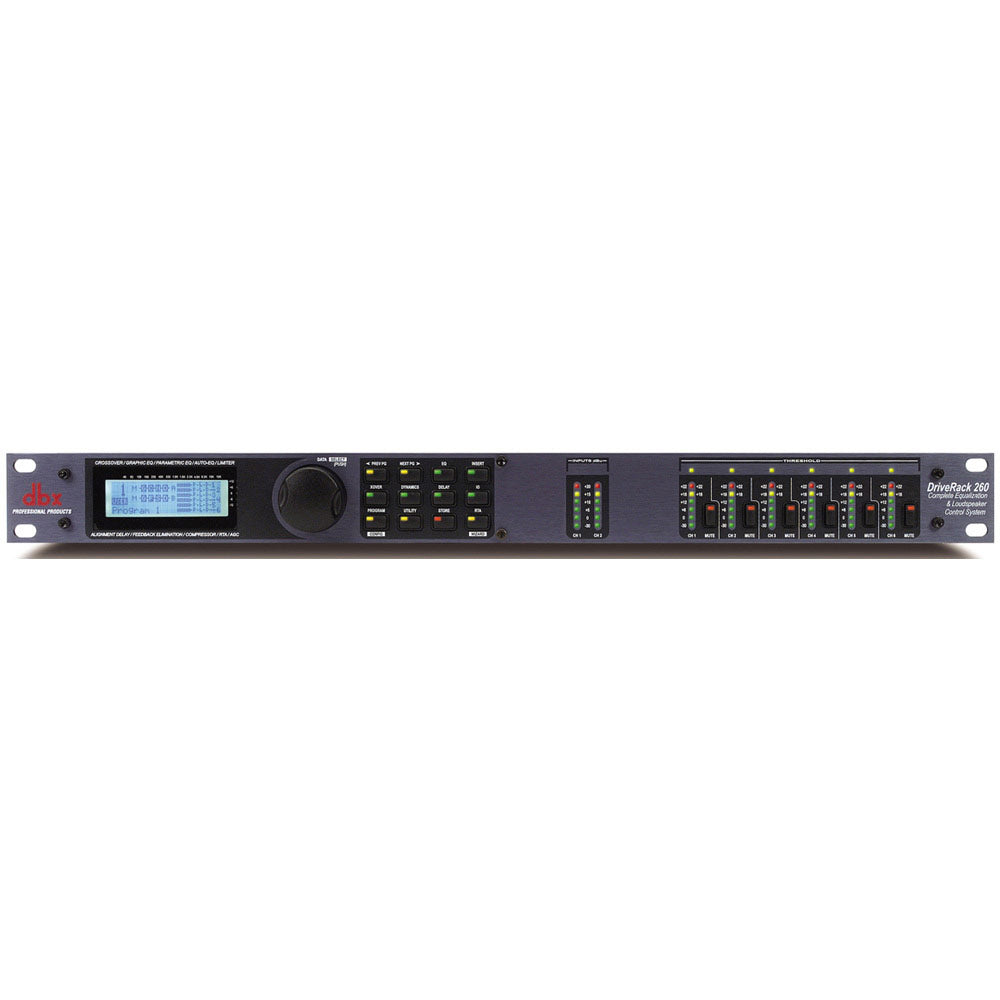

DBX Driverack 260 Equalization and Loudspeaker Management System
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
There is a reason that Tour Sound Professionals and discriminating Audio Contractors choose dbx DriveRack products for their high-end tours and installs. The DriveRack products provide the tools that ensure that the system sounds its very best. With the introduction of the new 260, the heritage of unrivaled system/loudspeaker control continues.
The 260 capitalizes on the road tested and contractor approved nature of the other products in the DriveRack line. The 260 provides full bandpass and crossover configurations as well as independent output processing and a full time RTA for live sound applications. Contractors will appreciate its control inputs for wall-panel logic control and the patent-pending Advanced Feedback Suppression (AFS).
The DriveRack 260 continues the legacy of DriveRack series, which has been created by the company that has been redefining the standard of signal processing for more than 30 years. The DriveRack 260 was designed with the purpose and vision of providing state-of-the-art signal processing, while utilizing a simple and intuitive user interface. This goal has been achieved by offering two independent channels of processing power with a linkable 28-Band Graphic Equalizer, industry-standard dbx stereo compressor module, feedback eliminator and the 120A Subharmonic Synthesizer on the input, with a six channel output system that includes parametric EQs, PeakStopPlus limiters (to provide protection against speaker blowouts) and alignment delay. These features combined with the Wizard setup system and complete DriveWare GUI control represent a methodical design that is guaranteed to deliver optimal, all-inclusive processing in a completely scalable system.
Features:
- Feedback Elimination
- 2.7 Seconds of Alignment and Zone Delay
- RS-232 PC GUI control
- Classic dbx Compression and Limiting
- Graphic and Parametric EQ
- Auto-EQ Function
- Full Bandpass, Crossover, and Routing Configurations
- Auto Gain Control
- Pink Noise Generator and fulltime RTA
- Setup Wizard with JBL speaker and Crown Power Amplifier Tunings
- Security Lockout
- Wall Panel Control Inputs
| Inputs | |
| Number of Inputs | (2) Line inputs. (1) RTA Mic input |
| Connectors | (2) Female XLR line inputs. XLR RTA Mic input |
| Type | Electronically balanced/RF filtered |
| Impedance | >40k ohm |
| Maximum Input Level | +34dBu with input jumpers in +30 position |
| CMRR | >45 dB |
| RTA Mic Phantom Voltage | +15 VDC |
| RTA Mic ETN | <-110 dBu, 22 Hz - 22 kHz, 150 ohm |
| Analog Outputs | |
| Number of Outputs | 6 |
| Connectors | Male XLR |
| Type | Electronically balanced, RF filtered |
| Impedance | 120ohm |
| Max Output Level | +22dBu |
| A/D Performance | |
| Type | dbx Type IV Conversion System |
| Dynamic Range line | >114 dB A-weighted,>112 dB unweighted |
| Type IV dynamic range | >119 dB, A-weighted, 22kHz BW >117 dB, A-weighted, 22kHz BW |
| Sample Rate | 48kHz |
| D/A Performance | |
| Dynamic Range | 112 dB A-unweighted, 110 dB unweighted |
| System Performance | |
| Dynamic Range | 110 dB unweighted,>107 dB weighted |
| THD + Noise | 0.002% typical at +4 dBu, 1 kHz, 0 dB input gain |
| Frequency Response | 20 Hz - 20 kHz, +/-0.5 dB |
| Interchannel Crosstalk | >110 dB, 120 dB typical |
| Crosstalk input-output | >100 dB |
There is a reason that Tour Sound Professionals and discriminating Audio Contractors choose dbx DriveRack products for their high-end tours and installs. The DriveRack products provide the tools that ensure that the system sounds its very best. With the introduction of the new 260, the heritage of unrivaled system/loudspeaker control continues.
The 260 capitalizes on the road tested and contractor approved nature of the other products in the DriveRack line. The 260 provides full bandpass and crossover configurations as well as independent output processing and a full time RTA for live sound applications. Contractors will appreciate its control inputs for wall-panel logic control and the patent-pending Advanced Feedback Suppression (AFS).
The DriveRack 260 continues the legacy of DriveRack series, which has been created by the company that has been redefining the standard of signal processing for more than 30 years. The DriveRack 260 was designed with the purpose and vision of providing state-of-the-art signal processing, while utilizing a simple and intuitive user interface. This goal has been achieved by offering two independent channels of processing power with a linkable 28-Band Graphic Equalizer, industry-standard dbx stereo compressor module, feedback eliminator and the 120A Subharmonic Synthesizer on the input, with a six channel output system that includes parametric EQs, PeakStopPlus limiters (to provide protection against speaker blowouts) and alignment delay. These features combined with the Wizard setup system and complete DriveWare GUI control represent a methodical design that is guaranteed to deliver optimal, all-inclusive processing in a completely scalable system.
Features:
- Feedback Elimination
- 2.7 Seconds of Alignment and Zone Delay
- RS-232 PC GUI control
- Classic dbx Compression and Limiting
- Graphic and Parametric EQ
- Auto-EQ Function
- Full Bandpass, Crossover, and Routing Configurations
- Auto Gain Control
- Pink Noise Generator and fulltime RTA
- Setup Wizard with JBL speaker and Crown Power Amplifier Tunings
- Security Lockout
- Wall Panel Control Inputs
| Inputs | |
| Number of Inputs | (2) Line inputs. (1) RTA Mic input |
| Connectors | (2) Female XLR line inputs. XLR RTA Mic input |
| Type | Electronically balanced/RF filtered |
| Impedance | >40k ohm |
| Maximum Input Level | +34dBu with input jumpers in +30 position |
| CMRR | >45 dB |
| RTA Mic Phantom Voltage | +15 VDC |
| RTA Mic ETN | <-110 dBu, 22 Hz - 22 kHz, 150 ohm |
| Analog Outputs | |
| Number of Outputs | 6 |
| Connectors | Male XLR |
| Type | Electronically balanced, RF filtered |
| Impedance | 120ohm |
| Max Output Level | +22dBu |
| A/D Performance | |
| Type | dbx Type IV Conversion System |
| Dynamic Range line | >114 dB A-weighted,>112 dB unweighted |
| Type IV dynamic range | >119 dB, A-weighted, 22kHz BW >117 dB, A-weighted, 22kHz BW |
| Sample Rate | 48kHz |
| D/A Performance | |
| Dynamic Range | 112 dB A-unweighted, 110 dB unweighted |
| System Performance | |
| Dynamic Range | 110 dB unweighted,>107 dB weighted |
| THD + Noise | 0.002% typical at +4 dBu, 1 kHz, 0 dB input gain |
| Frequency Response | 20 Hz - 20 kHz, +/-0.5 dB |
| Interchannel Crosstalk | >110 dB, 120 dB typical |
| Crosstalk input-output | >100 dB |
