DescriptionThe Zone Controllers offer extended utility to the DriveRackand ZonePro families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and ... Read More
Retail Price: $87.89 Our Price: $79.00
Free Shipping (orders over $99)
The Zone Controllers offer extended utility to the DriveRackand ZonePro families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted rj-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.

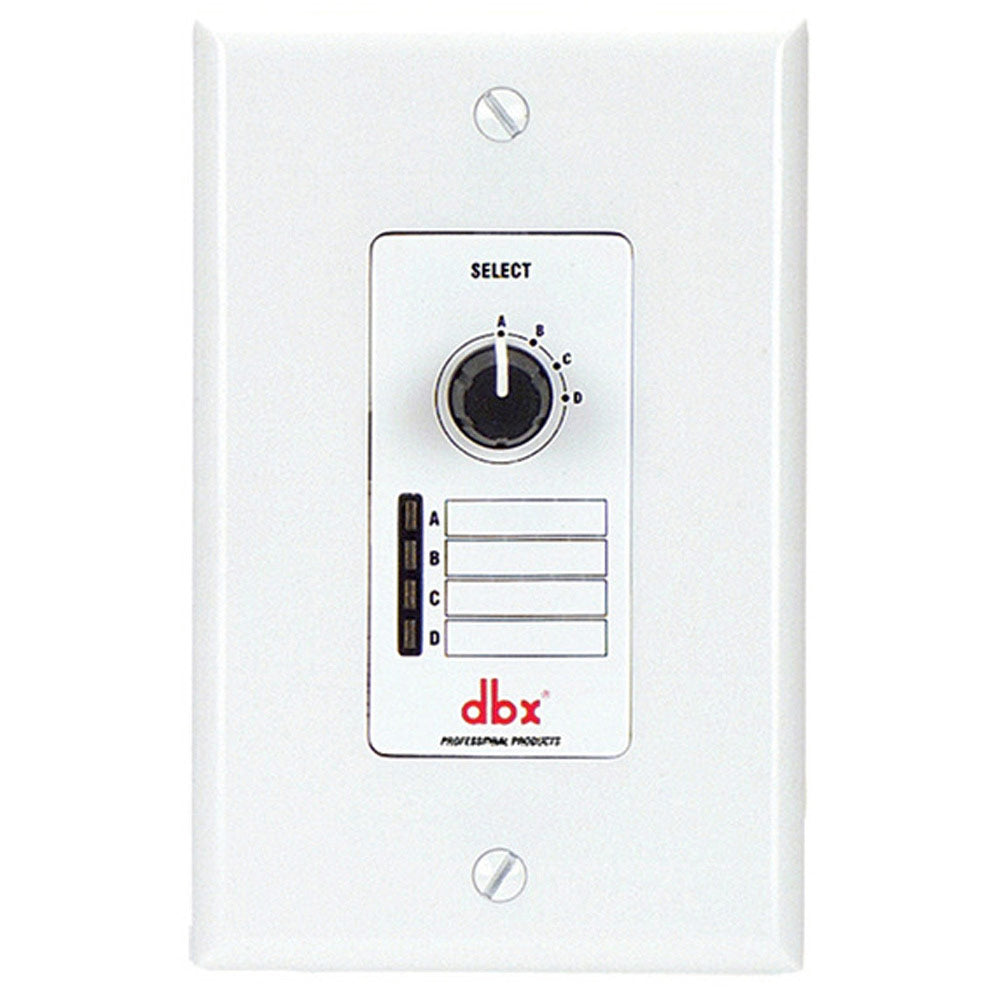

The ZC-1 provides programmable remote volume control for the DriveRack 260, 220i and the ZonePro 640 and 641. The ZC-2 offers programmable volume and mute control for the DriveRack 220i, 260 and the ZonePro 640 and 641. The ZC-3 can function as a program selector for the DriveRack 260 and 220i; in addition it can be used for as a source selector, page steering control, or a scene selector for the ZonePro products. The ZC-4 provides program change capability from contact closures for the DriveRack 220i and 260; it can also provide source selection, page steering, or scene selection for the ZonePro 640 and 641. The ZC-6 is a programmable volume control for the ZonePro 640 and 641. The ZC-7 is a programmable push -to-talk page assignment controller for the ZonePro devices. The ZC-8 provides both programmable source selection and volume control to the ZonePro 640 and 641. The ZC-BOB allows “home run” or parallel wiring to the DriveRack and ZonePro devices. The ZC-FIRE is a dedicated fire safety interface for the ZonePro products that allows selection of either system mute or scene selection upon being triggered by either a relay or control voltage from the fire safety system.
|CONNECTIONS ZC-1, ZC-2, ZC-3, ZC6, ZC-7, ZC-8|
|ZC-4 Connectors||(1) RJ-45, (1) 6-pin Phoenix|
|ZC-BOB Connectors||(7) RJ-45|
|ZC-FIRE||(2) rj-45, (2) 2-pin Phoenix|
|Maximum Cable Length depends on number of Zone Controllers|
and wiring schematic.
|Maximum Cable Length varies with number of Zone Controllers.|
For Example,Three Zone Controllers: 600 ft.
Six Zone Controllers: 300 ft.
|Using a ZC-BOB||Up to Six Zone Controllers: 1000 ft.|
|Cable||CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher.|
|SAFETY AGENCY CERTIFICATIONS|
|UL 60065, IEC 60065, EN 55013, E60065|
