DirectOut MAVEN.A Smart Audio Platform - Modular Converter and Network Interface (Essential)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

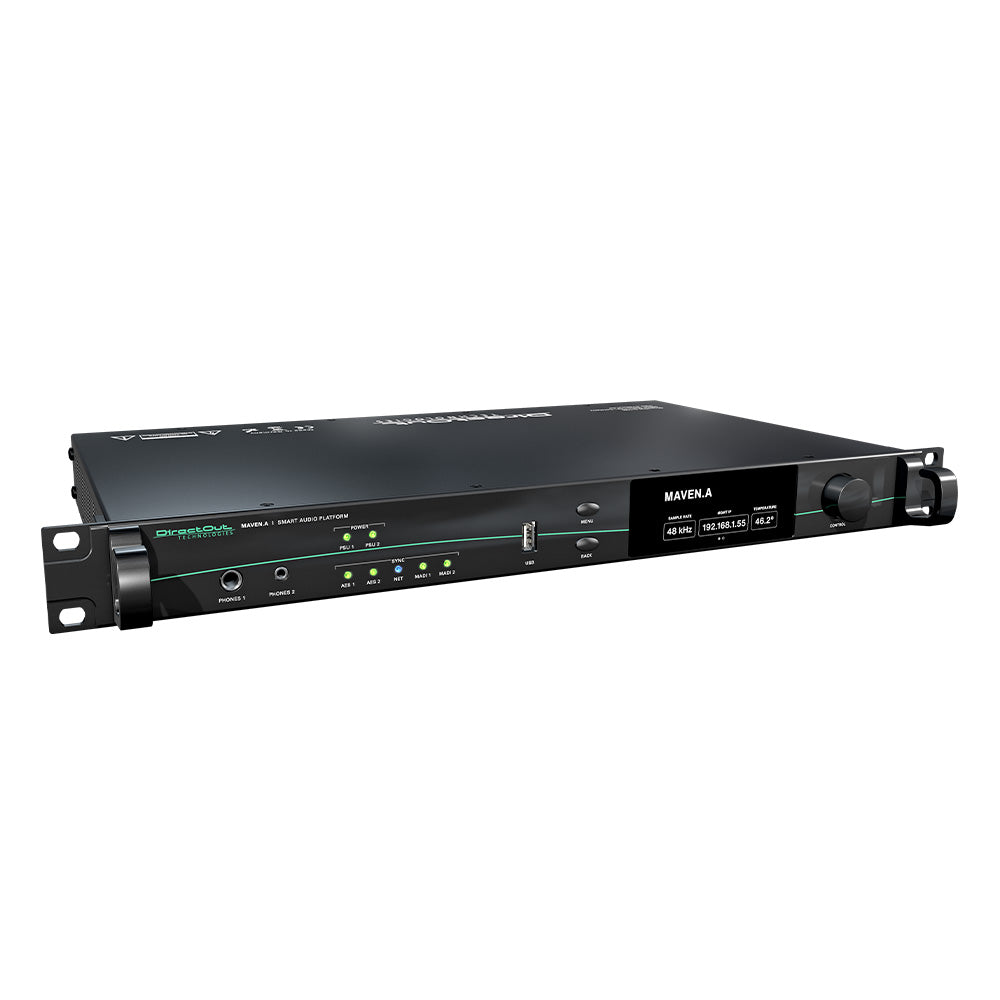

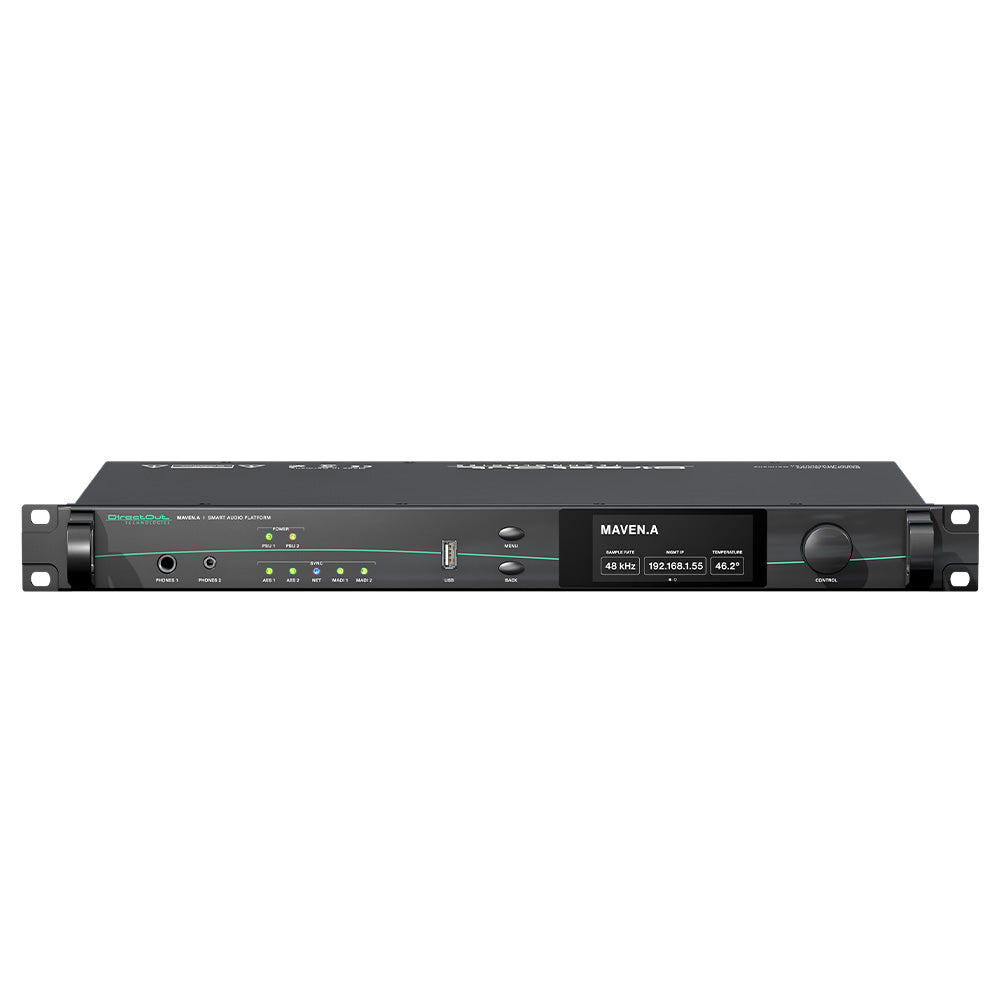

MAVEN.A is a smart audio platform with modular IOs and signal processing. Hosted in a compact 1 RU housing it offers a capacity of up to 400 x 402 audio channels and an adaptable feature set to meet the evolving needs of today's audio applications. MAVEN.A is designed to bridge the gap between entry-level and flagship audio systems, sharing the same hardware modules of the PRODIGY Series.
A smart platform features a powerful FPGA plus processor and is able to grow or change depending on the requirements of single applications. Thus a smart platform contributes to DirectOut's philosophy of the Audio Solution Model (ASM). How?
- Populate the mainframe with modules as needed.
- Select the licenses to run the application.
Licenses are available on a granular level to add just the portion that is required now. Choose from the Essential model to take this approach, or the Unlimited model with all optional licenses ready and activated.
Modules - IO

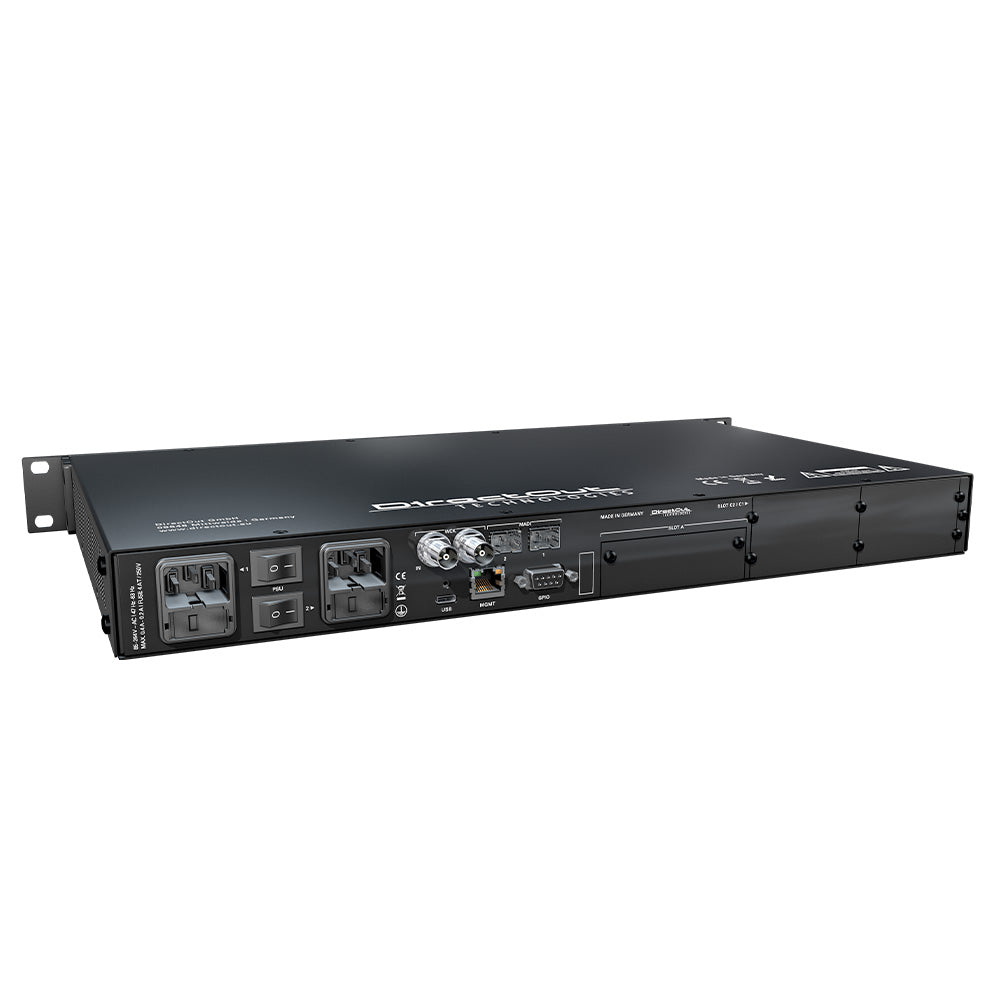

MAVEN.A features one A slot and two C slots:
- A slot - audio network, multi-port MADI or USB - up to 256 channels
- C slot - converter (mic/line, AD/DA) and AES3 - 8 channels per module
Two SFP cages can be fitted with various transceivers to extend the connectivity by two additional MADI ports with 64 channels each of.
Multi Format:
- RAVENNA / AES67
- Dante
- AVB / MILAN
- SoundGrid
- MADI - single-port, multi-port
- Analog
- AES3
- USB
DSP
64 Flex Channels provide signal processing with excellent internal plugins:
- FIR filter with selectable filter types and a custom filter
- IIR filter with six instances of selectable filter types
- Dynamics with four different configurations
- Delay of up to 65535 samples (= 1365 milliseconds @ 48 kHz)
64 x 64 Matrix Mixer to mix 64 freely assignable sources to 64 busses.
64 Summing Busses, each of which can sum any number of signal sources to a single feed.
AutoMix for automated mixing of different audio signals in up to 16 AutoMix groups to increase intelligibility or to reduce noise
DSP licenses are available in packages of smaller units to portion out the total capacity.
Seamless Connecting and Redundancy
Bidirectional sample rate conversion (HD SRC or FastSRC)* connects across clock boundaries. 32 Input Managers each managing the signal automatic switch-over between up to six physical inputs. EARSª (Enhanced Automatic Redundancy Switching) for automatic fail-over switching of an entire input port to a backup port.
Available licenses: FastSRC, Input Managers, EARS
Loudness Metering
Loudness Metering - 8 routable channels loudness metering
Control is key
Globcon control manages all DirectOut devices via network - either on Mac or PC. Local display and operation on a touch display facilitates the overview and grants basic control. Third-party control protocols (Ember+, OSC, SNMP, JSON-API, Lawo HOME) are available as options.
Available licenses: Ember+, SNMP, OSC, Lawo HOME, Automator
* FastSRC operates on the mainframe, HD SRC is available only on corresponding hardware modules (XX.SRC.IO).
| Dimensions | Width 19'' (483 mm) Height 1 RU (44.5 mm) Depth 10'' (254 mm) |
| Weight | about 8 kg |
| Power Consumption | 20 W to 55 W, module dependent |
| Power Supply | 2 x 84 V - 264 V AC / 47 Hz - 63 Hz / Safety class 1 |
| Fuses | 250 V - 4 A (slow-blow) _ 2 fuses per power supply |
| Environmental Conditions | Operating temperature +5ÁC up to +45ÁC Relative humidity: 10% - 80%, non condensing |
| Display | 3.5" Backlight LED LCD, IPS Transmissive Touch display Resolution: 340 x 800 px |
| Control | 1 x Encoder knob with push functionality 2 x Push-Buttons |
| Network | 1 x RJ45 Gigabit Ethernet ´ for managing the device (remote control) |
| Remote Control | globcon software control integrated web server with UI (HTML, JavaScript) Ember+ (license) - MGMT OSC (license) |
| Word Clock | 2 x BNC socket (input / output) |
| Impedance | 75 _ (termination switchable) |
| Word Clock Standard | AES11 (DARS also supported) |
| Sample Rate | 30 - 50 kHz @ 1 FS 60 - 100 kHz @ 2 FS 120 - 200 kHz @ 4 FS |
| Phones Out 1 | 1 x 6.3 mm TRS jack, mono / stereo Output level: max. +18 dBu SNR: -115 dB RMS (20 Hz - 20 kHz) / -118 dB(A) THD+N @ 0 dBFS: -105 dB @ 600 _ |
| Phones Out 2 | 1 x 3.5 mm TRS jack, mono / stereo Output level: max. +12 dBu SNR: -115 dB RMS (20 Hz - 20 kHz) / -118 dB(A) THD+N @ 0 dBFS: -105 dB @ 600 _ |
| USB | 1 x USB socket (Type A) 1 x USB socket (Type C), lockable with top-screw plug for legacy control via globcon bridge |
| GPIO | 2 x GPI (MOSFET switch) 2 x GPO (MOSFET switch) |
| MADI Port SFP | 2 x SFP (empty cage without module) |
| MADI Format (I/O) | 48k Frame, 96k Frame High Speed mode, legacy pattern 56 channel, 57 channel, 64 channel |
MAVEN.A is a smart audio platform with modular IOs and signal processing. Hosted in a compact 1 RU housing it offers a capacity of up to 400 x 402 audio channels and an adaptable feature set to meet the evolving needs of today's audio applications. MAVEN.A is designed to bridge the gap between entry-level and flagship audio systems, sharing the same hardware modules of the PRODIGY Series.
A smart platform features a powerful FPGA plus processor and is able to grow or change depending on the requirements of single applications. Thus a smart platform contributes to DirectOut's philosophy of the Audio Solution Model (ASM). How?
- Populate the mainframe with modules as needed.
- Select the licenses to run the application.
Licenses are available on a granular level to add just the portion that is required now. Choose from the Essential model to take this approach, or the Unlimited model with all optional licenses ready and activated.
Modules - IO
MAVEN.A features one A slot and two C slots:
- A slot - audio network, multi-port MADI or USB - up to 256 channels
- C slot - converter (mic/line, AD/DA) and AES3 - 8 channels per module
Two SFP cages can be fitted with various transceivers to extend the connectivity by two additional MADI ports with 64 channels each of.
Multi Format:
- RAVENNA / AES67
- Dante
- AVB / MILAN
- SoundGrid
- MADI - single-port, multi-port
- Analog
- AES3
- USB
DSP
64 Flex Channels provide signal processing with excellent internal plugins:
- FIR filter with selectable filter types and a custom filter
- IIR filter with six instances of selectable filter types
- Dynamics with four different configurations
- Delay of up to 65535 samples (= 1365 milliseconds @ 48 kHz)
64 x 64 Matrix Mixer to mix 64 freely assignable sources to 64 busses.
64 Summing Busses, each of which can sum any number of signal sources to a single feed.
AutoMix for automated mixing of different audio signals in up to 16 AutoMix groups to increase intelligibility or to reduce noise
DSP licenses are available in packages of smaller units to portion out the total capacity.
Seamless Connecting and Redundancy
Bidirectional sample rate conversion (HD SRC or FastSRC)* connects across clock boundaries. 32 Input Managers each managing the signal automatic switch-over between up to six physical inputs. EARSª (Enhanced Automatic Redundancy Switching) for automatic fail-over switching of an entire input port to a backup port.
Available licenses: FastSRC, Input Managers, EARS
Loudness Metering
Loudness Metering - 8 routable channels loudness metering
Control is key
Globcon control manages all DirectOut devices via network - either on Mac or PC. Local display and operation on a touch display facilitates the overview and grants basic control. Third-party control protocols (Ember+, OSC, SNMP, JSON-API, Lawo HOME) are available as options.
Available licenses: Ember+, SNMP, OSC, Lawo HOME, Automator
* FastSRC operates on the mainframe, HD SRC is available only on corresponding hardware modules (XX.SRC.IO).
| Dimensions | Width 19'' (483 mm) Height 1 RU (44.5 mm) Depth 10'' (254 mm) |
| Weight | about 8 kg |
| Power Consumption | 20 W to 55 W, module dependent |
| Power Supply | 2 x 84 V - 264 V AC / 47 Hz - 63 Hz / Safety class 1 |
| Fuses | 250 V - 4 A (slow-blow) _ 2 fuses per power supply |
| Environmental Conditions | Operating temperature +5ÁC up to +45ÁC Relative humidity: 10% - 80%, non condensing |
| Display | 3.5" Backlight LED LCD, IPS Transmissive Touch display Resolution: 340 x 800 px |
| Control | 1 x Encoder knob with push functionality 2 x Push-Buttons |
| Network | 1 x RJ45 Gigabit Ethernet ´ for managing the device (remote control) |
| Remote Control | globcon software control integrated web server with UI (HTML, JavaScript) Ember+ (license) - MGMT OSC (license) |
| Word Clock | 2 x BNC socket (input / output) |
| Impedance | 75 _ (termination switchable) |
| Word Clock Standard | AES11 (DARS also supported) |
| Sample Rate | 30 - 50 kHz @ 1 FS 60 - 100 kHz @ 2 FS 120 - 200 kHz @ 4 FS |
| Phones Out 1 | 1 x 6.3 mm TRS jack, mono / stereo Output level: max. +18 dBu SNR: -115 dB RMS (20 Hz - 20 kHz) / -118 dB(A) THD+N @ 0 dBFS: -105 dB @ 600 _ |
| Phones Out 2 | 1 x 3.5 mm TRS jack, mono / stereo Output level: max. +12 dBu SNR: -115 dB RMS (20 Hz - 20 kHz) / -118 dB(A) THD+N @ 0 dBFS: -105 dB @ 600 _ |
| USB | 1 x USB socket (Type A) 1 x USB socket (Type C), lockable with top-screw plug for legacy control via globcon bridge |
| GPIO | 2 x GPI (MOSFET switch) 2 x GPO (MOSFET switch) |
| MADI Port SFP | 2 x SFP (empty cage without module) |
| MADI Format (I/O) | 48k Frame, 96k Frame High Speed mode, legacy pattern 56 channel, 57 channel, 64 channel |
